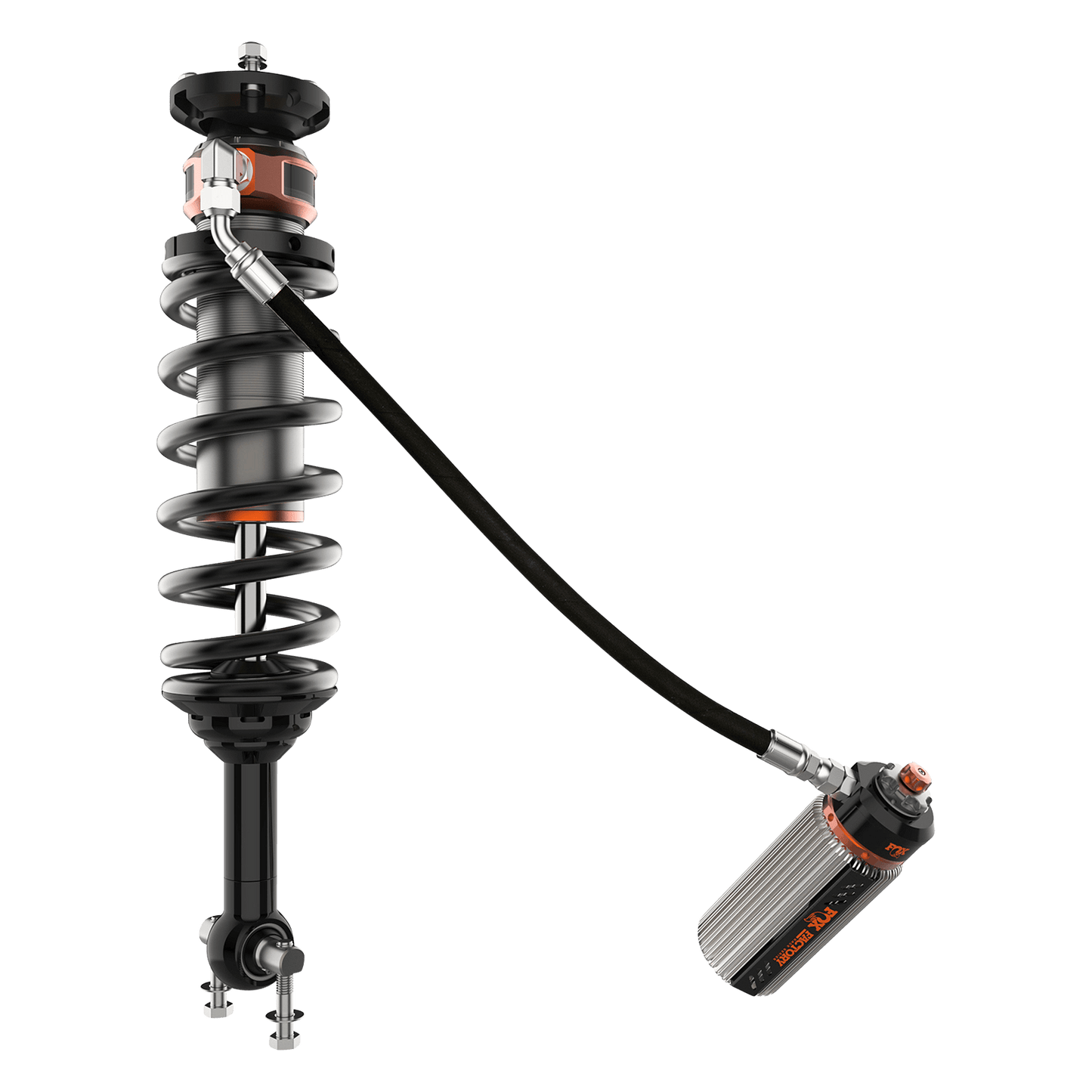

21-23 Ford Bronco No Raptor w/UCA Front Coilover Race 3.0 Remote Reservoir 2/4 Door Base 4-4.5 Inch Lift 2/4 Door Sasquatch 3-3.5 Inch Lift Dual Speed Compression Adjuster Offroad Shocks Fox Factory
FOX Factory Race Series 3.0 Internal Bypass shocks for the Ford Bronco deliver position-sensitive damping technology
Features
- 3.0 Inch impact extruded and CNC machined 6061-T6 hard-anodized aluminum Body
- Patented, internal bypass design
- Application-specific springs
- 7/8 Inch stainless steel Shafts
- Vehicle-specific tuning maximizes performance
- Redundant sealing pack system: main seal, wiper seal, scraper seal
- Finned Reservoir, with DSC adjuster
- Series Factory Race
- Travel 5.42
- Front Lift Height 3-4.5
- Extended Length 23.44
- Compressed Length 17.95
- Top Mount OEM
- Bottom Mount Bar Pin
- Fitment Notes Requires Upper Control Arm, Excludes Raptor submodel
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2021 | Ford | Bronco | First Edition |
| 2021–2023 | Ford | Bronco | — |
| 2021–2025 | Ford | Bronco | Badlands |
| 2021–2025 | Ford | Bronco | Big Bend |
| 2021–2025 | Ford | Bronco | Black Diamond |
| 2021–2025 | Ford | Bronco | Outer Banks |
| 2021–2025 | Ford | Bronco | Wildtrak |
| 2022–2025 | Ford | Bronco | Everglades |
| 2023–2025 | Ford | Bronco | Heritage Edition |
| 2023–2025 | Ford | Bronco | Heritage Limited Edition |
