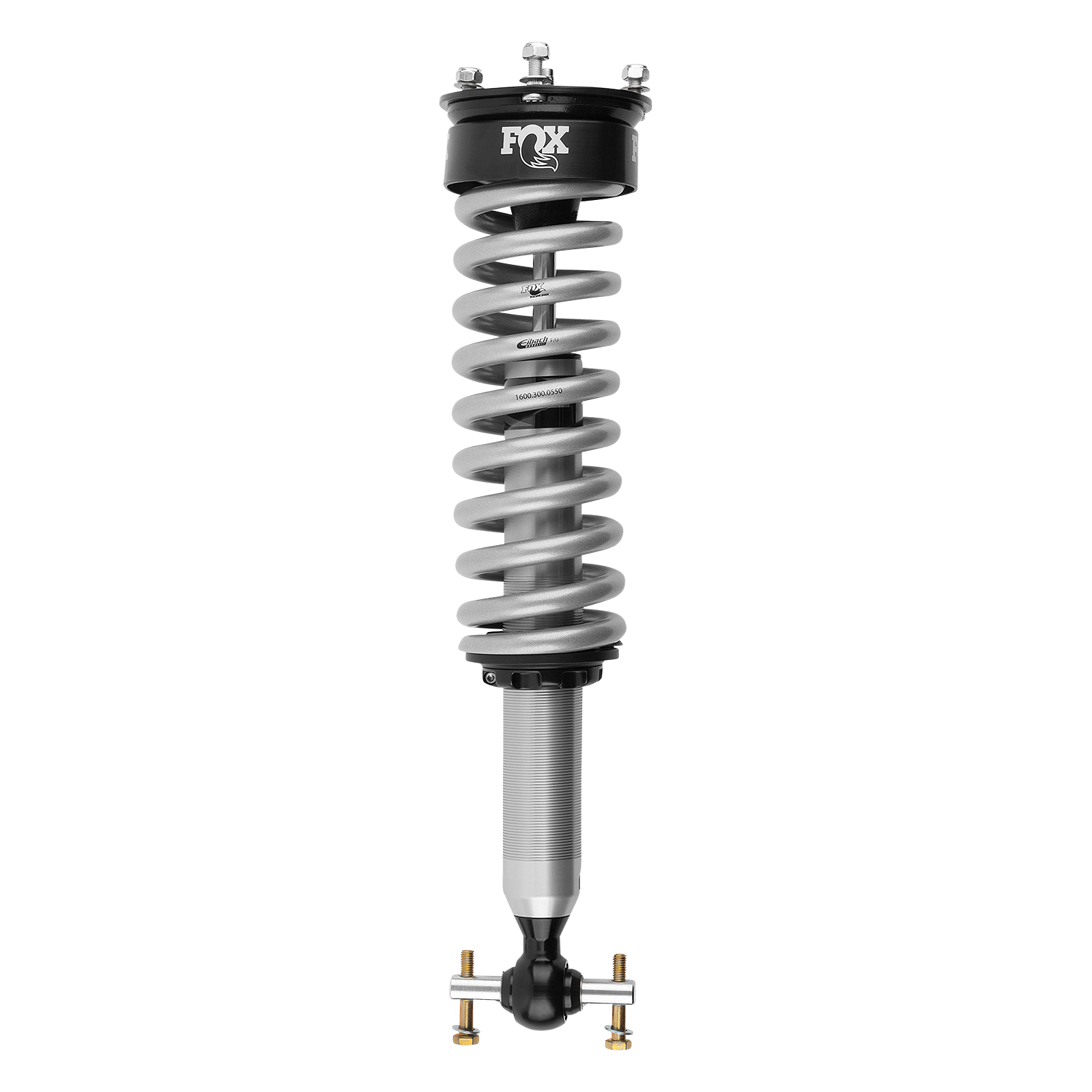

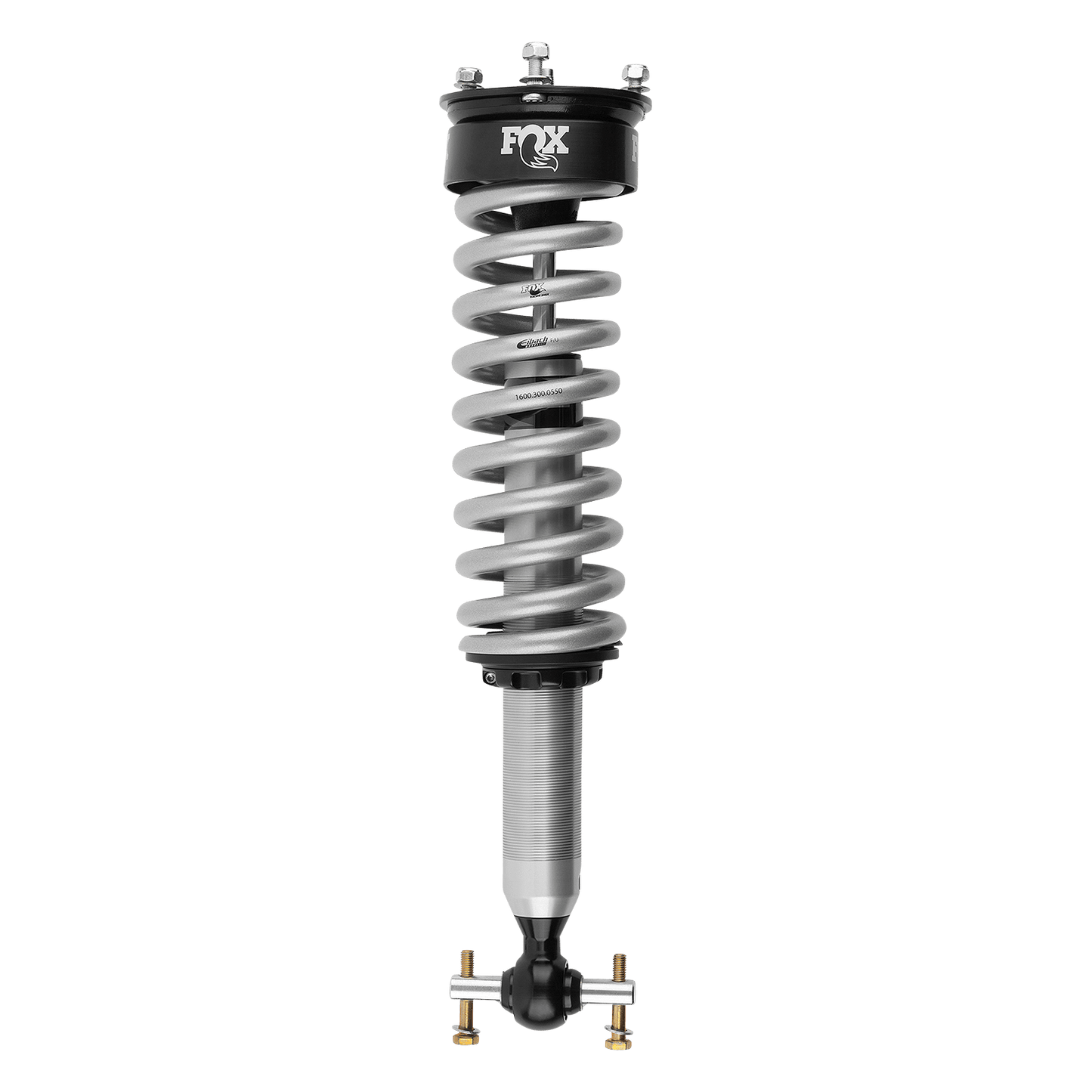

2019-2024 Silverado/Sierra 1500 Front Coilover Performance Series 2.0 Internal Floating Piston NON-TB/NOT-AT4 0-2 Inch Lift TB/AT4 No Lift Offroad Shocks Fox Factory

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of Features that set it apart. The precision, metal impact extruded aluminum Body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear.

Applications are available for stock and lifted trucks that re-use the stock shock.

Inside is an internal Reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision Valving.

The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
Features

• Performance Tuned For Vehicle Specific Application, Aluminum Body Dissipates Heat Faster Than Steel, IFP Separates Oil From High-Pressure Nitrogen Gas, Black Anodized CNC Machined Aluminum Components
• Series Performance
• Travel 4.59
• Front Lift Height 0-2
• Body 2.0 inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece Body resists rust over time
• Body Plating Clear-anodized for a durable finish
• Components Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft 5/8 Inch hard chrome plated heat-treated alloy steel
• Piston Race-developed high-flow Piston design
• Valving Application specific Valving to maximize performance
• Seals Redundant sealing pack system main seal, wiper seal, scraper seal
• Bearings Large diameter, heavy-duty spherical
• Extended Length 20.99
• Compressed Length 16.4
• Top Mount TM
• Bottom Mount Bar Pin
