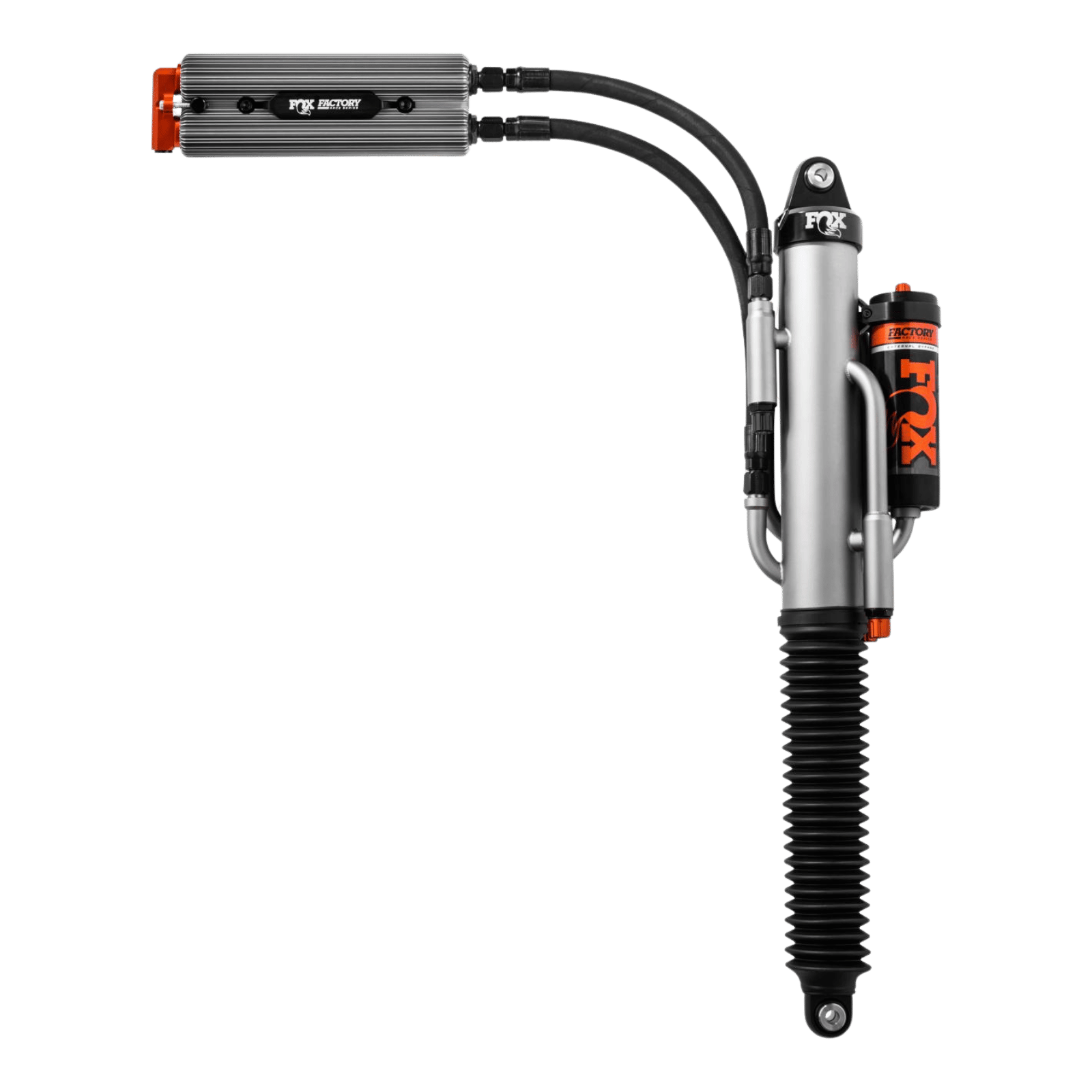

17-Up Ford Raptor Rear External Bypass Race 3.0 Piggback Remote Cooler 12.3 Inch 0-1 Inch Lift Offroad Shocks Fox Factory

Taking inspiration from off-road racing, the Factory Race Series rear upgrade kit for the Gen 2 Raptor utilizes the same technology and parts found on the top race-winning off-road machines, including External Bypass position-sensitive damping, Quick Adjust Bypass (QAB), and an External Cooling System (ECS2).

This kit delivers the next level of off-road performance without sacrificing every day ride quality.
Features

• Performance Tuned For Vehicle Specific Application, Durable Zinc Plated Seamless Alloy Body, Quick Adjust Bypass Knobs For Easy Adjustments, External Reservoir System Dissipates Heat Fast
• Series Factory Race
• Travel 12.27
• Rear Lift Height 0-1
• Body 3.0 Inch steel Body new, proprietary coating for improved durability
• Reservoir NEW, hard anodized impact extruded aluminum finned remote Reservoir with New Recirculating Reservoir Bridge
• Components Hard anodized, CNC-machined 6061-T6 billet aluminum
• Shaft 7/8 Inch 17-4 H900 hard chrome plated stainless steel
• Piston Hard anodized 6061-T6 billet aluminum high flow race Piston
• Valving Specific for Gen 2 Raptor to maximize performance and comfort
• Extended Length 31.15
• Compressed Length 18.88
• Top Mount Eyelet
• Bottom Mount Eyelet
