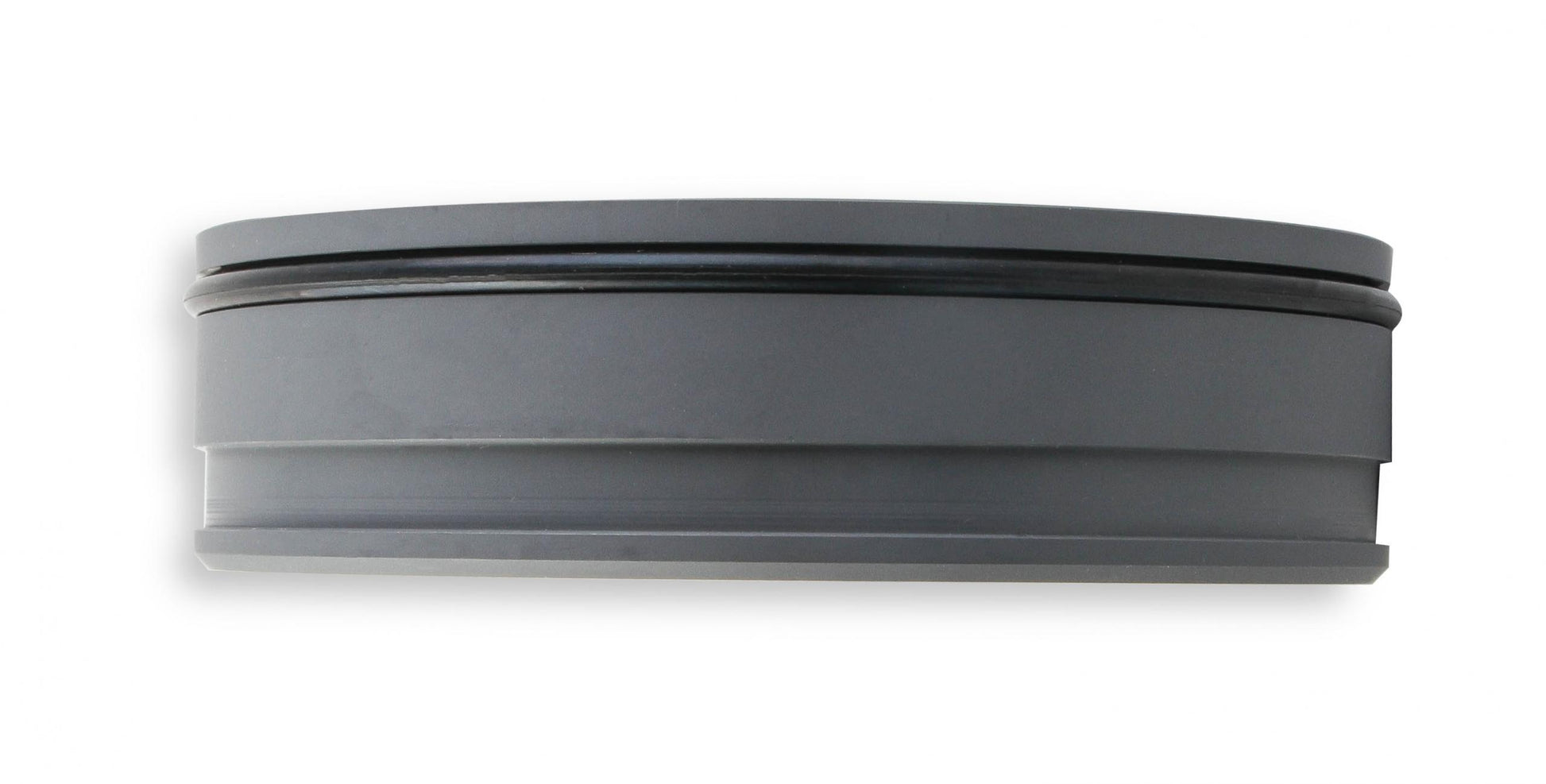

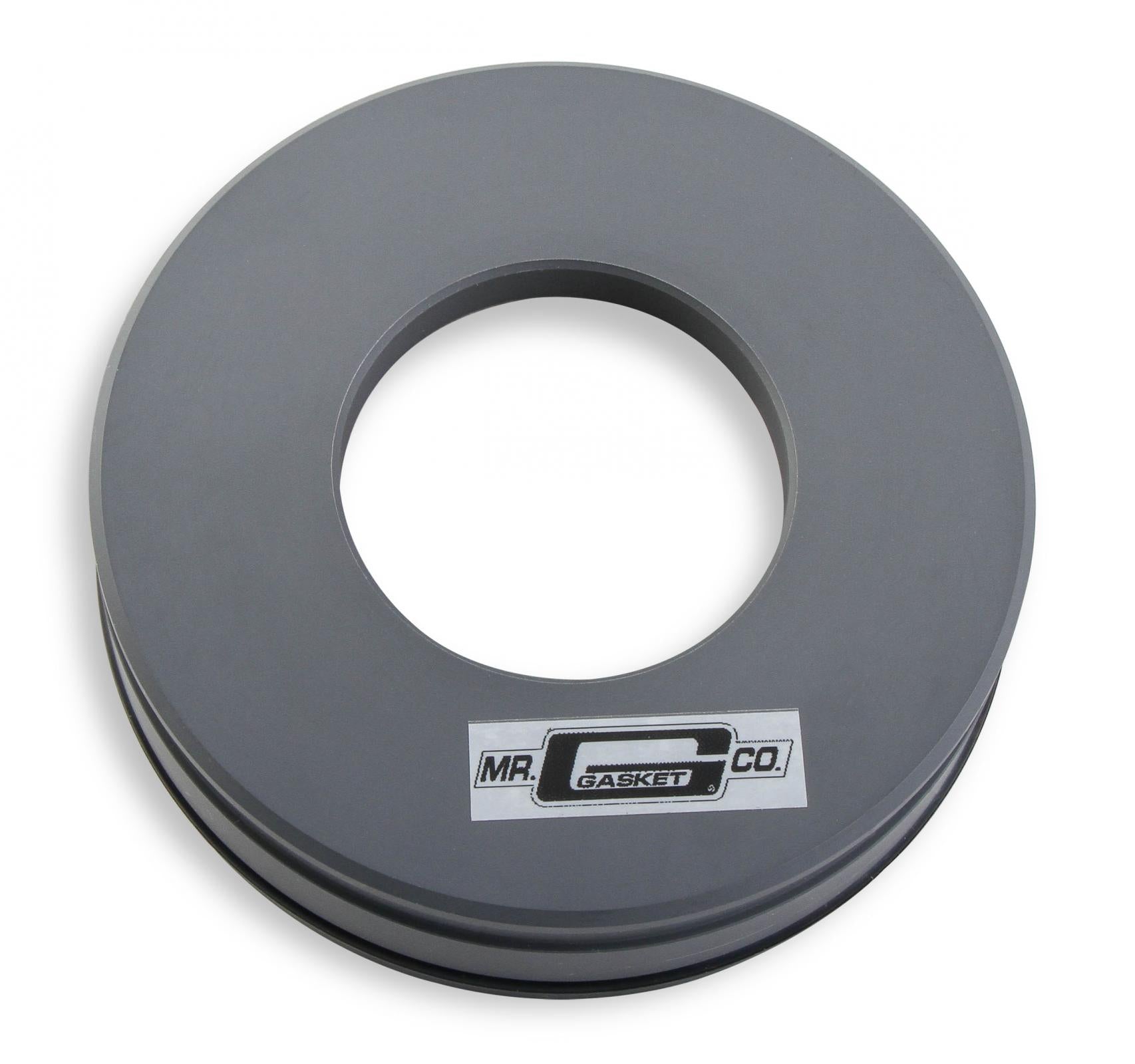

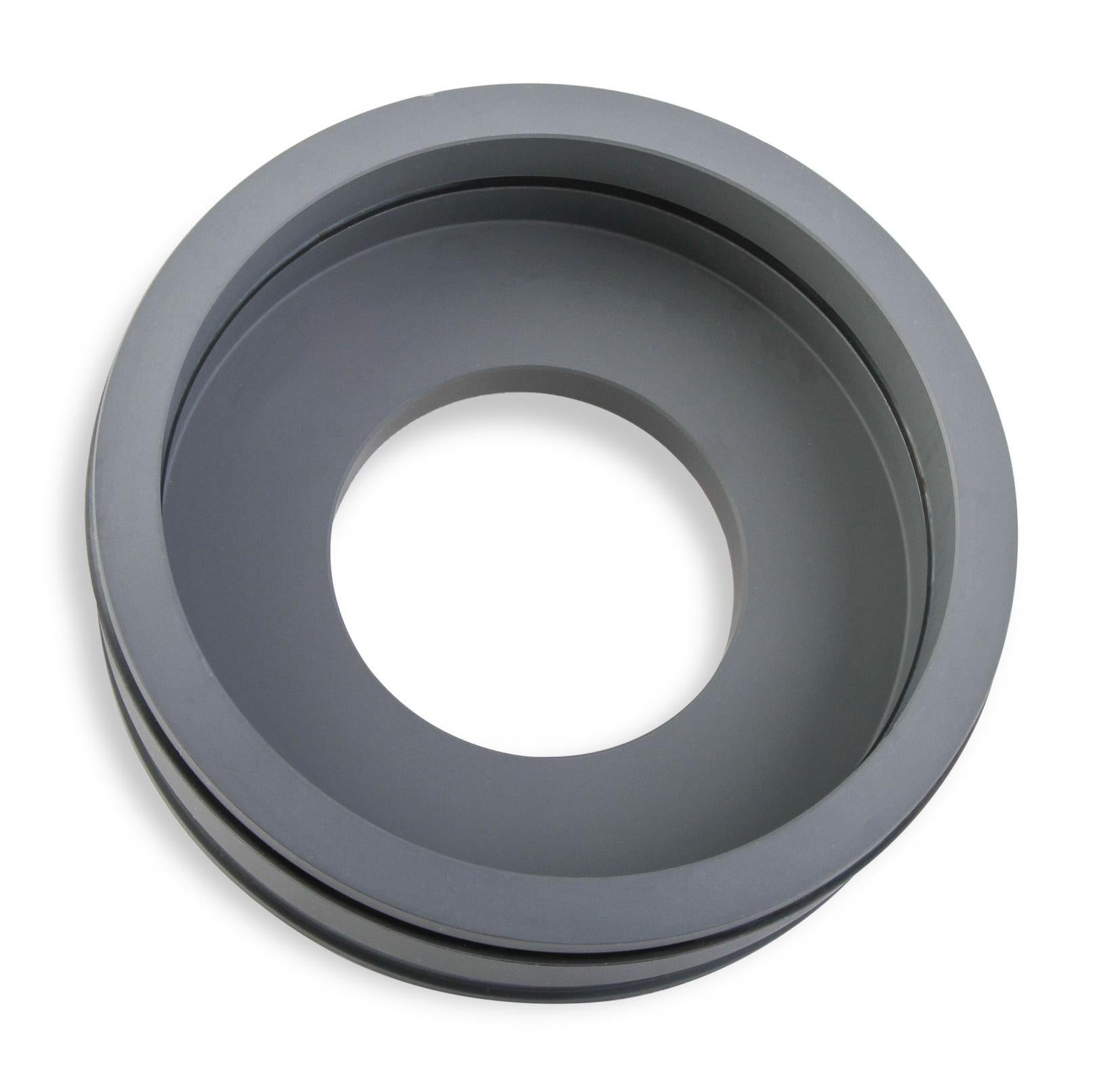

GM LS Rear Cover Alignment Tool Fits GM LS Engines with Seal in Rear Cover Mr Gasket
The timing cover and rear cover on GM (General Motors) LS series engines don't have any dowel pins to ensure correct alignment to the centerline of the crankshaft and this often leads to annoying leaks at the front damper seal and rear main seal. These special alignment tools center the front or rear cover when it is installed, and allow an easy way to install the seal by lightly tapping on the tool with rubber mallet.
Choose from three styles of these alignment tools. Plastic construction with O-rings.
Made in the USA.
- Rear Cover Alignment Tool - Use w/o Seal in Rear Cover
- Centers Cover on the Crankshaft to Avoid Seal Leaks
- Tool Can Also Be Used to Install Seal - LSTC1 or LSRC1 (Lightly Tap on Tool to Push Seal w/ Rubber Mallet)
- Plastic Construction w/ O-rings
- Made in the USA
Details:
- Emission Code: 5
- Warranty: Manufacturer's Limited 90 Day Warranty
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1997–2013 | Chevrolet | Corvette | — |
| 1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 1998–2002 | Pontiac | Firebird | Trans Am |
| 1998–2002 | Chevrolet | Camaro | Z28 SS |
| 1998–2002 | Chevrolet | Camaro | Z28 |
| 1998–2002 | Pontiac | Firebird | Formula |
| 1999 | GMC | C1500 Suburban | SLE |
| 1999 | GMC | K1500 Suburban | SLE |
| 1999 | GMC | K2500 Suburban | SLE |
| 1999 | GMC | K1500 Suburban | SLT |
| 1999 | Chevrolet | C35 | Cheyenne |
| 1999 | GMC | C1500 Suburban | SLT |
| 1999 | GMC | K2500 Suburban | SLT |
| 1999 | Chevrolet | C1500 Suburban | LT |
| 1999 | GMC | C2500 Suburban | SLE |
| 1999 | Chevrolet | K1500 Suburban | LS |
| 1999 | Chevrolet | C1500 Suburban | LS |
| 1999 | Chevrolet | K2500 Suburban | LS |
| 1999 | Chevrolet | K1500 | LS |
| 1999 | Chevrolet | C1500 | LS |
| 1999 | Chevrolet | C2500 Suburban | LS |
| 1999 | GMC | C2500 Suburban | SLT |
| 1999 | Chevrolet | K1500 Suburban | LT |
| 1999 | Chevrolet | C2500 Suburban | — |
| 1999–2000 | Chevrolet | C35 | Custom |
| 1999–2000 | GMC | Savana 3500 | SLE |
| 1999–2000 | GMC | Savana 1500 | SLE |
| 1999–2000 | Chevrolet | C3500 | LS |
| 1999–2000 | Chevrolet | K3500 | LS |
| 1999–2000 | GMC | Savana 2500 | SLE |
| 1999–2000 | Chevrolet | K2500 | LS |
| 1999–2000 | Chevrolet | C35 | Heavy Duty |
| 1999–2004 | Chevrolet | Silverado 2500 | LT |
| 1999–2004 | Chevrolet | Silverado 2500 | LS |
| 1999–2004 | GMC | Sierra 2500 | SLE |
| 1999–2004 | GMC | Sierra 2500 | SLT |
| 1999–2006 | Chevrolet | Silverado 1500 | LS |
| 1999–2013 | GMC | Sierra 1500 | SLE |
| 1999–2013 | Chevrolet | Silverado 1500 | LT |
| 1999–2013 | GMC | Yukon | Denali |
| 1999–2013 | Chevrolet | Tahoe | LT |
| 1999–2013 | Chevrolet | Suburban 1500 | LT |
| 1999–2013 | GMC | Sierra 1500 | SLT |
| 1999–2013 | GMC | Yukon | SLT |
| 1999–2013 | GMC | Yukon | SLE |
| 1999–2013 | Chevrolet | Express 1500 | LS |
| 1999–2013 | Chevrolet | Express 3500 | LS |
| 1999–2013 | Chevrolet | Express 2500 | LS |
| 1999–2013 | Chevrolet | Tahoe | LS |
| 1999–2013 | Chevrolet | Suburban 1500 | LS |
| 2007 | GMC | Sierra 2500 HD Classic | WT |
| 2007 | Chevrolet | Silverado 1500 Classic | Hybrid |
| 2007 | GMC | Sierra 1500 Classic | Hybrid |
| 2007 | Chevrolet | Silverado 3500 Classic | LS |
| 2007 | Chevrolet | Silverado 1500 Classic | LS |
| 2007 | GMC | Sierra 3500 Classic | SL |
| 2007–2013 | Chevrolet | Tahoe | LTZ |
| 2007–2013 | GMC | Savana 2500 | LS |
| 2008 | Chevrolet | Corvette | 427 Limited Edition Z06 |
| 2008 | Chevrolet | Trailblazer | — |
| 2008–2009 | Chevrolet | Tahoe | Z71 |
| 2008–2013 | Chevrolet | Silverado 1500 | LS |
| 2008–2013 | Chevrolet | Tahoe | Hybrid |
| 2008–2013 | GMC | Sierra 1500 | SL |
| 2008–2013 | GMC | Yukon | Hybrid |
| 2009–2010 | GMC | Savana 1500 | SLE |
| 2009–2010 | GMC | Savana 2500 | SL |
| 2009–2010 | GMC | Savana 3500 | SL |
| 2009–2010 | GMC | Savana 1500 | SL |
| 2009–2010 | GMC | Savana 2500 | SLE |
| 2009–2010 | GMC | Savana 3500 | SLE |
| 2009–2012 | GMC | Canyon | SLT |
| 2009–2012 | GMC | Canyon | SLE |
| 2009–2012 | Chevrolet | Colorado | LT |
| 2009–2013 | Chevrolet | Corvette | ZR1 |
| 2009–2013 | GMC | Sierra 1500 | Hybrid |
| 2009–2013 | Chevrolet | Silverado 1500 | Hybrid |
| 2010–2013 | Chevrolet | Corvette | Grand Sport |
| 2010–2013 | GMC | Sierra 1500 | XFE |
| 2010–2013 | Chevrolet | Silverado 1500 | XFE |
| 2010–2013 | GMC | Yukon | Denali Hybrid |
| 2010–2015 | Chevrolet | Camaro | SS |
| 2011 | Chevrolet | Corvette | Z06 Carbon |
| 2011–2012 | GMC | Yukon | — |
| 2011–2012 | Chevrolet | Tahoe | — |
| 2011–2012 | Chevrolet | Camaro | 2SS |
| 2011–2012 | Chevrolet | Camaro | 1SS |
| 2011–2013 | GMC | Sierra 3500 HD | Denali |
| 2011–2013 | GMC | Sierra 2500 HD | Denali |
| 2011–2013 | GMC | Sierra | Denali |
| 2011–2013 | Chevrolet | Caprice | PPV |
| 2012–2013 | Chevrolet | Tahoe | PPV |
| 2012–2013 | GMC | Savana 2500 | SL |
| 2012–2013 | GMC | Savana 3500 | SL |
| 2012–2013 | GMC | Savana 1500 | SL |
| 2012–2013 | GMC | Savana 1500 | SLE |
| 2012–2013 | GMC | Savana 2500 | SLE |
| 2012–2013 | Chevrolet | Tahoe | SSV |
| 2012–2013 | GMC | Savana 3500 | SLE |
| 2012–2015 | Chevrolet | Camaro | ZL1 |
