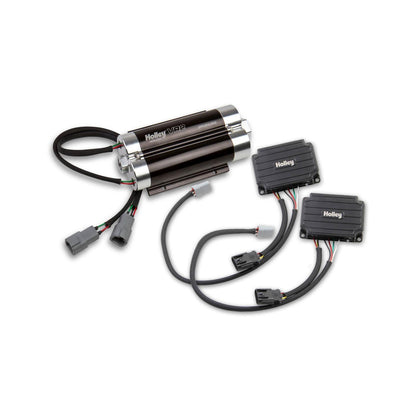

VR2 Brushless Fuel Pump W/controller-Dual 10AN Inlet Street/strip CARB or EFI Applications Supports Up to 4400 EFI or 4800 CARB HP Compatible with Pump Gas, Race Gas, Methanol and E85 Holley

Holley set the bar in 2011 with the release of the HP and Dominator in-line fuel pumps. In 2015, Holley has raised the bar again with the introduction of the VR1 and VR2 Brushless in-line fuel pumps.

Featuring brushless pump technology and a twin screw rotor design, the VR1 and VR2 inch-line fuel pumps are capable of high pressures and flows while maintaining a low amperage draw and quiet performance. Designed to work on high boosted race cars as well as your daily driven weekend endurance car, these pumps work with gasoline, methanol, and E-85 and can maintain pressures of 130 PSI and up to 335 Gph flow.

Fueled by Ti Automotive. The pumps include a 2 step controller for pump speed control.

The pumps can be ran in one of two different speeds. A low speed control for low fuel consumption requirements or at full speed for high fuel consumption requirements.

The VR2 includes (2) controllers for precise control of both pumps independently of each other. Both the VR1 and VR2 pumps are proven for 18.5V compatibility.

At 13.8V Overall pump dimensions: 9.5 inch Long; 4.75 inch Wide; 2.75 inch Tall

Features and Benefits:

• Capable of 130 PSI while providing significant flow forced induction applaications where belt driven pumps are normally used
• Unlike other pumps, the Vr Series are built for continuous duty if needed
• The dual pump models are designed for endurance racing where both pumps are used or one can be a reserve pump
• Billet aluminum construction for durability and good looks Features a dual 10 An O-ring inlet and a single 10 An O-ring outlet High flow and high pressure with low amperage draw Can be fully submerged in the fuel cell or chassis mounted Maximum amp draw of 38 AMPS for the VR2 Holley also offers a complete line of fuel filters and fuel pressure regulators that are designed to work as a system with these pumps

Associated Comments:

• Compatible for methanol and E85 for competitive drag race use only- when draining and flushing after each race event These pumps are not for use on aircrafts of any type. Overall pump dimensions: 9.5 inch Long; 4.75 inch Wide; 2.75 inch Tall These pumps do not have an internal bypass.
• A bypass style regulator and return line are required. HP estimates are based on gasoline.
• Estimates calculated at 18.5V and at .5 Bsfc Na and .65 Bsfc Fi. Individual systems will vary based on fuel system design, regulator type, fuel cell location, launch G's, etc.
• Proper fuel system engineering is critical for maximum performance. This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump.
• Example: Part # AT981510ERL. Use of this style fitting will block flow and Will lead to poor performance and pump failure.
• The Only correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985010ERL.

Details:

• Application: Universal
• Free Flow Gph: 335 at 13.8 Volts
• Free Flow Lph: 1250
• Fuel Type: E85 | Gasoline | Methanol
• Fuel Delivery Type: Carburetor | Fuel Injection
• Fuel Sending Unit Included: No
• Fuel System: Carbureted | EFI
• Gasket Or Seal Included: No
• Grade Type: Performance
• Inlet Fitting Thread Size: 7/8-14 Inch
• Inlet Qty: 2.0
• Inlet Size: 10 An O-ring
• Inlet Type: 10 An Orb
• Internal Or External: Internal External
• Material: Aluminum
• Maximum Amperage Draw: 38 Ampere
• Maximum Flow Rating: 335 U.S. Gallons per hour
• Maximum Pressure: 130 Pounds per Square Inch
• Mounting Hardware Included: No
• Negative Ground: Yes
• Outlet Quantity: 1
• Outlet Size: 10 An O-ring
• Outlet Type: 10 An Orb
• Pump Body Color: Black
• Regulator Included: No
• Strainer Included: No
• Universal Or Specific Fit: Universal
• Voltage: 12-18.5 Volts DC
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wiring Harness Included: Yes
