Universal High Volume Fuel Filter Element 7 Micron Filter AEM Electronics

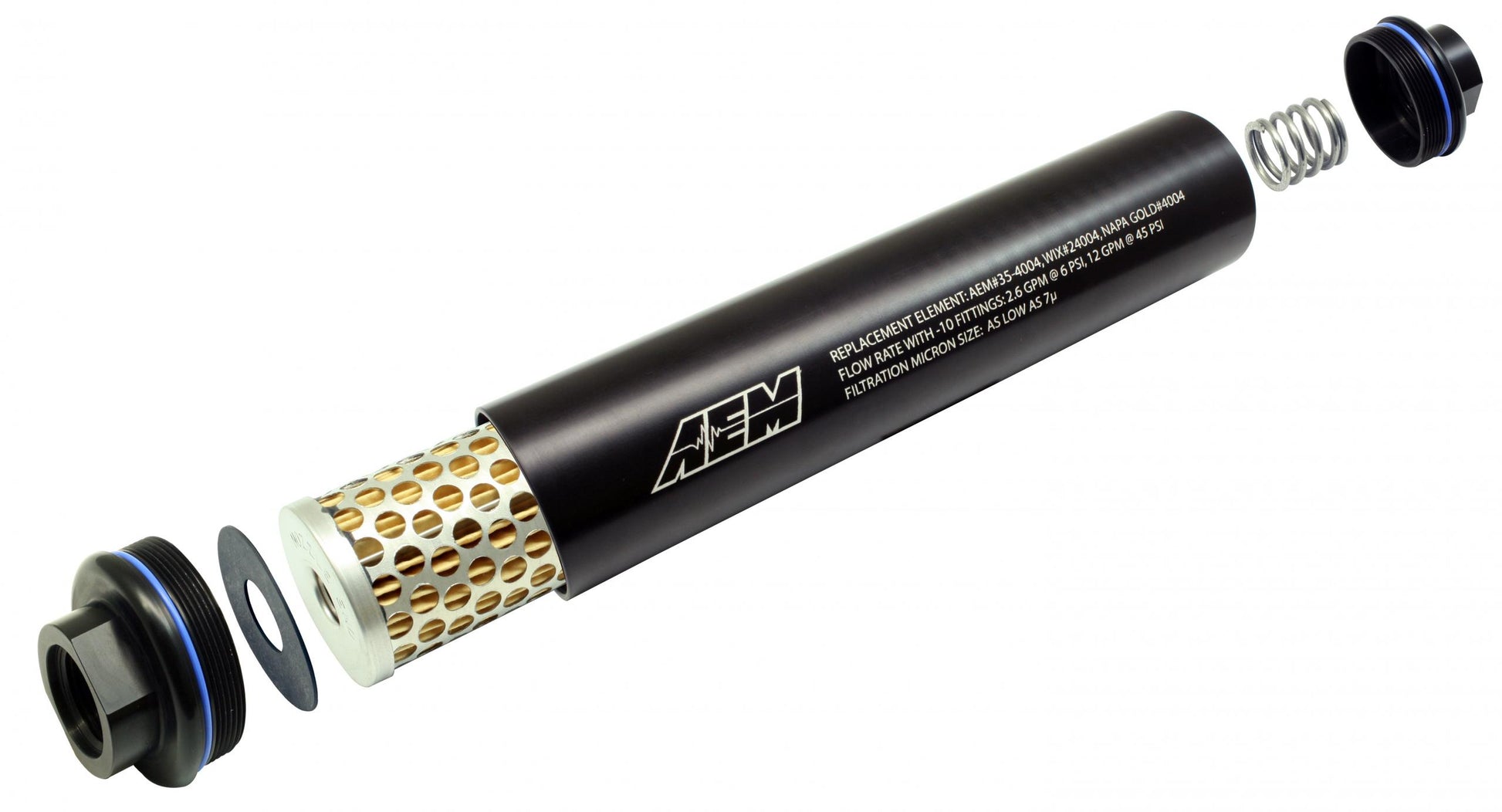

AEM's Universal High Flow -10 AN Inline Filter is specifically engineered for maximizing flow without sacrificing filtration, and is designed for ease of installation.

The end caps are machined with -10AN female fittings that allow the filter to flow up to 12.32 gpm at 45 PSI and 2.63 gpm at 6 PSI.

Machined O-ring receiver grooves on the end caps ensure against leaks, and all sealing o-rings and gaskets are made of Viton for outstanding performance when using gasoline, alcohol or gasoline/alcohol blended fuels.

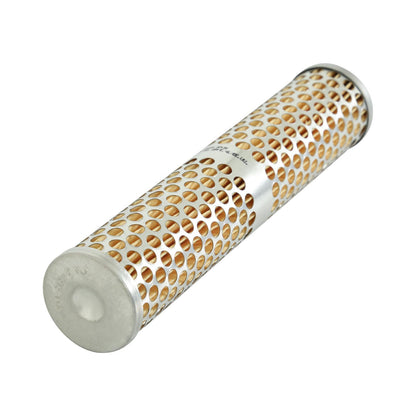

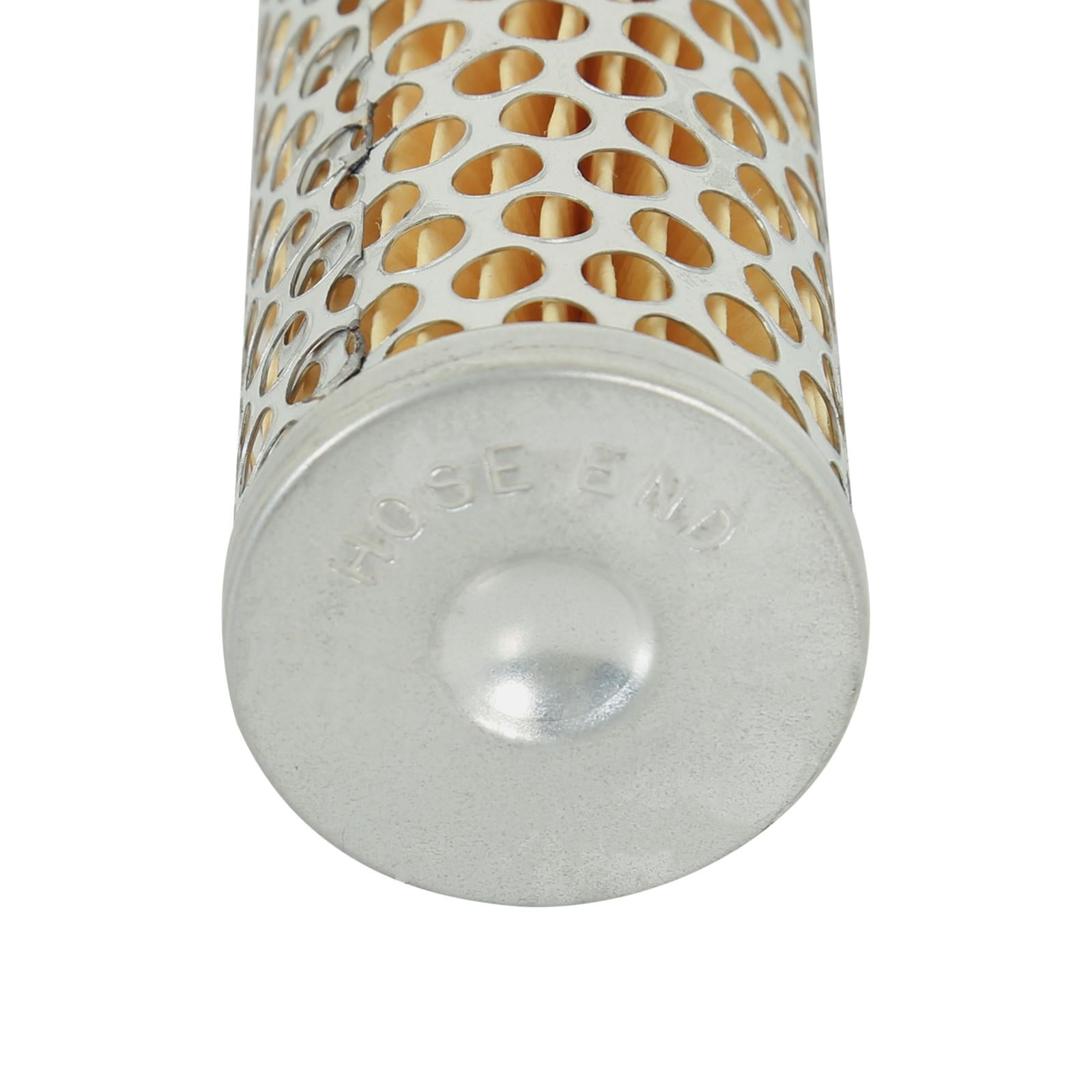

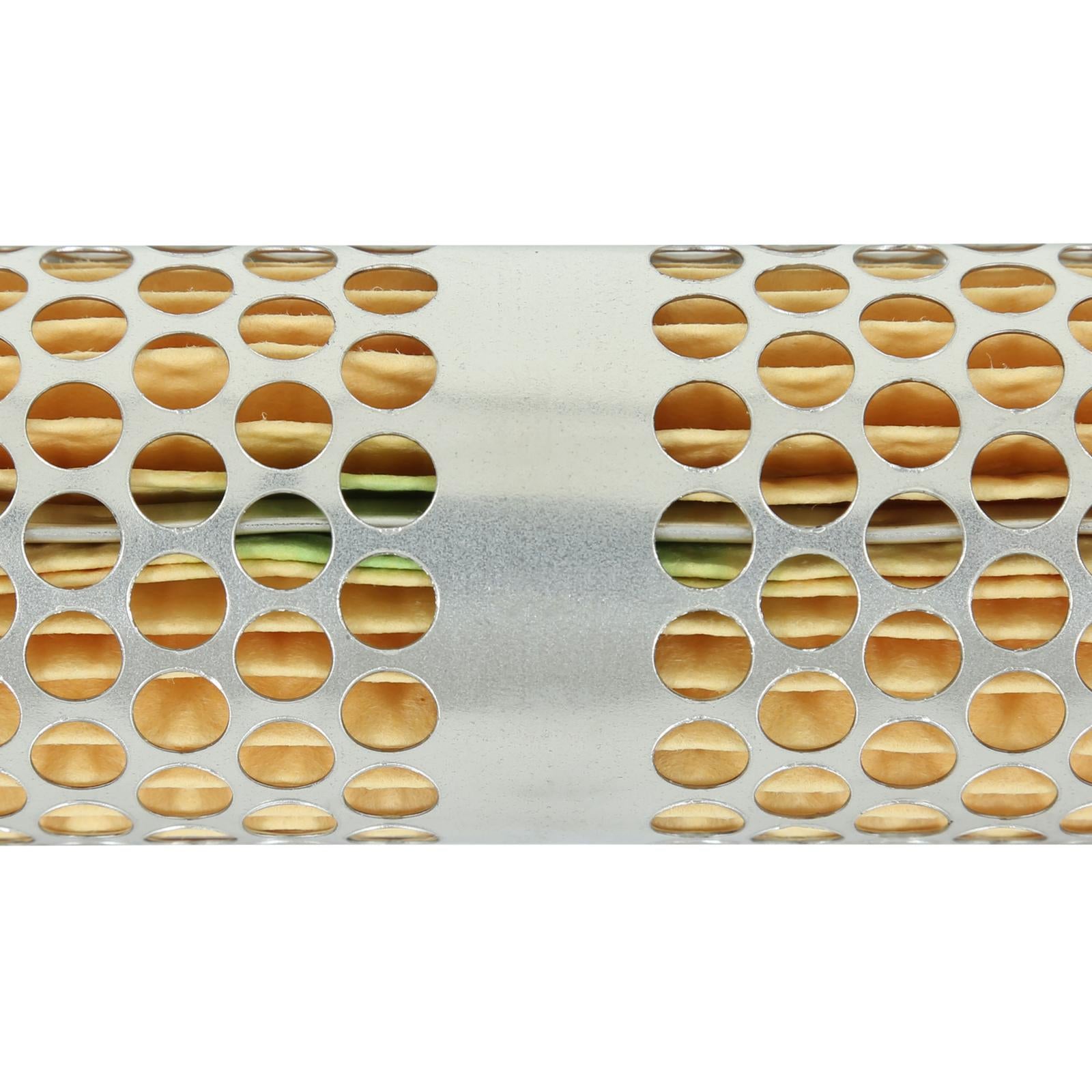

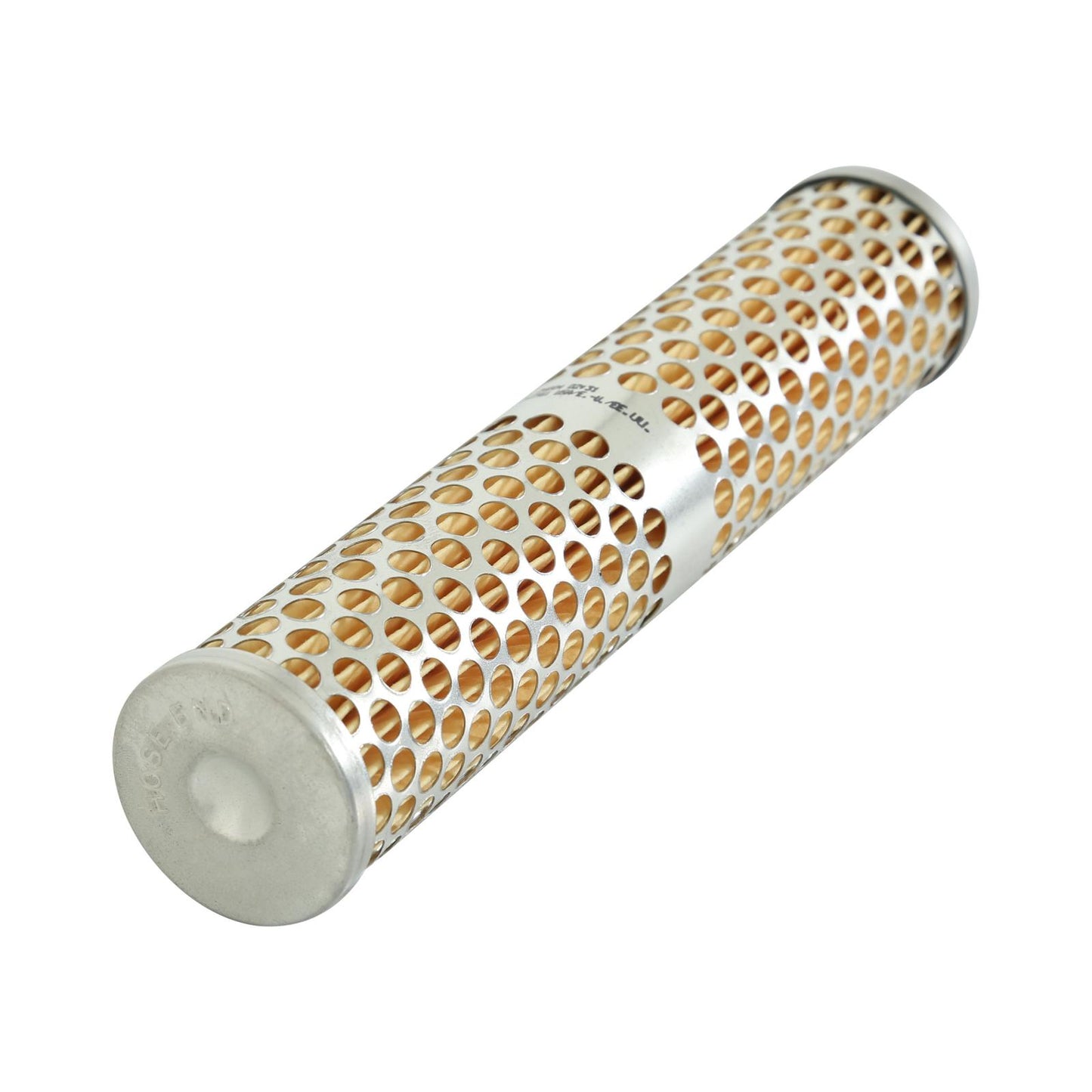

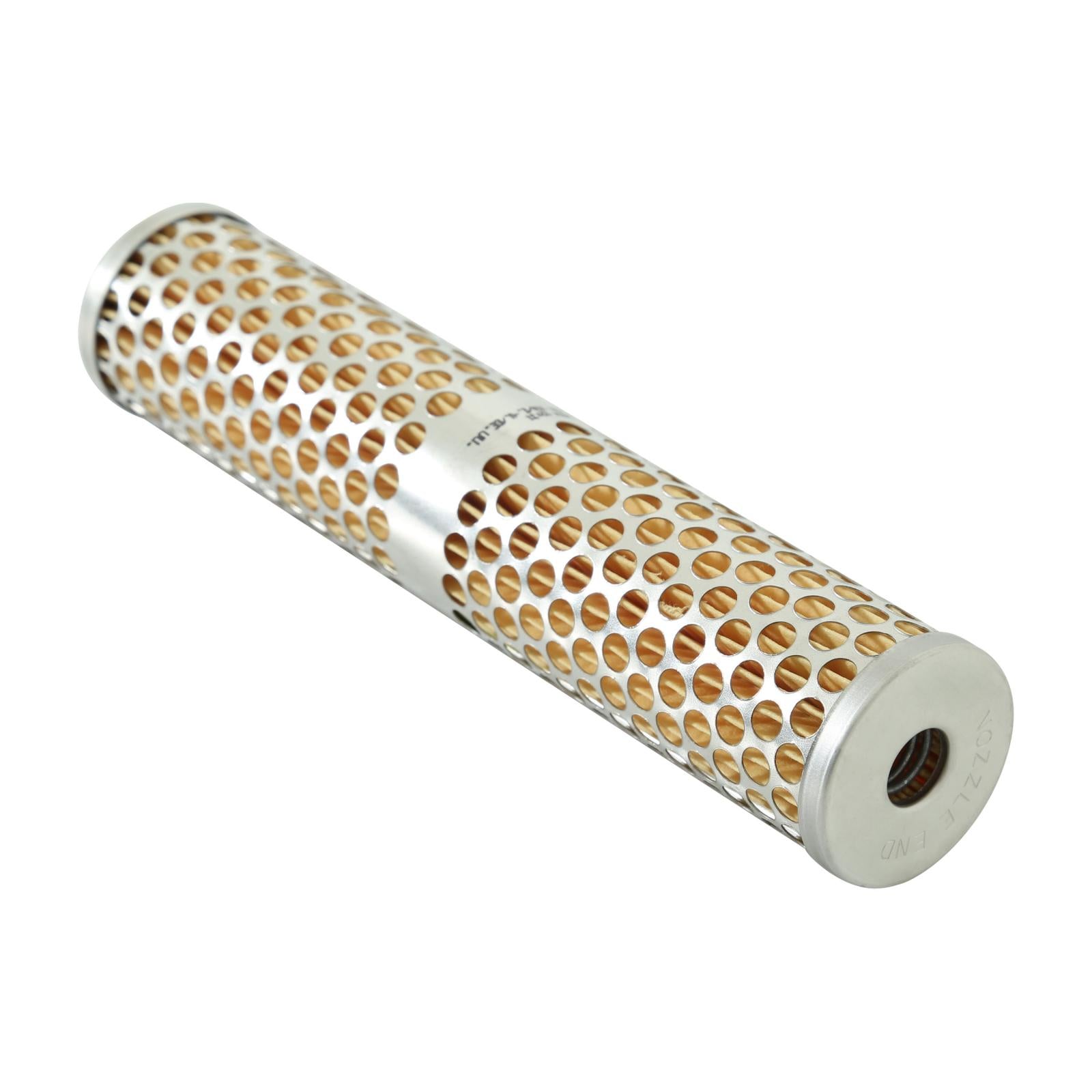

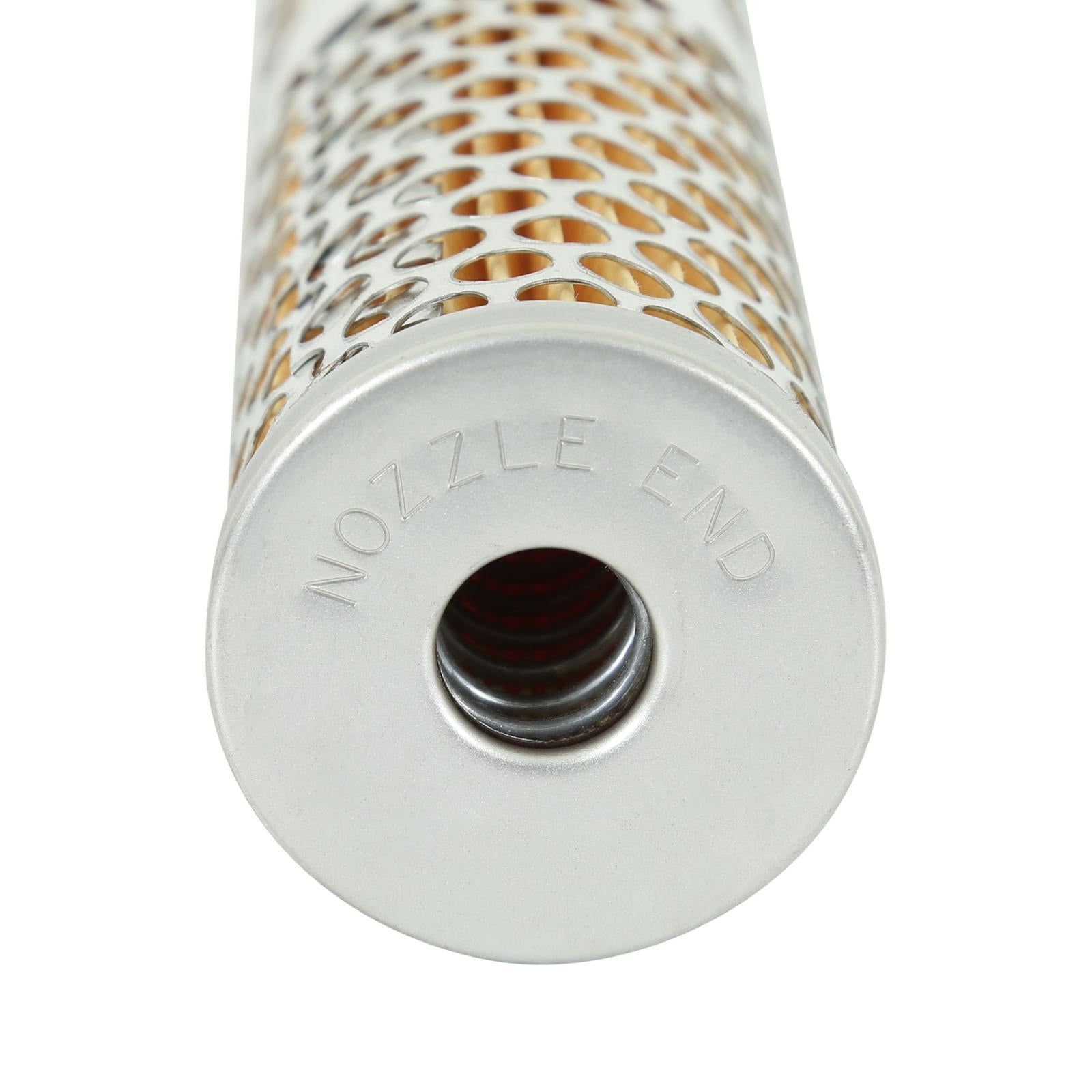

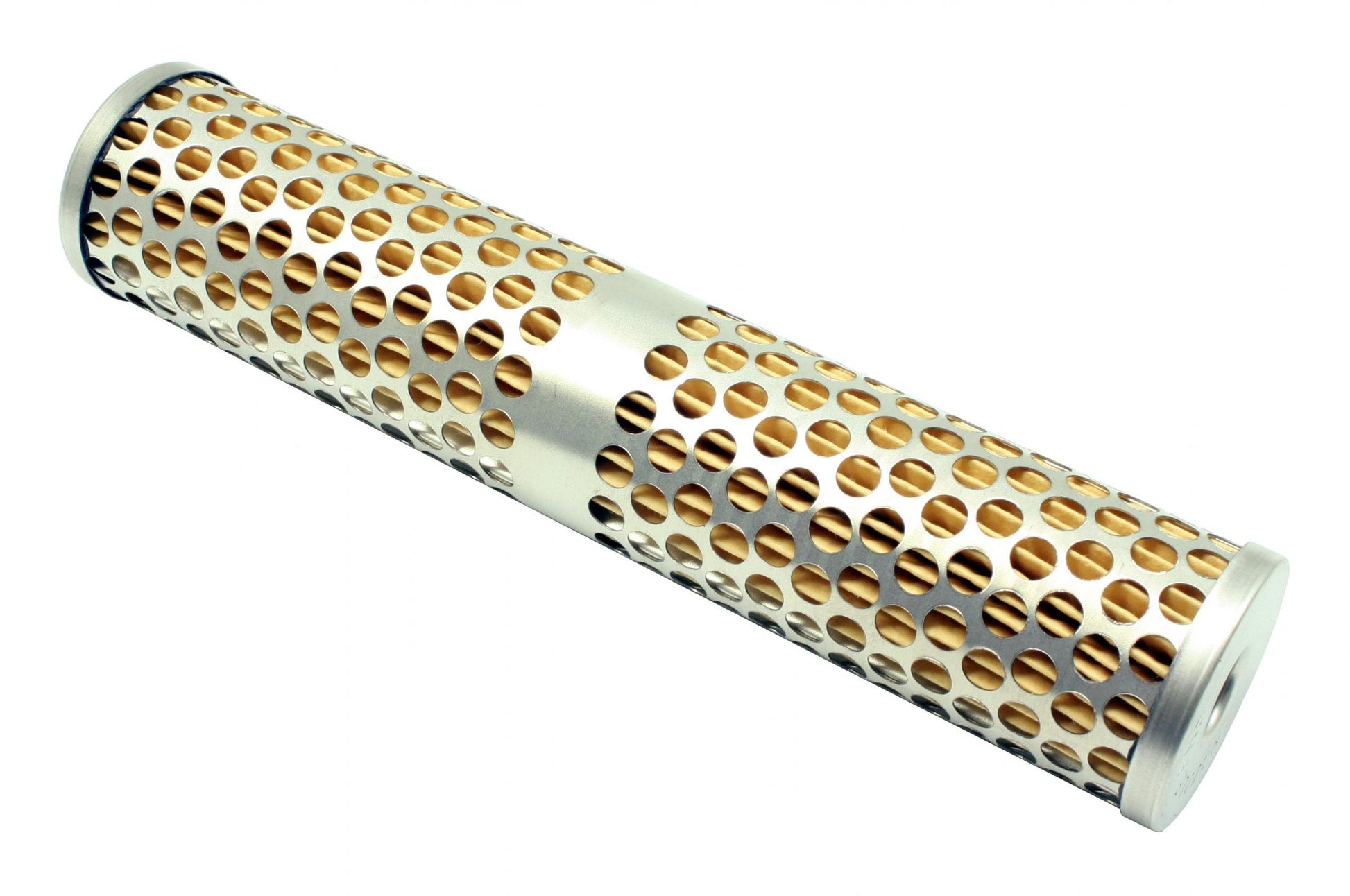

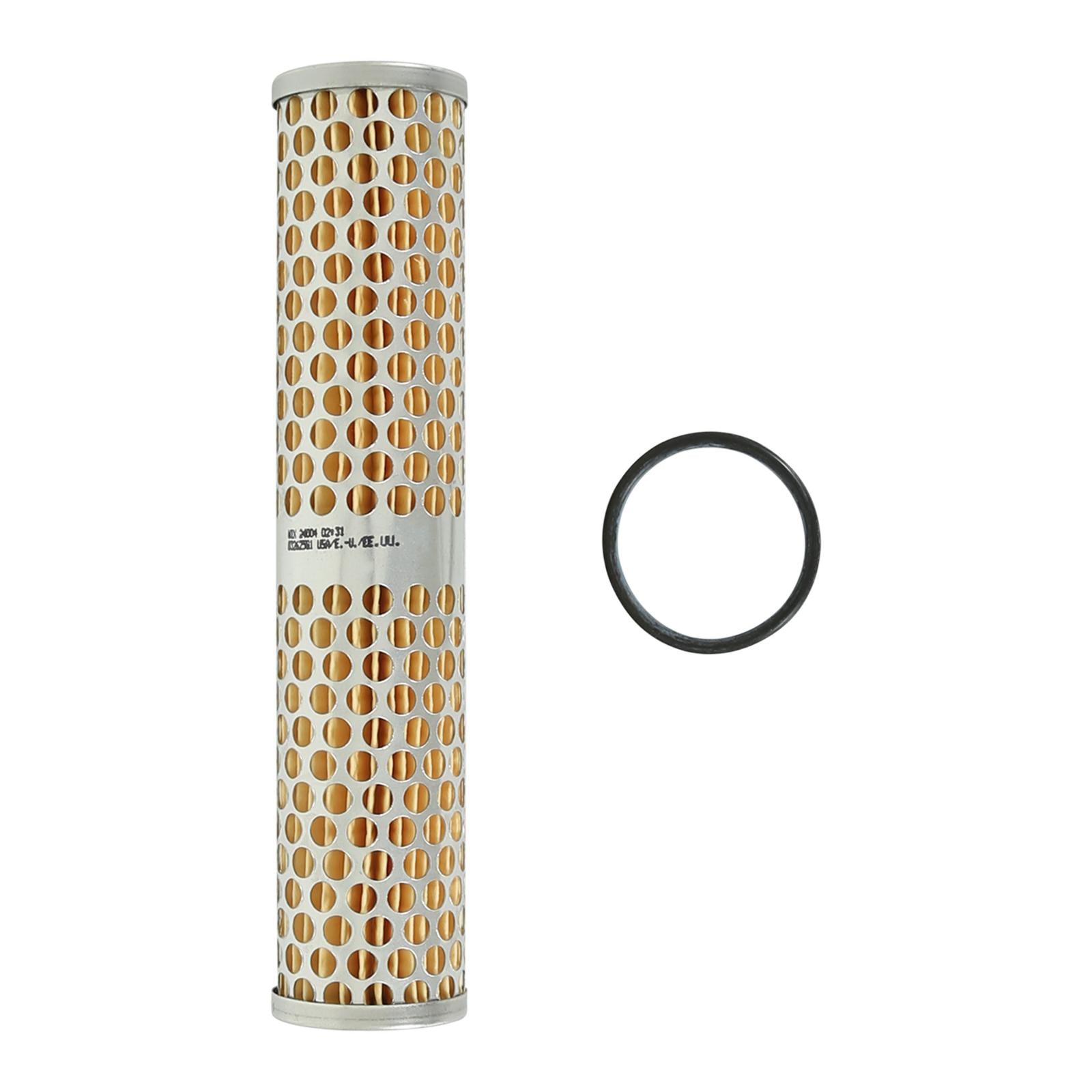

The commonly available replacement filter cartridges filter particles as small as 7 microns.

The filter's standard 2 inch OD allows for easy mounting virtually anywhere in the vehicle for easy access.

• Flows up to 12.32 gpm at 45 PSI and 2.63 gpm at 6 PSI
• Filters particles as small as 7 microns
• Machined from 6061-T6 aluminum with a black hard anodized finish
• Viton o-rings and gaskets ensure outstanding performance when using gasoline, alcohol or gasoline/alcohol blended fuels
• End caps are machined with -10 AN female fittings with o-ring receiver groove
• End caps have pressure intensifiers for greater sealing of end gaskets
• 2 inch OD x 10 inch length for easy mounting
• Commonly available replacement filter cartridges
• Laser etched with AEM logo, flow and comes with filter replacement information

Details:

• Brand: AEM
• Color: Black Anodized
• Material: Aluminum
• Fuel type: Gasoline, Diesel, E85
• Length: 10 inch
• Diameter: 2.00 inch
• Inlet Size: 10 AN O-ring
• Outlet Size: 10 AN O-ring
• Warranty: Manufacturer's 1 Year Warranty
