Universal Fuel Tank System 255 LPH Universal Steel Gas Tank Kit With 73-10 Ohm Ford Sender Holley Sniper EFI

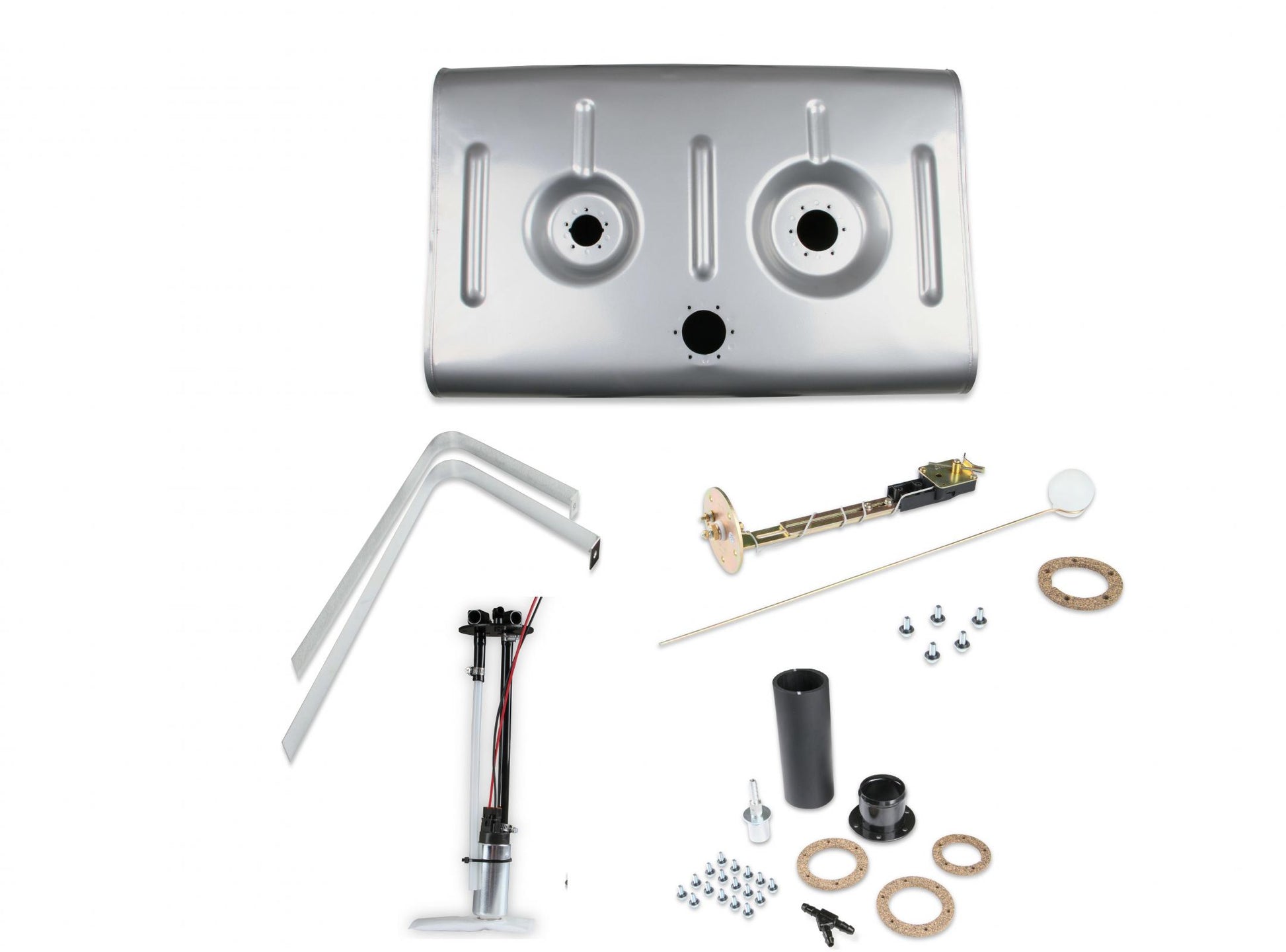

Holley and Sniper will help you to complete your EFI swap with our New EFI Conversion Fuel Tanks. The kit includes the tank, a 255 lph fuel pump, internal baffling, a fuel level sender, and the filler neck.

The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project!

• Supports up to 550 EFI (at 60 PSI at 13.5 Volts / 10.4 AMP Draw).
• Size: 27-3/4 inch x 17-3/4 inch x 8-1/2 inch.

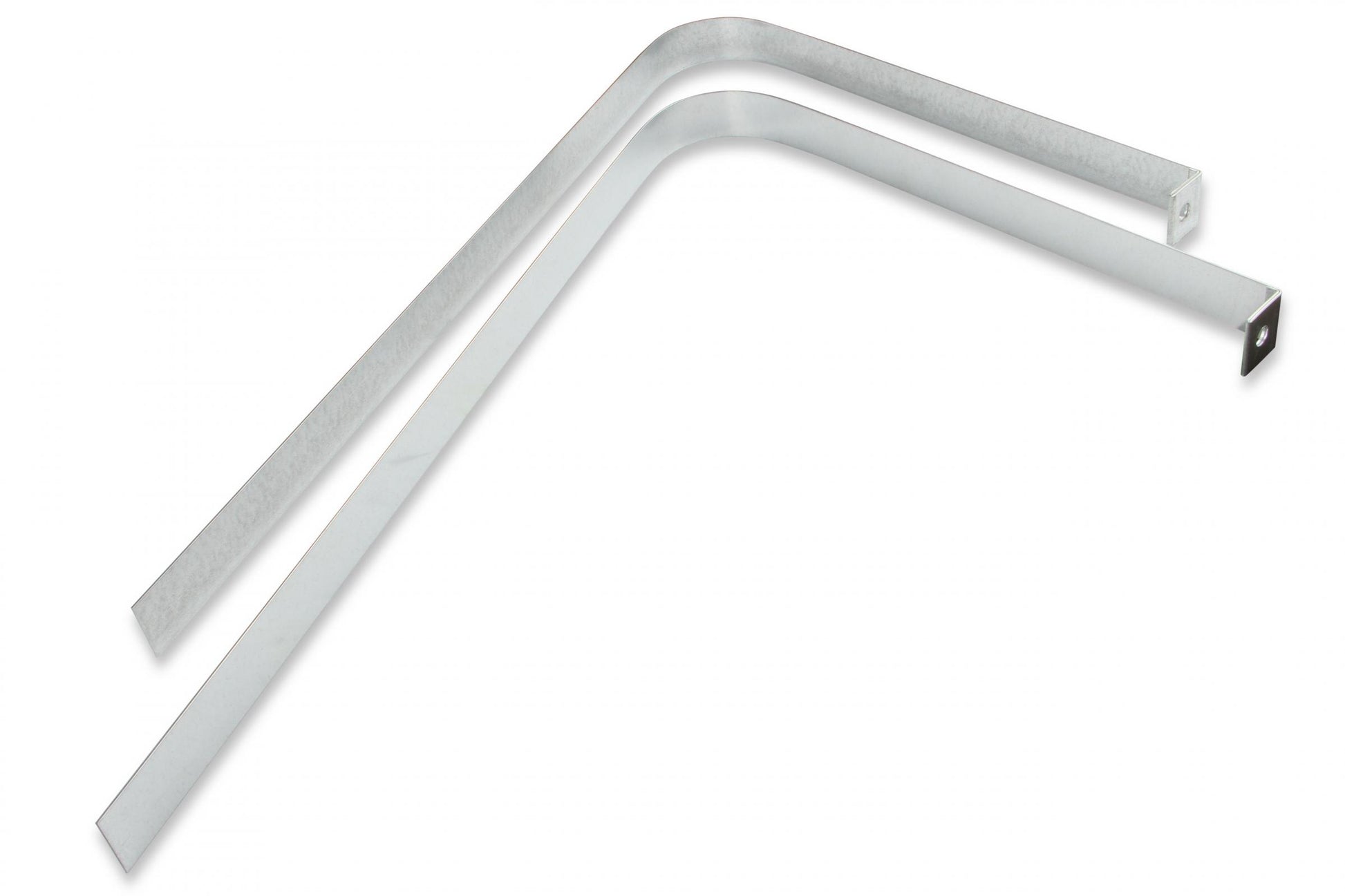

• Two straps 42 inch long by 1 3/8 inch wide.
• No gas cap included, 19-166 and 19-167 Filler Necks with Gas Cap options.
• These universal tanks are perfect for your next classic truck EFI conversion project.

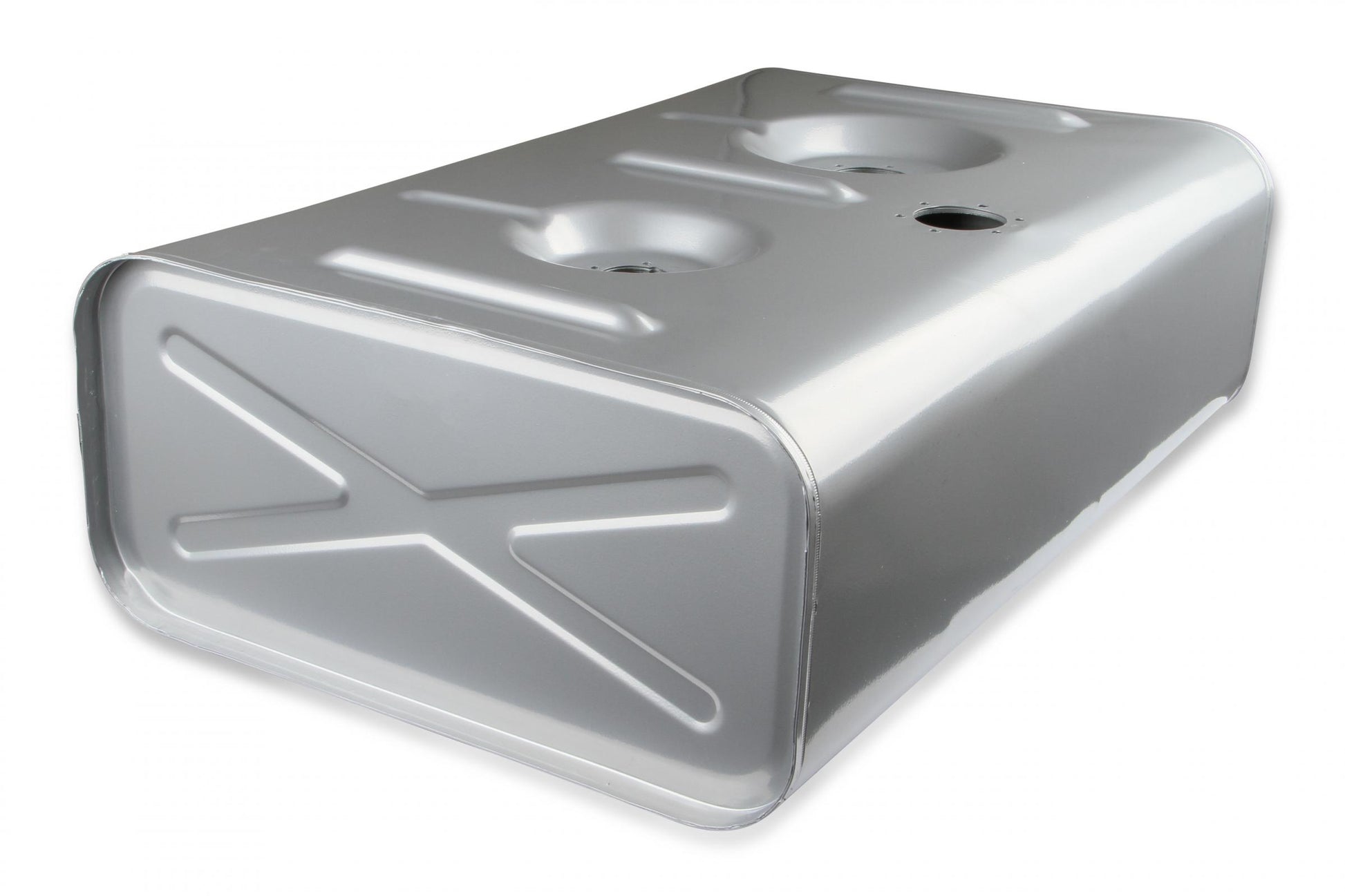

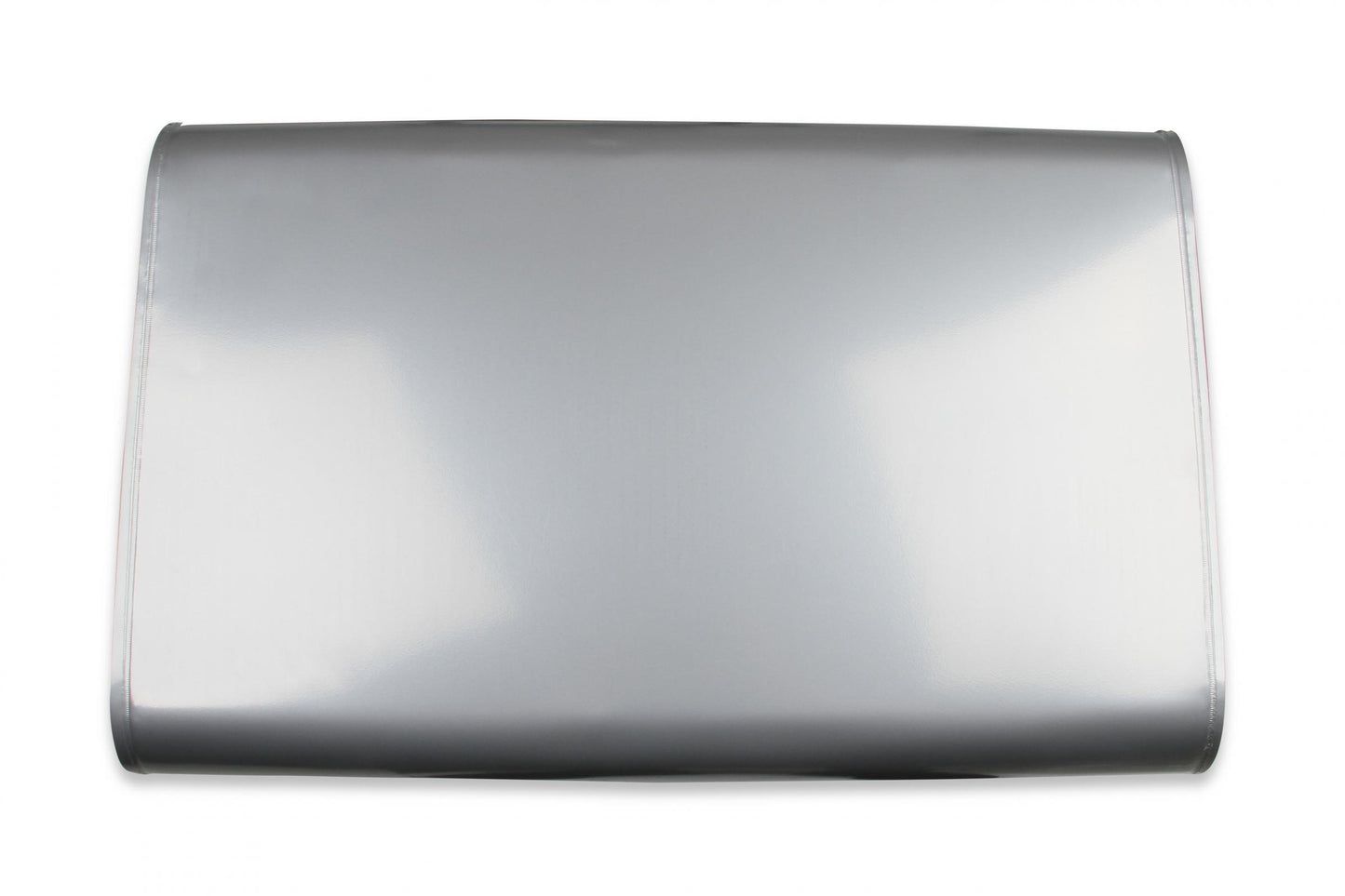

• Tanks are coated galvanized steel then powder coated silver for total corrosion protection.

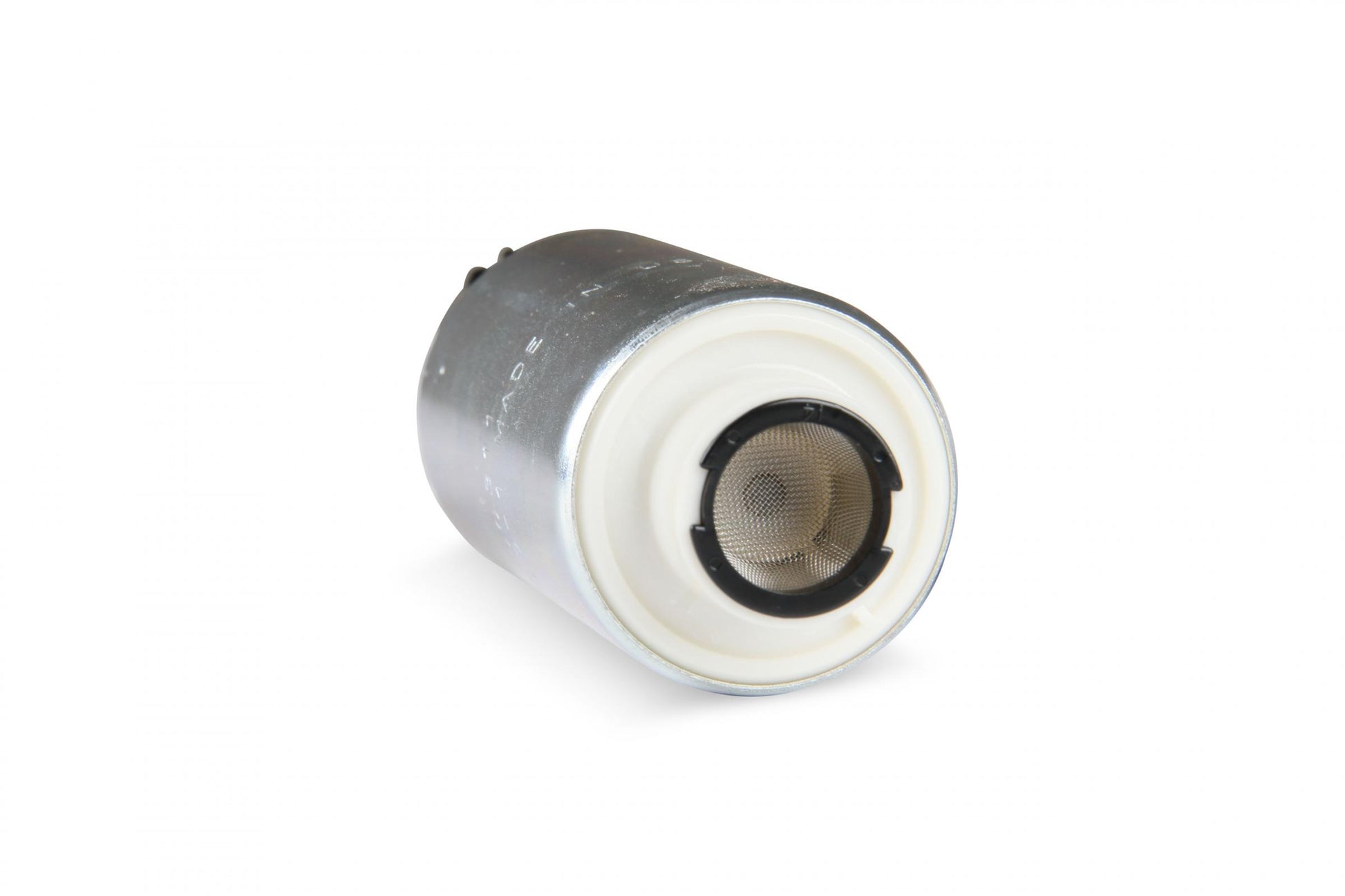

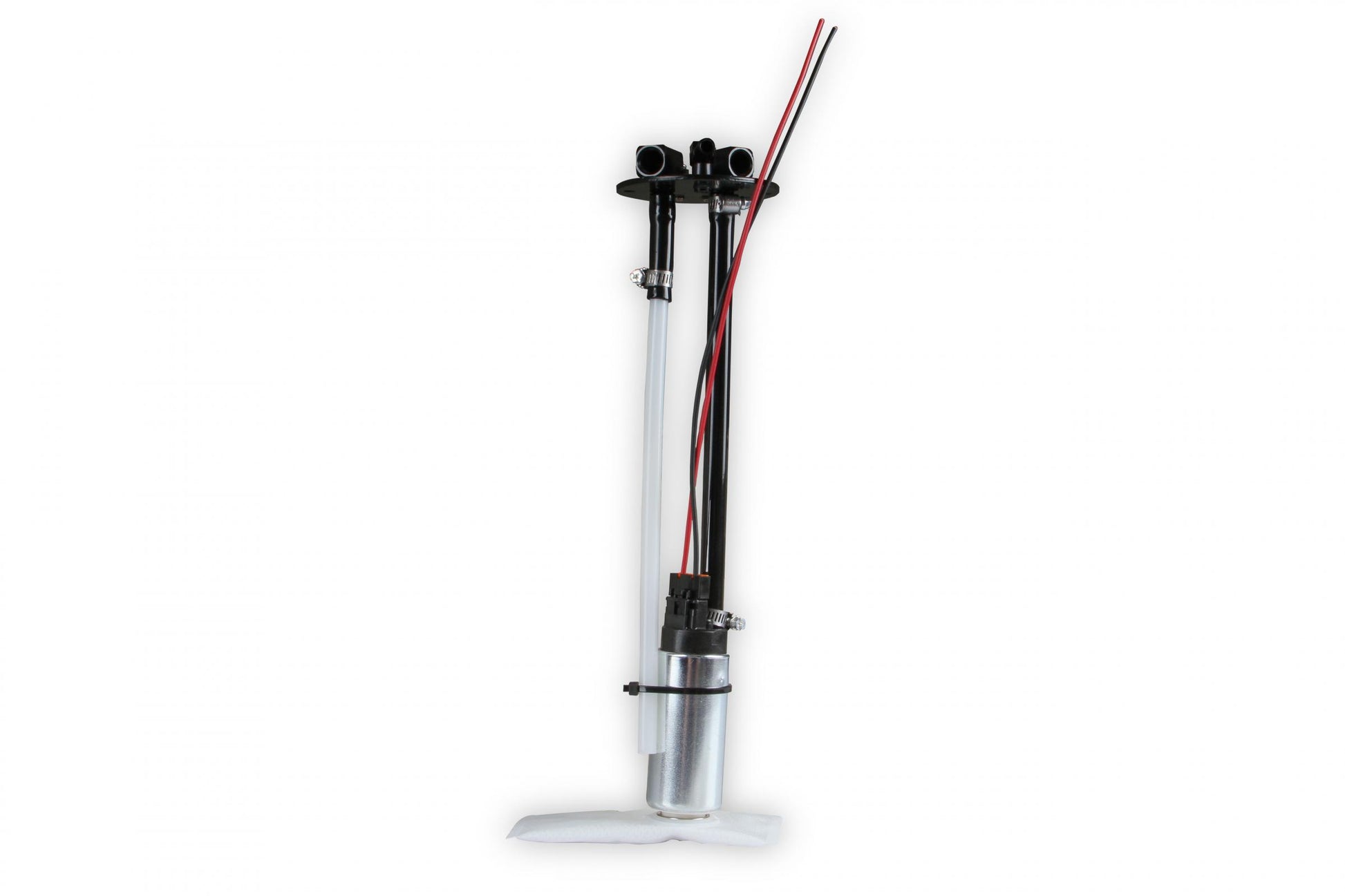

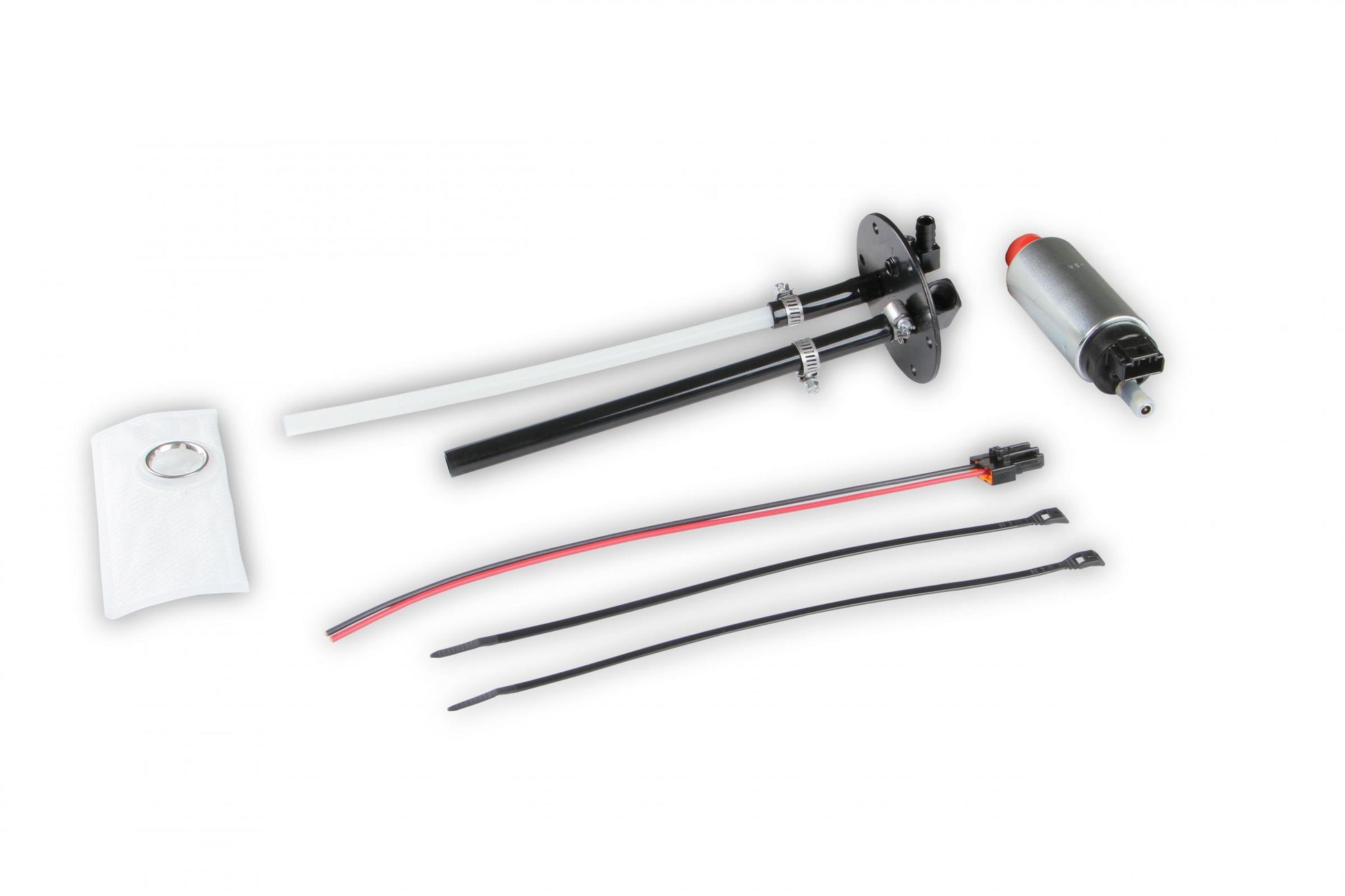

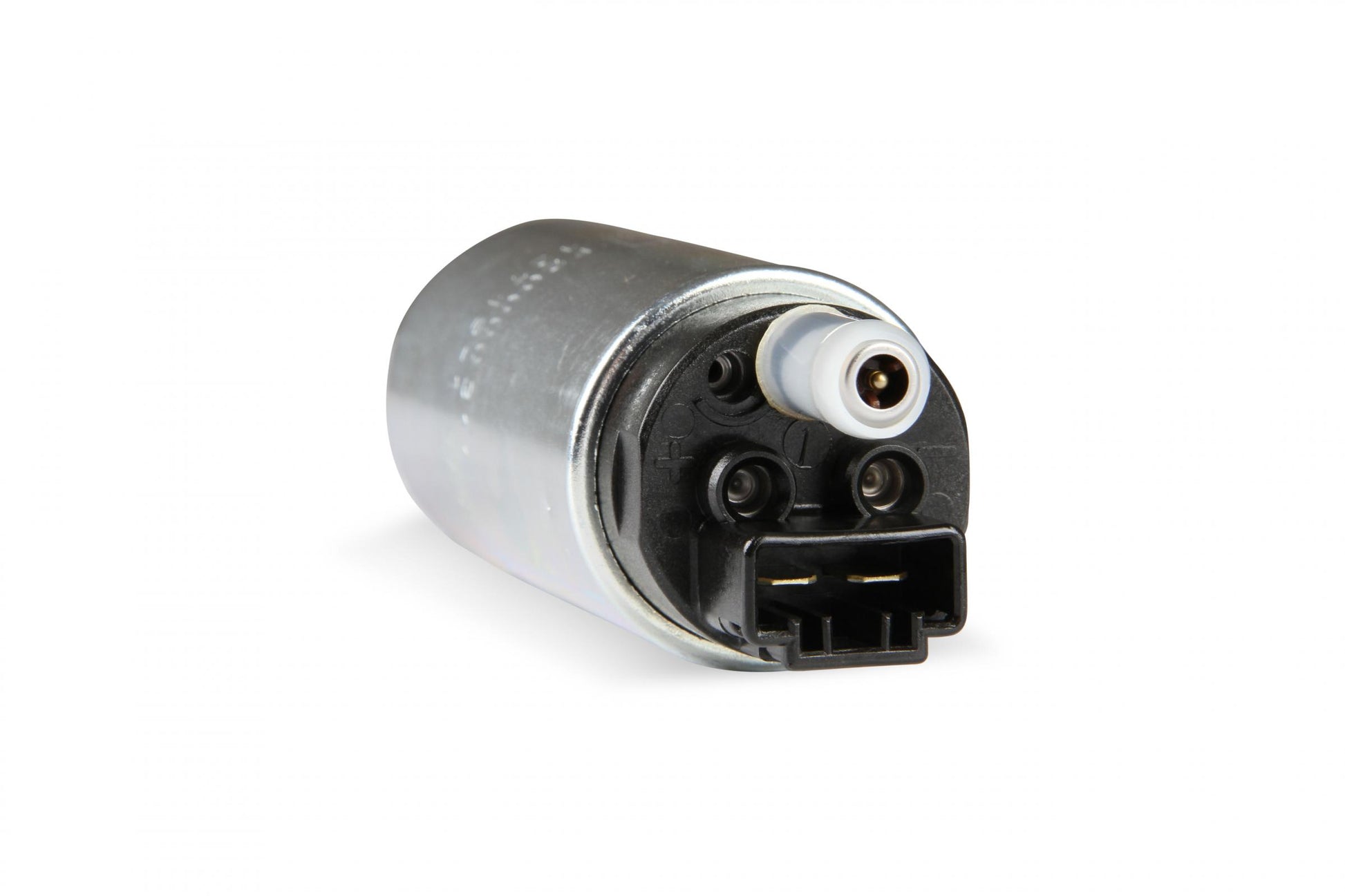

• 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness.

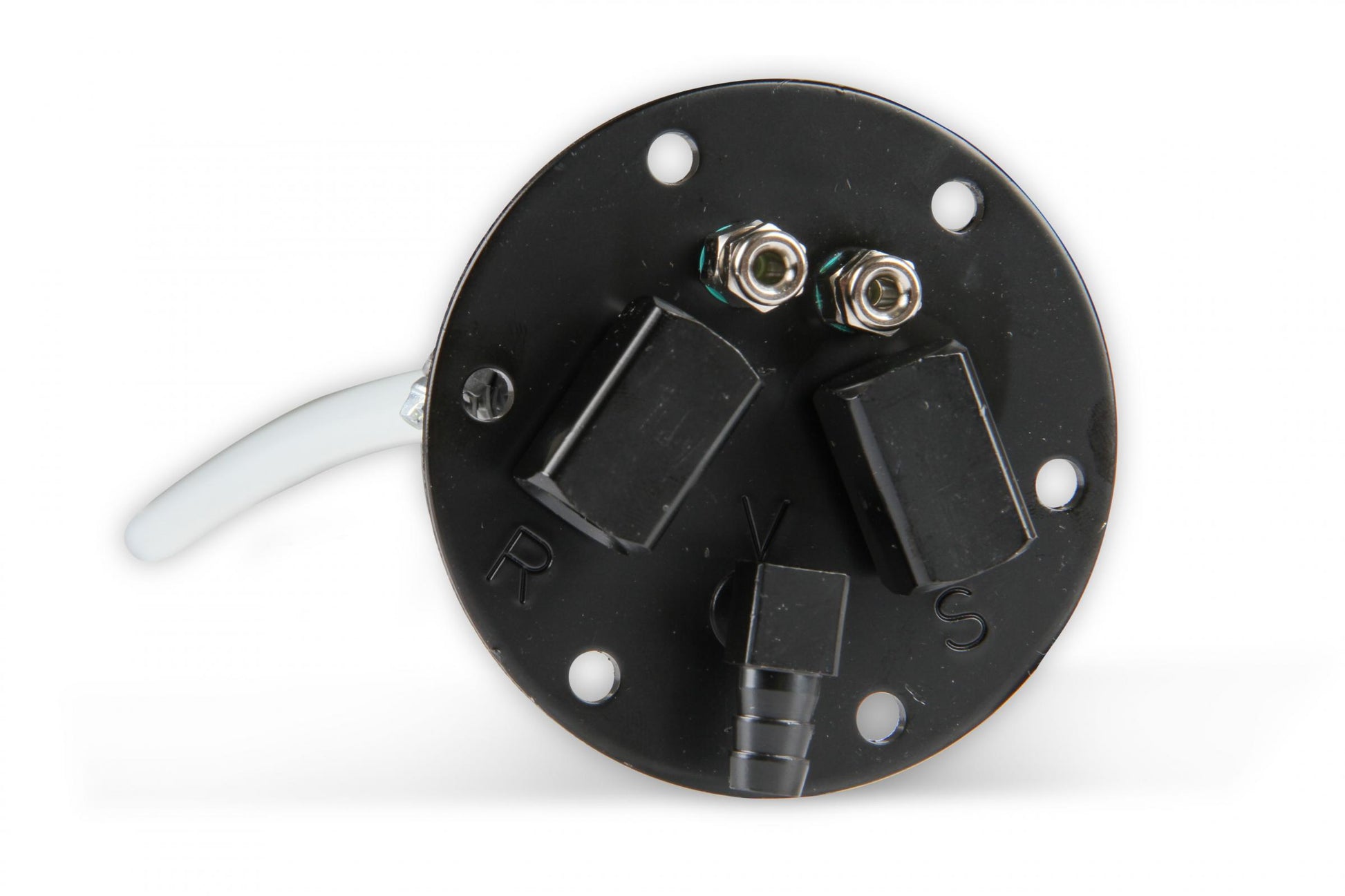

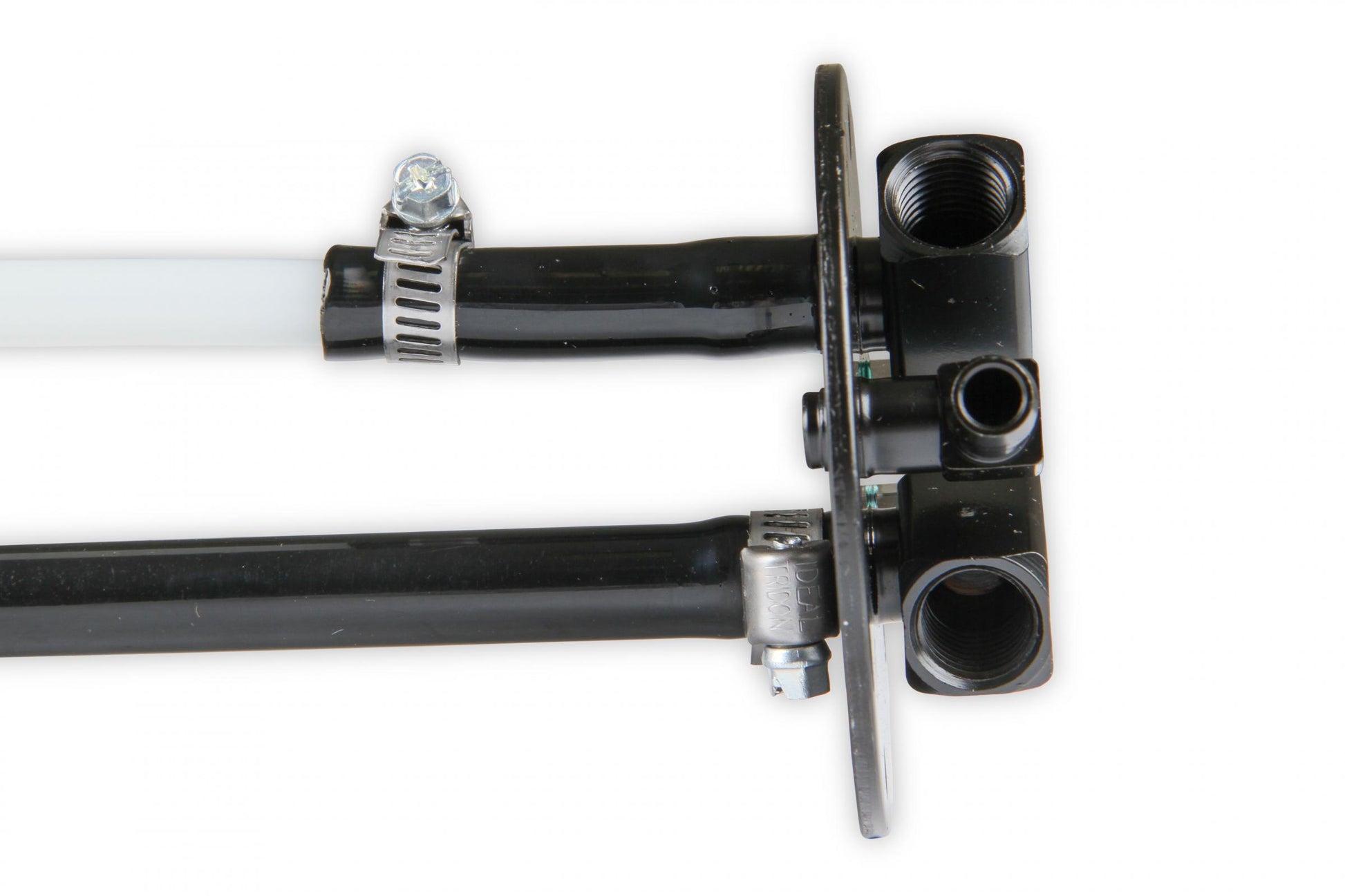

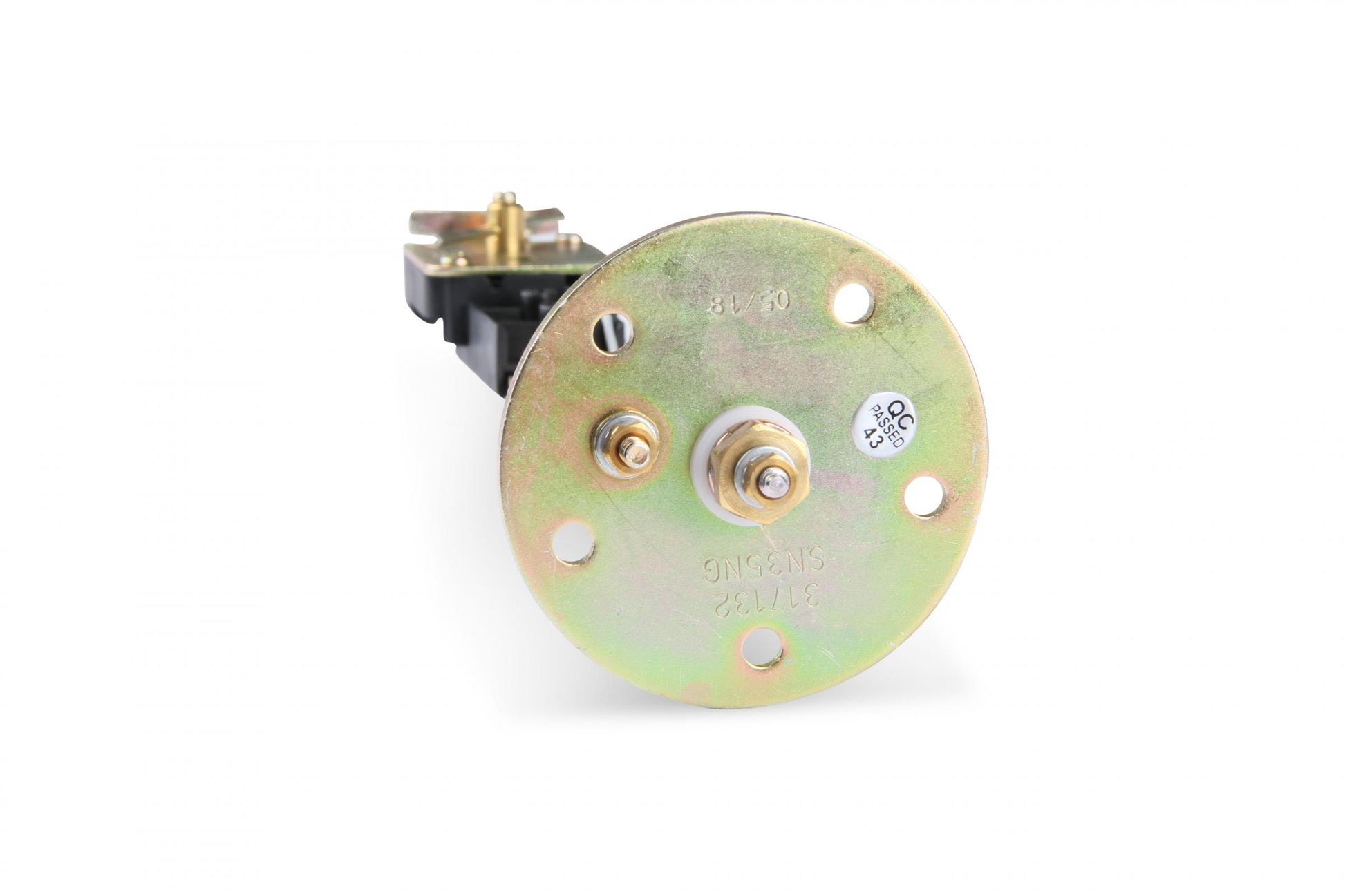

• Sender has 1/4 inch NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting.

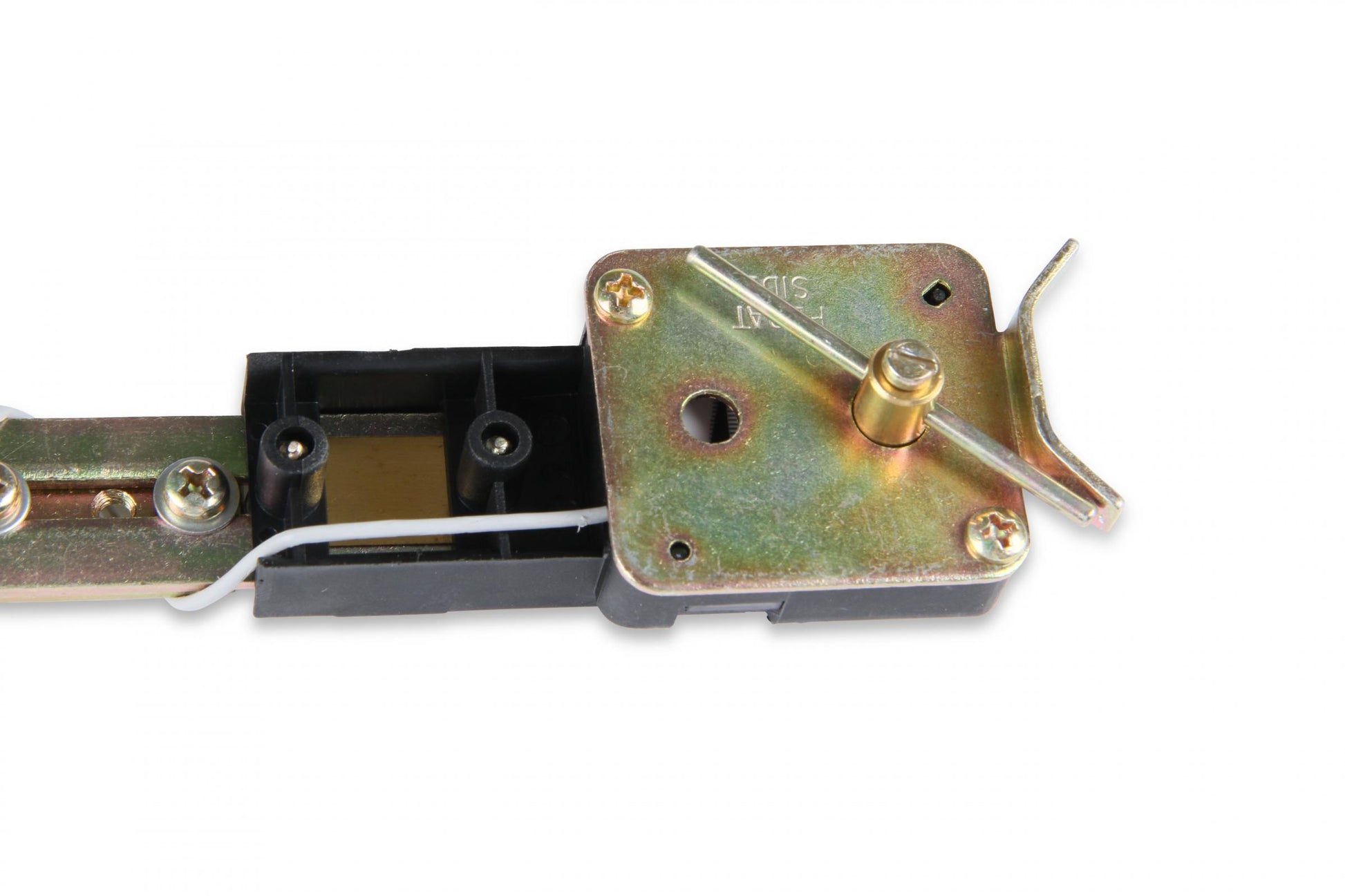

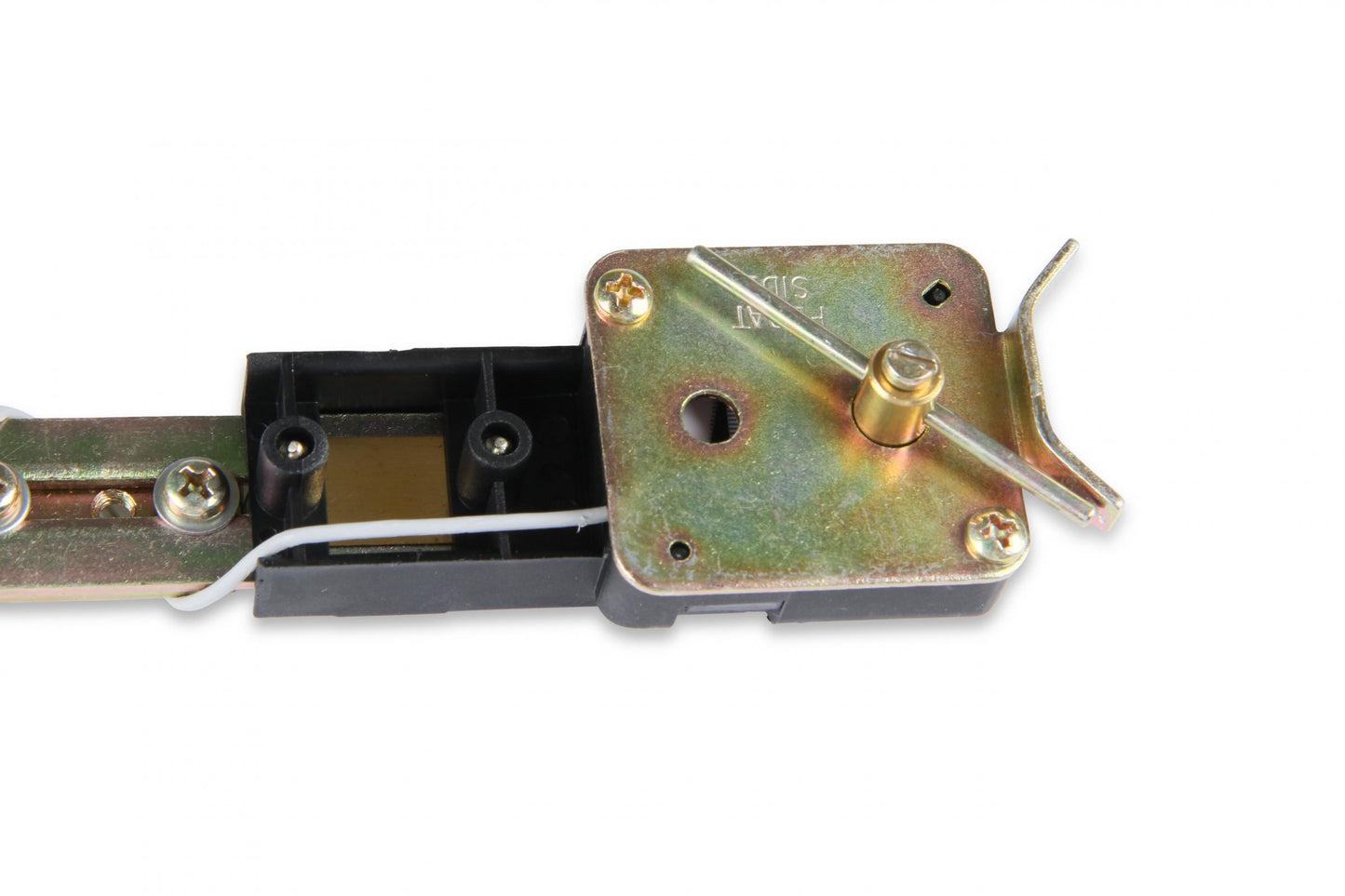

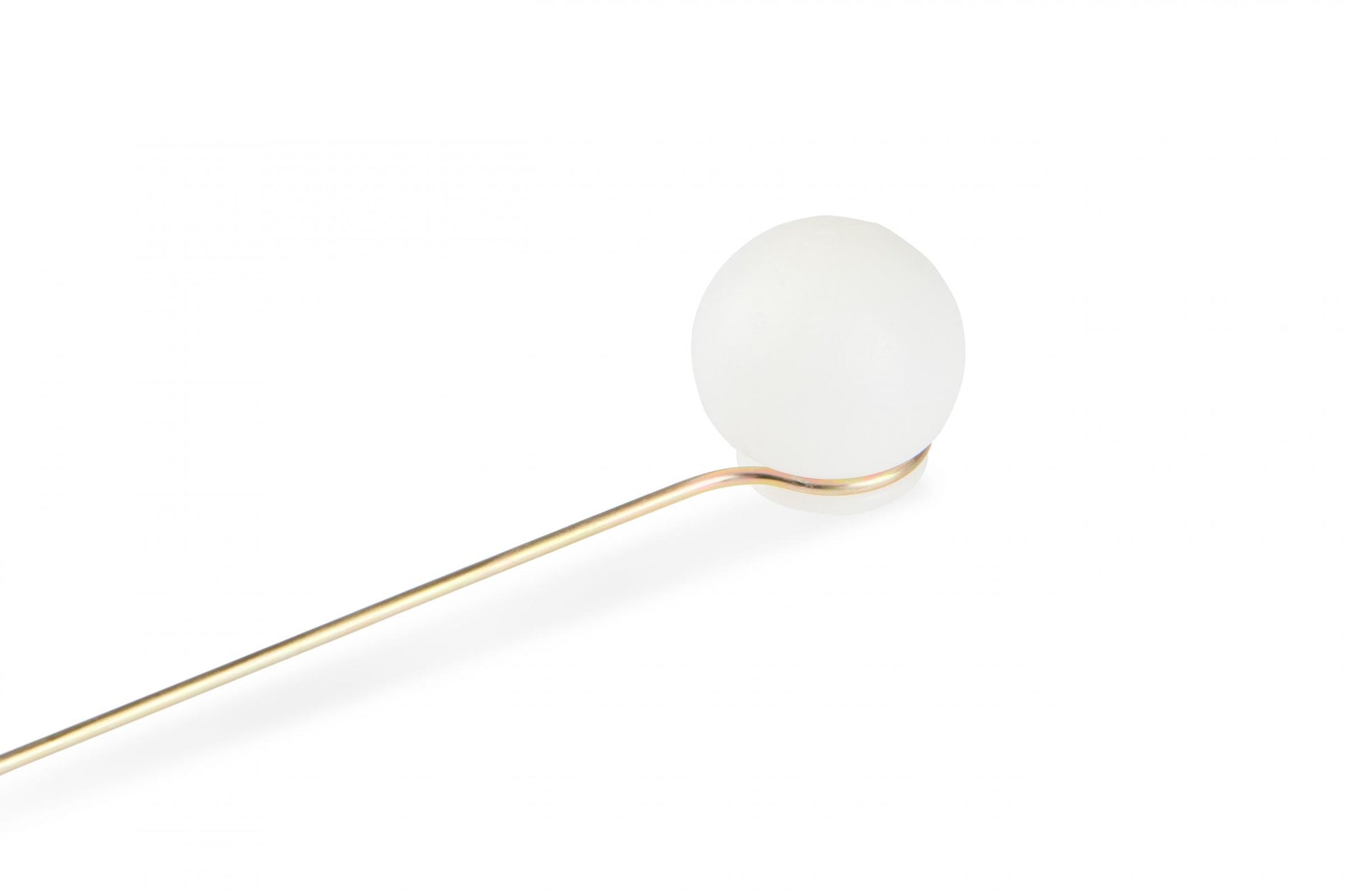

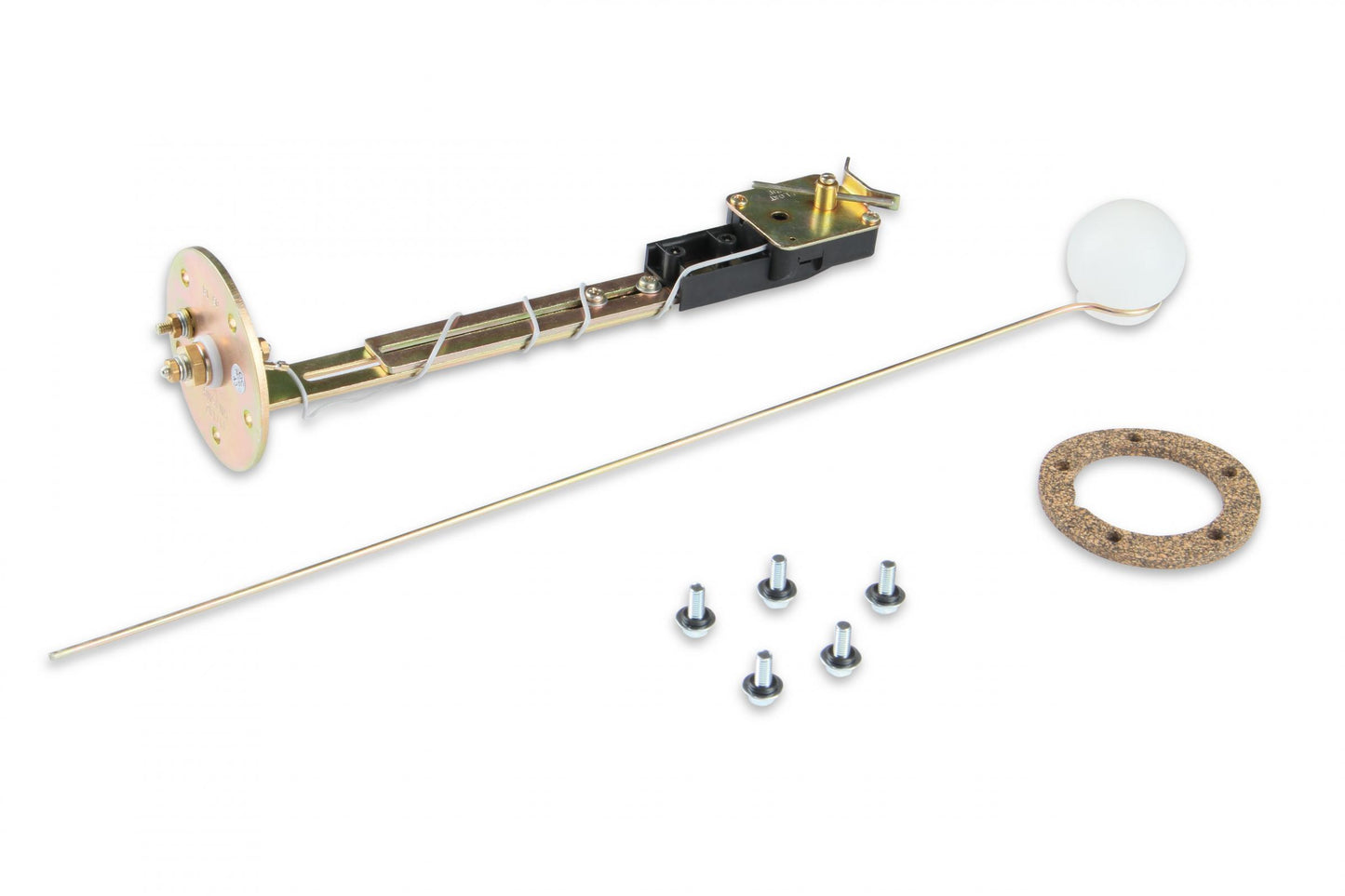

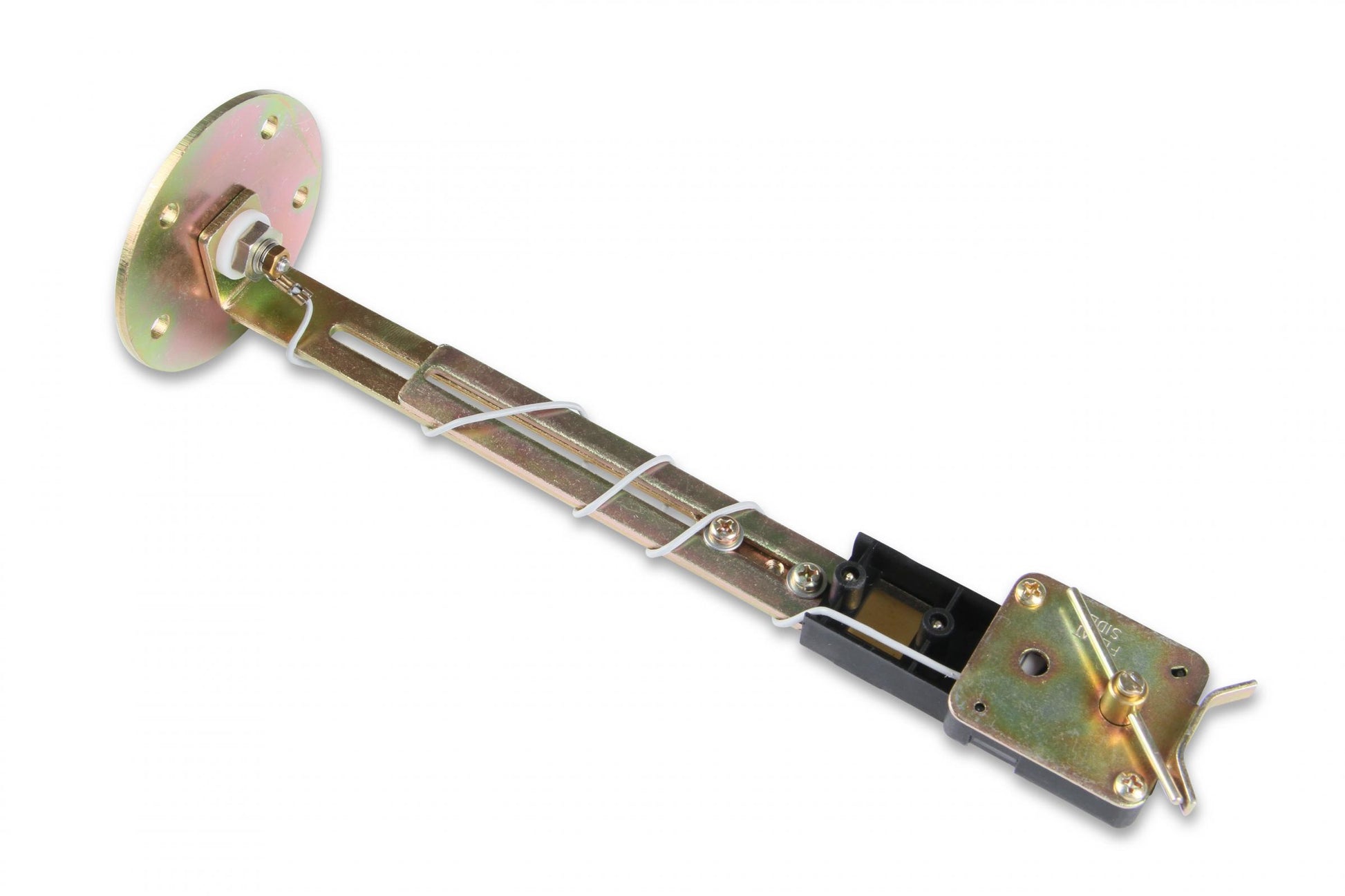

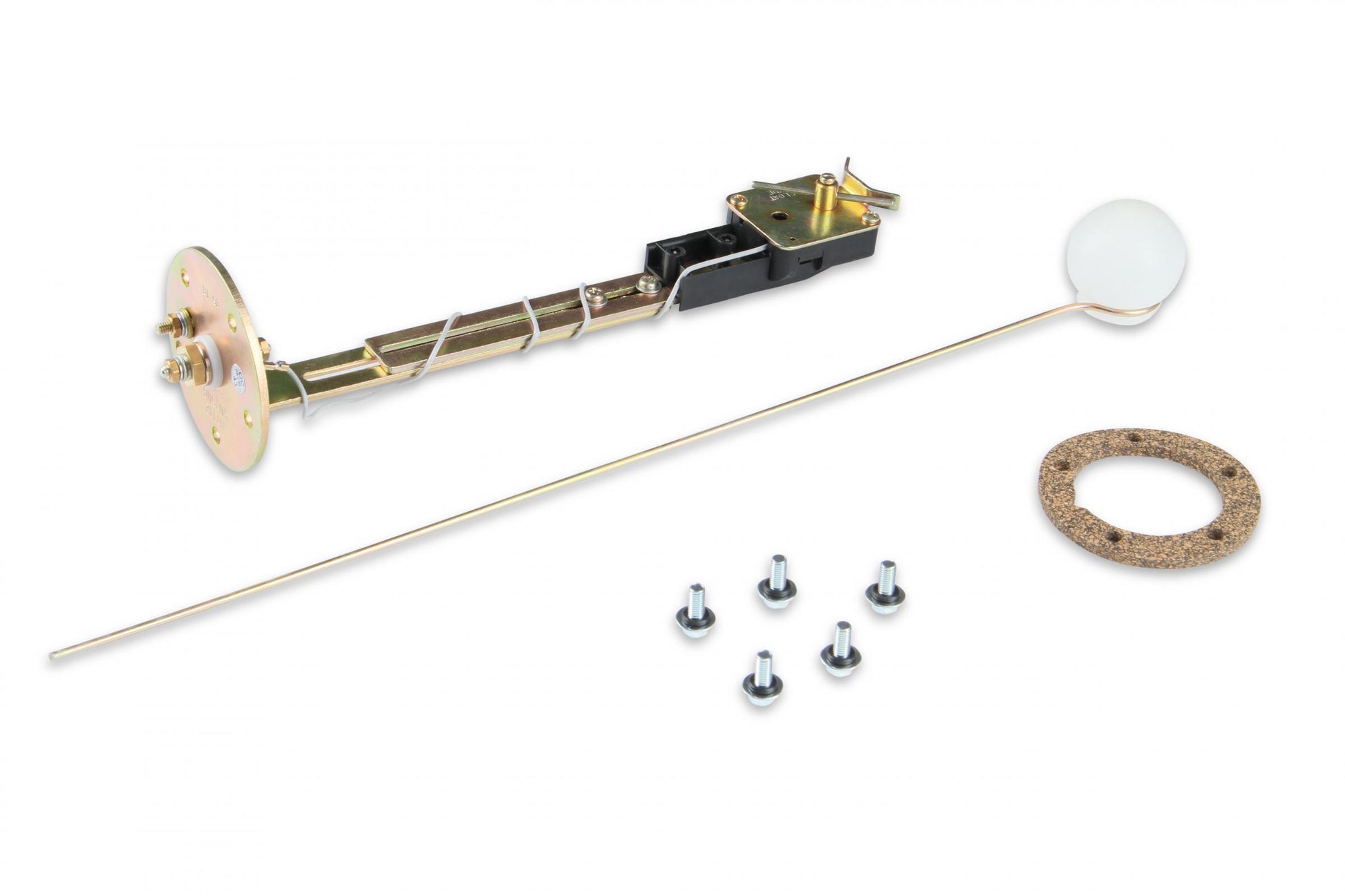

• Fuel sender is set up for 70-10 ohm fuel gauge.

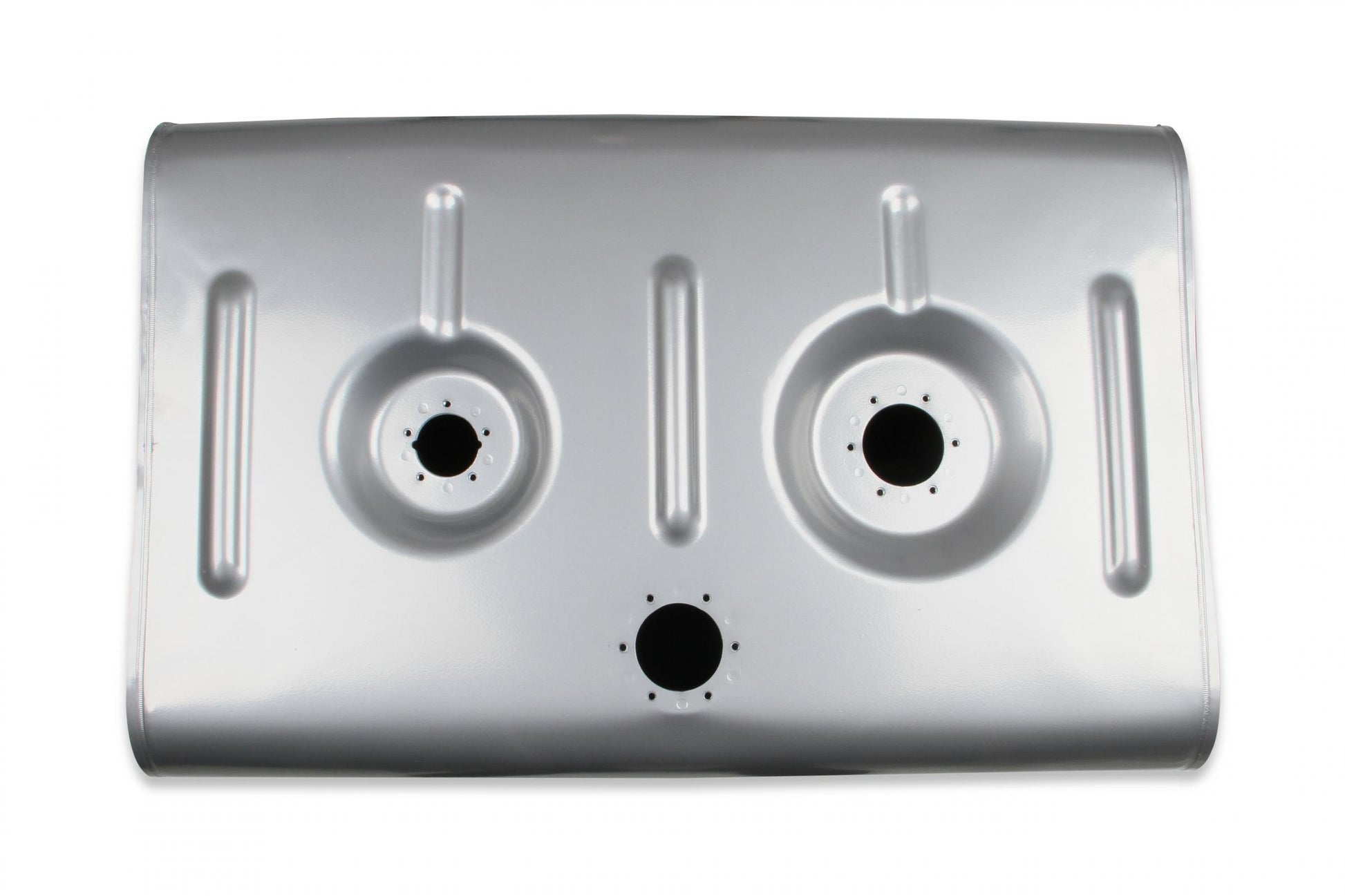

• Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car.
• EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation.
• Complete solution for your EFI conversion.
• Includes universal mounting straps.

Details:

• Application: Universal
• Attached Sump: Yes
• Baffled Sump: Yes
• Color: Silver
• Drain Plug: No
• Emission Code: 3
• Filler Neck Attached: No
• Finish: Powdercoated
• Free Flow LPH: 255
• Fuel Sending Unit Ohms: 73-10 Ohms
• Fuel System Compatibility: Electronic Fuel Injection
• Fuel System Type: Gasoline
• Fuel Tank Coating: Powder Coated
• Gallon Capacity: 16
• Grade Type: Performance
• Lock Ring Included: Yes
• Material: Steel
• Maximum Flow Rating: 255 LPH
• Mounting Straps Included: Yes
• New Straps Included: Yes
• O-Ring Included: Yes
• Resistance Ohms Empty: 73 82
• Resistance Ohms Full: 10 82
• Sending Unit Included: Yes
• Tank Capacity: 16 GA
• Tank Color: Gray
• Tank Material: Steel
• Warranty: Manufacturer's Limited 90 Day Warranty
