Trinity 2 with Modified PCM Compatible with 2020 Jeep Wrangler 2.0T DiabloSport

The Diablo Sport Trinity T2 Platinum + Unlocked PCM Kit is the most advanced tuning and monitoring upgrade for the 2020 Jeep Wrangler equipped with the 2.0L Turbo engine

With factory-locked PCMs preventing tuning, this kit provides everything you need to safely unlock your Wrangler's full performance potential.

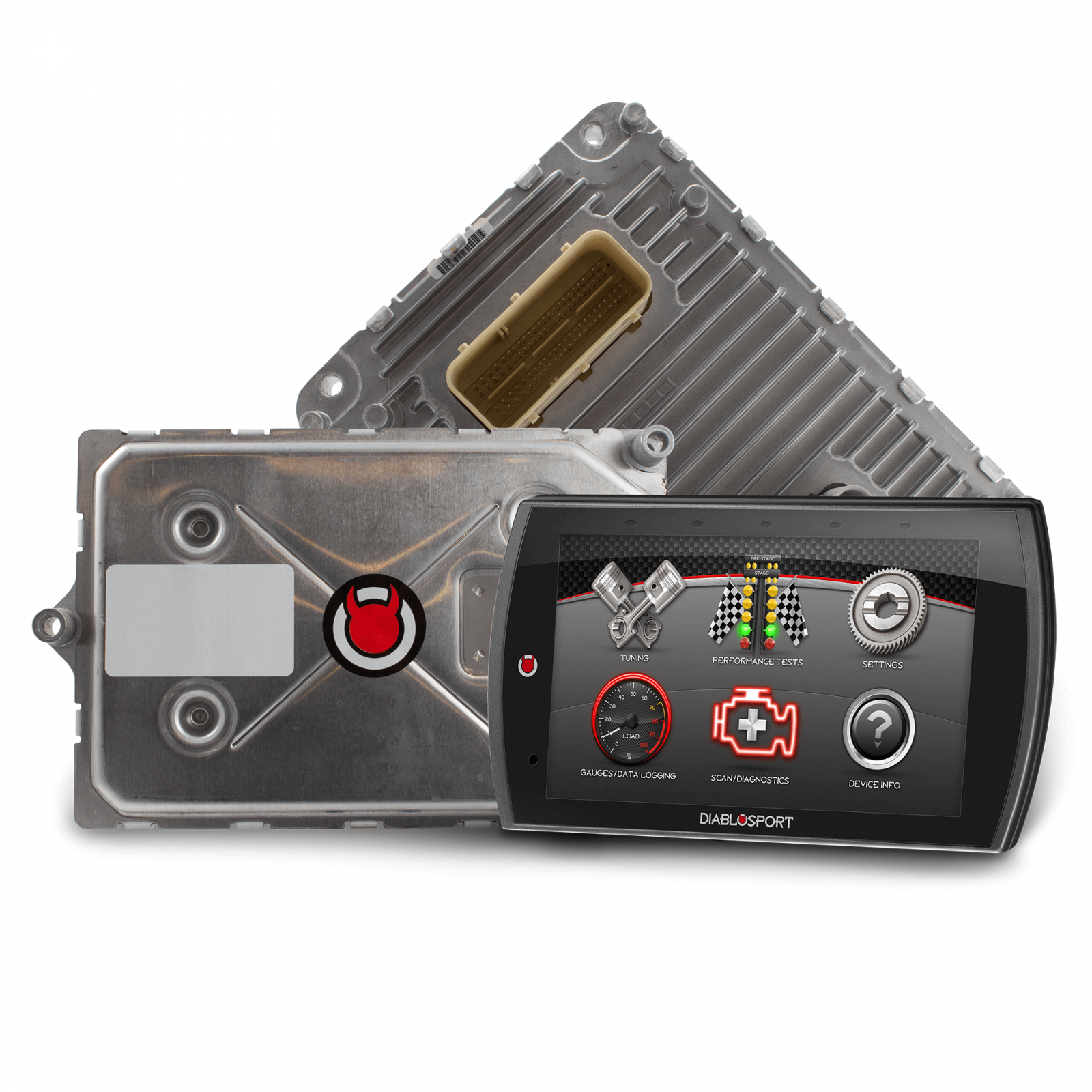

It includes a Diablo Sport Modified PCM plus the cutting-edge Trinity T2 Platinum handheld programmer for instant access to dyno-proven power gains.

With preloaded performance tunes, the Trinity T2 Platinum delivers up to 25-30 rear-wheel horsepower gains, improved torque, sharper throttle response, and refined transmission behavior for quicker, smoother shifting

These improvements don't just enhance highway driving-they also boost off-road performance, giving your Wrangler more power and control when tackling trails or hauling gear

For enthusiasts adding bolt-ons or advanced upgrades, the T2 Platinum supports CMR custom tuning, with access to Diablo Sport's nationwide network of professional tuners

Built-in data logging, diagnostics, and performance testing provide complete visibility and control over your engine's health and performance

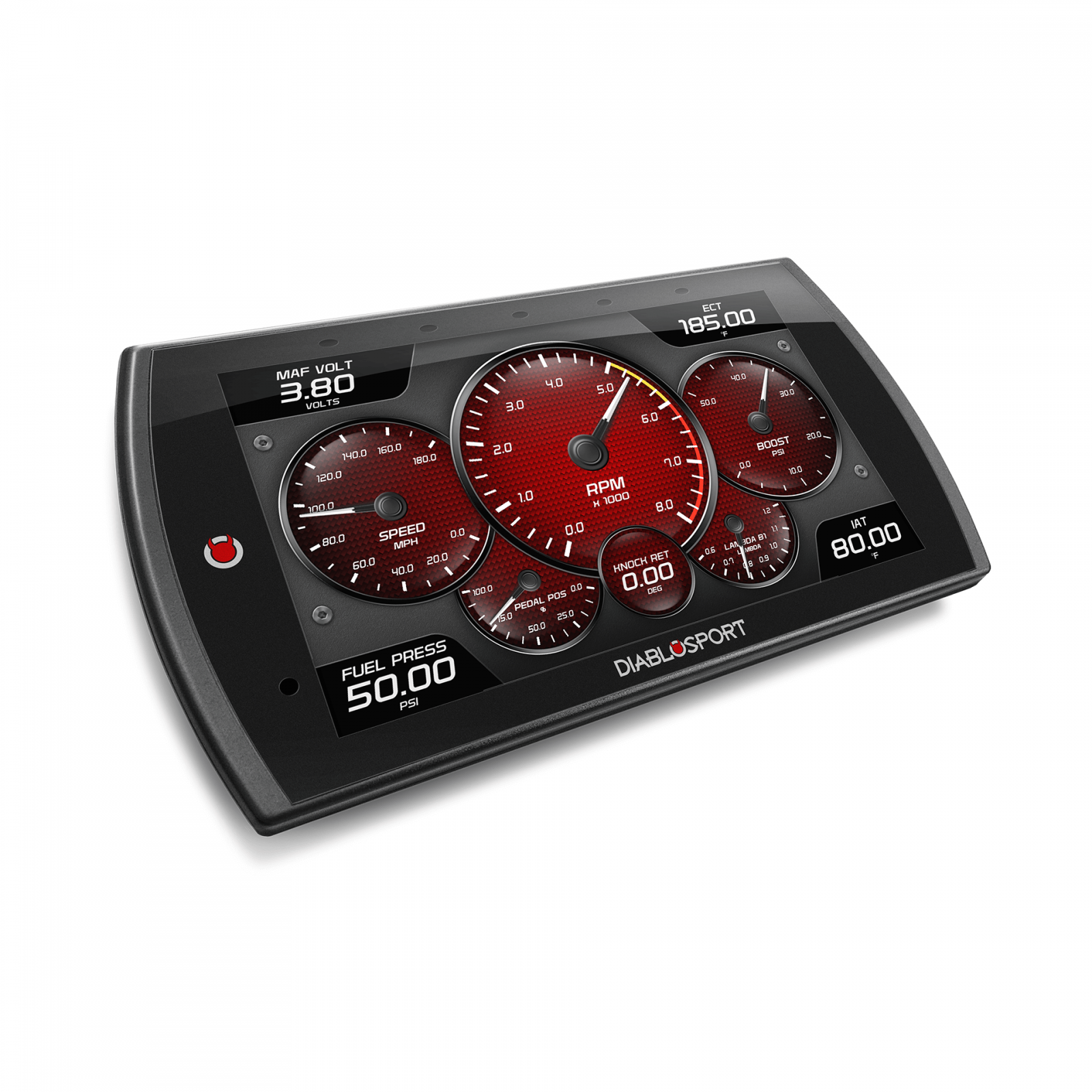

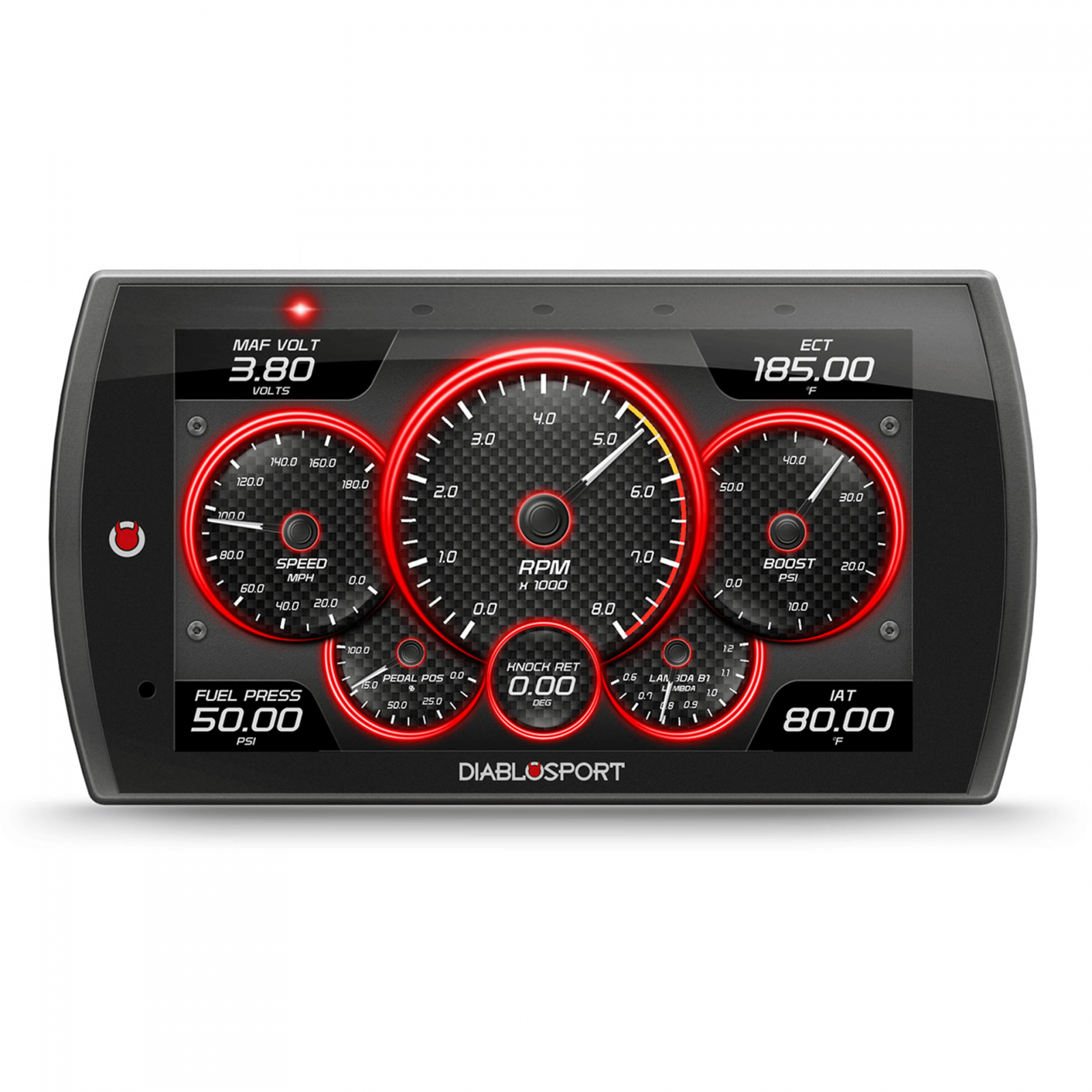

The Trinity T2 also doubles as a monitoring powerhouse, featuring a crisp 5-inch full-color touchscreen with swipe functionality, customizable gauge layouts, and real-time engine data tracking-all in one sleek interface

For 2020 Wrangler 2.0L Turbo owners who want serious horsepower gains, sharper drivability, and off-road-ready performance, the Trinity T2 Platinum + Unlocked PCM Kit is the ultimate upgrade

• 2020 Jeep Wrangler JL 2.0T
• Add 25-30 rwhp over stock on premium fuel
• Tunes for 87, 91 and 93 octane fuel provided
• Performance TCM tune included

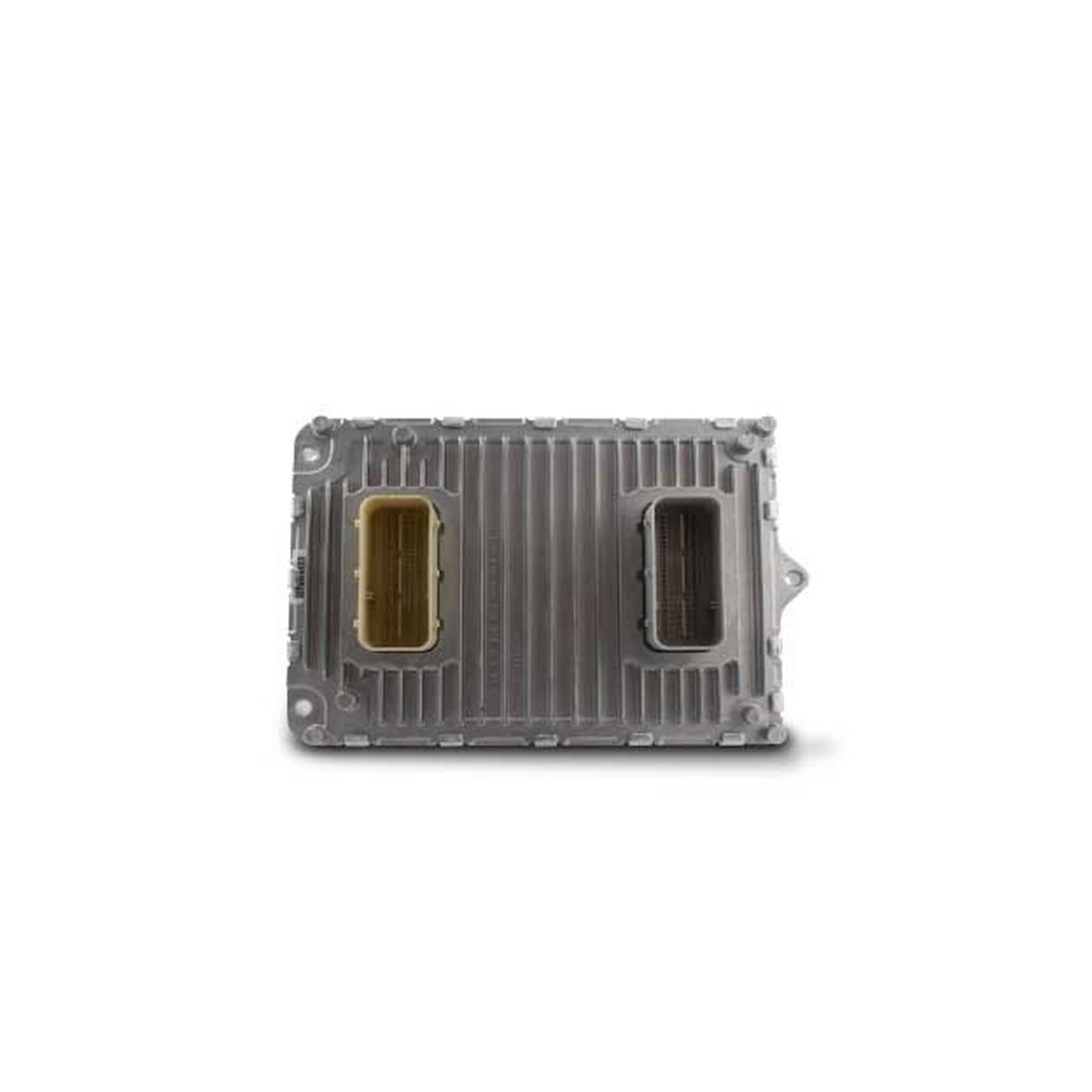

• Factory Modified PCM that allows a 15+ Chrysler vehicle to be tuned
• Installation is simple and only takes about 10 minutes
• Includes PCM programmed to your vehicle and Trinity 2
• No vehicle downtime for tuning!
• Preloaded with multiple performance tunes
• Read/clear DTC codes
• Customizable gauge layouts
• Upload your own background images
• Adjust Rev Limiter in Drive/Neutral by +/- 500 RPM
• Disable Traction Control/ESP
• Raise or Lower Idle Speed by +/- 400 RPM
• Required bypass module is included
• Speed Limiter On/Off enabling increased top speed
• Target Cooling Fan temps can be set from 150 Degree-230 Degree for use with cooler t-stat

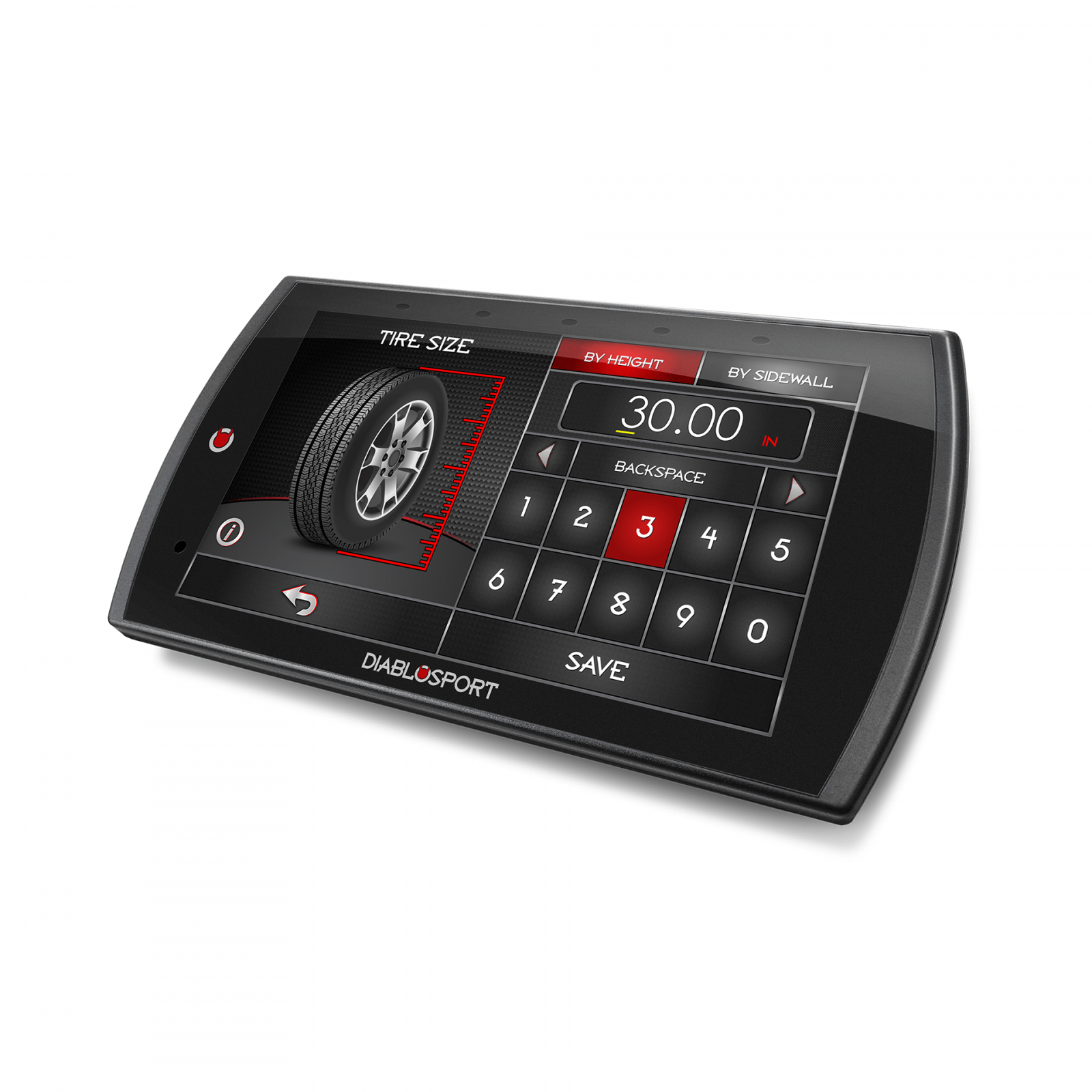

• Tire Size Adjustment 20 Inch-44 Inch, allows for correcting speedometer for different tires
• Up to 30 hp and 30 ft/lbs torque on 93 octane
• WOT Fuel Adjustment - 1-7K RPM +/- 20 percent, allows for fine tuning Air/Fuel Ratio
• WOT MBT Spark 1-7K RPM +/- 10
• WOT Spark - 1-7k RPM +/- 10

Details:

• Fuel Type: Gas
• CARB (California) Compliant: No
• Body Material: ABS
• 5 Volt Data Logging Inputs: Yes
• 50 State Legal: No
• AC Adapter: No
• Accepts Custom Tunes From CMR: Yes
• Alerts and Records: Yes
• Auto Dimming Screen: Yes
• Case Included: No
• Color Touch Screen Display: Yes
• Custom Tuning: Yes
• Data Logging: Yes
• Emission Code: 7
• Erases Fault Code: Yes
• Grade Type: Performance
• Instruction Manual Included: Yes
• Performance Tests: Yes
• Performance Tunes: Yes
• Pods and Mounts Available: Yes
• Product Type: Tuner/PCM Pkgs In-Cabin Tuner
• Software Included: Yes
• Speedometer: Yes
• Sub Category: Engine Service
• Upgradable: Yes
• Video Capable: Yes
• Wi-Fi Updates: Yes
