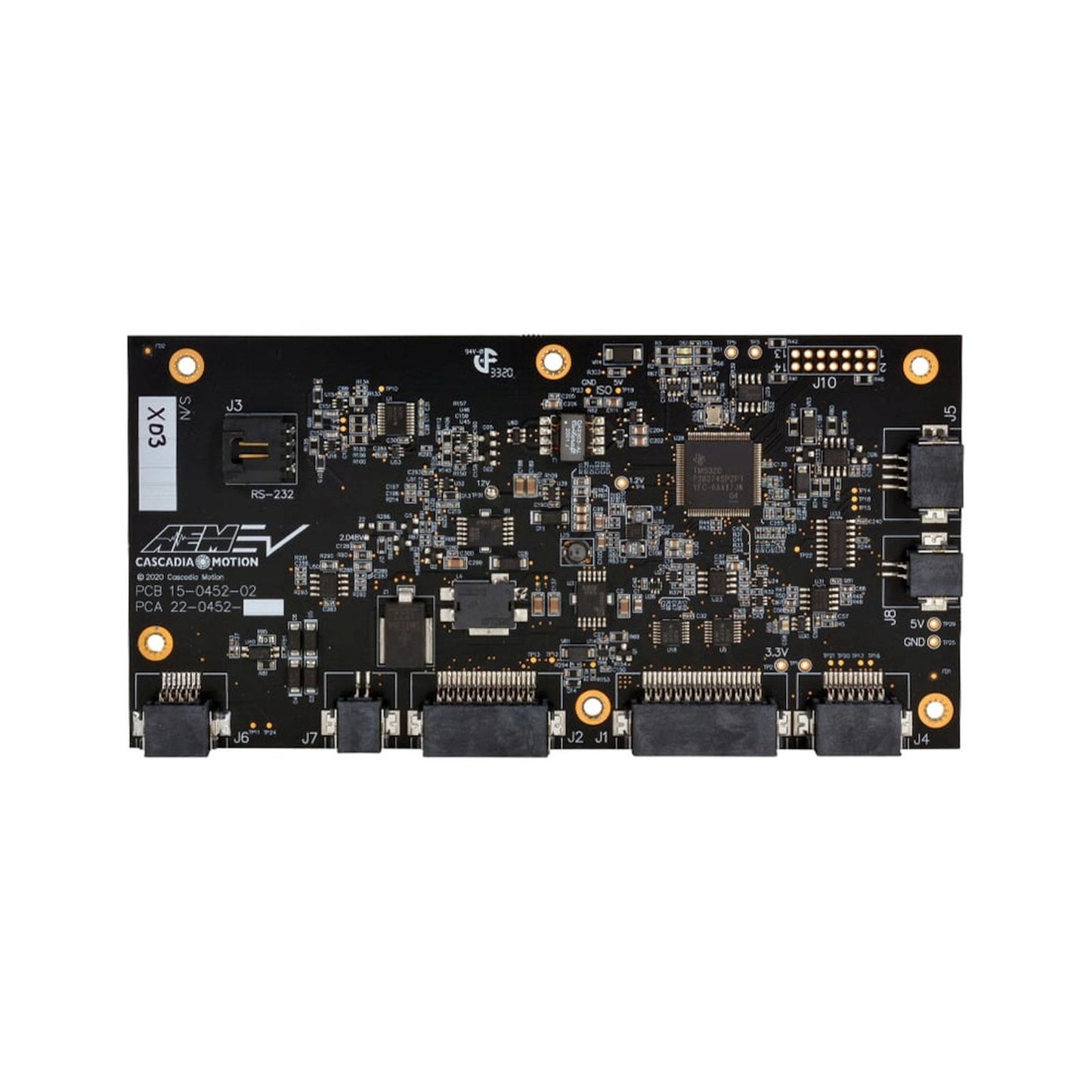

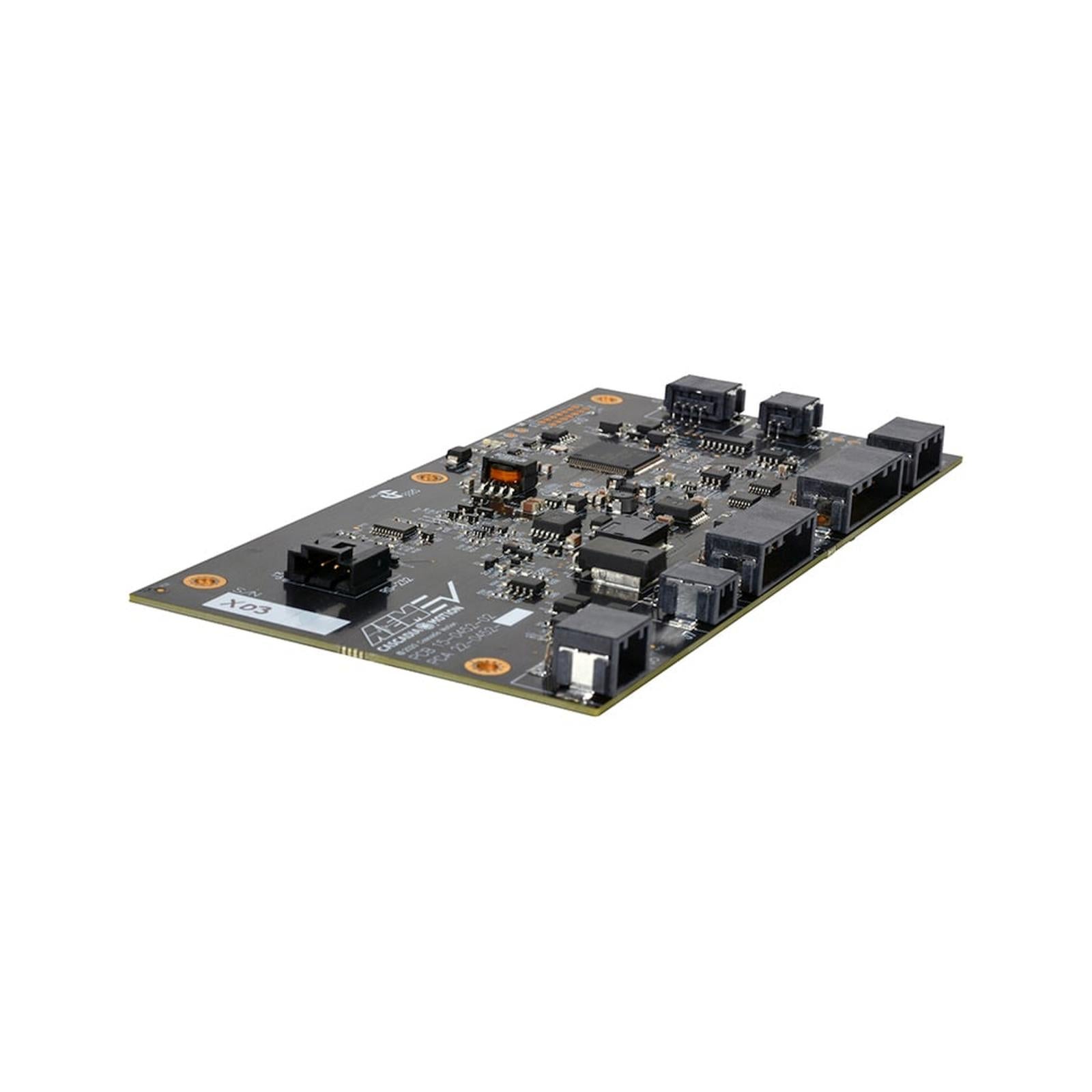

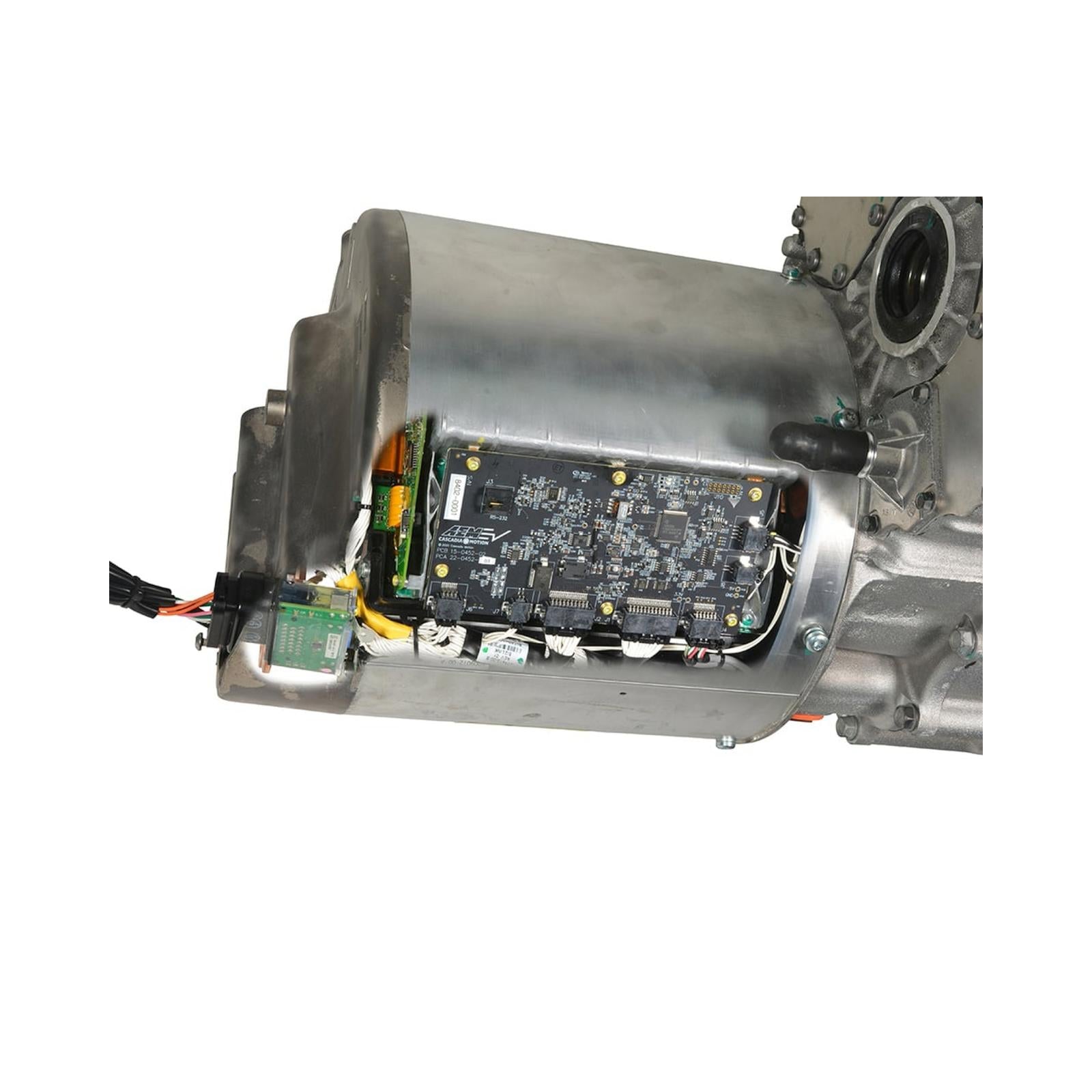

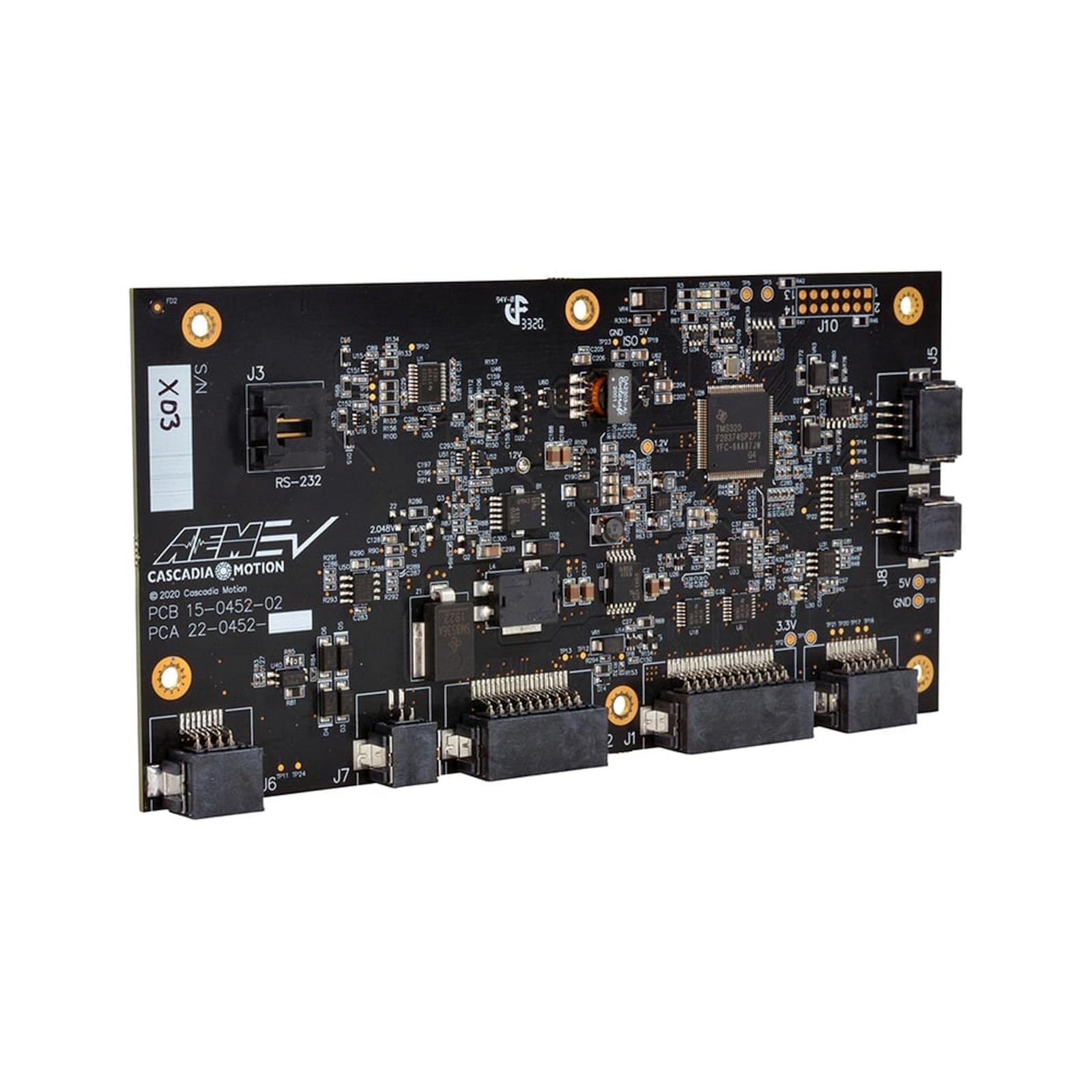

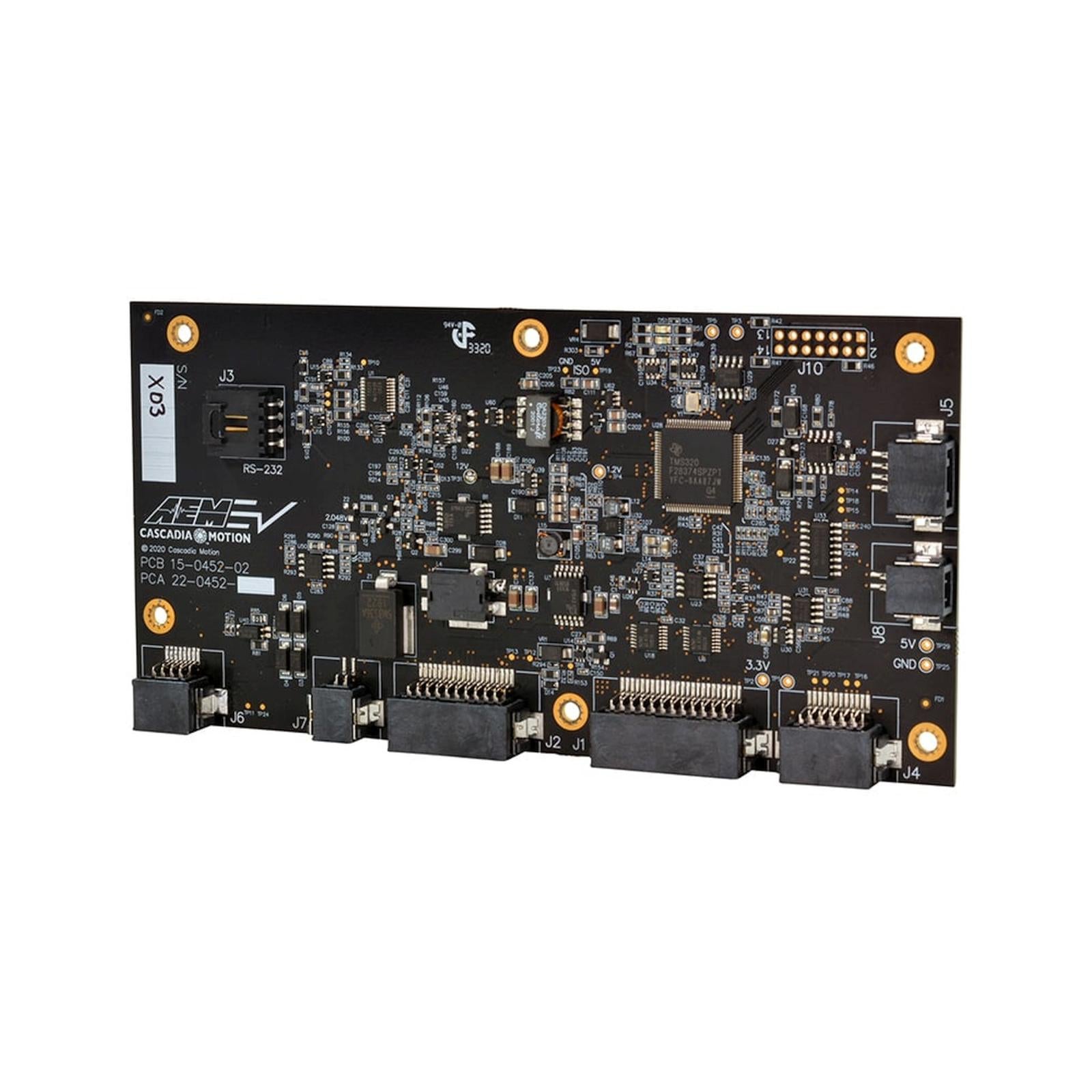

Tesla Large Drive Unit (LDU) Control Board Programmable Control for EV Swaps Using Tesla Model S and Model X InchP Inch Large Drive Units (LDUs) when paired with Vehicle Control Units (VCU) AEM Electronics

The AEM EV Battery Management System (BMS-18) is comprised of three components:

• 1. VCU
• 2.BMS-18 Master
• 3. BMS-18 Satellite(s)
• The BMS is implemented as two different Module types: the BMS Master and the BMS Satellite. Each Module is capable of measuring up to 18 cells and 3 temperatures (thermistors) but the Master also contains the CAN communication interface and J1772 charging specific connections needed for each battery pack
• The VCU communicates with the BMS via the Master Module and all battery packs need at least one Master unit. The Satellite Modules are connected to their Master via a high-speed serial interface (isoSPI) that allows additional units to be daisy chained together, adding as many Satellites as necessary for the battery pack configuration
• The VCU is responsible for all BMS control logic. All setup and calibration items can be modified using the AEMCal user interface
• Connected to Master BMS as part of system
• Can be integrated into multiple satellite systems
• Capable of measuring up to 18 cells and 3 temperatures (thermistors)
• Weatherproof connector and housing

Details:

• Brand: AEM
• Connection Gender: Male Female
• Mounting Hardware Included: No
• Terminal Gender: Male/Female
• Warranty: Manufacturer's 1 Year Warranty
