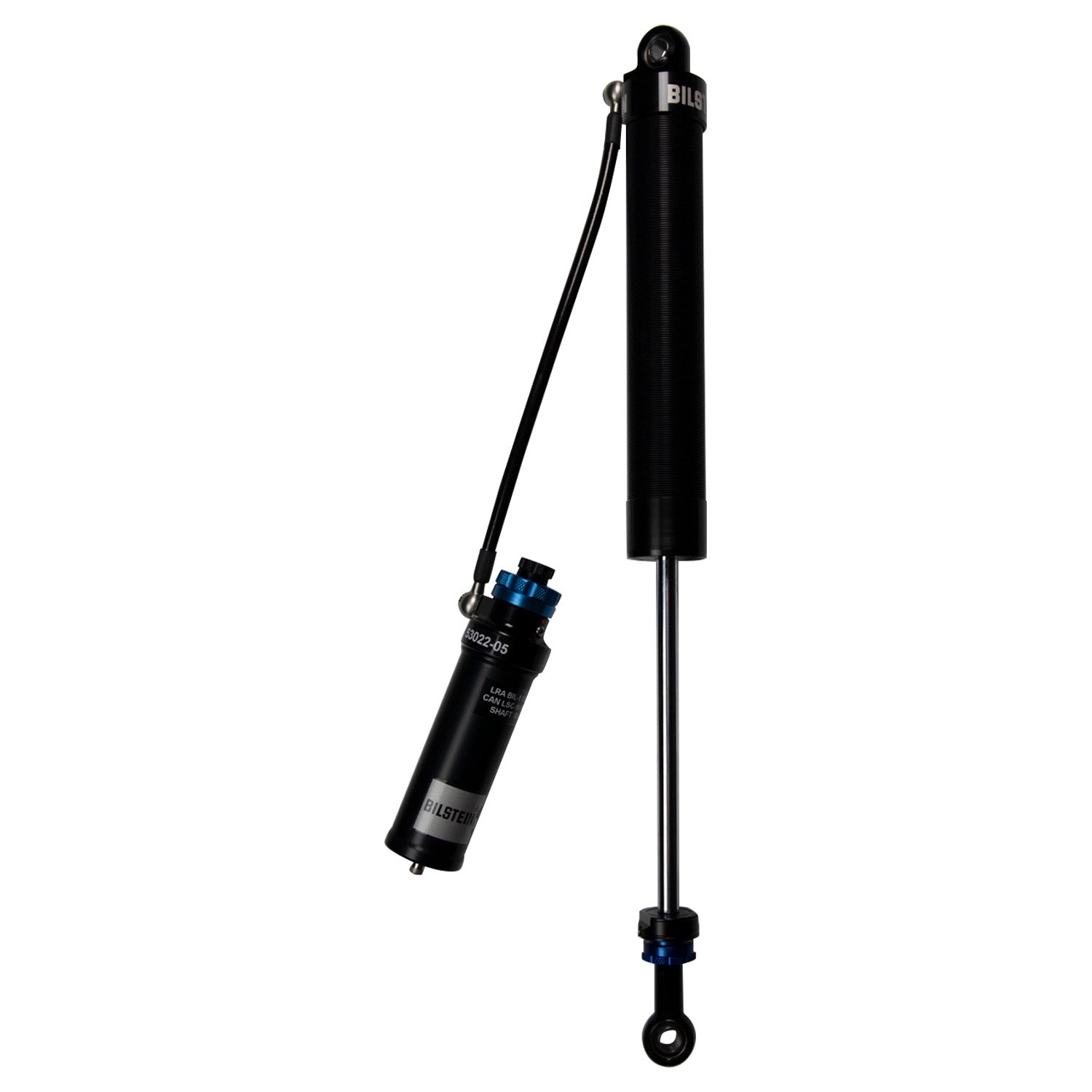

Suspension Shock Absorber AS2-R BIL1 Left Rear Traction Monotube AS2-R Series Bilstein

Bilstein AS2-R Series shock absorbers are designed for motorsports applications and provides premium performance through superior tuning and modular design.

The package features an aluminum-bodied remote reservoir with tunable base valve technology and several adjustment options mated to Bilstein's AS2 Series aluminum modular shock.

The lightweight threaded body shock can be used with or without coilover hardware. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations.

The AS2-R Series shock absorbers offer racers a versatile damper that maximizes suspension travel and gives an endless range of options for tuning and upgradeability.

Details:

• Series: AS2-R Series
• Internal Design:Monotube
• Lower Mount Type: 1/2in Heim
• Upper Mount Type: 1/2in Heim
• Finish: Clear Anodized
• Adjustable: Triple Adjustable - Rebound and High and Low Speed Compression
• Body Design: Threaded Body Screw Top (Coilover)
• Collapsed Length Inch: 15.33
• Body Material: Aluminum
• Extended Length Inch: 24.18
• Boot Included:No
• Pistion Diameter: 46mm
• Pistion Type: Digressive/ Linear
• Shaft Diameter: 14mm
• Stroke Travel Length In: 8.85
• Stroke Travel Length In: 224.8
• Notes: AS2-R, BIL1 Left Rear Traction
• Warranty: 90 Day Warranty
