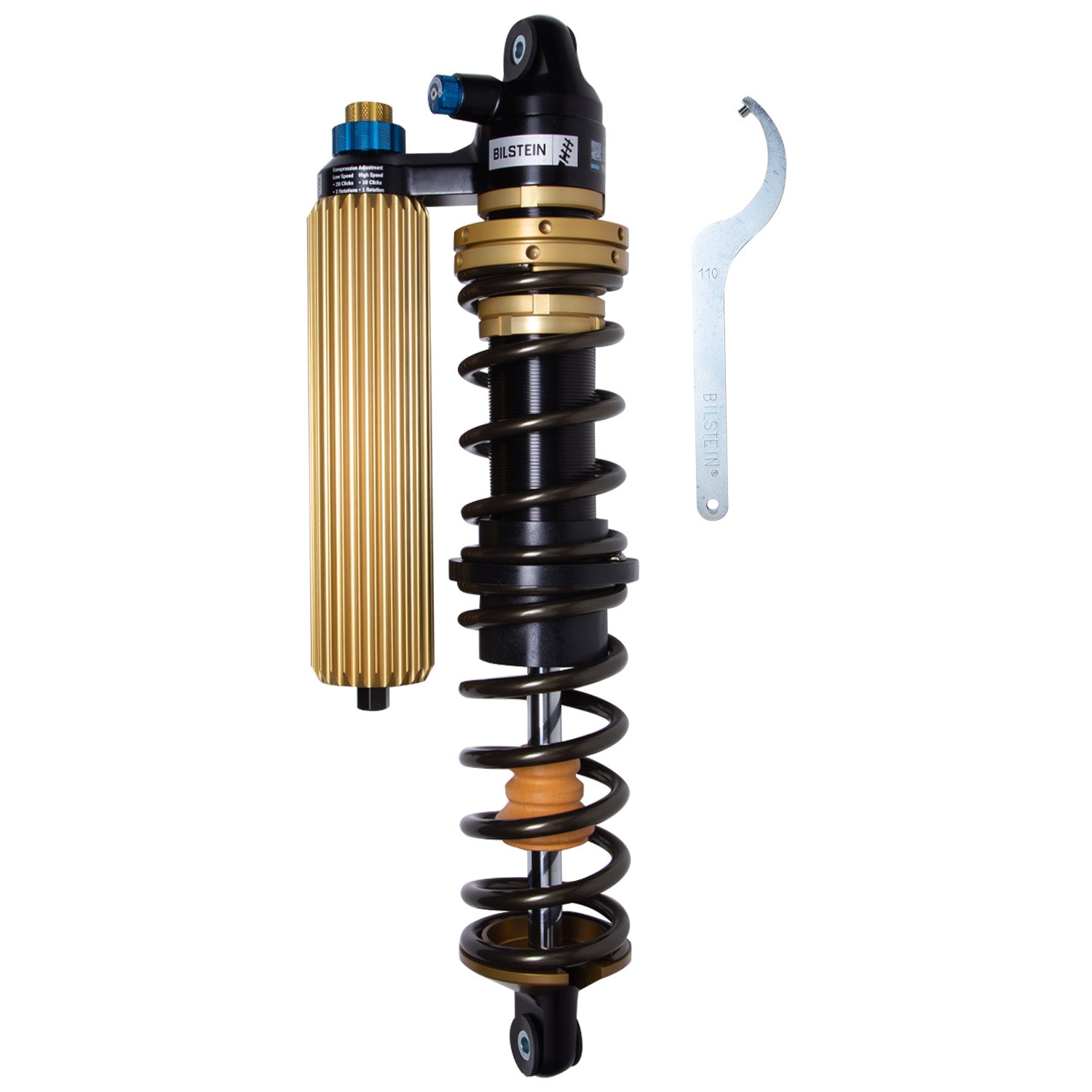

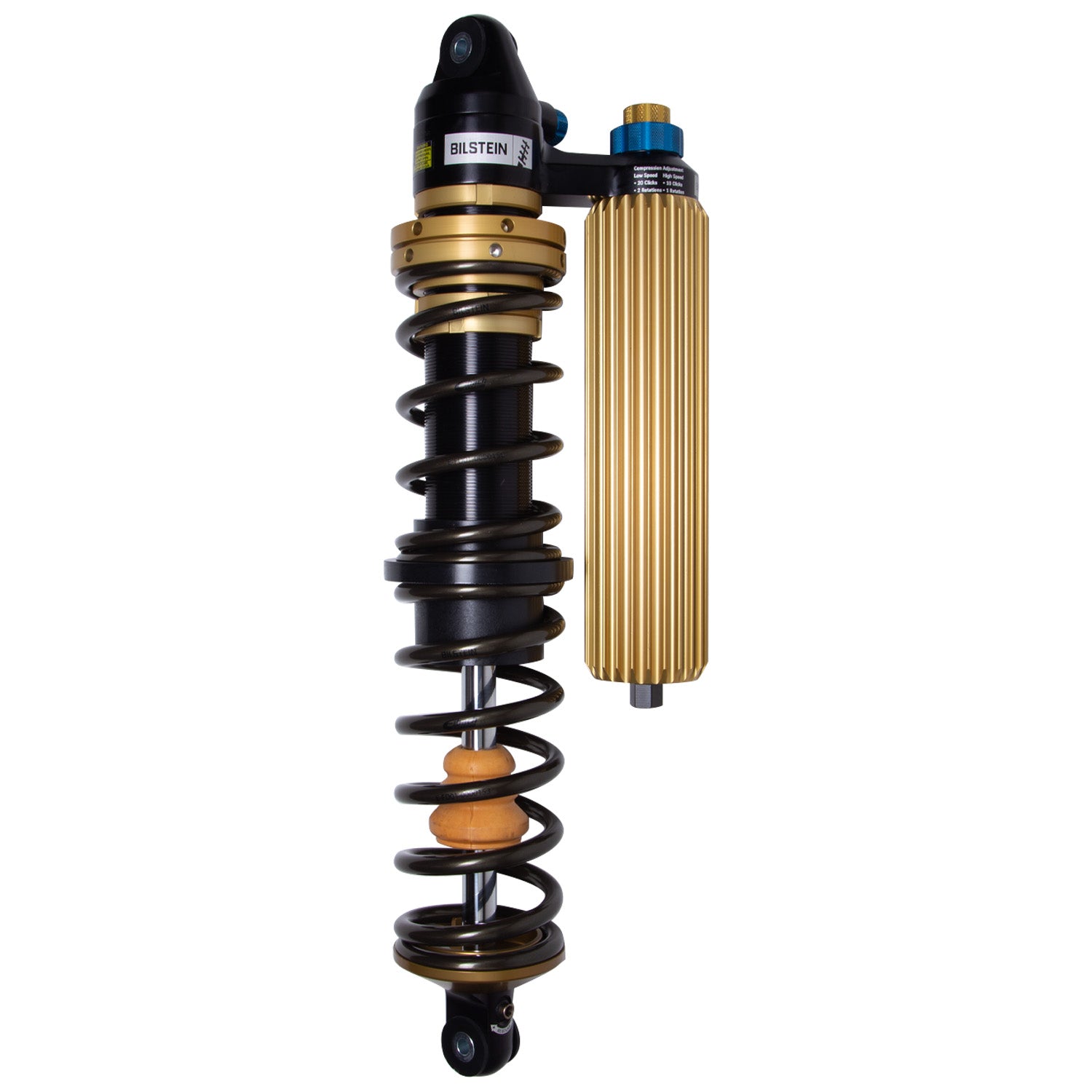

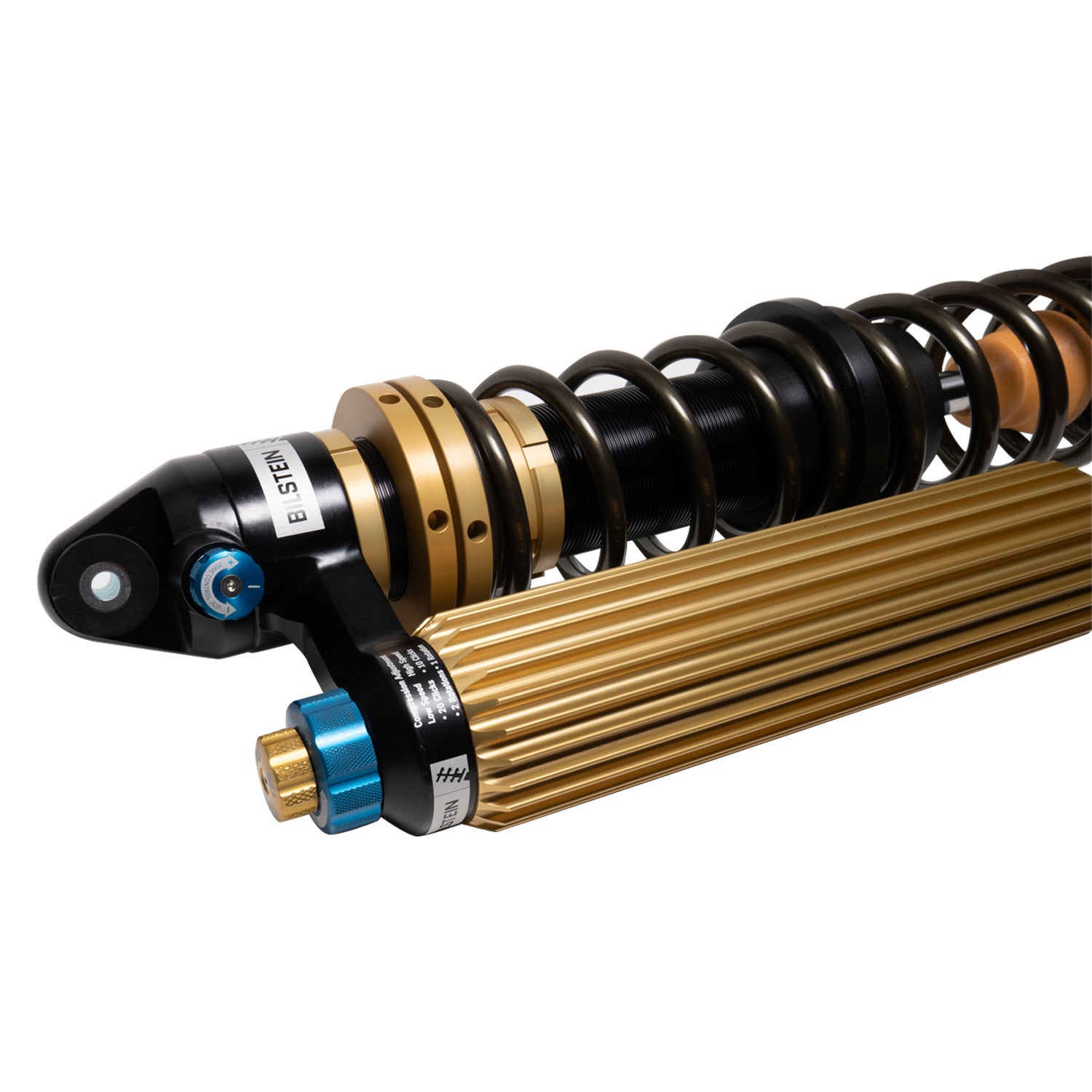

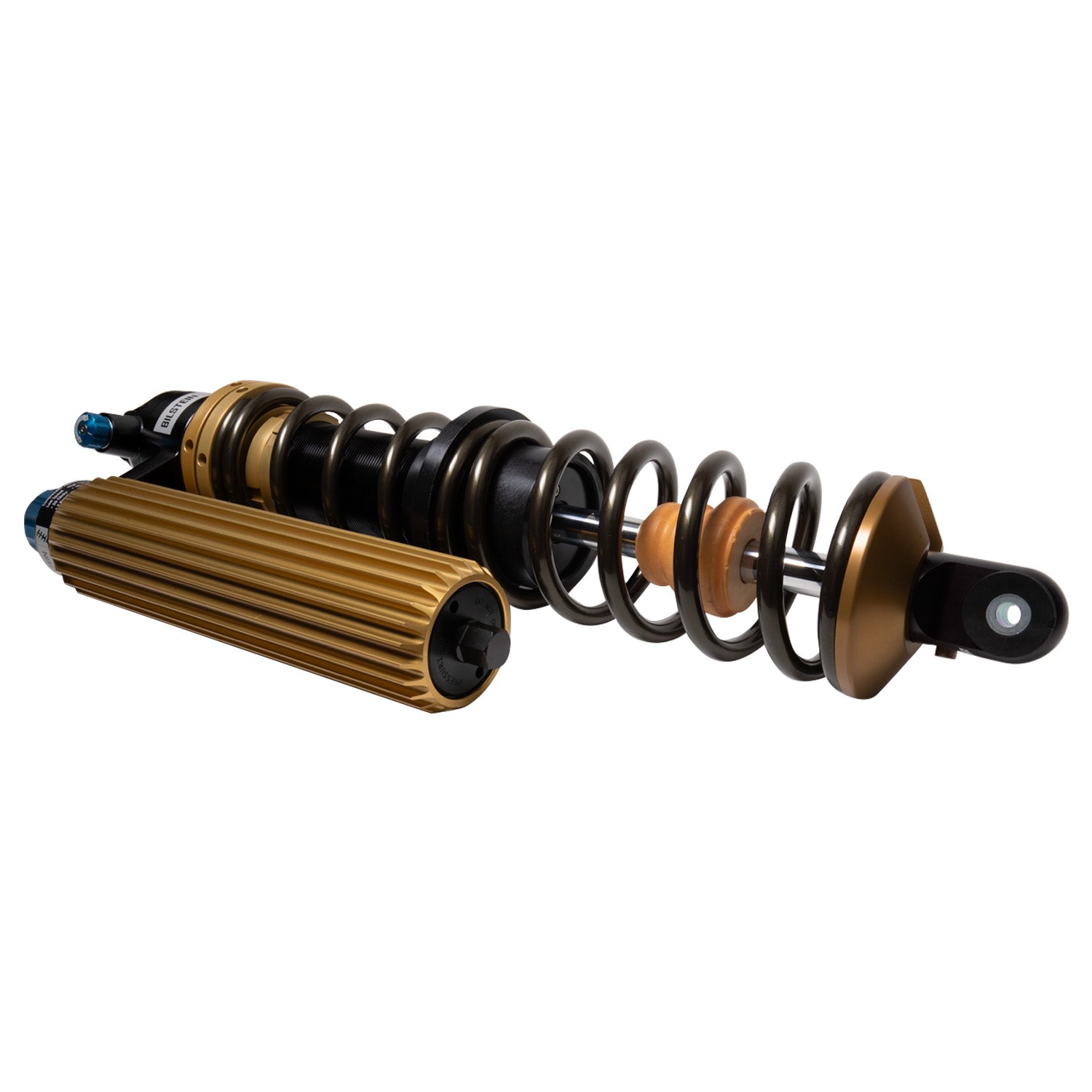

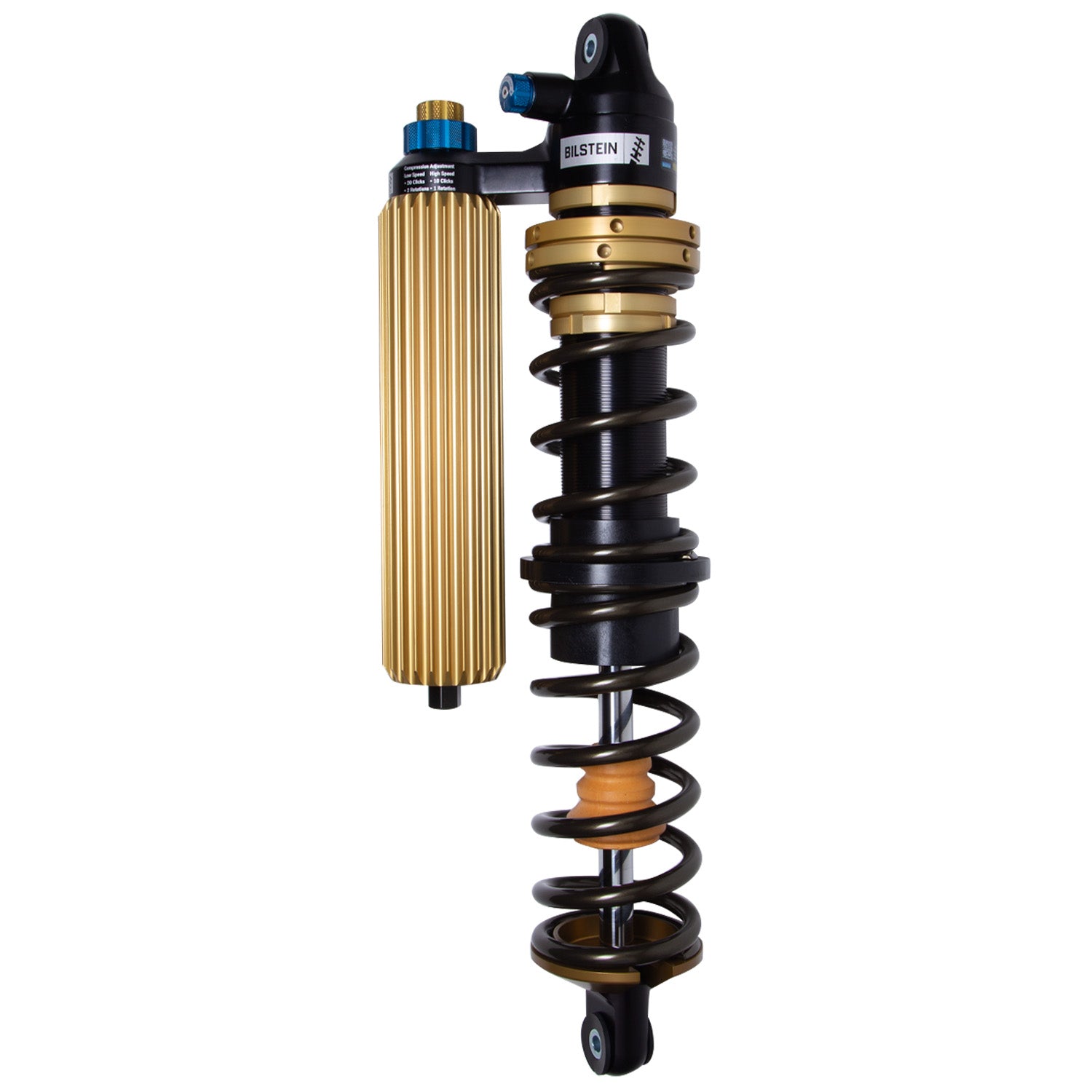

Suspension Shock Absorber and Coil Spring Assembly Front Left Monotube Polaris RZR XP 1000 2021-2020 Powersports Bilstein

Bilstein Black Hawk Powersports coilovers are specifically engineered to vastly improve the performance of your UTV. These direct fit coilovers offer position sensitive damping and 4-way adjustability, all features that will take your UTV to the next level.

Black Hawk Powersports feature Bilstein's patented ZoneControl position sensitive technology that contains 5 independently tuned damping zones; 3 Compression and 2 Rebound. ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-Stage hydraulic bump stop.

The JCO has a 10-position clicker that allows the rider to fine tune bottom out control.

For Rebound, ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper, eliminating the need for a limit strap.

Black Hawk Powersports offer 4 unique external adjustments; High/Low speed compression, rebound, and JCO. All easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk powersports are an all-aluminum design with gold finned reservoirs.

All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments. Black Hawk Powersports are completely serviceable and designed to withstand race conditions right out of the box.

This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom out control.

Experience a unique bottomless ride with Bilstein's new Black Hawk Powersports coilover packages.

Details:

• Series: Black Hawk Powersports
• Internal Design:Monotube
• Lower Mount Type: Eye 12mm (ID)
• Upper Mount Type: Eye 12mm (ID)
• Finish: Type III Hard Anodized
• Adjustable: 4-Way Adjustable - High and Low Speed Compression, Rebound, JCO-Jounce Cut-Off (Hydraulic Bump)
• Body Design: Threaded Body
• Collapsed Length Inch: 17.01
• Billet Reservoir Clamp Included: Yes
• Body Material: Aluminum alloy
• Compression at 52m s: Adjustable
• Extended Length Inch: 24.7
• Boot Included:No
• Pistion Diameter: 60mm
• Postion: Front Left
• Rebound at 52m/s: Adjustable
• Reservior: Yes
• Shaft Diameter mm: 22
• Stroke Travel Length In: 7.69
• Stroke Travel Length In: 195.3
• Applications: Polaris RZR XP 1000 2021-2020, RZR XP 1000 EPS 2019-2014, RZR XP 1000 EPS DYNAMIX Edition 2019, RZR XP 1000 EPS High Lifter Edition 2019-2017, RZR XP 1000 EPS Ride Command Edition 2019-2018, RZR XP 1000 High Lifter 2022, RZR XP 1000 High Lifter Edition 2021-2020, RZR XP 1000 Limited Edition 2020, RZR XP 1000 Premium 2024-2020, RZR XP 1000 Sport 2024-2022, RZR XP 1000 Ultimate 2024-2023, RZR XP Turbo 2021-2020, RZR XP Turbo EPS 2019-2016, RZR XP Turbo EPS DYNAMIX Edition 2019-2018, RZR XP Turbo EPS Fox Edition 2018, RZR XP Turbo EPS LE 2019
• Warranty: Limited 90 Day Warranty
