Suspension Shock Absorber 5 Inch Stroke Digressive Dry Kit Monotube SZ Series Bilstein

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard Digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately).

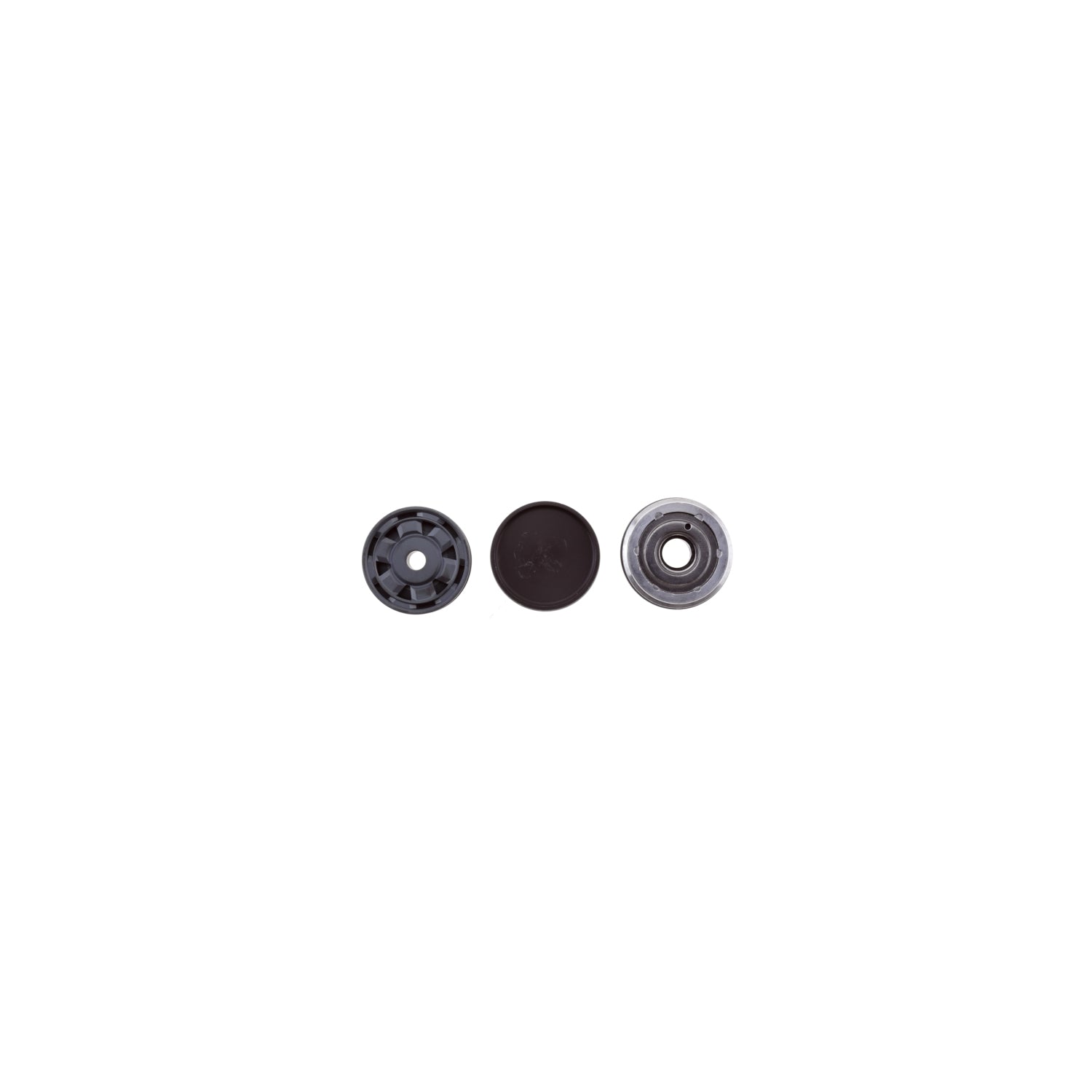

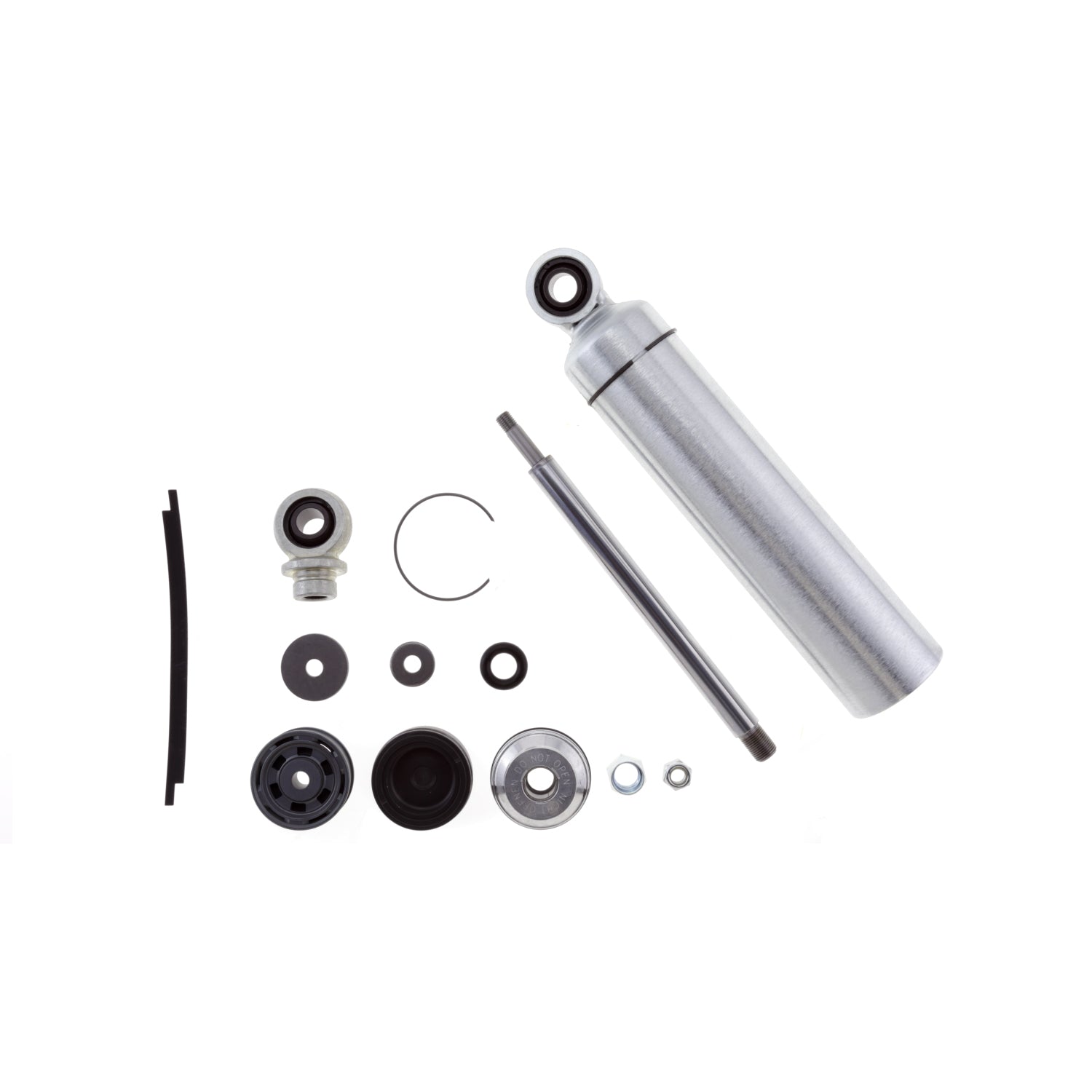

They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs.

SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Details:

• Series: SZ Series
• Internal Design:Monotube
• Lower Mount Type: 1/2in Heim
• Upper Mount Type: 1/2in Heim
• Finish: Zinc Plated
• Adjustable: Non-Adjustable
• Body Design: Smooth Body (Non-coilover)
• Collapsed Length Inch: 11.08
• Body Material: Steel
• Extended Length Inch: 16.28
• Boot Included:No
• Pistion Diameter: 46mm
• Pistion Type: Digressive
• Shaft Diameter: 14mm
• Stroke Travel Length In: 5.2
• Stroke Travel Length In: 132.1
• Notes: 5 Inch Stroke Digressive Dry Kit
• Warranty: 90 Day Warranty
