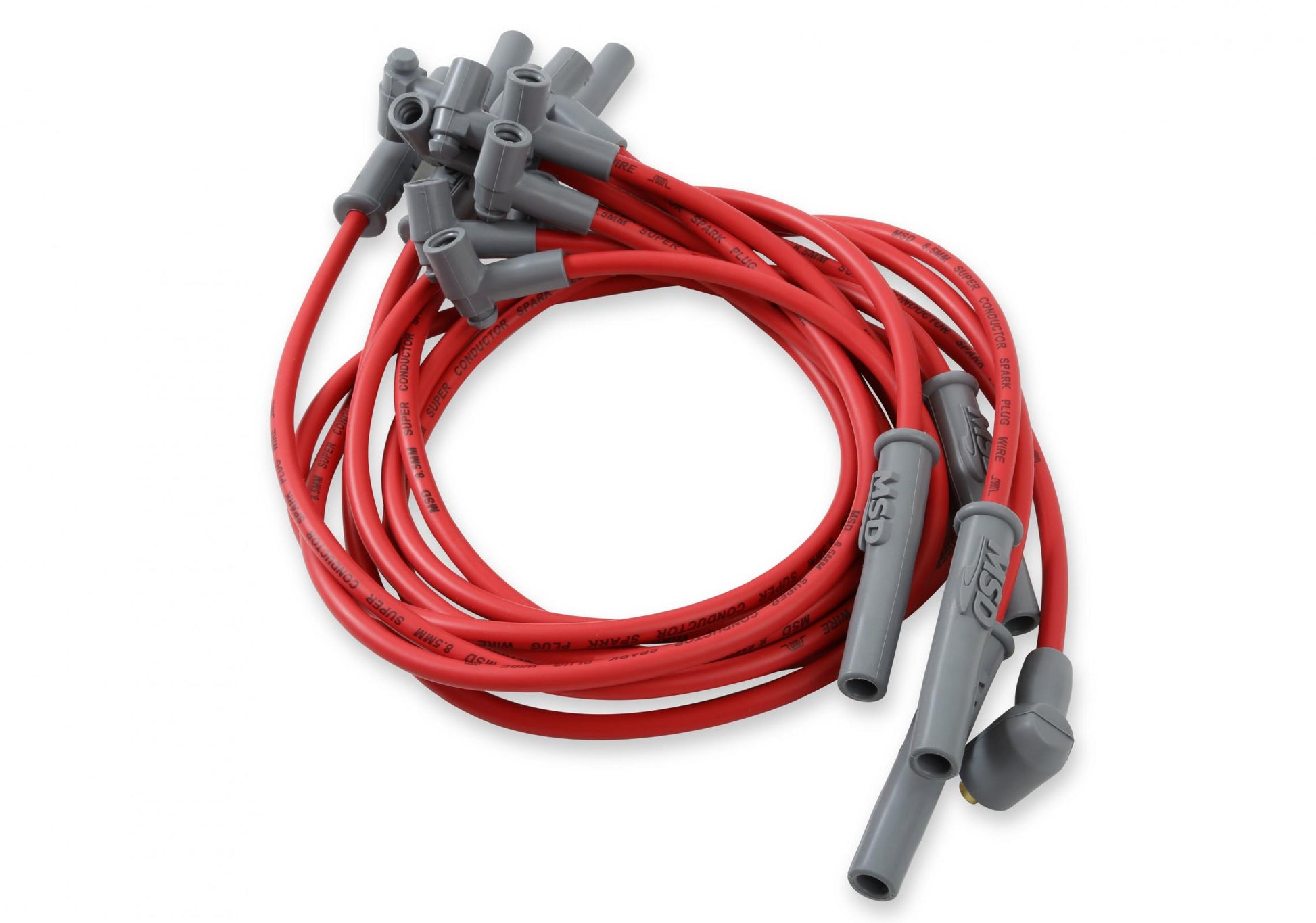

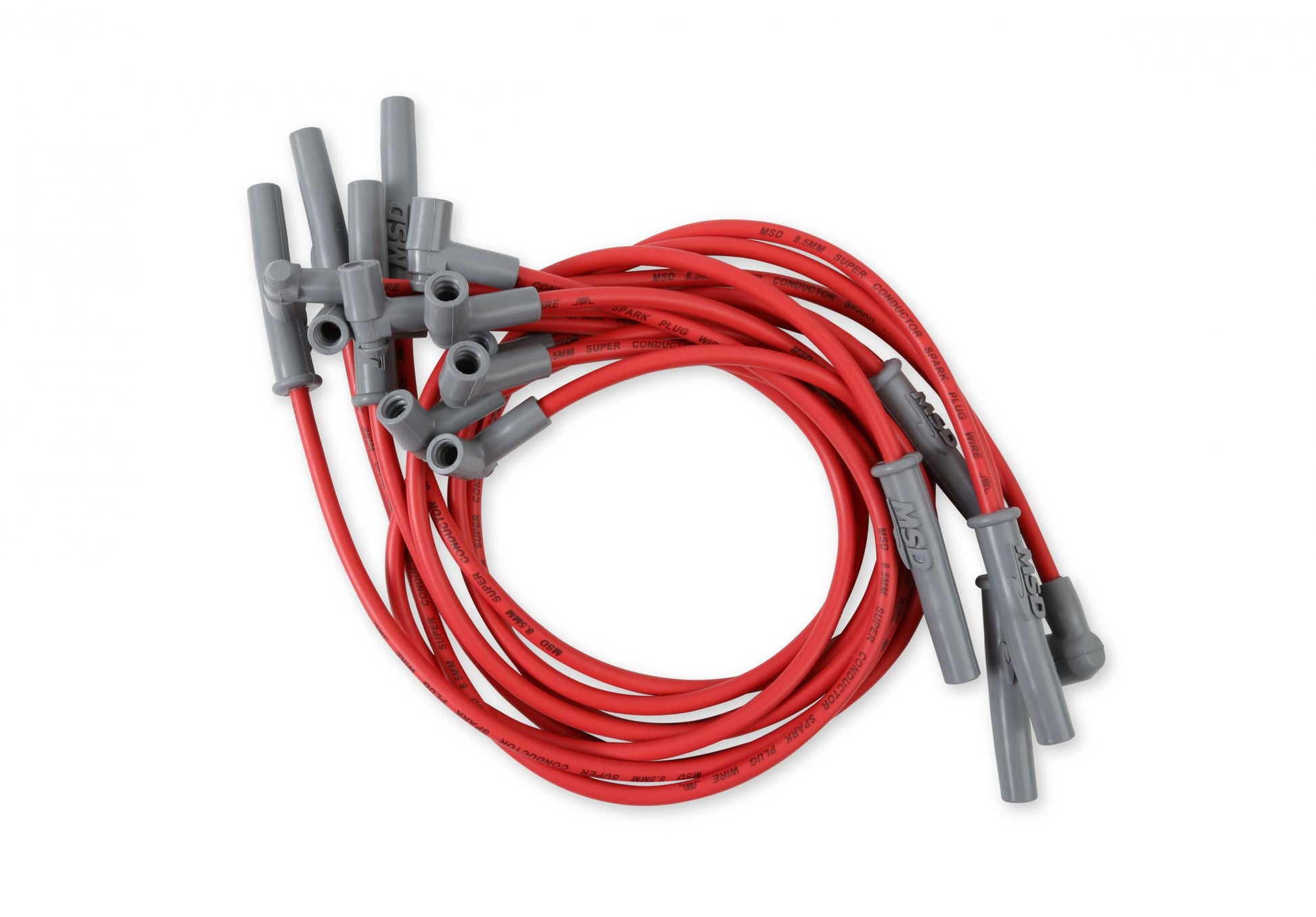

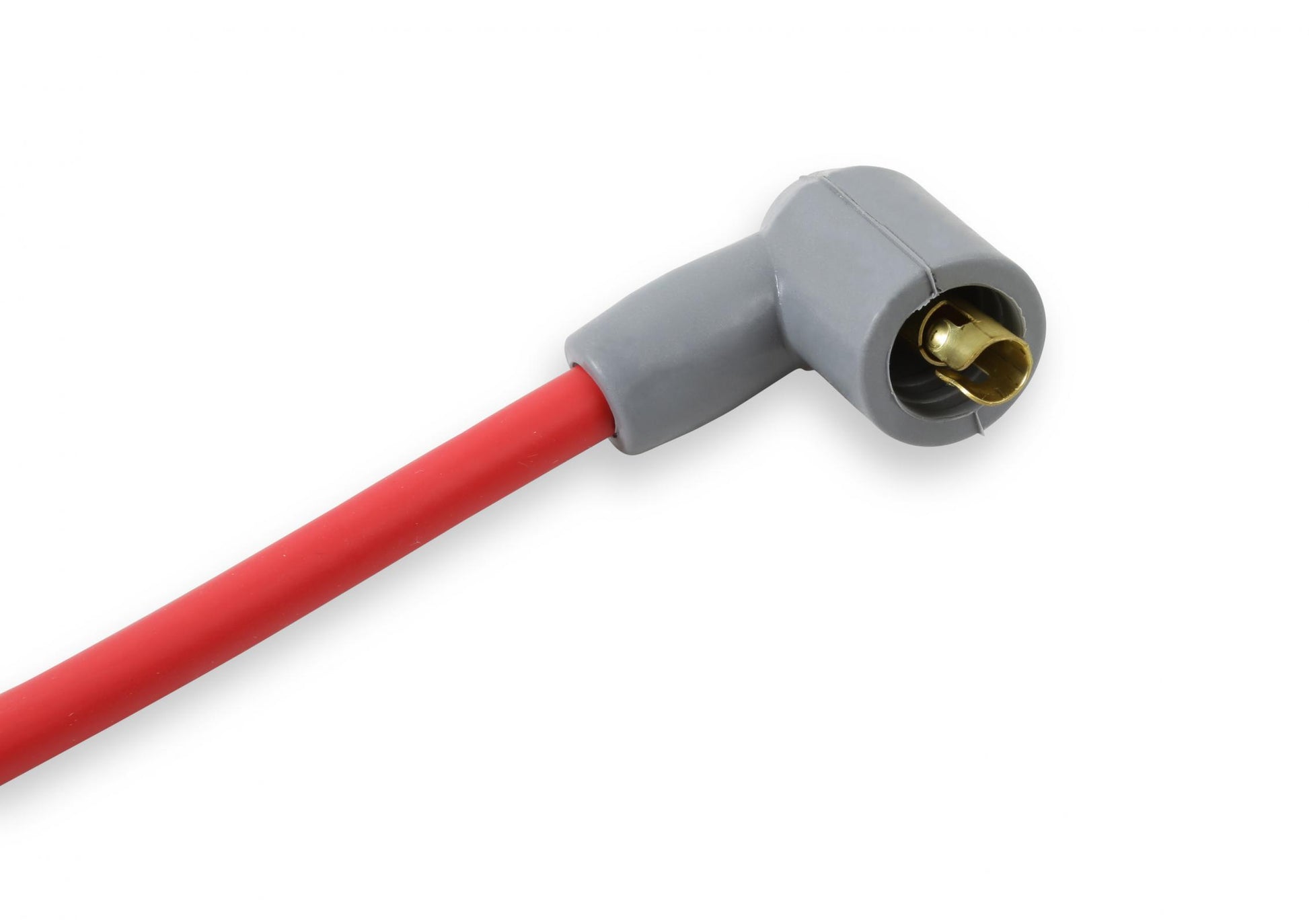

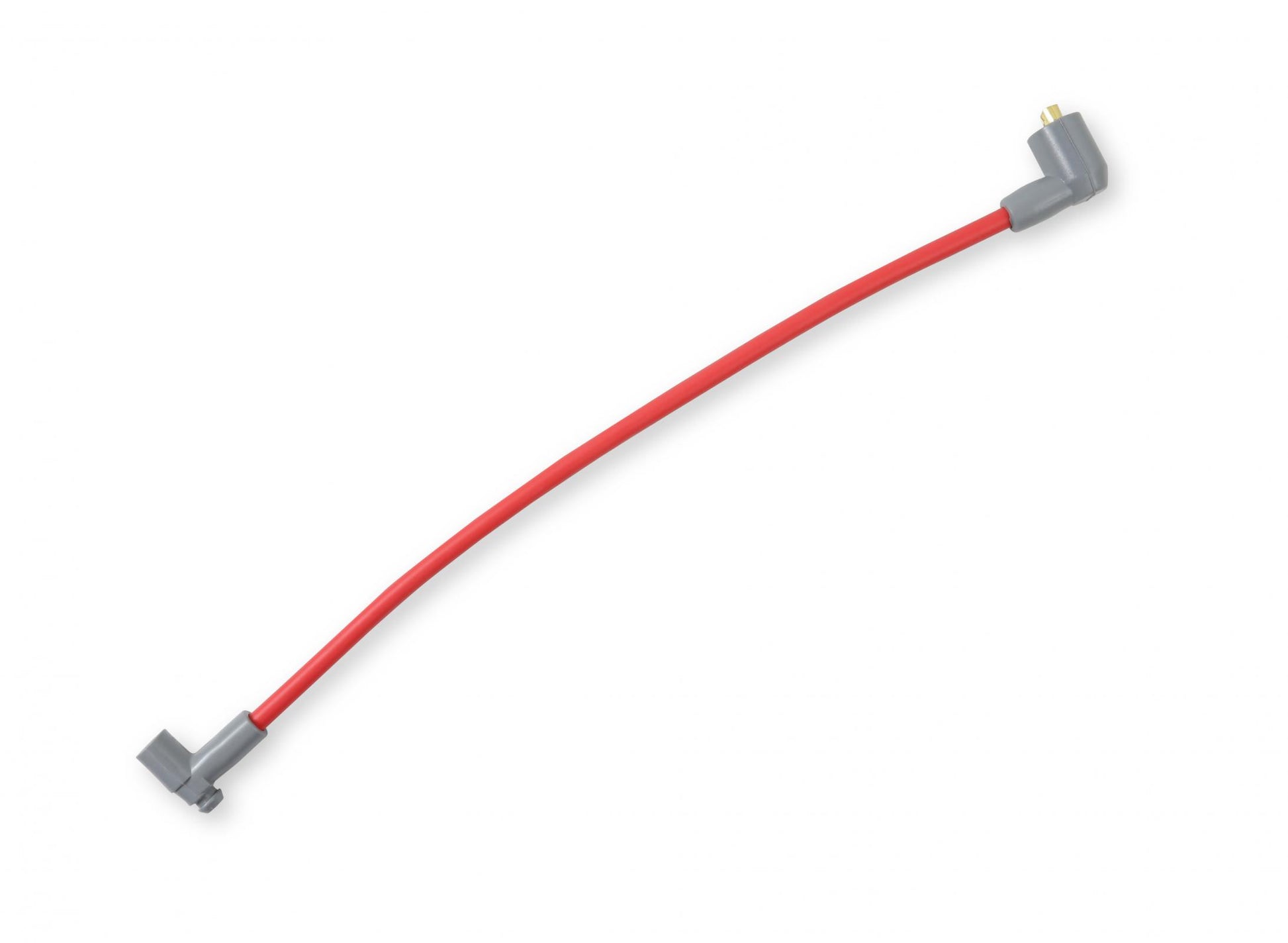

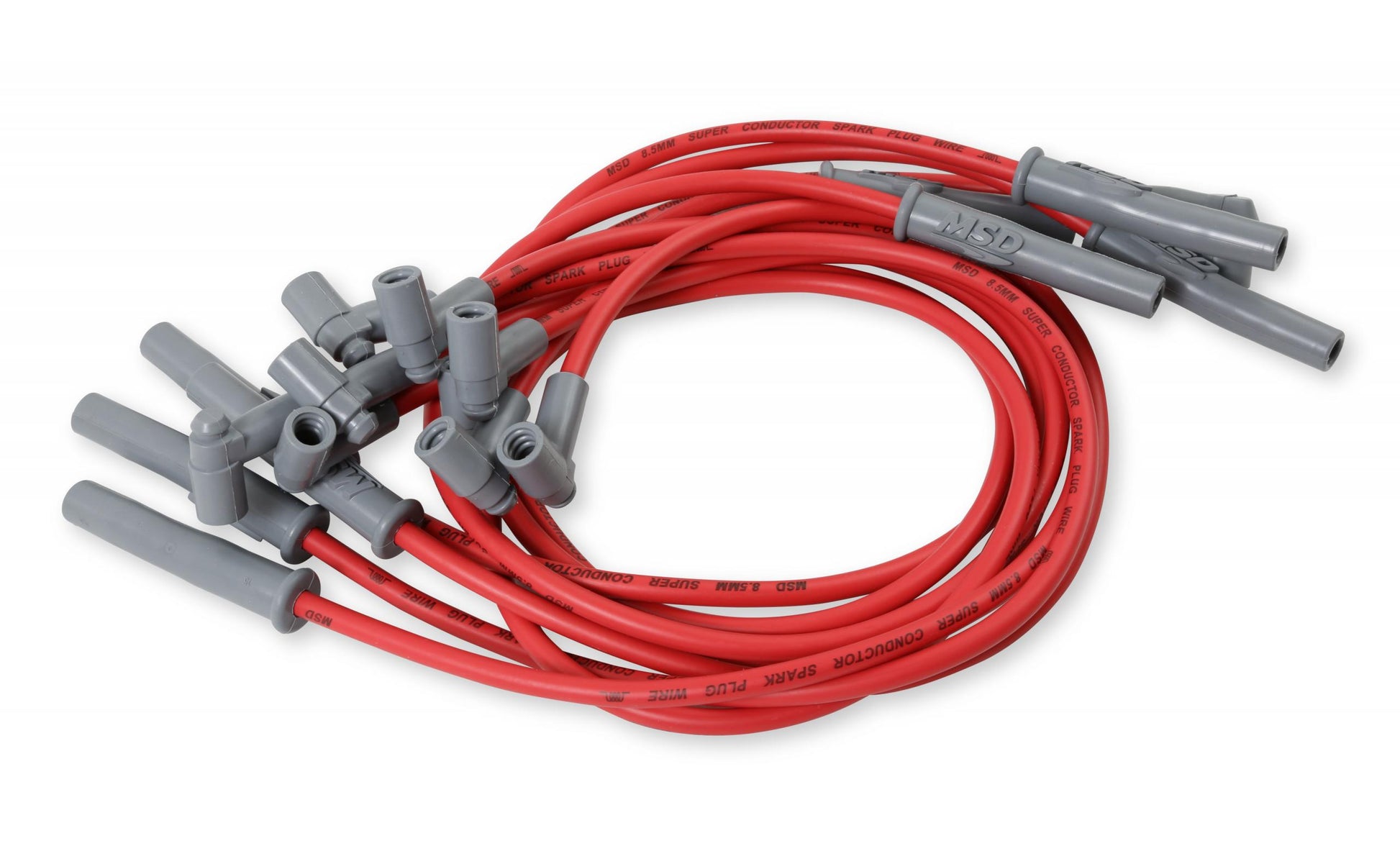

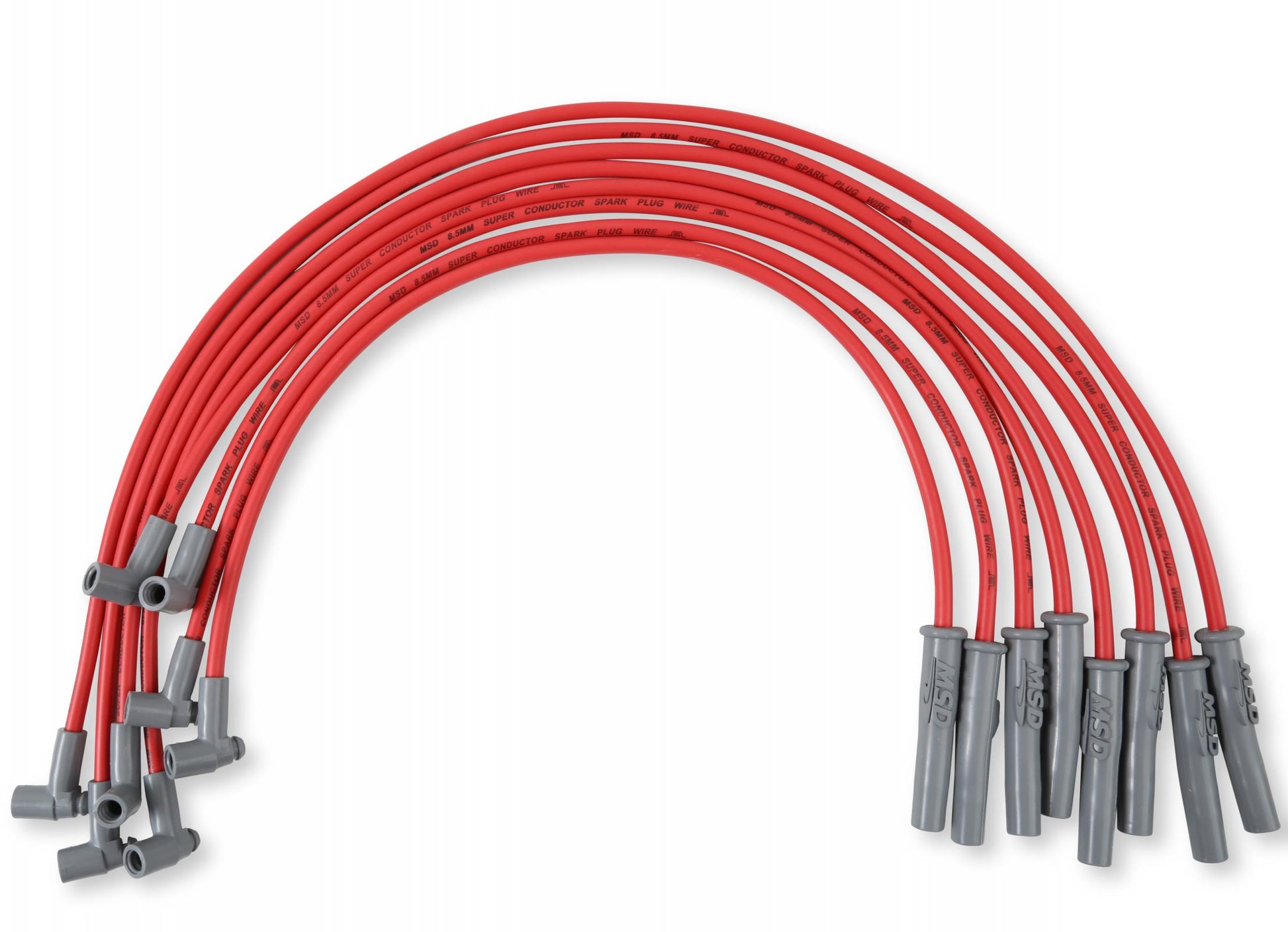

Super Conductor Spark Plug Wire Set Chevy 366-454 W/Hei Cap For Use With Chevy 366-454 With Hei Cap, Red Jacket MSD Ignition
Engineered from the inside out, the 8.5 offers everything you have ever wanted in a wire, incredibly low resistance without electronic interference! In a single 12 inch length of Super Conductor Wire there is only 40 - 50 ohms of resistance! That is the lowest resistance of any helically wound wire. To accomplish this, we use a copper alloy conductor due to it's great voltage carrying capabilities. The low resistance results in less loss in spark energy so more reaches the spark plug. The conductor is wound extremely tight around a special center core. So tight in fact, that there is over 40 feet of conductor wrapped into a single foot of plug wire. This winding procedure, combined with a ferro-magnetic impregnated center core, produces an extremely effective Electro Magnetic Interference (EMI) Choke. This choke, or suppression capability, keeps the EMI inside the wire where it cannot interfere with other electronics on your vehicle. The outer sleeve that surrounds the conductor assembly is just as impressive. A proprietary blend of silicone and synthetic material produce a sleeve that is highly resistant to high heat as well as abrasion and tears. The MSD's 8.5mm spark plug terminals feature Dual Crimp terminals. As the name implies, the terminals feature two crimps, one for the sleeve of the wire and another separate crimp to grasp the conductor. The MSD's 8.5mm spark plug terminals feature Dual Crimp terminals. As the name implies, the terminals feature two crimps, one for the sleeve of the wire and another separate crimp to grasp the conductor.
- Wire Lengths: 1-27 Inch, 1-28 Inch, 2-29 Inch, 2-36 Inch, 2-39 Inch, Coil wire 18 Inch
- Custom fit for make and model listed.
- Wires are precut to exact specifications
- Bolt-on performance
Details:
- Boot Material: Silicone
- Core: Copper
- Emission Code: 5
- Insulation Color: Red
- Resistance: 40-50 Ohms Per Foot
- Spark Plug Boot Angle: Multi-Angle
- Wire Diameter: 8.5
- Wire Series: 8.5 Super Conductor
- Warranty: Manufacturer's Limited 1 Year Warranty
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1969 | Chevrolet | Chevelle | 300 Deluxe |
| 1969 | Chevrolet | K10 Pickup | — |
| 1969 | Chevrolet | K20 Pickup | — |
| 1969–1970 | Chevrolet | Nova | — |
| 1969–1971 | Chevrolet | K30 Pickup | — |
| 1969–1972 | Chevrolet | Chevelle | Greenbrier |
| 1969–1972 | Chevrolet | Caprice | — |
| 1969–1972 | Chevrolet | Chevelle | Malibu |
| 1969–1972 | Chevrolet | Chevelle | Nomad |
| 1969–1972 | Chevrolet | K10 Suburban | — |
| 1969–1972 | Chevrolet | Chevelle | Concours |
| 1969–1972 | Chevrolet | Camaro | SS |
| 1969–1972 | Chevrolet | Chevelle | Concours Estate |
| 1969–1972 | Chevrolet | Chevelle | SS |
| 1969–1972 | Chevrolet | Biscayne | — |
| 1969–1974 | Chevrolet | Impala | — |
| 1969–1974 | Chevrolet | El Camino | Custom |
| 1969–1974 | Chevrolet | C30 Pickup | — |
| 1969–1974 | Chevrolet | C10 Suburban | — |
| 1969–1974 | Chevrolet | El Camino | SS |
| 1969–1974 | Chevrolet | C20 Pickup | — |
| 1969–1974 | Chevrolet | Corvette | — |
| 1969–1974 | Chevrolet | C20 Suburban | — |
| 1969–1974 | Chevrolet | C10 Pickup | — |
| 1969–1974 | Chevrolet | El Camino | — |
| 1969–1974 | Chevrolet | Bel Air | — |
| 1970 | Chevrolet | Townsman | — |
| 1970–1972 | Chevrolet | Chevelle | — |
| 1970–1972 | Chevrolet | Kingswood | Estate |
| 1970–1972 | Chevrolet | Kingswood | — |
| 1970–1974 | Chevrolet | Monte Carlo | — |
| 1971–1972 | Chevrolet | Camaro | — |
| 1972 | Chevrolet | Camaro | Z28 |
| 1972 | Chevrolet | Townsman | — |
| 1972 | Chevrolet | Brookwood | — |
| 1973 | Chevrolet | Monte Carlo | S |
| 1973 | Chevrolet | Laguna | Estate |
| 1973 | Chevrolet | Blazer | — |
| 1973 | Chevrolet | Chevelle | Deluxe |
| 1973–1974 | Chevrolet | Laguna | — |
| 1973–1974 | Chevrolet | Caprice | Classic |
| 1973–1974 | Chevrolet | K30 Pickup | — |
| 1973–1974 | Chevrolet | K20 Pickup | — |
| 1973–1974 | Chevrolet | G20 Van | Sportvan |
| 1973–1974 | Chevrolet | Monte Carlo | Landau |
| 1973–1974 | Chevrolet | Malibu | — |
| 1973–1974 | Chevrolet | Malibu | Estate |
| 1973–1974 | Chevrolet | Caprice | Estate |
| 1973–1974 | Chevrolet | G30 Van | — |
| 1973–1974 | Chevrolet | G20 Van | — |
