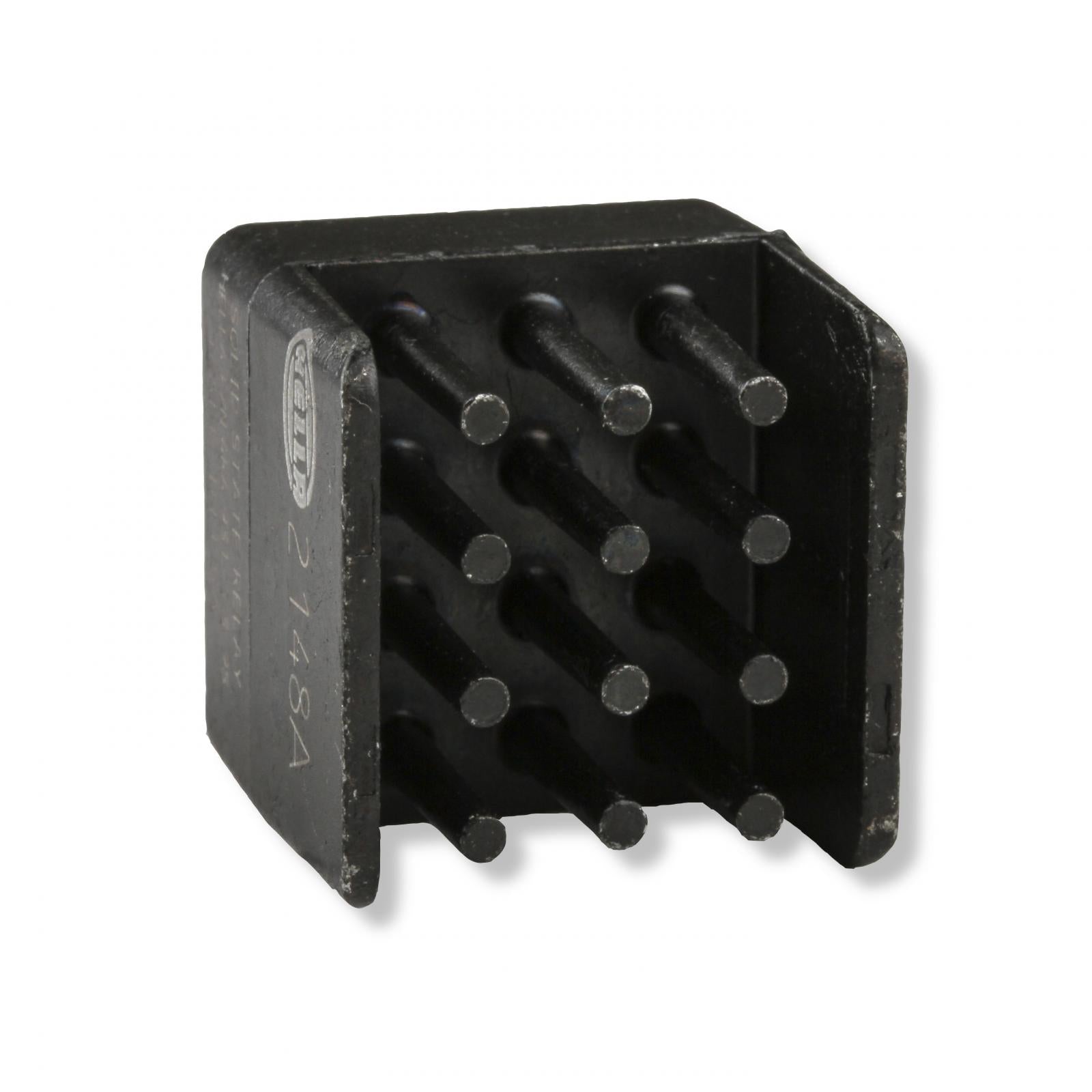

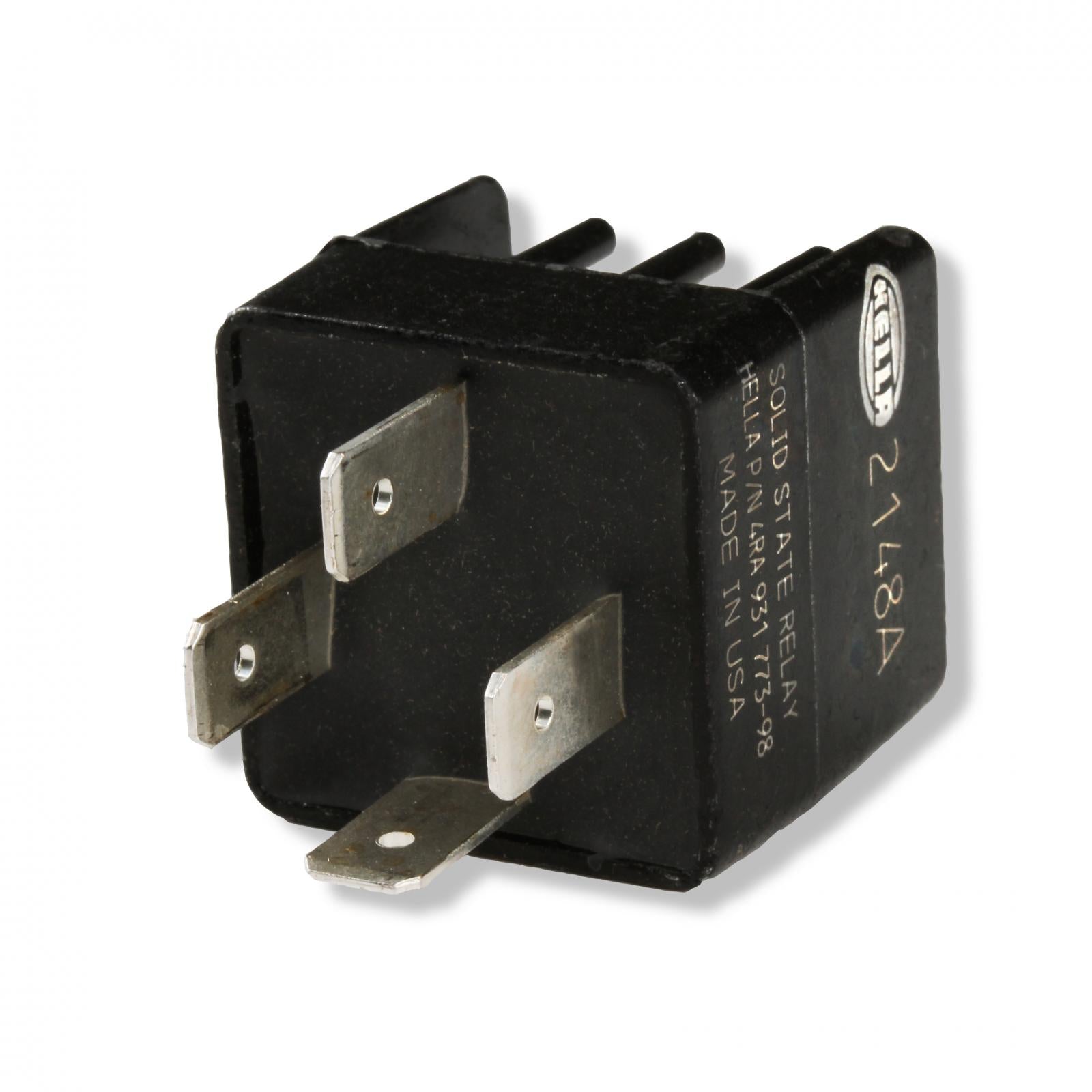

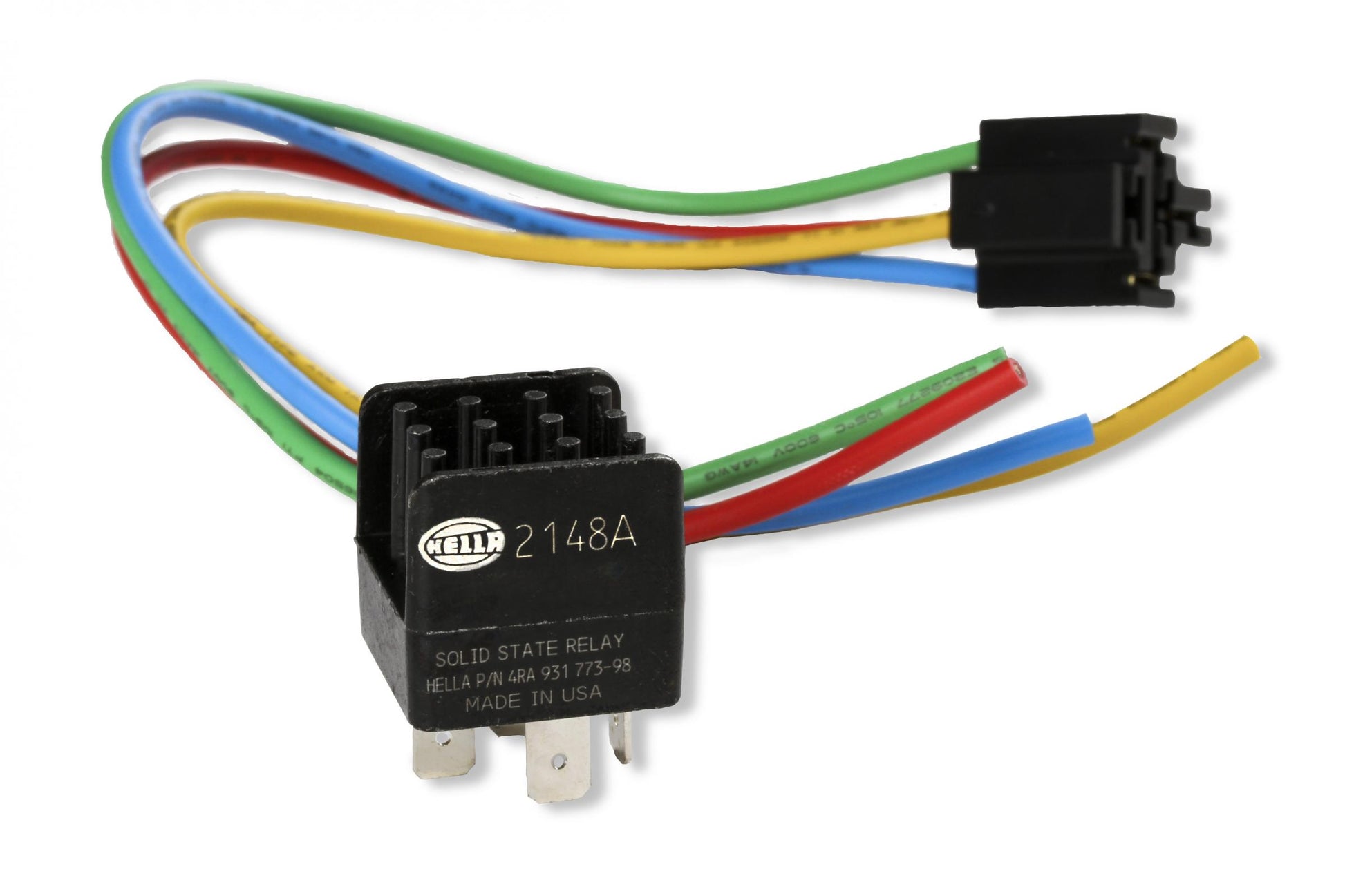

Solid State N/O Relay W/Socket Harness The Spst Normally Open Relay Is Rated At 20 Amps Continuous, Supplied With Socket Harness MSD Ignition

The benefit of a solid-state relay is that it has a faster activation circuit and no moving parts that wear, which increases the life of the relay. The absence of moving parts makes the solid-state relay less sensitive to mechanical shock, vibration and moisture.

• MSD's Solid-State Relay w/harness are ideal for use on electric fuel pumps, water pumps, and cooling fans. The high-power controlled circuit handles 30 amps momentary and 20 amps for continuous use @ 12VDC and is energized by the low-power activation circuit. The pigtail harness has 11 Inch long leads w/ heavy-duty 14-gauge wire.
• Continuous Load - 20Amp
• Max Coil Voltage 16-Volts

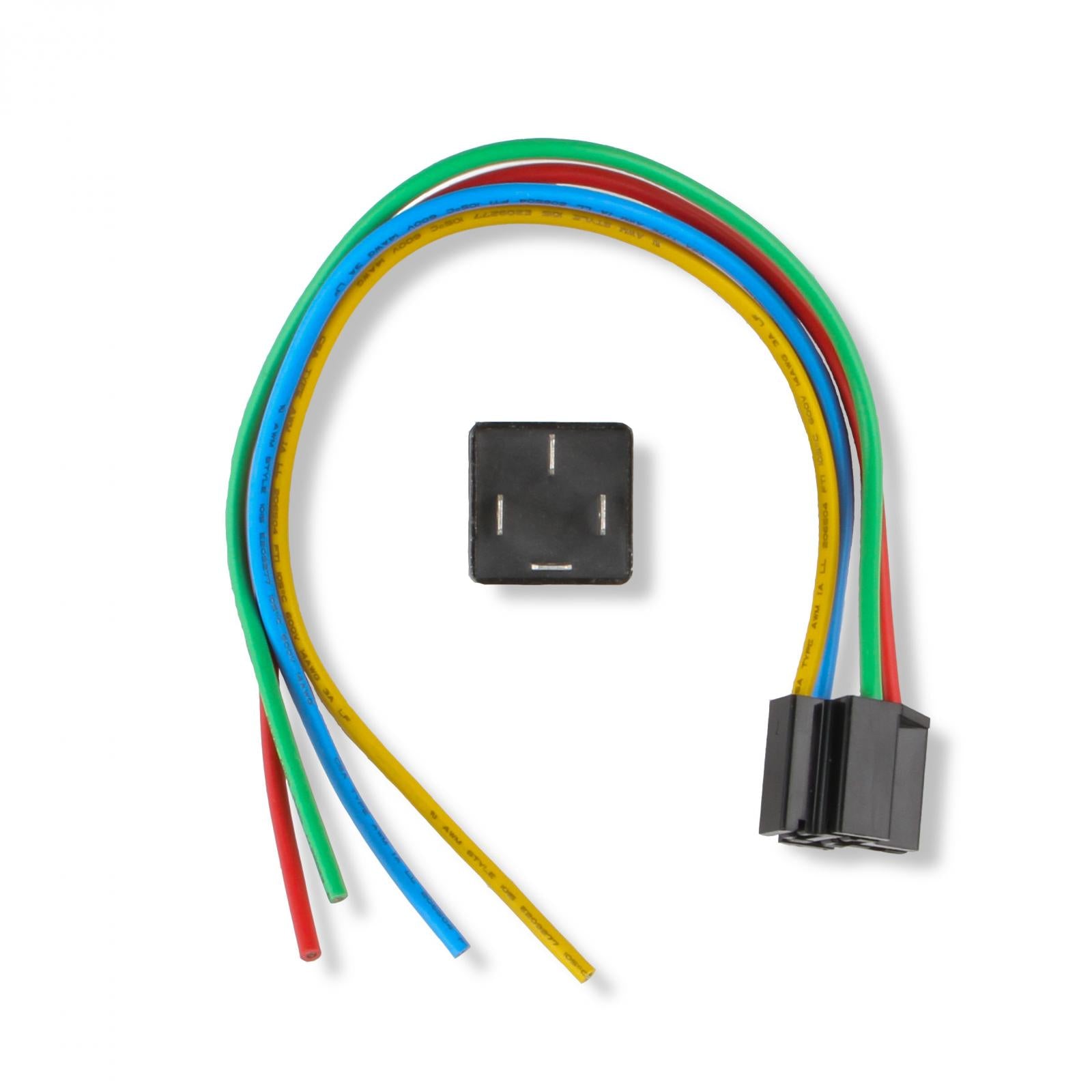

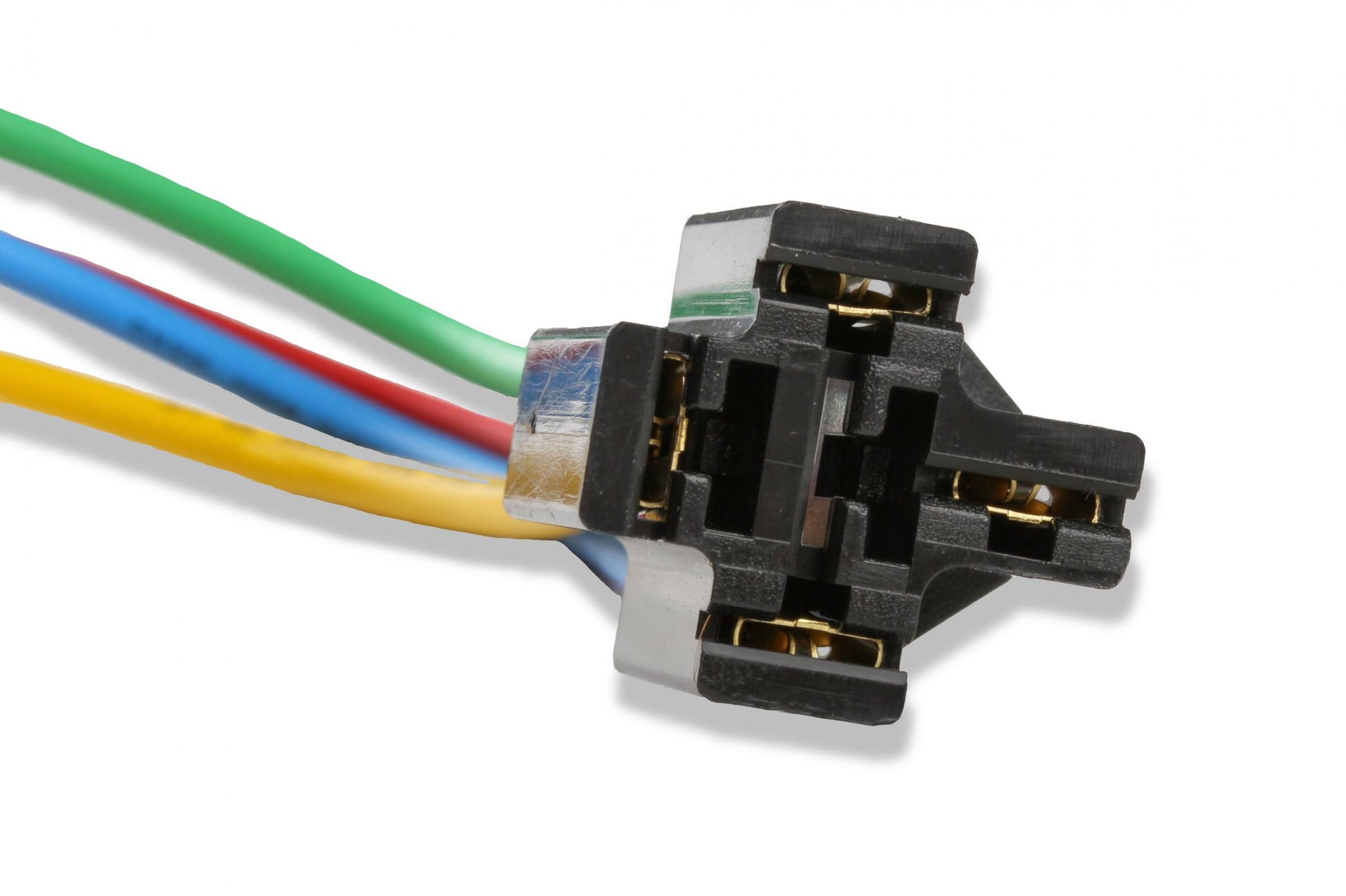

• Pigtail harness 14 AWG wires, 11” Long
• Max Inrush Load - Overload Protected at 80A
• Nominal Voltage 12-Volts
• SPST Normally Open
• Mini Solid State Relay

Details:

• Emission Code: 5
• Warranty: Manufacturer's Limited 1 Year Warranty
