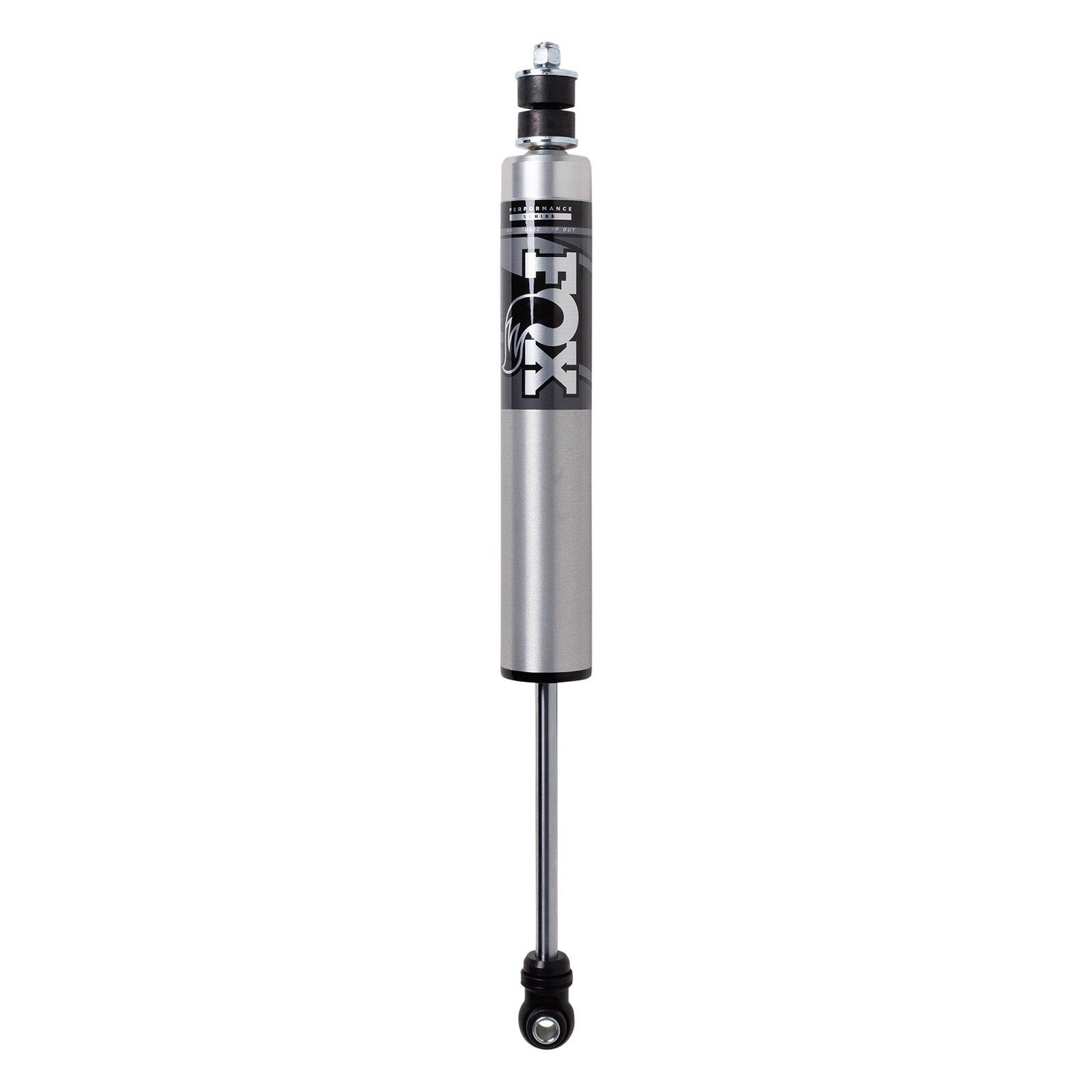

Shock Absorber 14-On Ram 3500 Rear 2.5 Truck Performance Series IFP 2-3.5 Lift Hto Fox Factory

5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion.

5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.

HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than Oem specification. 5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

Features and Benefits:

• 2.5 Inch Impact extruded 6061-T6 aluminum shock body
• Type II clear-anodized body plating
• High-flow velocity-sensitive damping
• 5/8 Inch hard chrome shaft
• Internal floating piston (IFP)

Details:

• Diameter: 2.5 Inch
• Location: Rear
• Series: Performance
• Top: Stem
• Travel Length: 11.36 Inch
• Bottom: Eyelet
• Extended Length: 30.36 Inch
• Collapsed Length: 19 Inch
• Reservoir Type: Internal Floating Piston
• Shock Type: Smooth Body
• Gas Charged: Yes
• Material: Aluminum
• Warranty: Lifetime

Increase your vehicle's off-road capability by extending drop-out travel in most applications. Experience on-road comfort with performance-minded shock valving for a connected ride with less vehicle sway.
