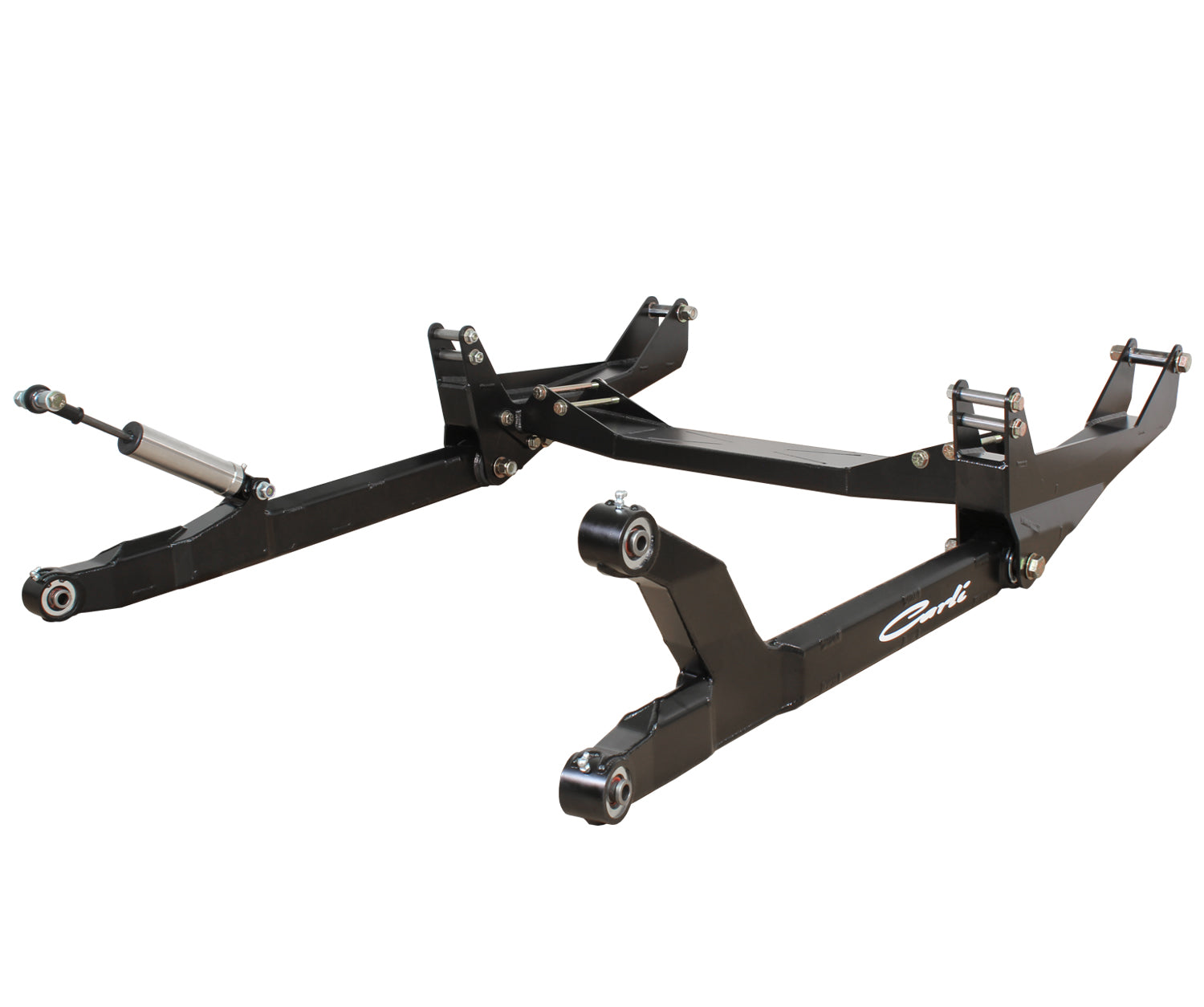

Radius Arm System 2003-2009 RAM 2500/3500s equipped with 6 inch Lift systems 1-piece crossmsmber Carli Suspension

Take your trucks performance to the next level with the Fabricated Radius Arm System. Designed around the Carli 6 inch Systems, this kit provides huge gains in articulation and control.

Features and Benefits:

• Carli 6 lift radius arms were engineered for exact geometry. The result is maximum strength 3/16 construction with full-length 1/4 internal gussets, zero-bind axle articulation thanks to the axle control shock, and maximum wheel travel given their length. The design is a 3 link with a custom axle control shock on the driver's side arm. A custom built and tuned stainless plunger shock controls low-speed axle articulation movement maintaining precise suspension geometry offering the longest service life and most articulation of any long-arm conversion.
• Features fabricated 1-piece crossmsmber for unmatched strength.
• 3/16 inch internal construction with 1/4 inch intrenal gusseting for maximum strength and durability.
• Designed to fit 2003-2009 RAM 2500/3500s equipped with 6 inch lift systems.
• Spherical bearings are greasable and servicable for ease of maintenance.

Details:

• Drive: 4WD
• Lift Height: 6.0 inch
• Warranty: Limited Lifetime Warranty

Fitment:

2003-2009 Dodge RAM 2500 (Drive: 4WD)

• 2003-2009 Dodge RAM 3500 (Drive: 4WD)
