Pathfinder System Base 3.25 Lift 2013-26 RAM 3500 NON-AIR Assist Carli Suspension

The Carli Pathfinder System is the true do-all Suspension setup. Featuring Carli-Spec 2.

5 inch shocks tuned for optimal on road ride, improved offroad performance, stability when towing, durability, appearance, and easy on the wallet.

Features and Benefits:

• Carli Pintop Systems provide a moderate lift and the added confidence of larger diameter (2.5 inch) shocks. They are a perfect blend of a comfortable on-road ride with all the harsh edges rounded and confident light- to medium-duty off-roading. The system features Carli-specific, blueprinted, King 2.5 shocks on all four corners. With a 2.5-inch diameter shock body these Pintop shocks delver 55 percent more piston surface area than a 2.0-inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust 3-4-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.
• 2.5 inch Pathfinder shocks provide the best blend of comfort, control, and cooling capability for a great all-around shock.
• Shocks are finished in a durable gray hardcoat for resistance to corrosion and great appearance.
• Further improve performance by adding Carli torsion sway bar, fabricated radius arms, steering stabilizers, rear leaf spring option, or ball joints.
• Not compatible with trucks equipped with factory rear air ride.

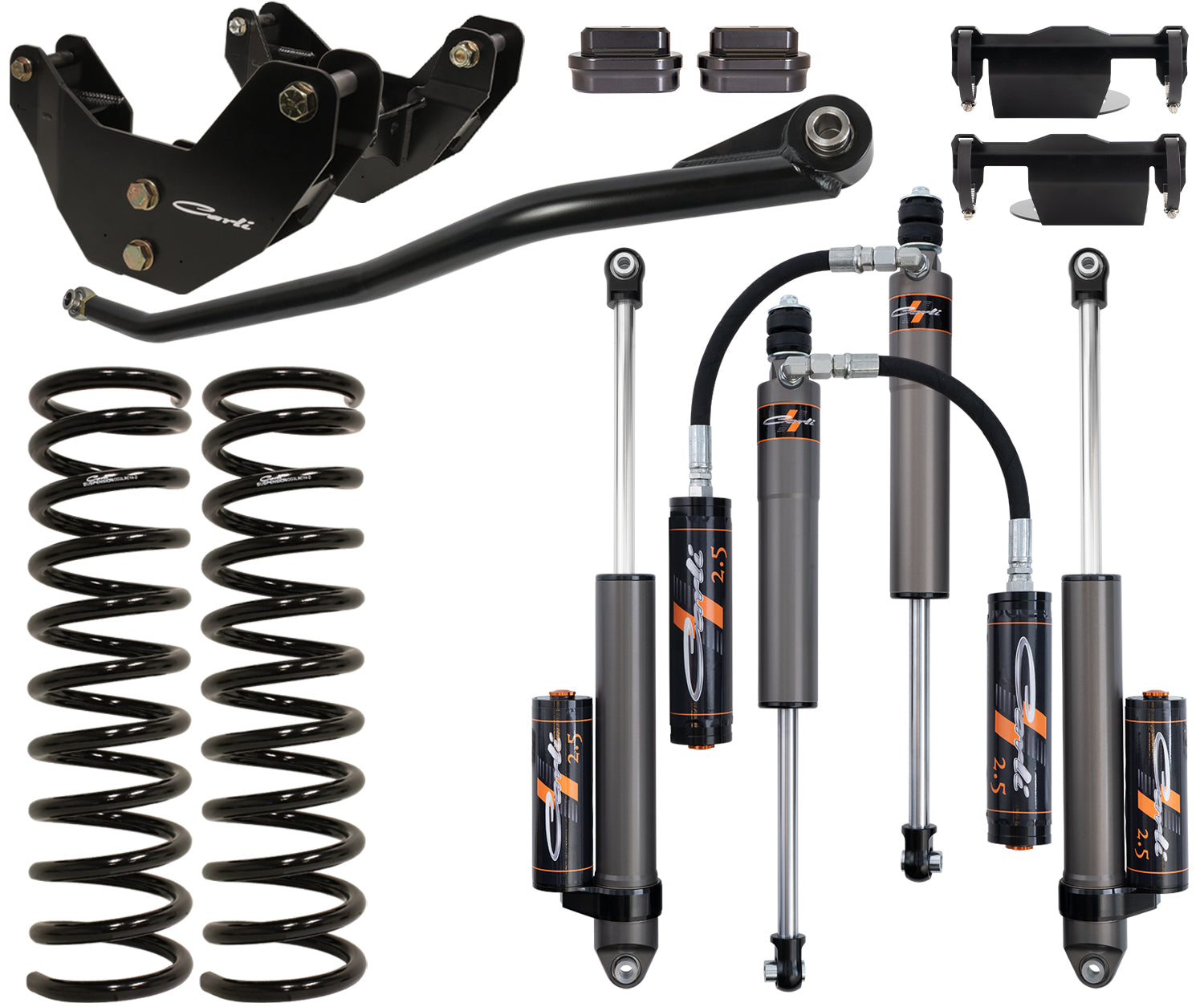

• System includes Linear-rate front coil springs, front and rear shock package, front bump drops, radius arm drops and adjustable track bar.
• Fits up to 37 inch tires with ease for a more aggresize appearance and better offroad performance.
• Increases wheel travel to 9.3 inch front and 13 inch rear.

Details:

• Drive: 4WD
• Fitment Notes: without air assist
• Fuel Type: Diesel
• Lift Height: 3.25 inch
• Warranty: Limited Lifetime Warranty

Fitment:

2013-2026 RAM 3500 (Fuel: Diesel and Front Spring: Coil and Rear Spring: Leaf and Drive: 4WD / Note: without air assist)
