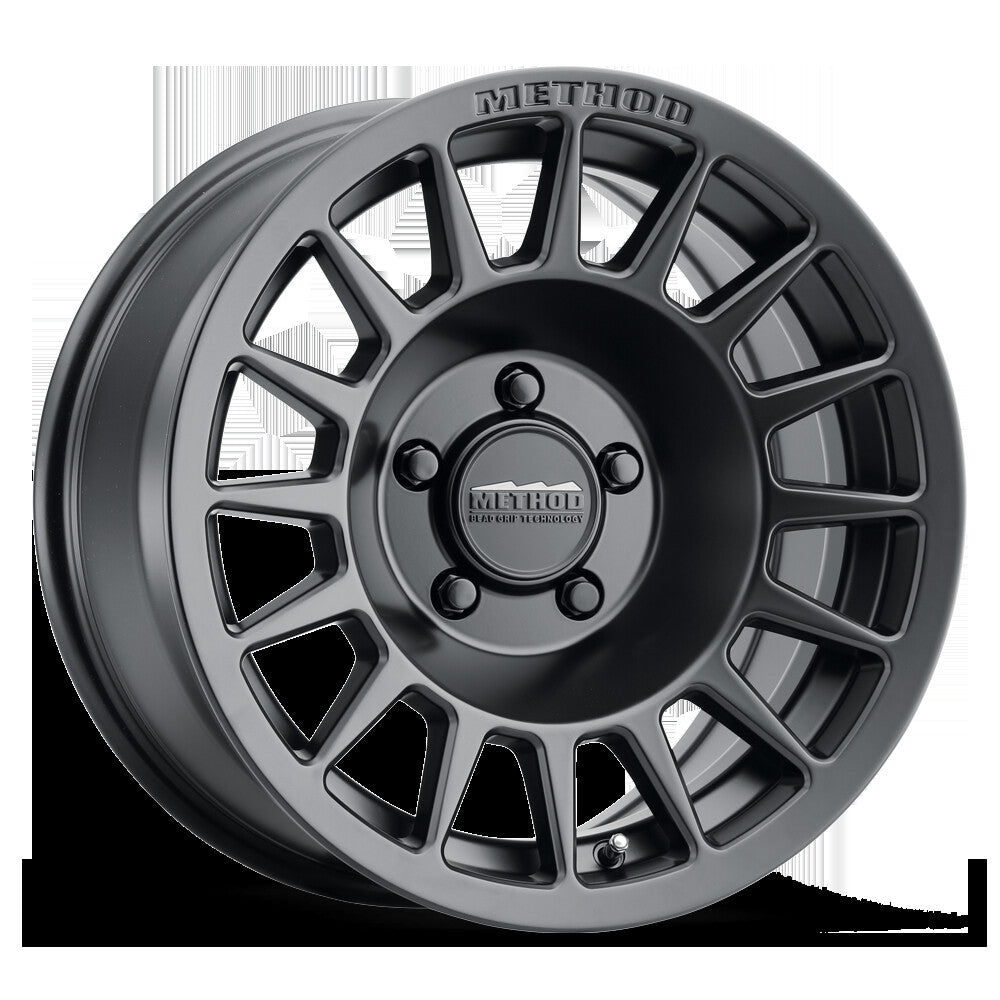

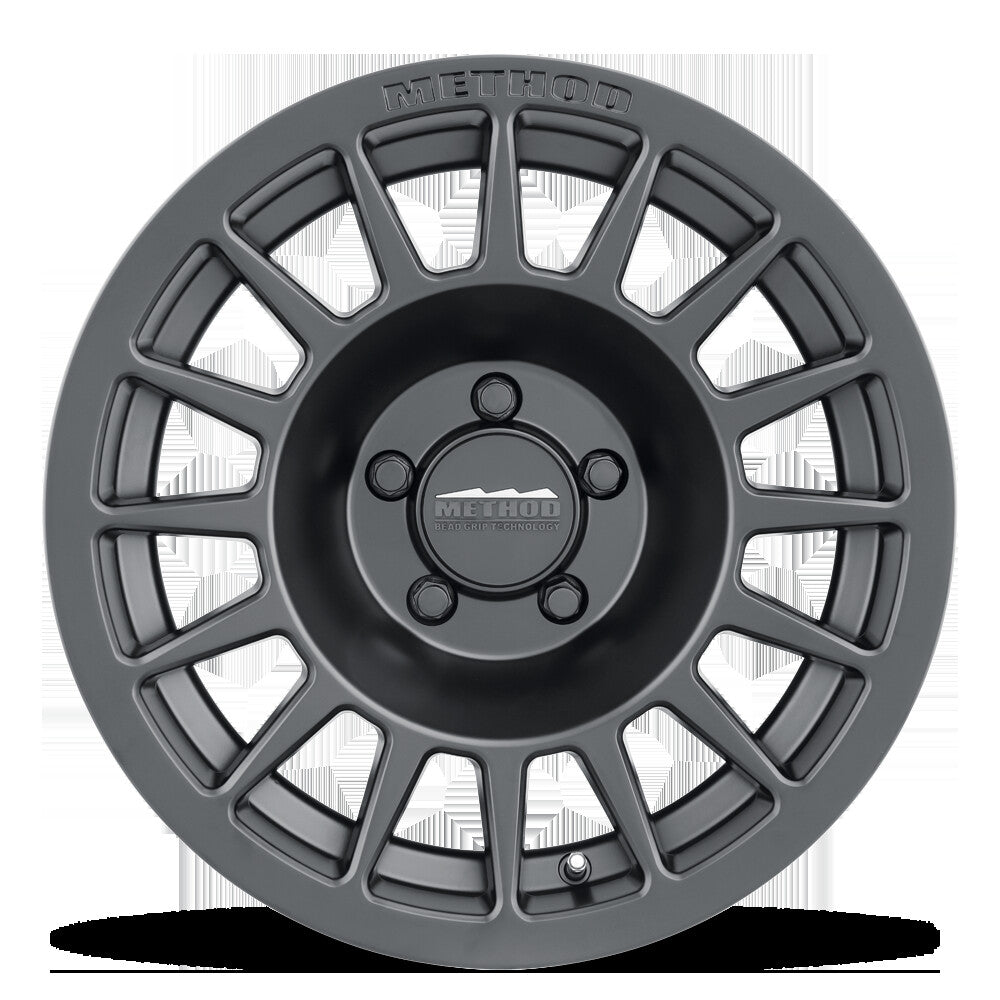

MR707 Bead Grip, 18x8.5, +38mm Offset, 5x120, 64.25mm Centerbore, Matte Black, Method Race Wheels

The 707 brings the rally inspired design of the 407 UTV Bead Grip to trucks, SUVs, and CUVs. Available in popular fitments in both Bahia Blue and Matte Black, incorporating the Method exclusive Bead Grip Technology for unrivaled tire security at lower pressures.

The 707 boasts a solid A356 aluminum construction with T6 heat treatment and ultra strong 1,850 - 3,640 LBS load ratings.

Features and Benefits:

• Patented Bead Grip technology engages tire bead for increased grip at low tire pressures
• Solid A356 aluminum with T6 heat treatment construction
• Iconic rally inspired multi-spoke design with debossed Method logo on outer lip
• Aggressive safety hump on bead seats further prevents de-beading
• Reinforced inner lip taken from Mrw race wheel increases strength
• Snap-in center cap with embossed Method Bead Grip logo.
• Push through center cap with embossed Method Bead Grip logo for 8 lug applications
• Hub centric fitments for common applications
• Industry’s best lifetime structural warranty

Details:

• Series: TRAIL (7XX)
• Model: MR707 Bead Grip
• Wheel Diameter Inch: 18 Inch
• Wheel Width Inch: 8.5 Inch
• Bolt Pattern: 5x120
• Bolt Hole: 5
• Bolt Diameter: 120
• Offset mm: 38 mm
• Backside Spacing Inch: 6.2 Inch
• Hub Bore mm: 64.25 mm
• Wheel Weight LBS: 22.7 LBS
• Max Load LBS: 1850 LBS
• Color/Finish: Matte Black
• Application: 18x8.5, 5x120, 38 OS, 1850 lbs
• Cap Part: CP-T080K64
• Cap Type: Snap In
• Hub Centric Yes/No: Yes
• Lug Hole Diameter mm: 16.2 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 160 mm
• Spoke Depth At 90mm: 12
• Spoke Depth At 100mm: 22
• Spoke Depth At 120mm: 40
• Spoke Depth At 160mm: 50
• Inner Wheel Radius At 50mm: 219
• Inner Wheel Radius: 214
• Cap Bore mm: 60 mm
• Cap Clearance Height mm First Obstruction: 24.84
• Cap Clearance Height mm End Of Cap: 33.41
• Lip Size mm: 0 mm
• Lip Size Inch: 0 Inch
• CBM: 0.0835001276400003
