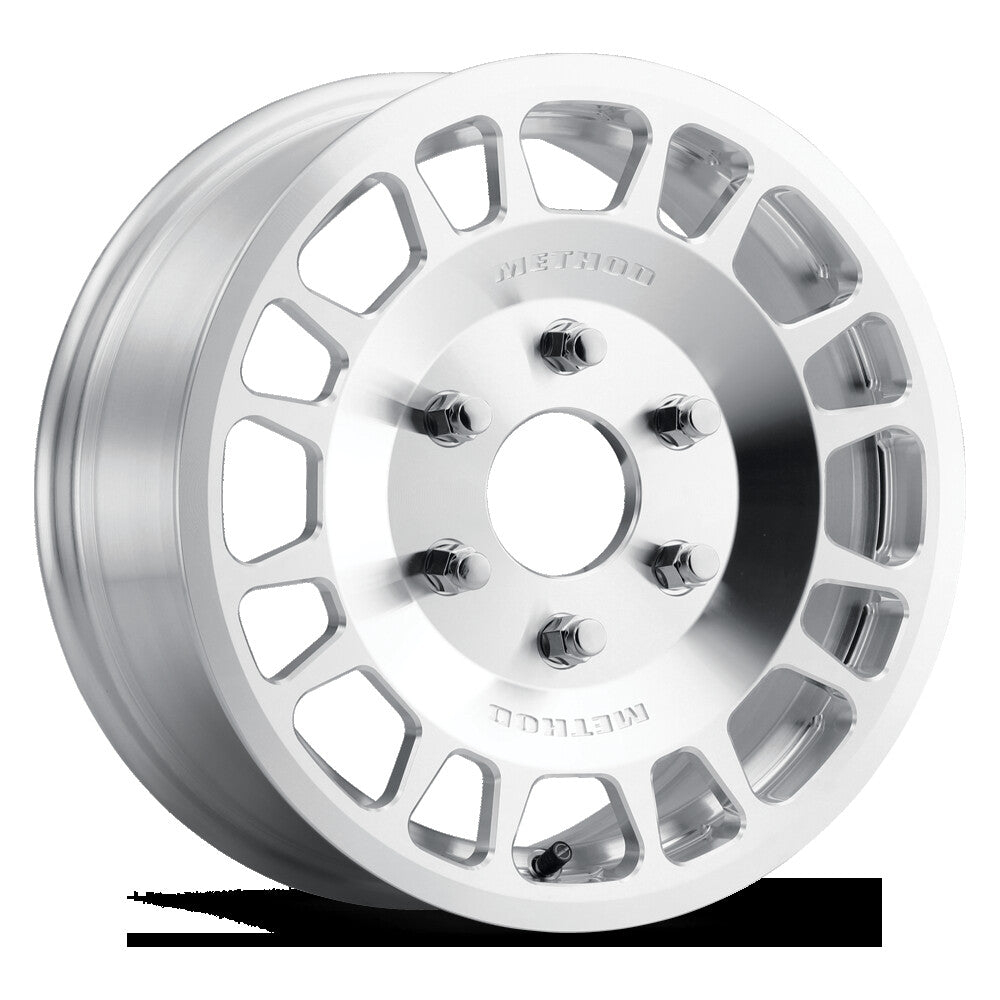

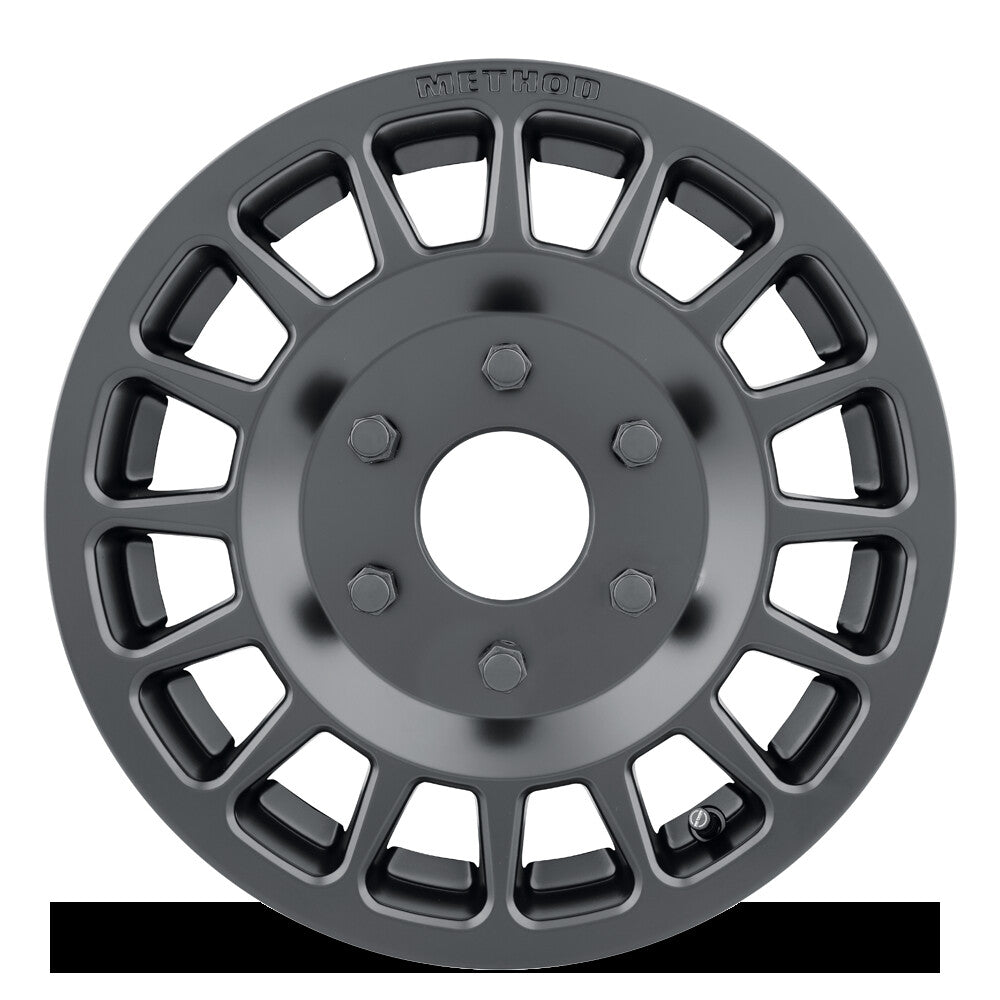

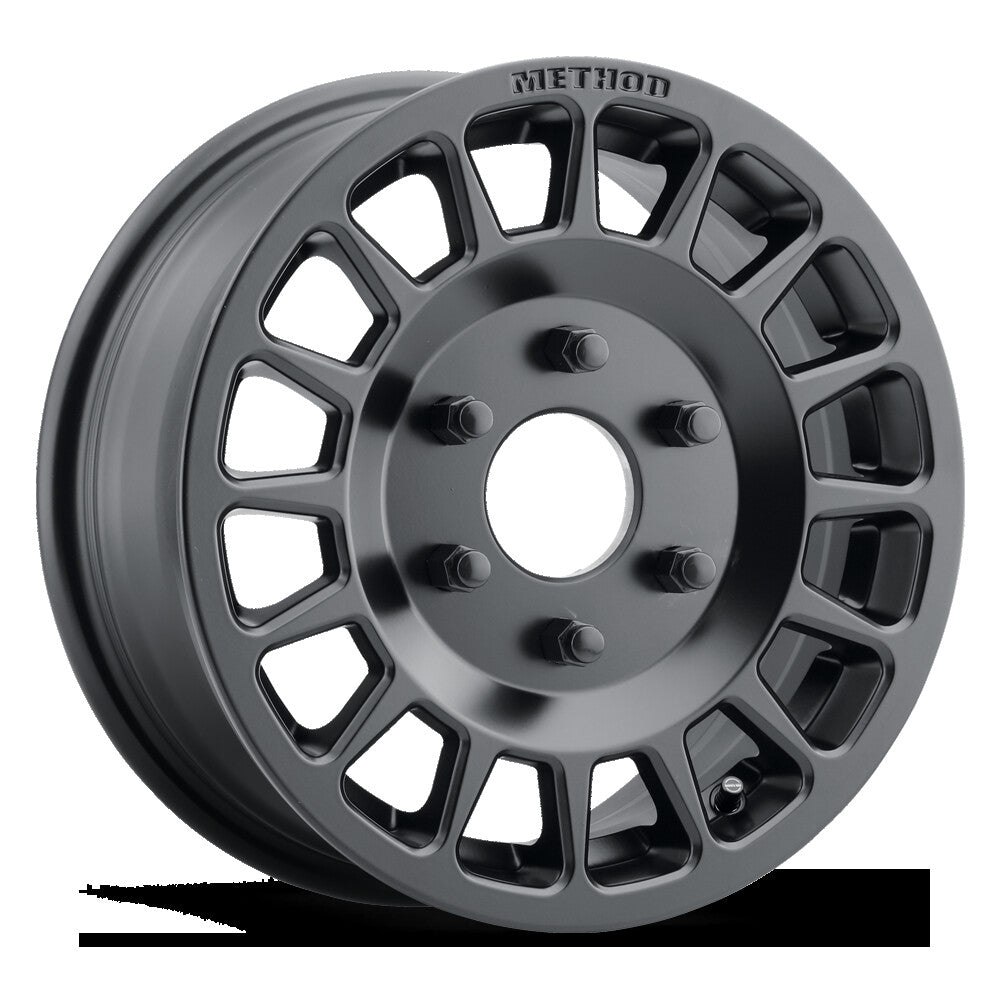

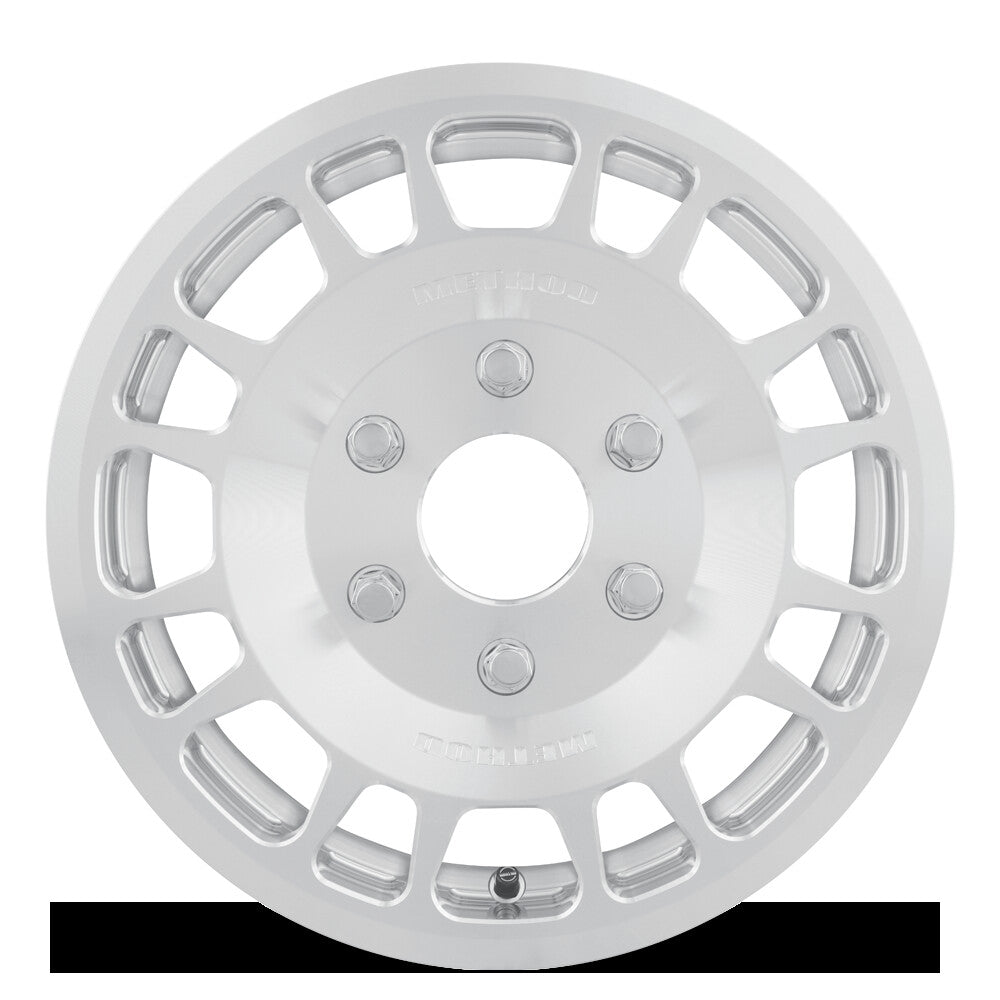

MR407 Bead Grip, 15x6, 5+1/+51mm Offset, 6x5.5, 78.3mm Centerbore, Method Race Wheels
The ultimate UTV wheel, featuring premium materials and technology for the highest level of performance.
Lightweight construction and superior strength allow you to get the most out of your UTV in demanding off-road environments.
Features and Benefits:
- Patented Bead Grip technology engages tire bead for increased grip at low tire pressures
- Forged 6061 aluminum with T6 heat treatment construction
- Tough multi-spoke design with debossed Method logos
- Aggressive safety hump on bead seats further prevents de-beading
- Reinforced inner lip taken from Mrw race wheel increases strengt
- Super strong 1600 lbs. load ratin
Details:
- Series: UTV (4XX)
- Model: MR412 Bead Grip
- Wheel Diameter Inch: 15 Inch
- Wheel Width Inch: 6 Inch
- Bolt Pattern: 6x5.5
- Bolt Hole: 6
- Bolt Diameter: 5.5
- Offset mm: 51 mm
- Backside Spacing Inch: 5.5 Inch
- ATV Offset B+F: 5+1
- Hub Bore mm: 78.3 mm
- Wheel Weight LBS: 15.4323583529414 LBS
- Max Load LBS: 1600 LBS
- Color/Finish: Machined - Raw
- Application: 15x6, 6x5.5, 51 OS, 1600 lbs
- Cap Type: None
- Hub Centric Yes/No: No
- Lug Hole Diameter mm: 14.1 mm
- Lug Taper Angle: 60
- Mount Pad Diameter mm: 186 mm
- Spoke Depth At 90mm: 0
- Spoke Depth At 100mm: 3.9
- Spoke Depth At 120mm: 14.7
- Spoke Depth At 160mm: 19
- Inner Wheel Radius At 50mm: 175.6
- Inner Wheel Radius: 169
- Lip Size mm: 0 mm
- Lip Size Inch: 0 Inch
- CBM: 0.047612796
