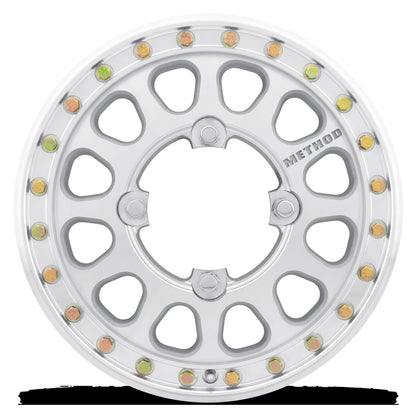

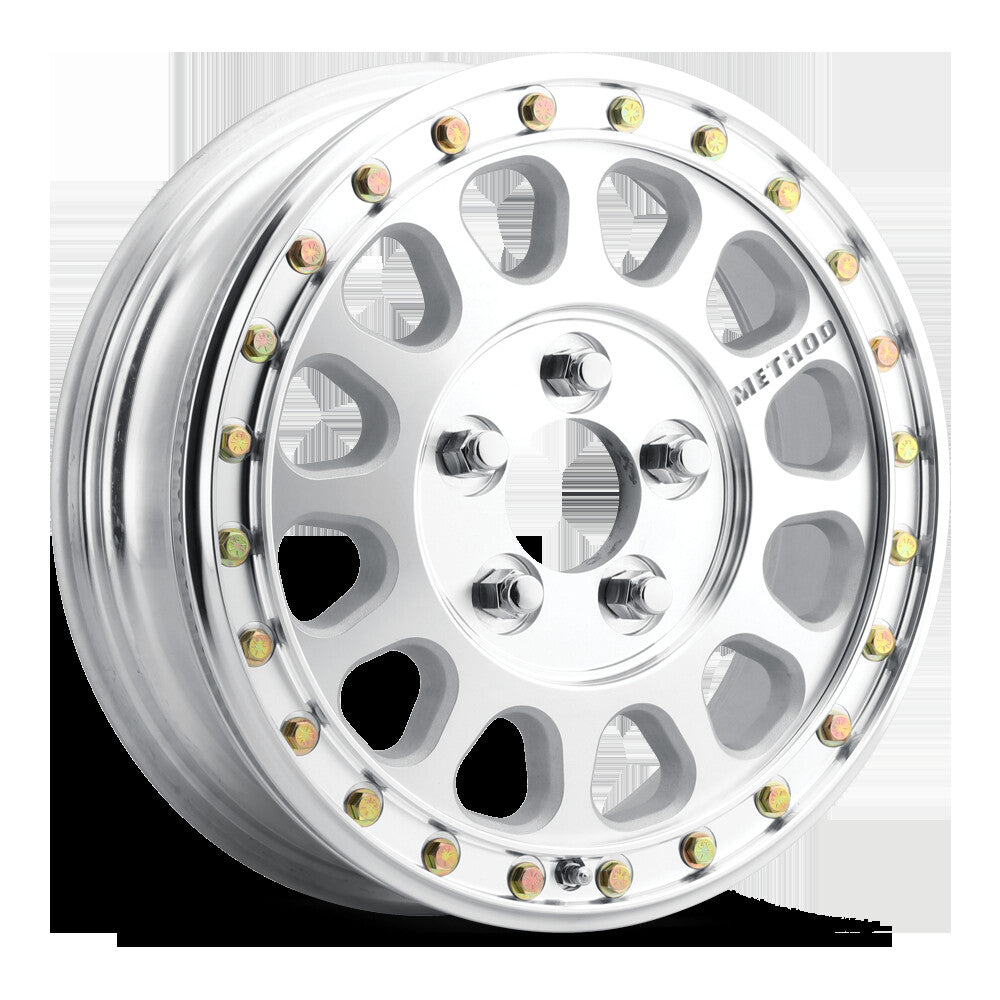

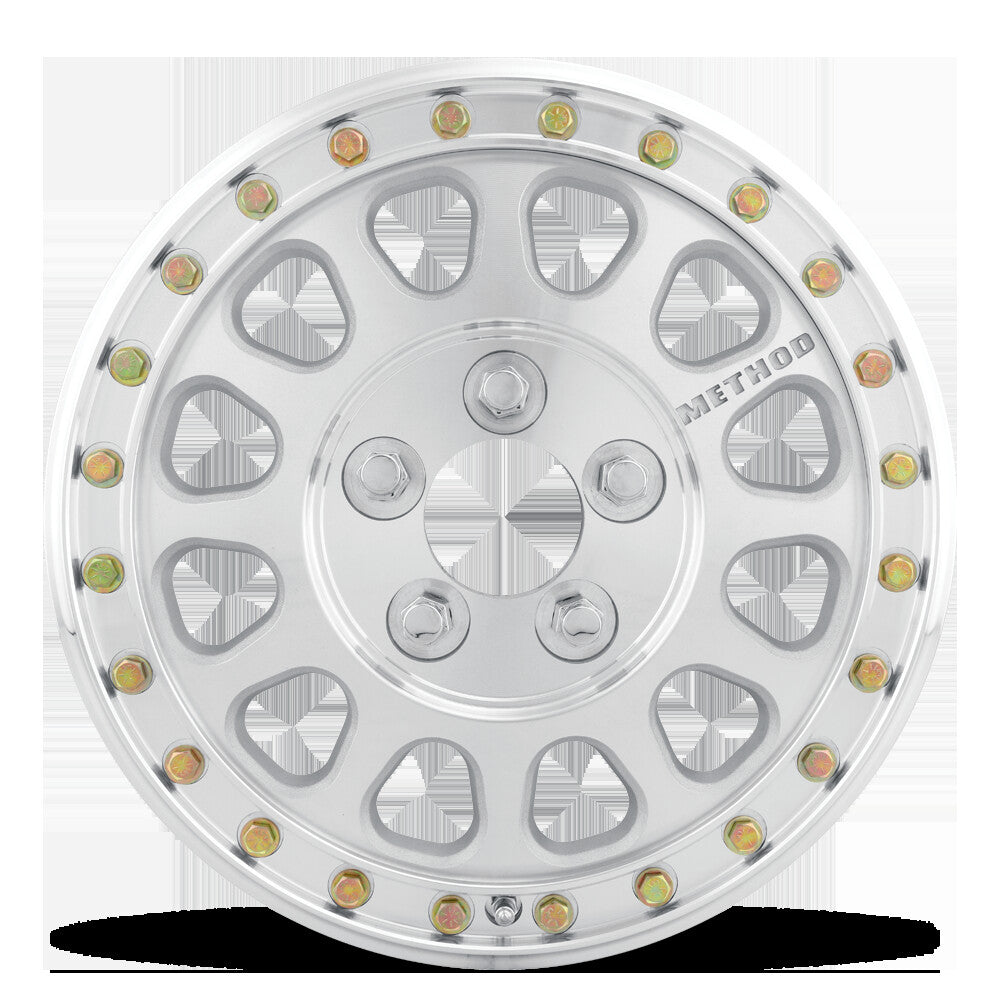

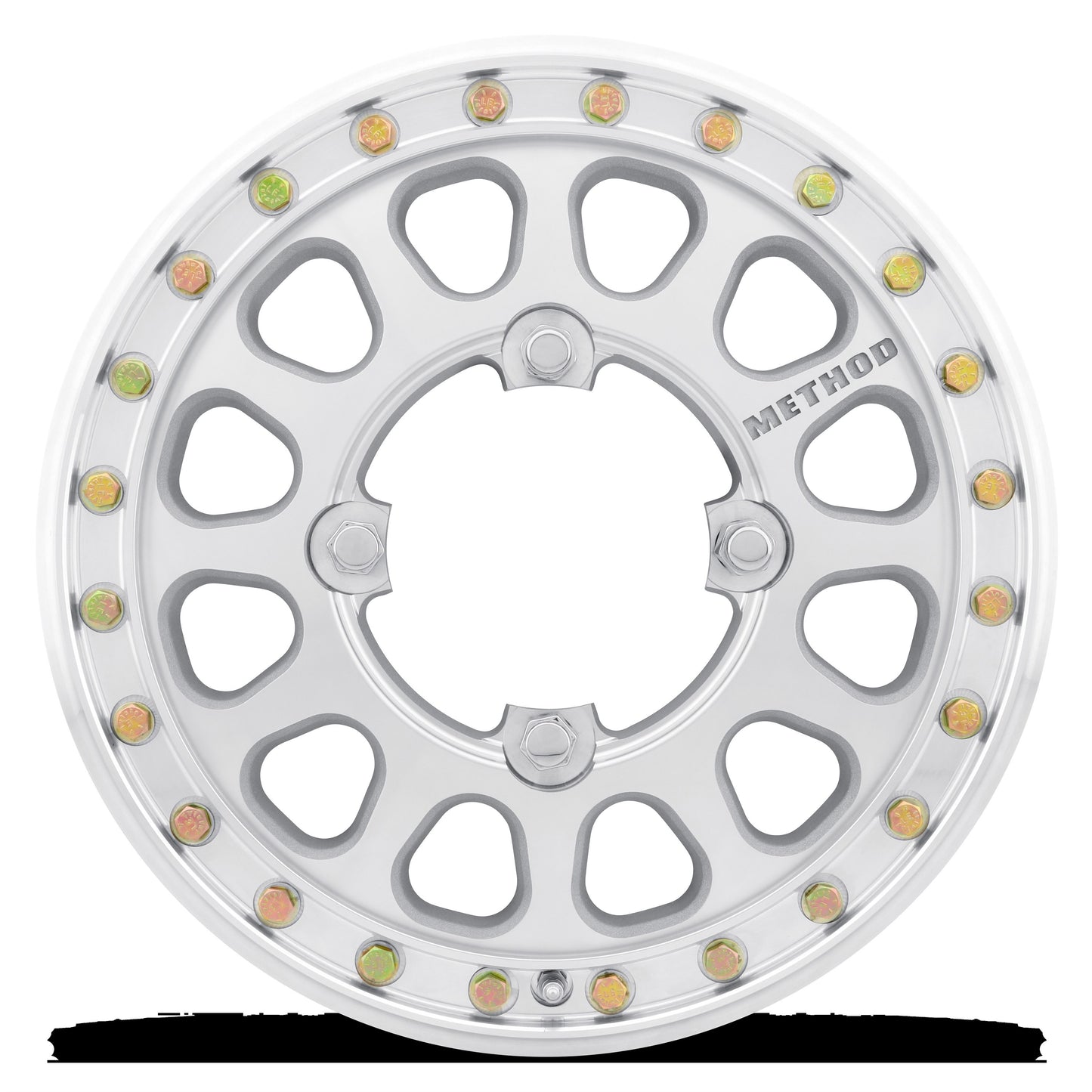

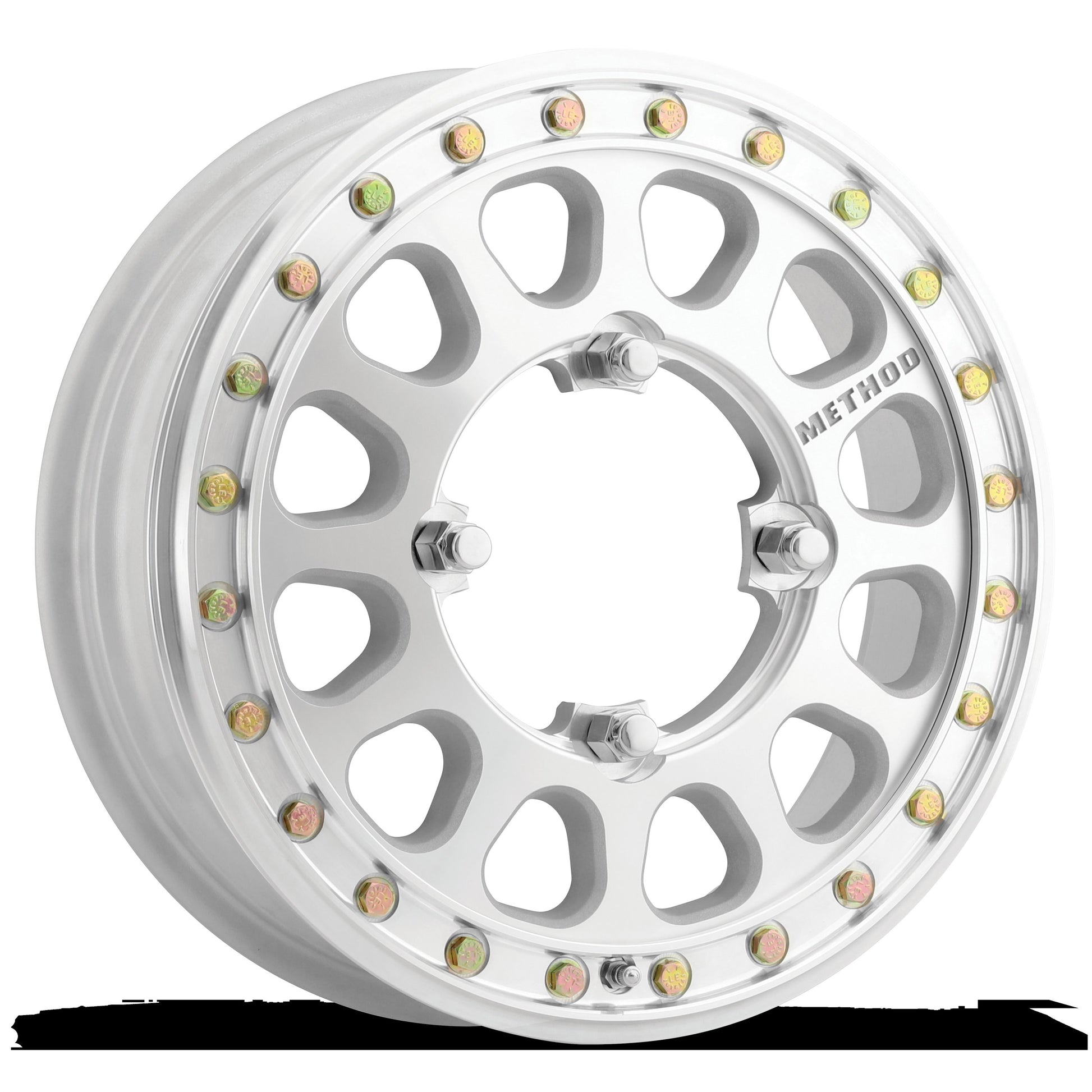

MR401-R UTV Beadlock, Machined Raw, w/ BH-H24155, Method Race Wheels
The 401-R Beadlock UTV wheel was developed for the extremes of off-road racing and is available in both low offset and high offset versions.
The width and offset for the 401-R provide optimal handling and feedback for drivers, making it one of the top choices among UTV racers.
Features and Benefits:
- Solid A356 aluminum with T6 heat treatment construction
- Iconic 12 window design with debossed Method logos
- Reinforced inner lip provides extreme strength and durability
- Forged 6061 aluminum V.2 beadlock ring for greater strength and less deflection
- Grade 8 zinc-plated beadlock hardware kit included
Details:
- Series: UTV (4XX)
- Model: MR401-R UTV Beadlock
- Wheel Diameter Inch: 15 Inch
- Wheel Width Inch: 5 Inch
- Bolt Pattern: 5x4.5
- Bolt Hole: 5
- Bolt Diameter: 4.5
- Offset mm: 40 mm
- Backside Spacing Inch: 4.3 Inch
- ATV Offset B+F: 4.25+0.75
- Hub Bore mm: 72 mm
- Wheel Weight LBS: 15.58 LBS
- Max Load LBS: 1600 LBS
- Color/Finish: Machined - Raw
- Application: 15x5, 5x4.5, 40 OS, 1600 lbs
- Cap Type: None
- Hub Centric Yes/No: No
- Lug Hole Diameter mm: 14.1 mm
- Lug Taper Angle: 60
- Mount Pad Diameter mm: 145 mm
- Spoke Depth At 90mm: 7
- Spoke Depth At 100mm: 9
- Spoke Depth At 120mm: 9
- Spoke Depth At 160mm: 8
- Inner Wheel Radius At 50mm: 173
- Inner Wheel Radius: 171
- Lip Size mm: 0 mm
- Lip Size Inch: 0 Inch
- CBM: 0.04328436
