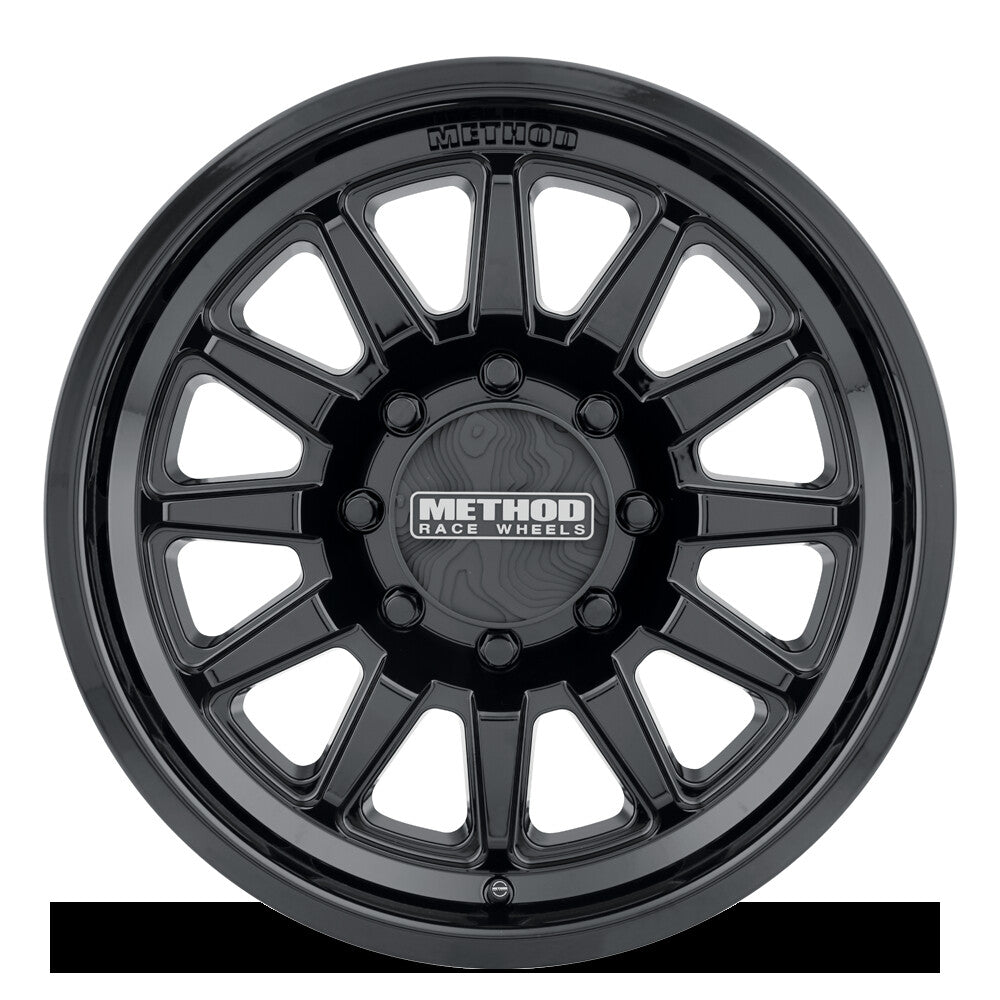

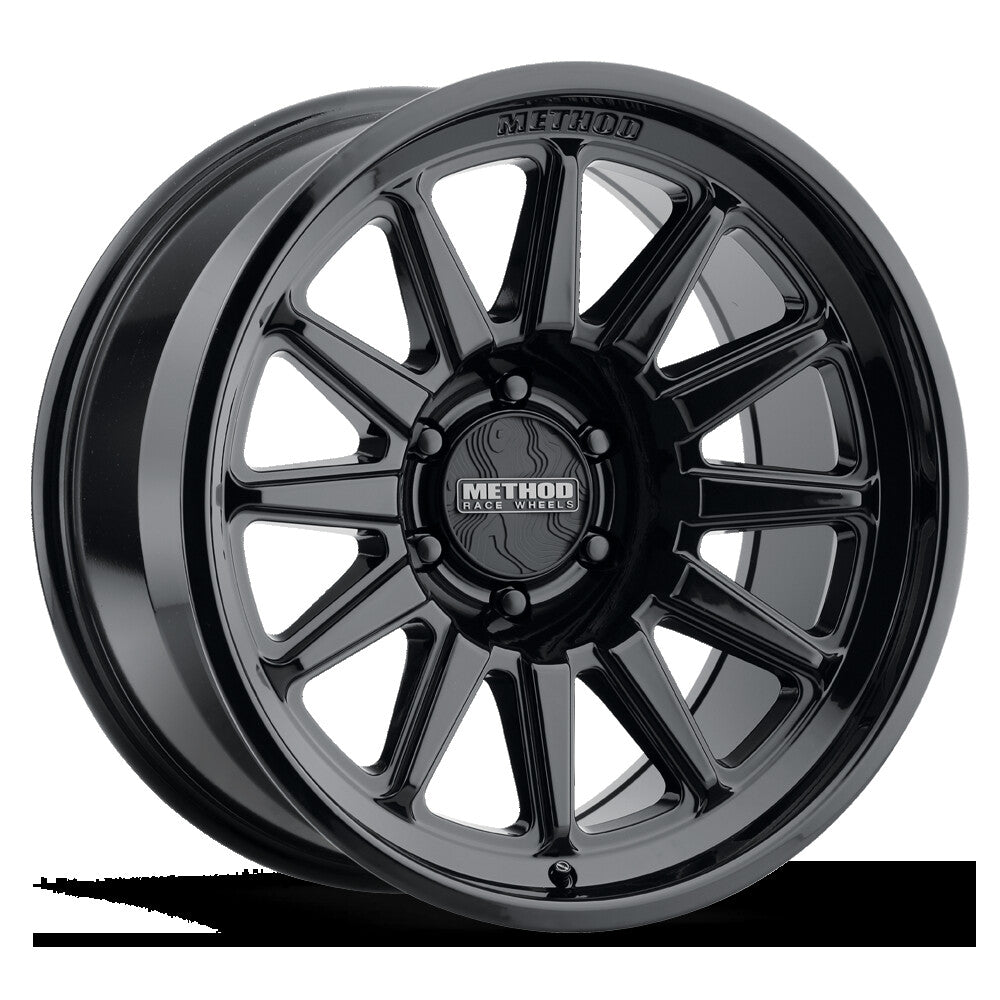

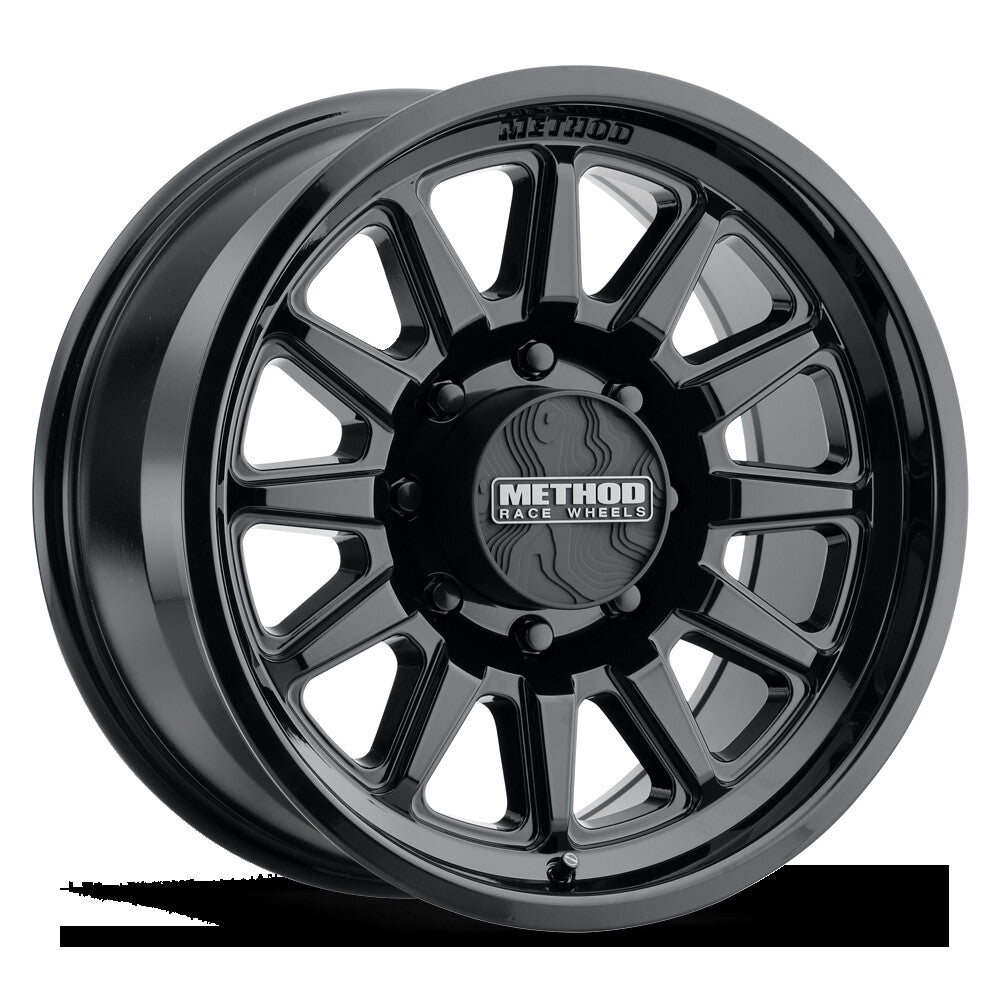

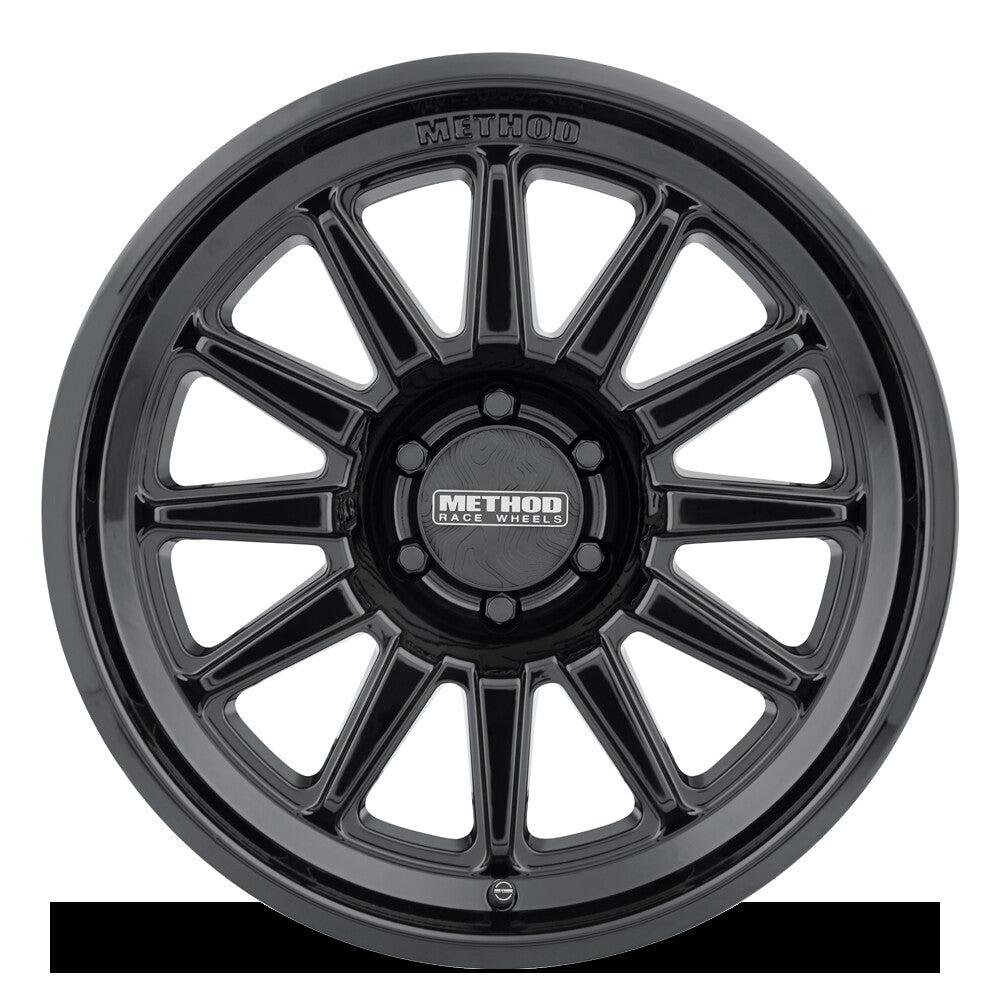

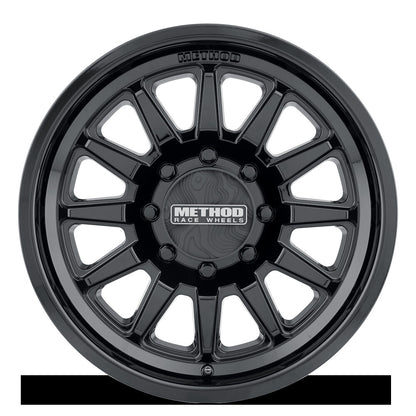

MR323, 20x9, +12mm Offset, Gloss Black, Method Race Wheels

Designed to leave a lasting impression, introducing Method Race Wheel's 323 Standard. Engineered with a fresh face lift to the iconic 12 window design, this wheel is a statement of classic Method style and functionality.

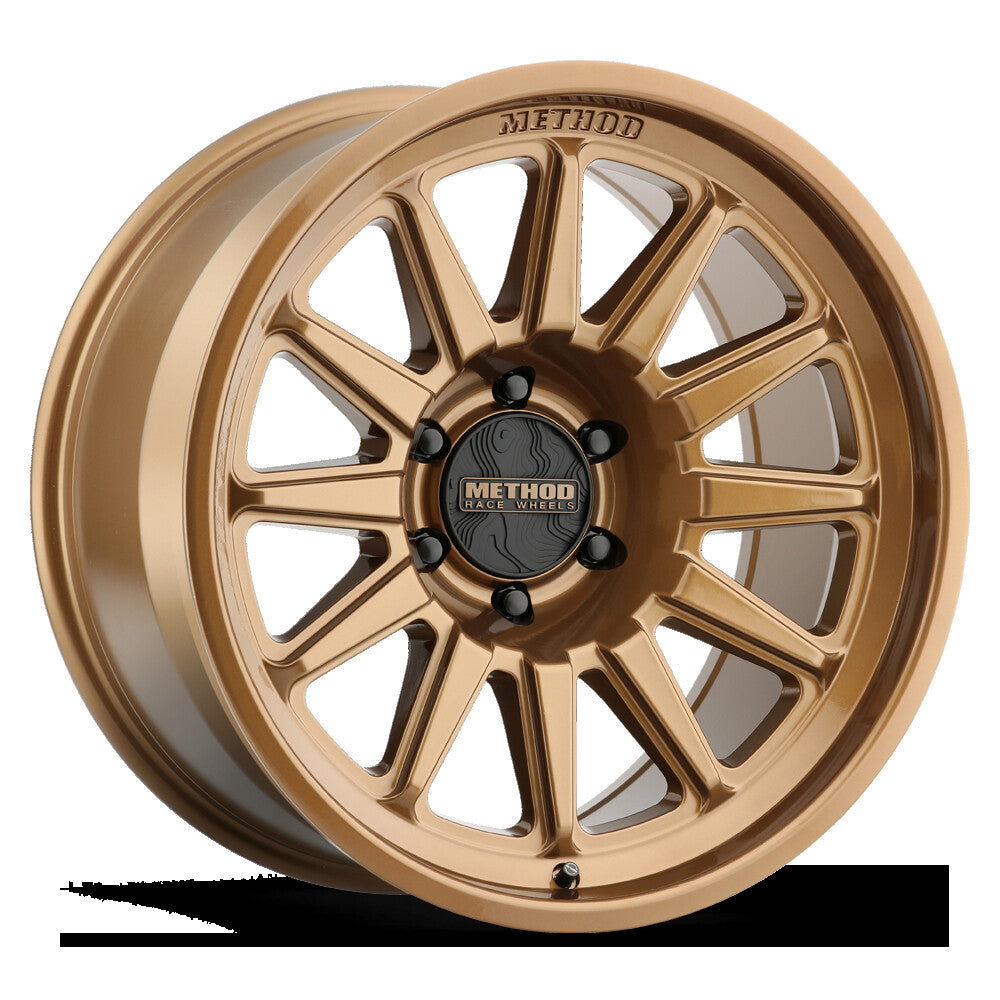

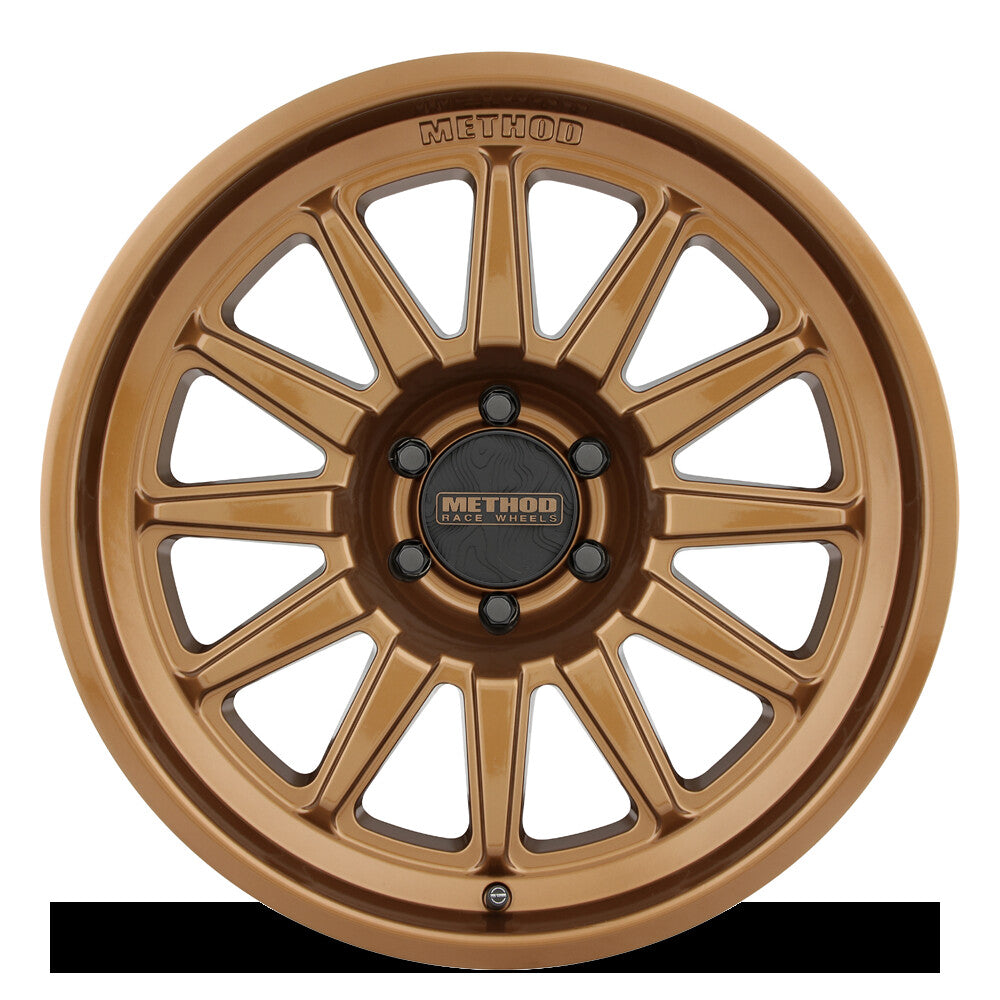

Also available in Gloss Method Bronze and includes the popular Method Topo center cap.

Features and Benefits:

• Solid A356 aluminum with T6 heat treatment construction
• Iconic 12 window spoke design with debossed Method logo
• Snap-in Topo center cap with embossed Method logo
• Push through Topo center cap with embossed Method logo for 8 lug applications
• Hub centric fitments for common applications
• Industry’s best lifetime structural warranty
• Strong 2650 lbs. to 3640 lbs. load ratings

Details:

• Series: STREET (3XX)
• Model: MR323
• Wheel Diameter Inch: 20 Inch
• Wheel Width Inch: 9 Inch
• Bolt Pattern: 8x170
• Bolt Hole: 8
• Bolt Diameter: 170
• Offset mm: 12 mm
• Backside Spacing Inch: 5.44 Inch
• Hub Bore mm: 130.81 mm
• Wheel Weight LBS: 40.13 LBS
• Max Load LBS: 3640 LBS
• Color/Finish: Gloss Black
• Application: 20x9, 8x170, 12 OS, 3640 lbs
• Cap Part: CP-TOPO130-P-B
• Cap Type: Push Thru
• Replacement Cap O-Ring: OR-049
• Hub Centric Yes/No: No
• Lug Hole Diameter mm: 16.2 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 200 mm
• Spoke Depth At 90mm: 0
• Spoke Depth At 100mm: 0
• Spoke Depth At 120mm: 26
• Spoke Depth At 160mm: 40
• Inner Wheel Radius At 50mm: 249.67
• Inner Wheel Radius: 244.51
• Cap Bore mm: 126.6 mm
• Cap Clearance Height mm First Obstruction: 108
• Cap Clearance Height mm End Of Cap: 108
• Lip Size mm: 25 mm
• Lip Size Inch: 0.98 Inch
• CBM: 0.1040819
