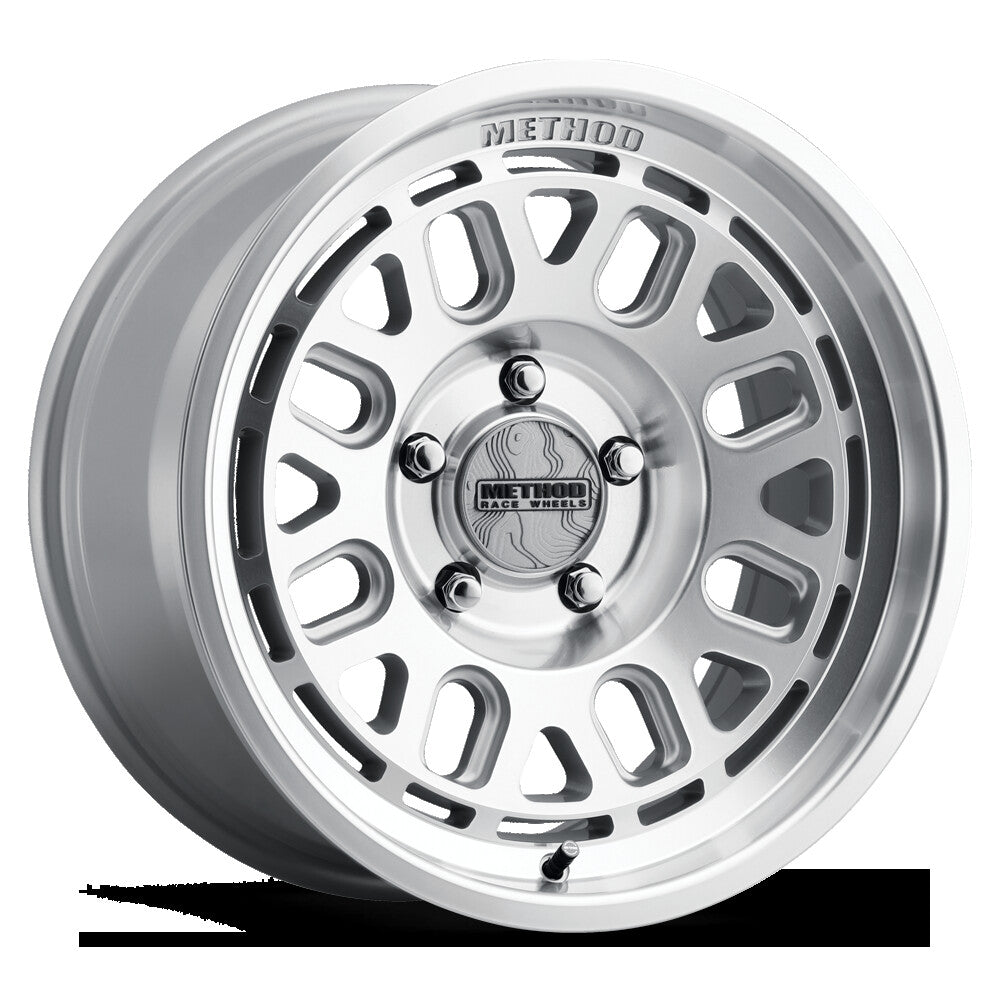

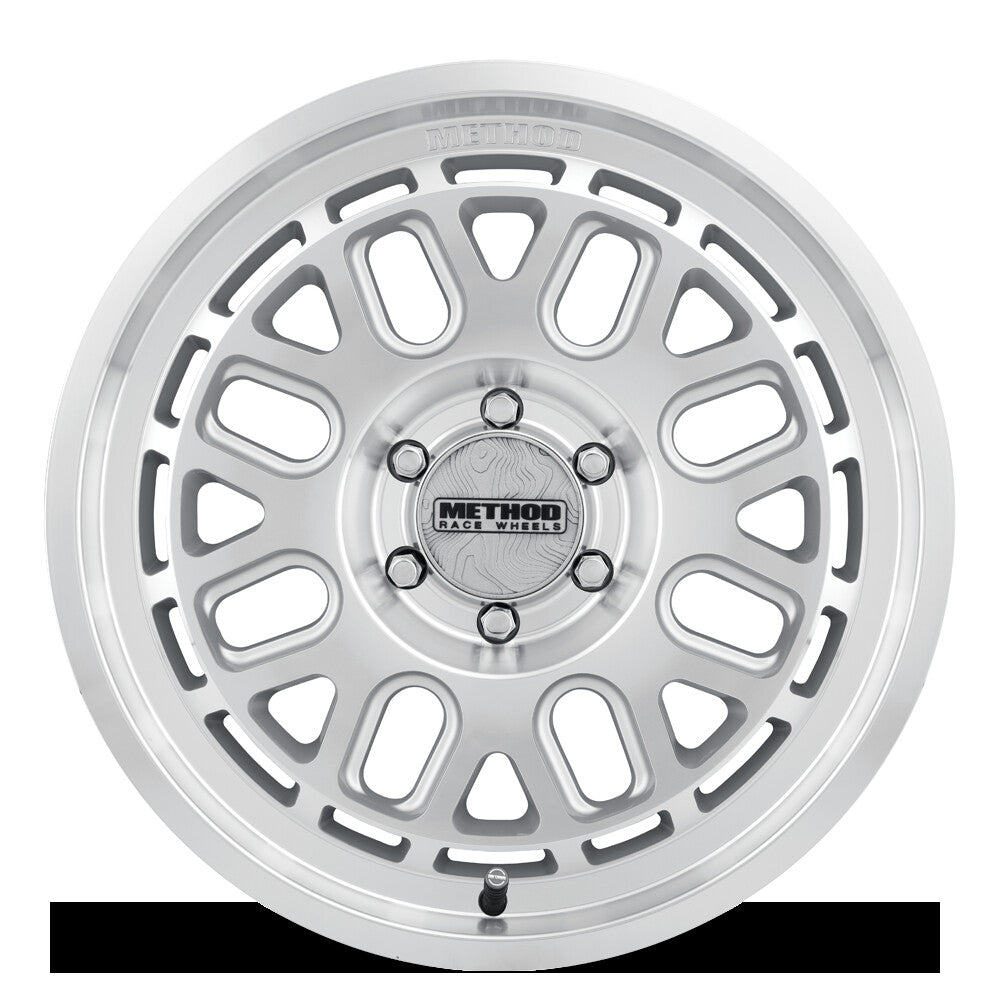

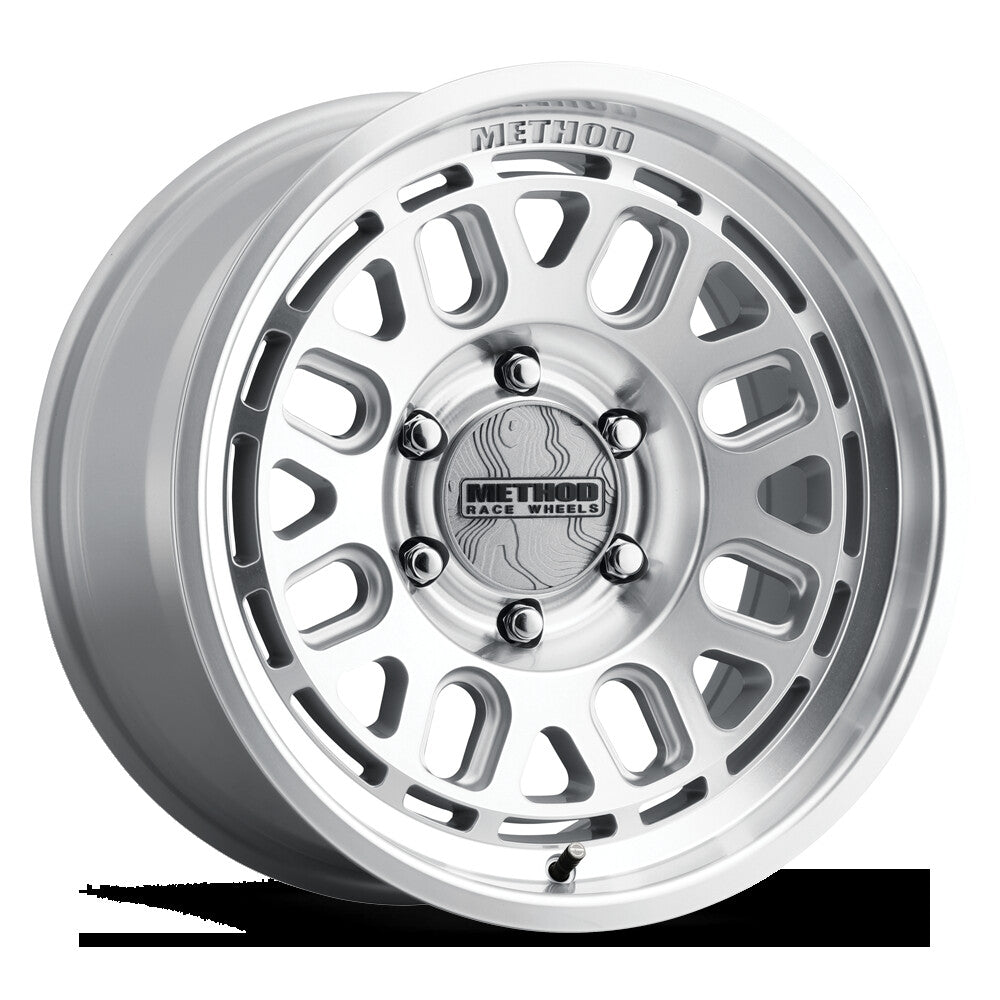

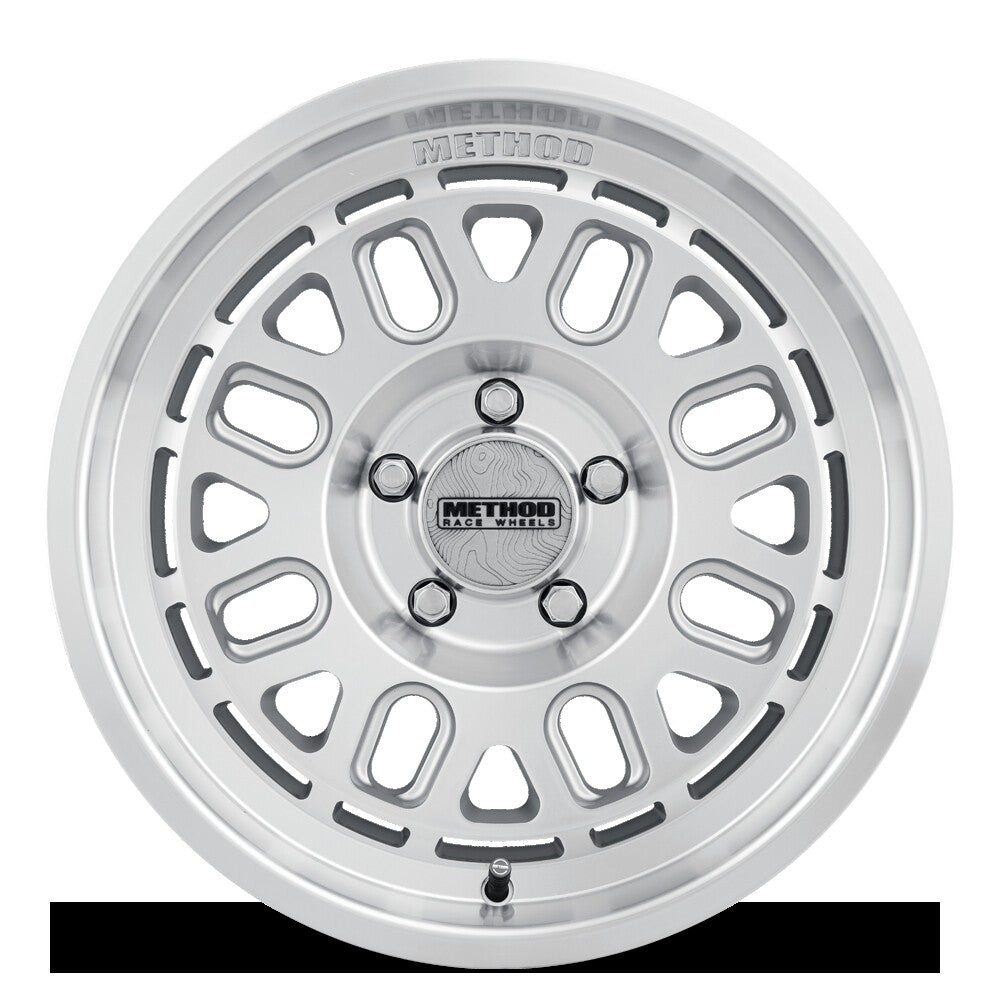

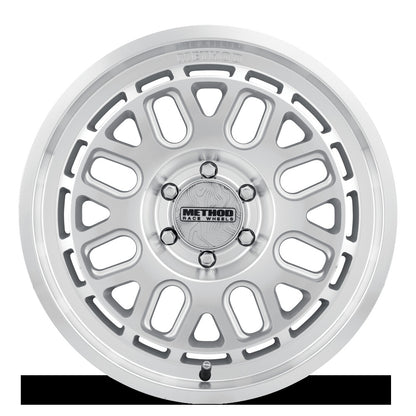

MR321, 17x8.5, Method Race Wheels

Designed to stand out from the crowd, introducing Method Race Wheel's 321 Standard. Engineered with a unique window and spoke design, this wheel is a statement of bold style and functionality.

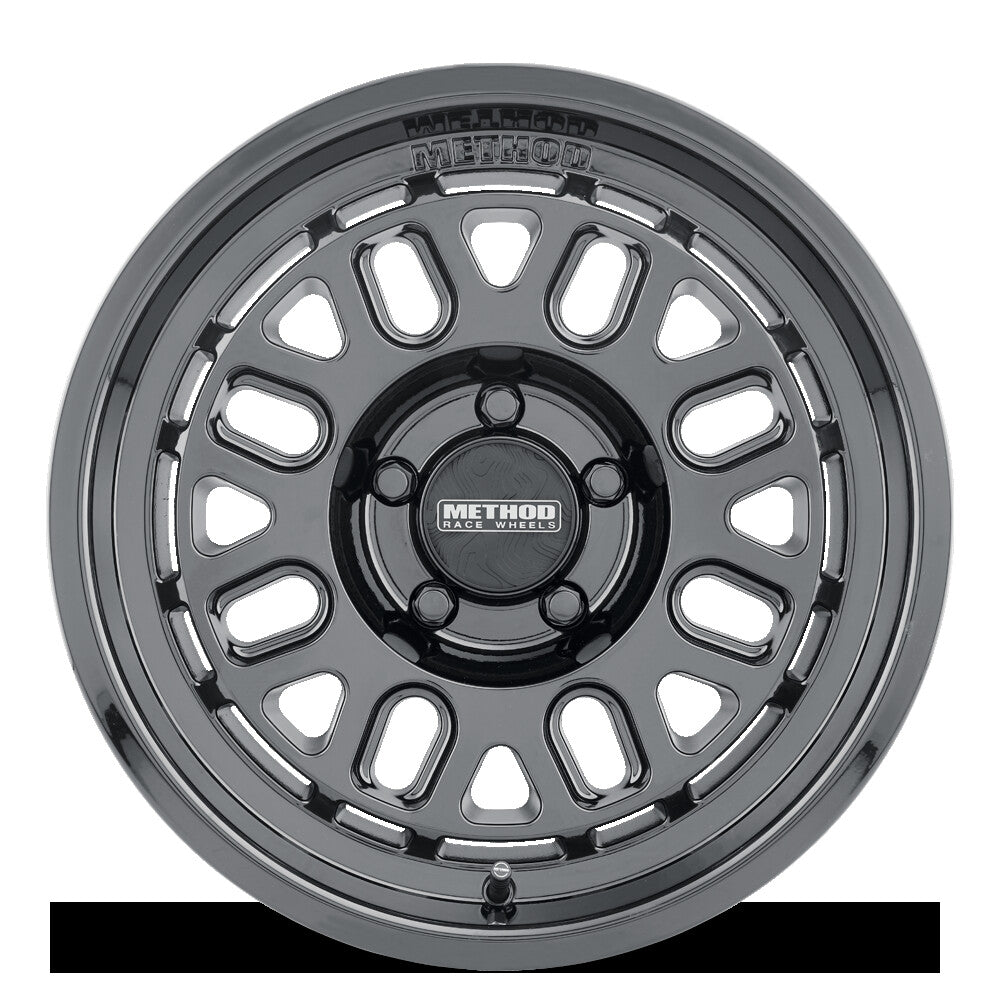

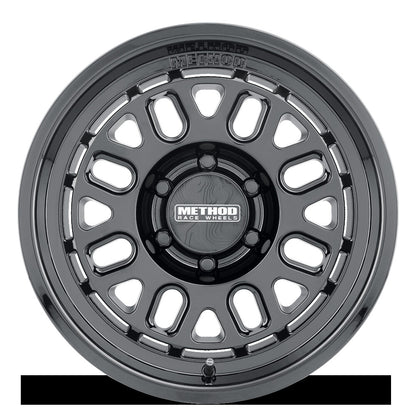

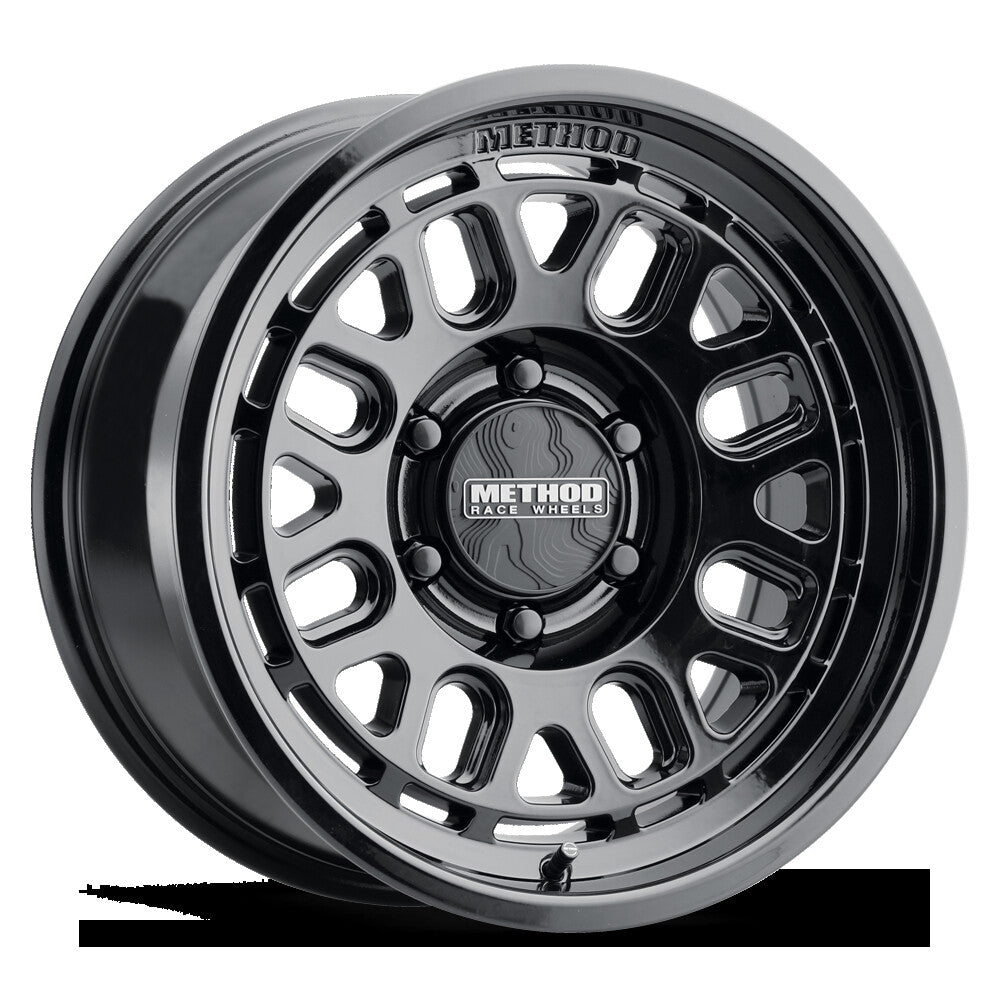

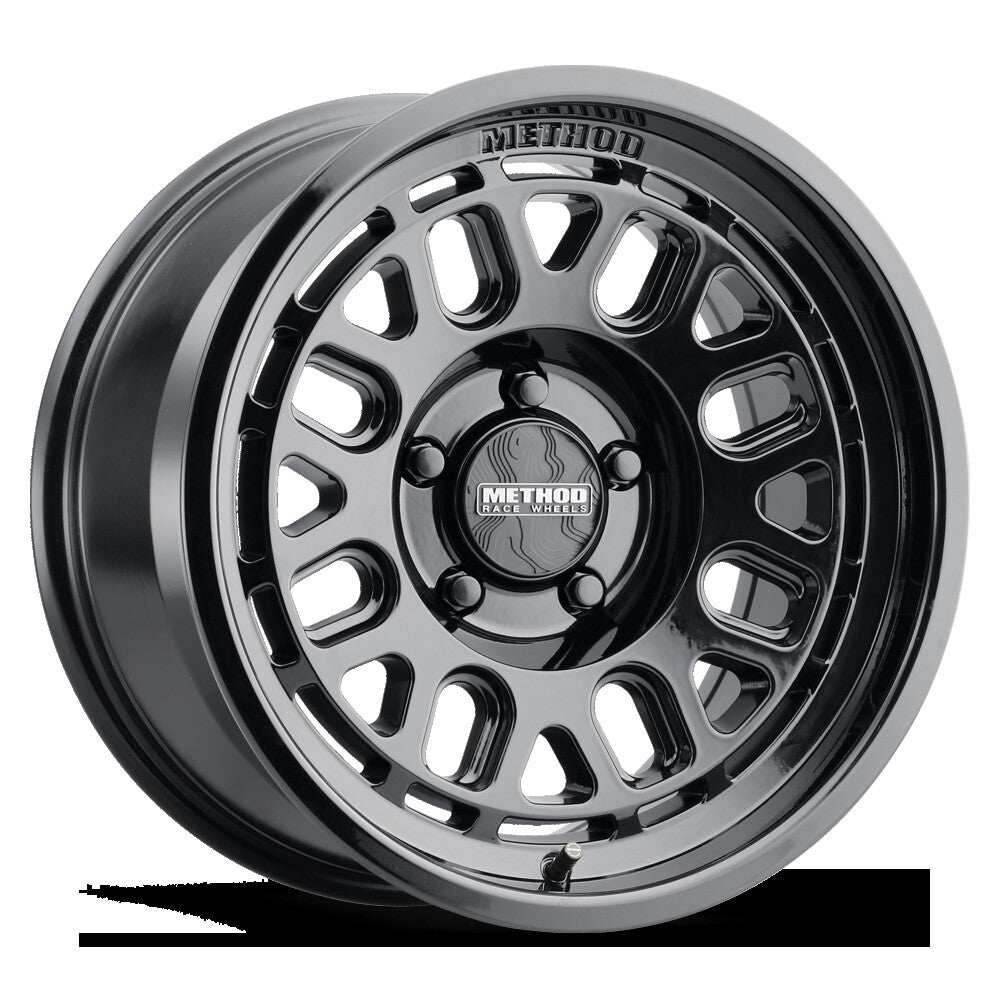

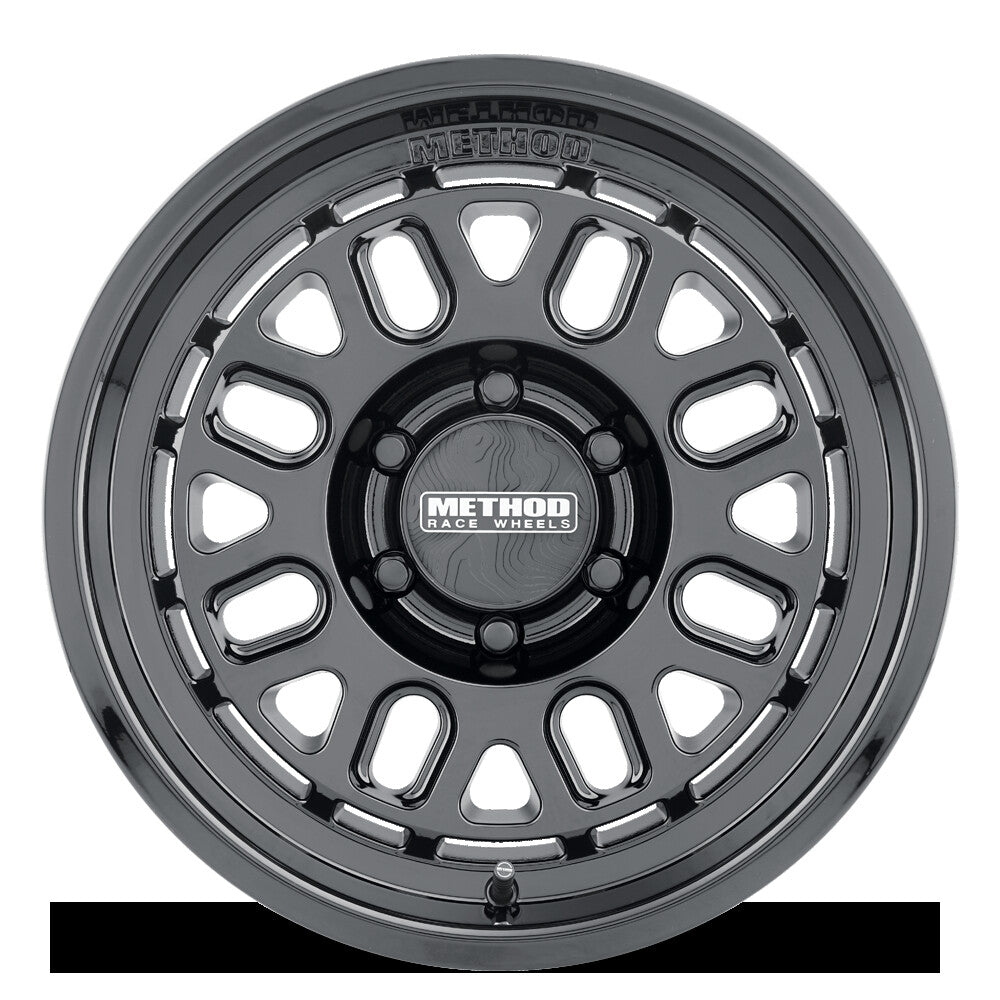

Available in Gloss Black and Machined finishes, and includes the popular Method Topo center cap. It's a great choice for off-road enthusiasts who seek the perfect balance of unique aesthetics and high performance.

Features and Benefits:

• Solid A356 aluminum with T6 heat treatment construction
• Clean 8 windowed spoke design with debossed Method logo
• Snap-in Topo center cap with embossed Method logo
• Push through Topo center cap with embossed Method logo for 8 lug applications
• Hub centric fitments for common applications
• Industry’s best lifetime structural warranty
• Strong 2650 lbs. to 3640 lbs. load rating

Details:

• Series: STREET (3XX)
• Model: MR321
• Wheel Diameter Inch: 17 Inch
• Wheel Width Inch: 8.5 Inch
• Bolt Pattern: 6x5.5
• Bolt Hole: 6
• Bolt Diameter: 5.5
• Offset mm: 25 mm
• Backside Spacing Inch: 5.7 Inch
• Hub Bore mm: 106.25 mm
• Wheel Weight LBS: 30.2033299193282 LBS
• Max Load LBS: 2650 LBS
• Color/Finish: Machined - Clear Coat
• Application: 17x8.5, 6x5.5, 25 OS, 2650 lbs
• Cap Part: CP-TOPO107S-S
• Cap Type: Snap In
• Hub Centric Yes/No: Yes
• Hub Centric Ring PN: MH-ZH-126-P
• Hub Ring Bore mm: 95.25 mm
• Lug Hole Diameter mm: 16.2 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 175 mm
• Spoke Depth At 90mm: 4.13
• Spoke Depth At 100mm: 17.8
• Spoke Depth At 120mm: 27.33
• Spoke Depth At 160mm: 38.11
• Inner Wheel Radius At 50mm: 211.3
• Inner Wheel Radius: 201.6
• Cap Bore mm: 103.34 mm
• Cap Clearance Height mm First Obstruction: 37
• Cap Clearance Height mm End Of Cap: 45
• Lip Size mm: 30 mm
• Lip Size Inch: 1.18 Inch
• CBM: 0.0766168399999998
