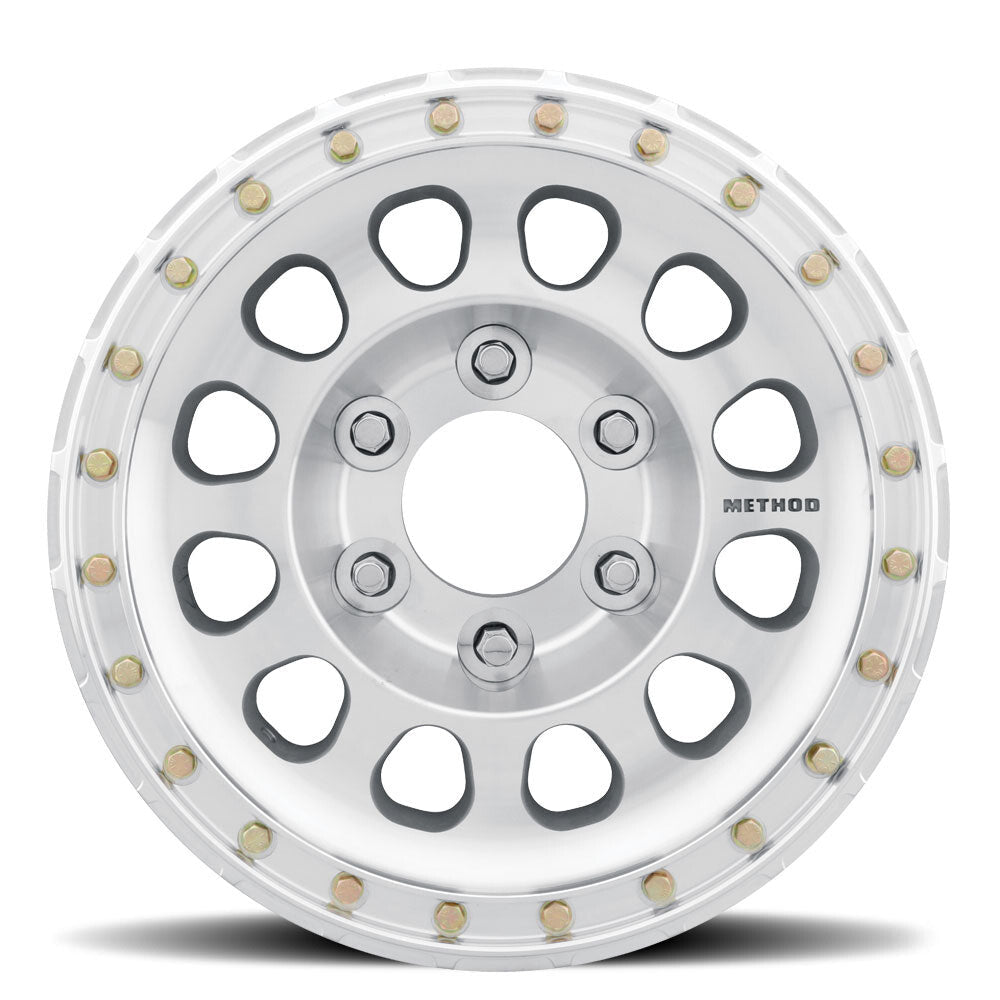

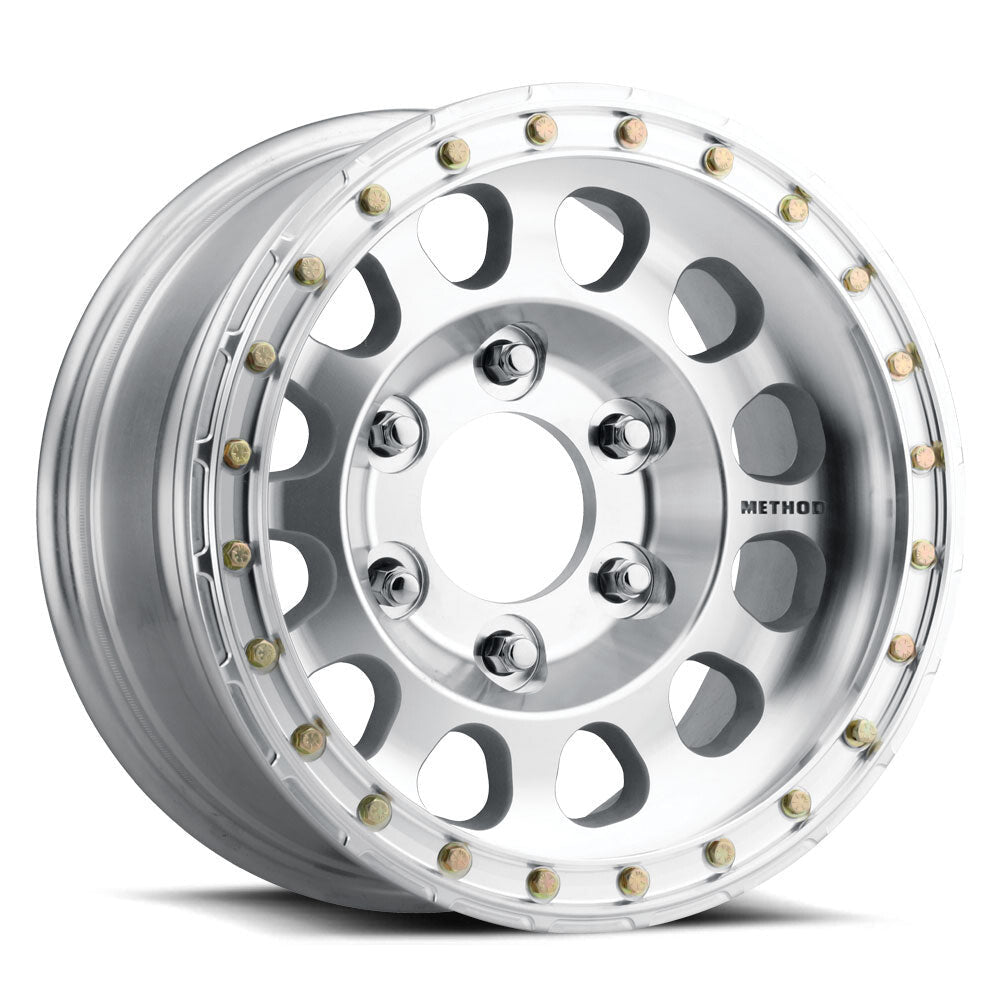

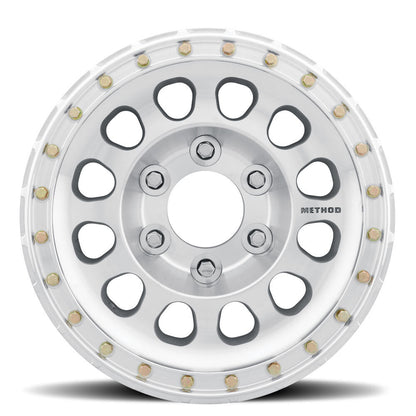

MR103 Beadlock, 15x8, -24mm Offset, 6x5.5, 108mm Centerbore, Machined Raw, Drilled, w/ BH-H24100, Method Race Wheels

If you live and breathe for off road racing, the Method Race Wheels 103 beadlock wheel is what you need. The 103 is a force to be reckoned with on and off the road.

A truly winning wheel that can be seen on trophy trucks driven by top pros.

Features and Benefits:

• 356 aluminum wheel construction w/ proprietary heat treatment
• Firm 12 spoke design with debossed Method logo
• Forged 6061 aluminum V.4 beadlock ring
• Reinforced inner lip provides extreme strength and durability
• Grade 8 zinc-plated beadlock hardware kit included
• Redundant sets of threaded beadlock hardware holes machined into wheel
• Increased room for clearance of larger brake calipers

Details:

• Series: RACE (1XX)
• Model: MR103 Beadlock
• Wheel Diameter Inch: 15 Inch
• Wheel Width Inch: 8 Inch
• Bolt Pattern: 6x5.5
• Bolt Hole: 6
• Bolt Diameter: 5.5
• Offset mm: -24 mm
• Backside Spacing Inch: 3.5 Inch
• Hub Bore mm: 108 mm
• Wheel Weight LBS: 26.26 LBS
• Max Load LBS: 2700 LBS
• Color/Finish: Machined - Raw
• Application: 15x8, 6x5.5, -24 OS, 2700 lbs
• Cap Type: None
• Hub Centric Yes/No: No
• Lug Hole Diameter mm: 18.3 mm
• Lug Taper Angle: 90
• Mount Pad Diameter mm: 175 mm
• Spoke Depth At 90mm: 6
• Spoke Depth At 100mm: 20.9
• Spoke Depth At 120mm: 29
• Spoke Depth At 160mm: 27.6
• Inner Wheel Radius At 50mm: 180.8
• Inner Wheel Radius: 176.6
• Lip Size mm: 76 mm
• Lip Size Inch: 2.99 Inch
• CBM: 0.0573002480000001
