Johnny Joint Trac Bar 97-06 Wrangler TJ and LJ Unlimited/XJ/MJ Front Bolt-On Adjustable Greasable Chromoly Drilling Required Reuses Stock Housing Bolt RockJock 4x4

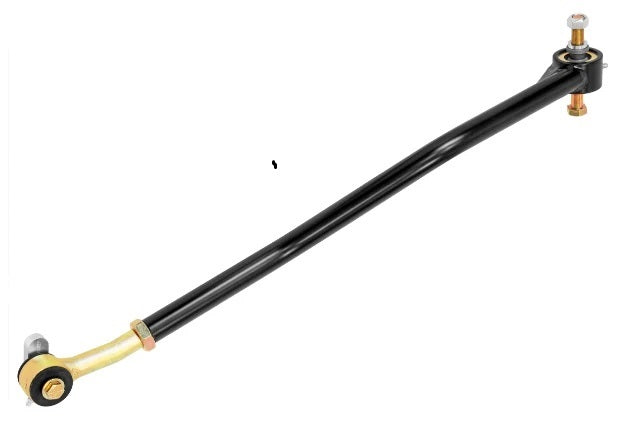

RockJock's Johnny Joint adjustable front trac bar for the TJ/XJ/LJ/MJ features an offset Johnny Joint rod end that puts the bar further forward providing more clearance between the diff and the trac bar.

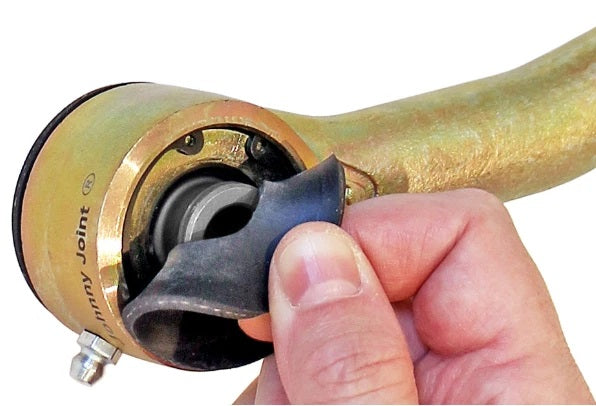

Other features include 1 1/4 Inch x .250 wall 4130 chrome moly construction, a welded in gusset from the bar to the Johnny Joint, heavy duty adjustor end with with bushing and steel insert sleeve that bolt into the factory housing bracket, and semi-gloss black powder coat finish.
Some drilling is required for installation. The supplied frame bolt is a 5/8 Inch and this hole must be drilled to size to accommodate the heavier duty bolt.
Note: This trac bar is intended to be used with a minimum of 2 Inch of lift. It may work on vehicles with less lift with Dana 30 frontends, however, on vehicles with no lift and a Dana 44, 9 Inch or 60 frontend, you may run into a clearance issue. Always check fitment before drilling!
Details:
- Johnny Joint Trac Bar
- 97-06 Wrangler TJ and LJ Unlimited/XJ/MJ Front
- Bolt-On
- Adjustable
- Greasable
- Chromoly
- Drilling Required
- Reuses Stock Housing Bolt
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1984–1993 | Jeep | Cherokee | — |
| 1985–1988 | Jeep | Cherokee | Chief |
| 1985–1990 | Jeep | Cherokee | Pioneer |
| 1985–1992 | Jeep | Cherokee | Laredo |
| 1986 | Jeep | Comanche | XLS |
| 1986 | Jeep | Comanche | X |
| 1986 | Jeep | Comanche | Custom |
| 1987–1988 | Jeep | Comanche | Laredo |
| 1987–1988 | Jeep | Comanche | Chief |
| 1987–1992 | Jeep | Comanche | — |
| 1987–1992 | Jeep | Comanche | Pioneer |
| 1987–1992 | Jeep | Cherokee | Limited |
| 1988–1992 | Jeep | Comanche | Eliminator |
| 1989–2001 | Jeep | Cherokee | Sport |
| 1991–1992 | Jeep | Cherokee | Briarwood |
| 1993–1997 | Jeep | Cherokee | Country |
| 1994–2001 | Jeep | Cherokee | SE |
| 1996 | Jeep | Cherokee | Classic |
| 1997–2004 | Jeep | Wrangler | Sahara |
| 1997–2006 | Jeep | Wrangler | Sport |
| 1997–2006 | Jeep | Wrangler | SE |
| 1998–2001 | Jeep | Cherokee | Limited |
| 1998–2001 | Jeep | Cherokee | Classic |
| 2002–2006 | Jeep | Wrangler | X |
| 2003–2006 | Jeep | Wrangler | Rubicon |
| 2004–2006 | Jeep | Wrangler | Unlimited |
| 2005–2006 | Jeep | Wrangler | Unlimited Rubicon |
| 2006 | Jeep | Wrangler | 65th Anniversary Edition |
