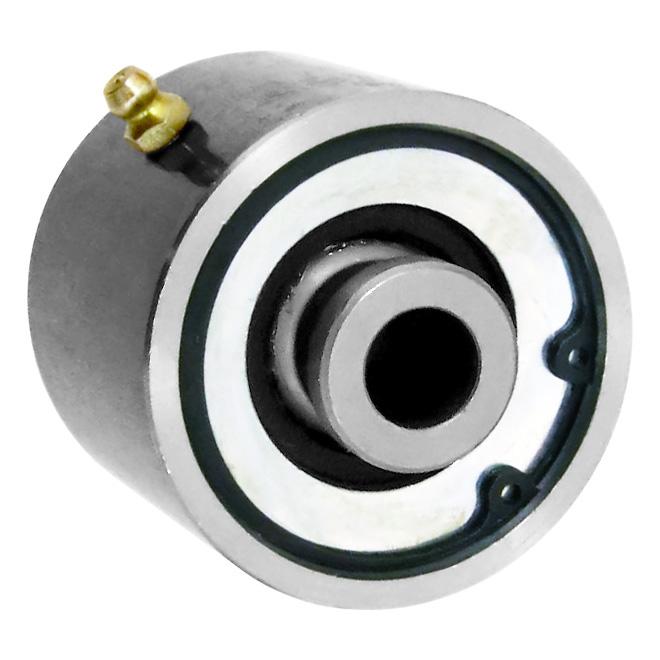

Johnny Joint Rod End 2 1/2 Inch Weld-On 2.625 Inch X .640 Inch Ball Externally Greased RockJock 4x4

RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.

The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 inch wall machined DOM tubing that is fitted with a zerk fitting for greasing.

This specific joint is a 2 1/2 inch o.d. and features a 2.625 inch mounting width and a .640 inch thru bolt hole.
