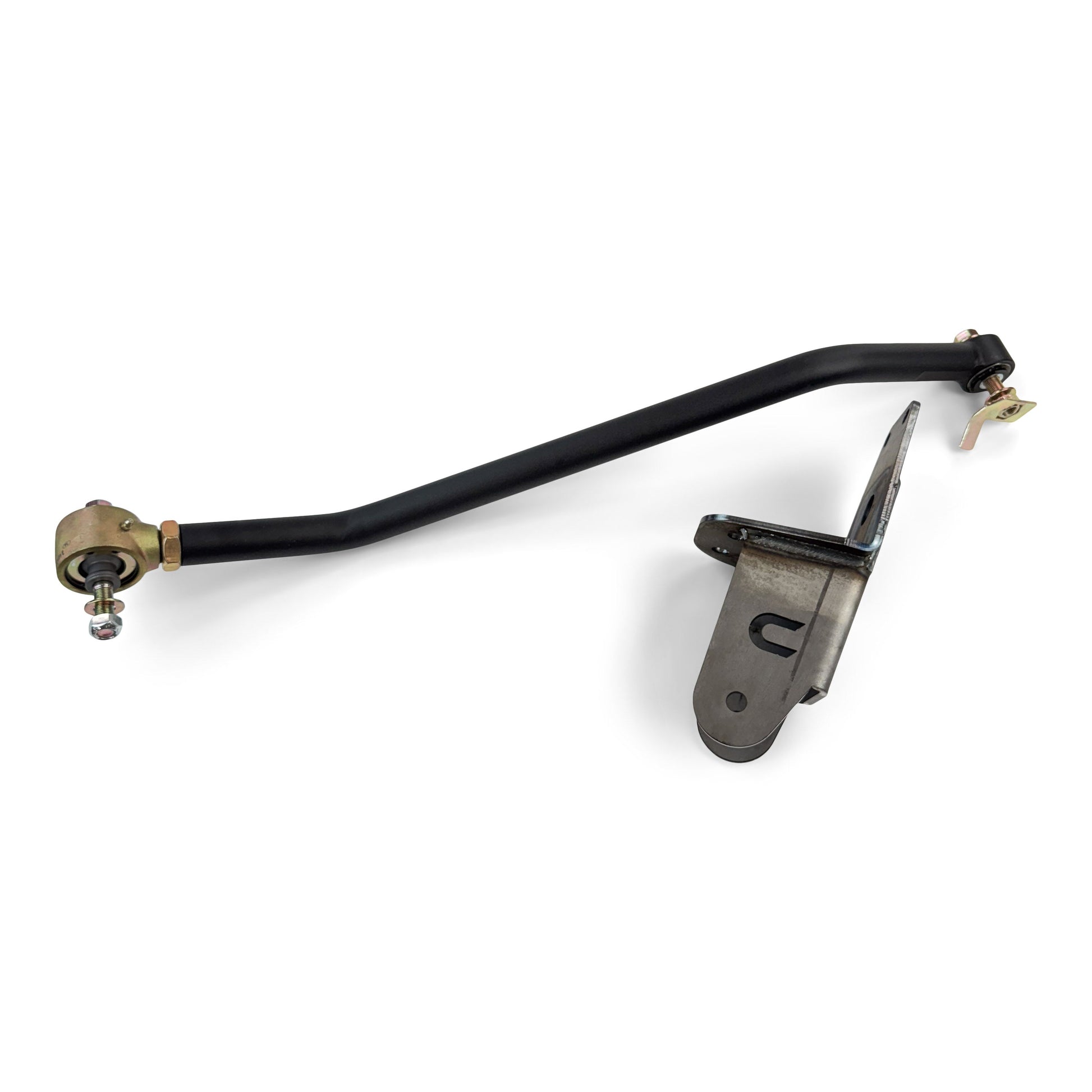

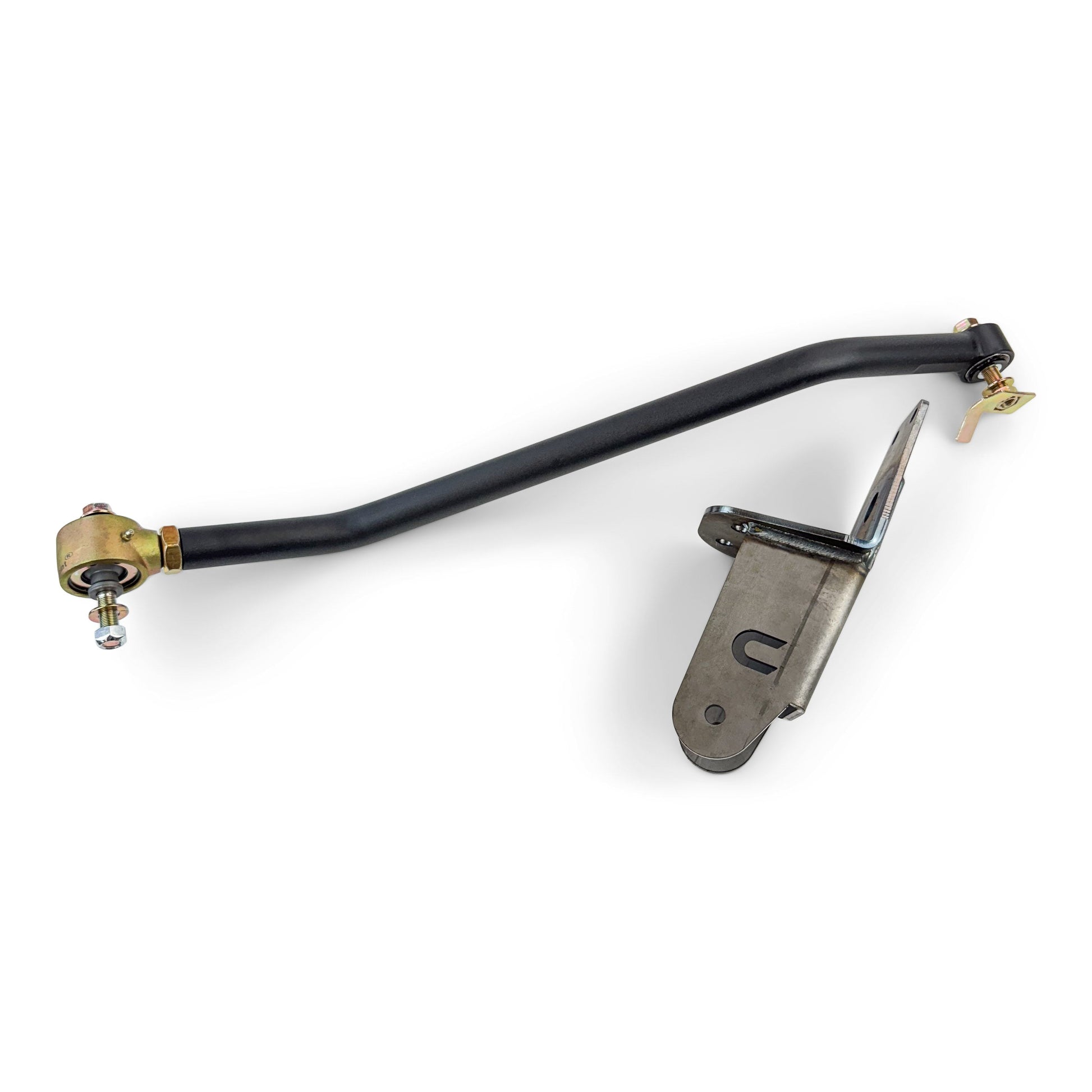

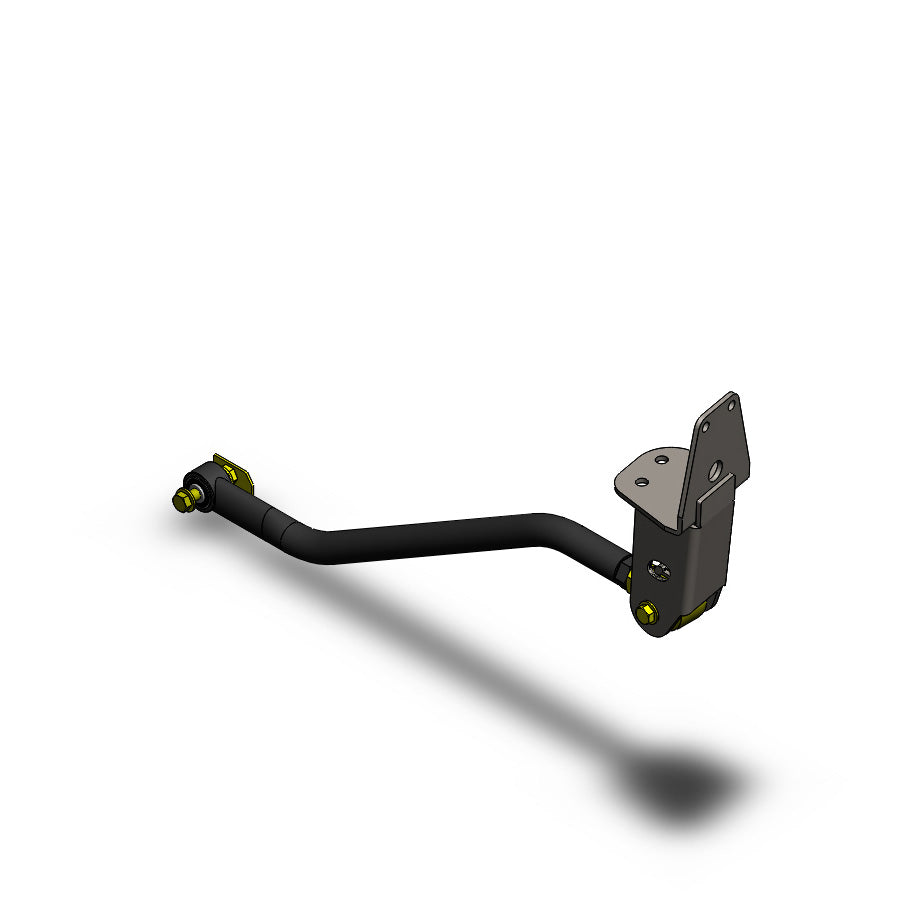

Jeep Adjustable Front Trackbar W/Bracket (1984-2001, XJ/ZJ)
Our XJ and ZJ adjustable track bar gives you the strength and adjustability your lifted Jeep needs. A greaseable forged johnny joint is used at the frame end, and a dual durometer, maintenance free, high quality Giiro Joint bushing is pressed into a machined housing on the axle end. What is different about this track bar is the lower bushing.
Many customers have complained that their stock, or previous track bar has loosened up and damaged and egged out the factory hole. This adjustable track bar for your XJ uses a much larger 9/16s Grade 8 bolt to allow you to drill out your factory location and easily upgrade to this HD bushing.
Product Features:
2.5 Inch Forged Johhny Joint Adjuster
1 3/8 Inch X 5/16 Inch DOM Tubing
Dual Durometer Giiro Joint
9/16 Inch Grade 8 Hardware W/ Flanged Tab
1/4 Inch Oe Height
Double Sheer Track Bar Bracket
XJ & ZJ 3-6 Inch of Lift
Lifetime Warranty*
Made In The USA!

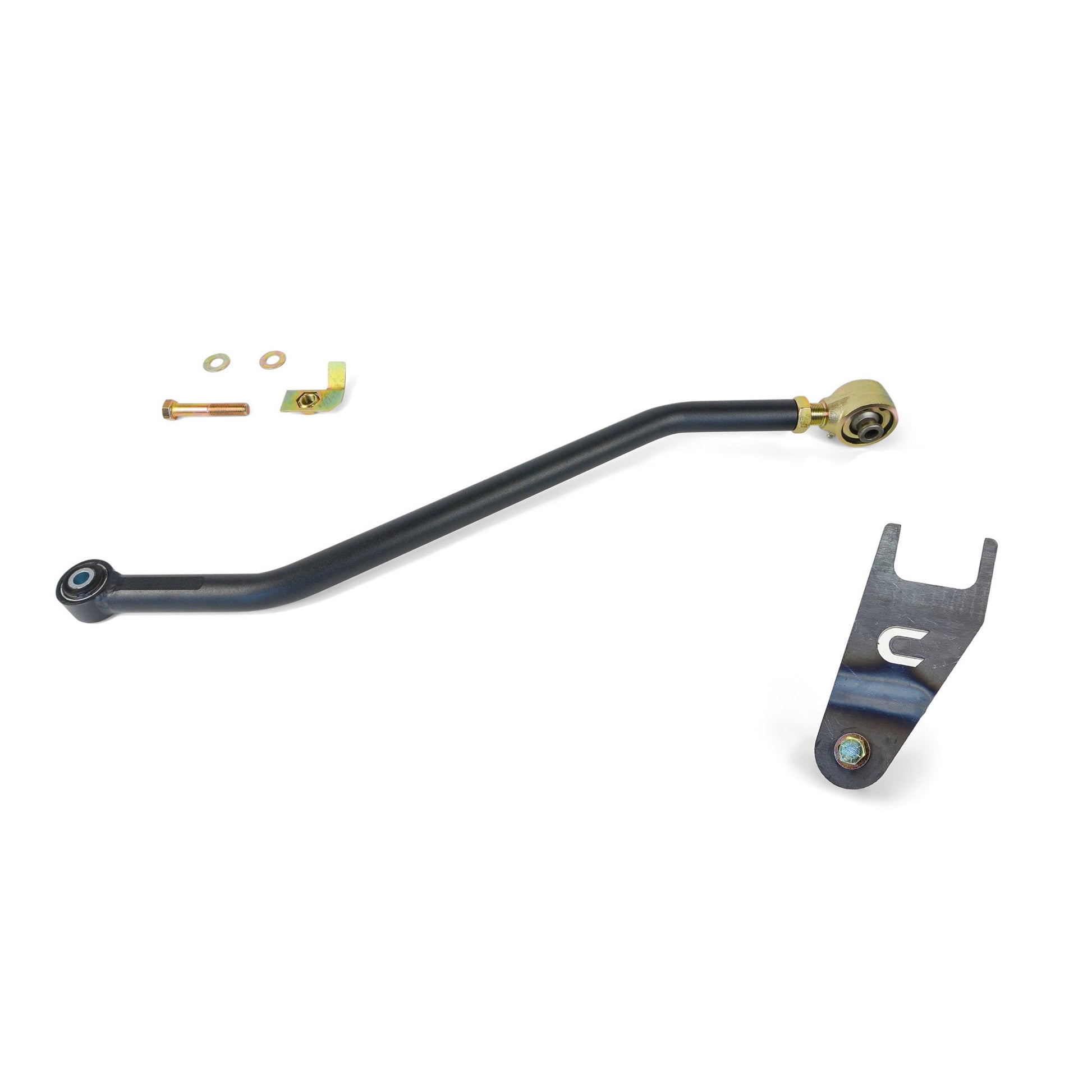

Put simply - this is the strongest, most adjustable track bar on the market. Our XJ Adjustable track bar comes powder coated black. Comes with a 9/16 hardware and a new lower flange tab to fit into the Oe location at the axle side.

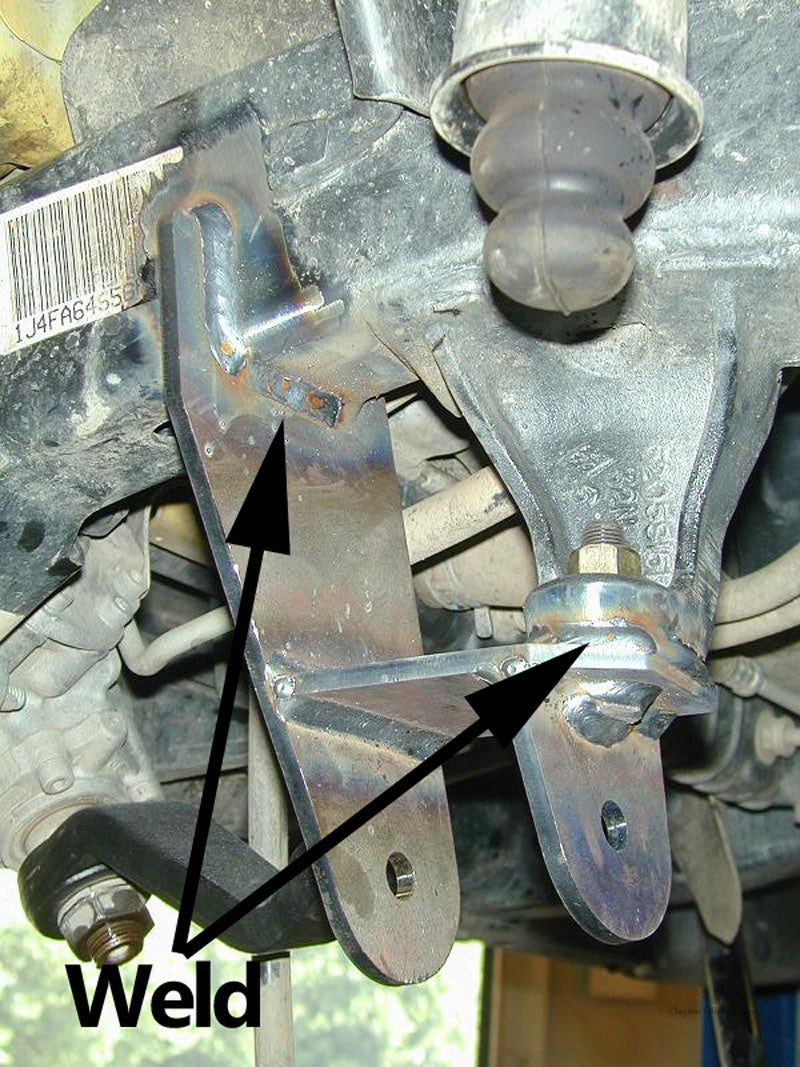

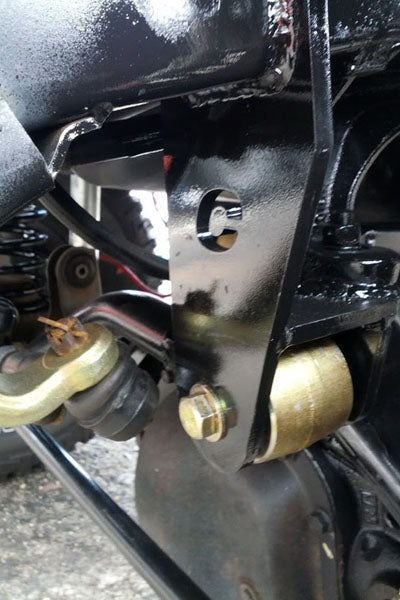

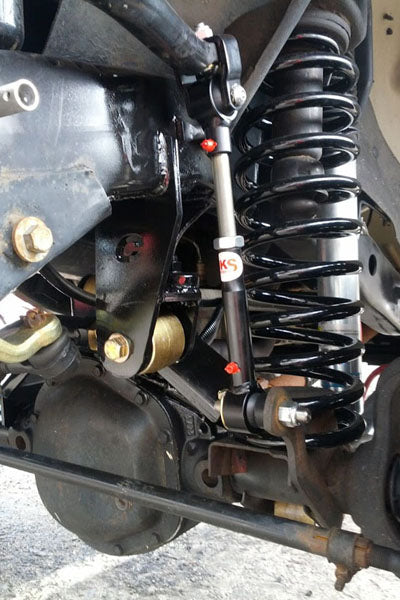

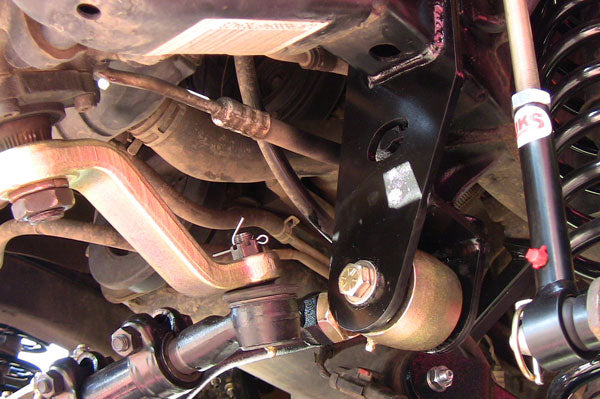

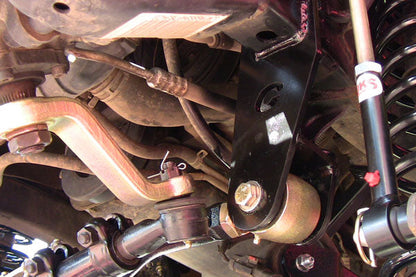

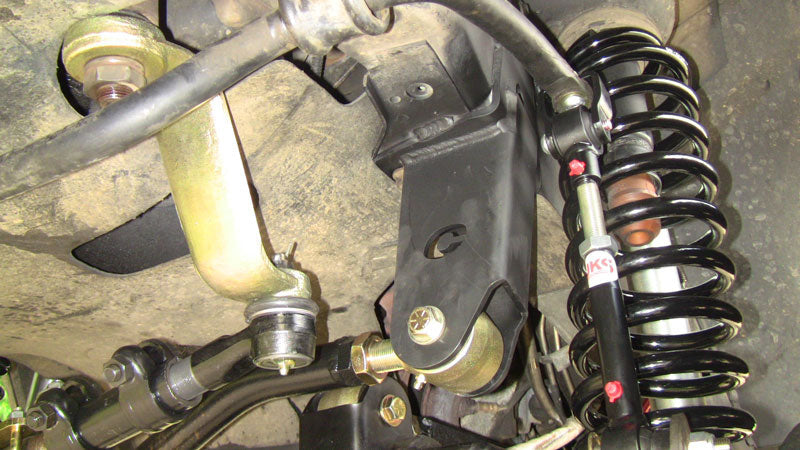

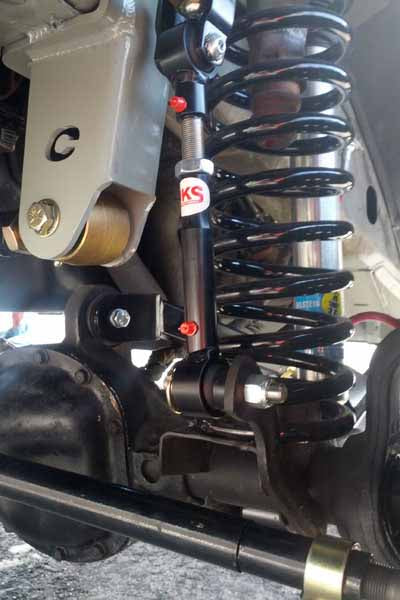

This new bracket keeps the OEM track bar height but puts our heavy duty track bar in double sheer. This allows you to run a stock pitman arm with 3-6 inches of lift. The bracket bolts into the OEM location, and we recommend adding a few small welds for added strength. The bracket is designed to accept a 2.5 inch forged johnny joint using a 9/16s grade 8 bolt. Inside bracket width is 2 5/8s.
Track bar - Center to Center Min = 31-1/8 Inch, Max = 32-3/16 Inch
Note: Drilling is Required to install this track bar.
