inTune i3 with Modified PCM Compatible with 2016 RAM 1500 5.7L 8-Speed Transmission DiabloSport

The Diablo Sport in Tune i3 + Unlocked PCM Kit is the complete tuning solution for the 2016 Ram 1500 5.7L HEMI

From the factory, these trucks are equipped with locked PCMs that prevent tuning-but this package provides everything you need to unleash your Ram's true performance potential.

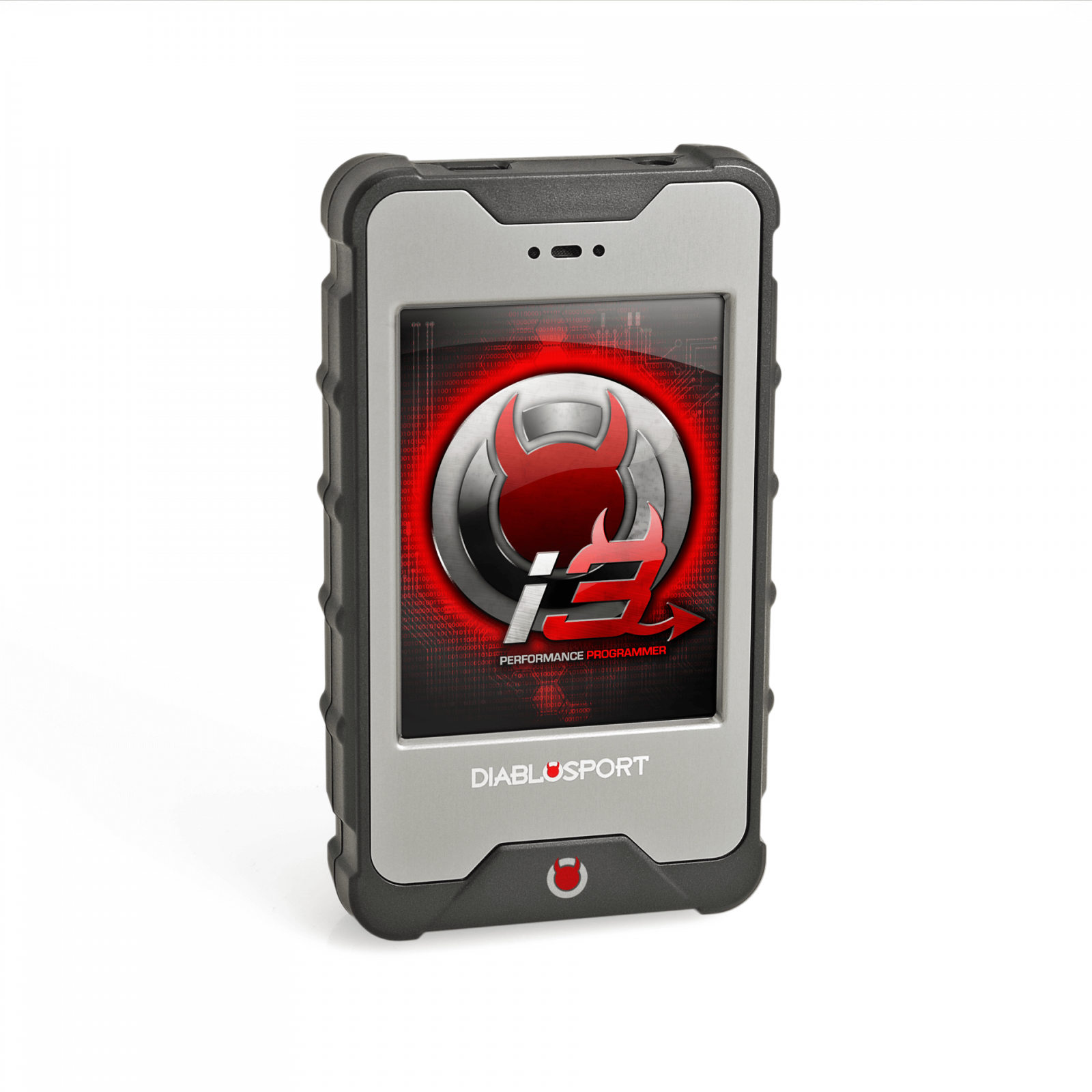

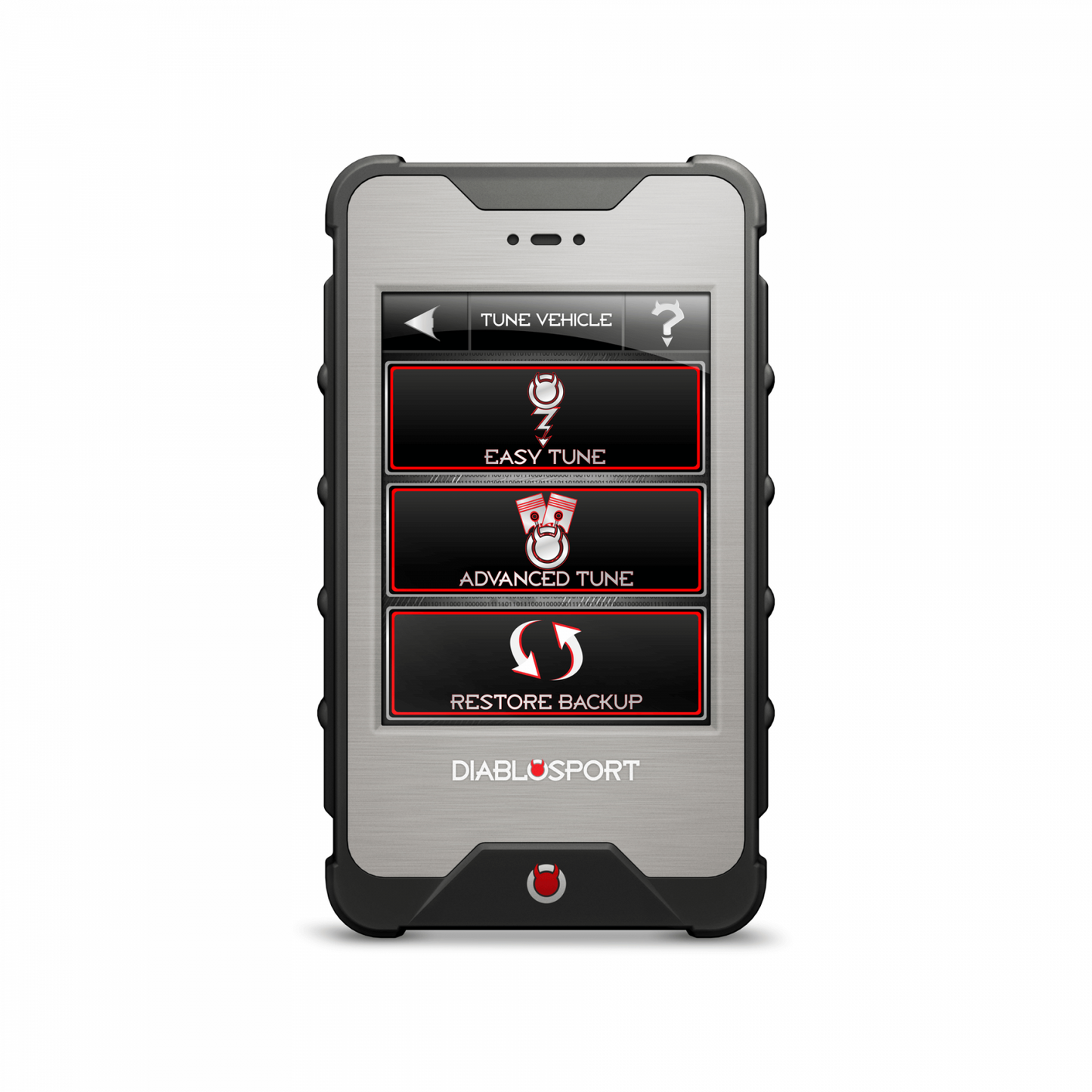

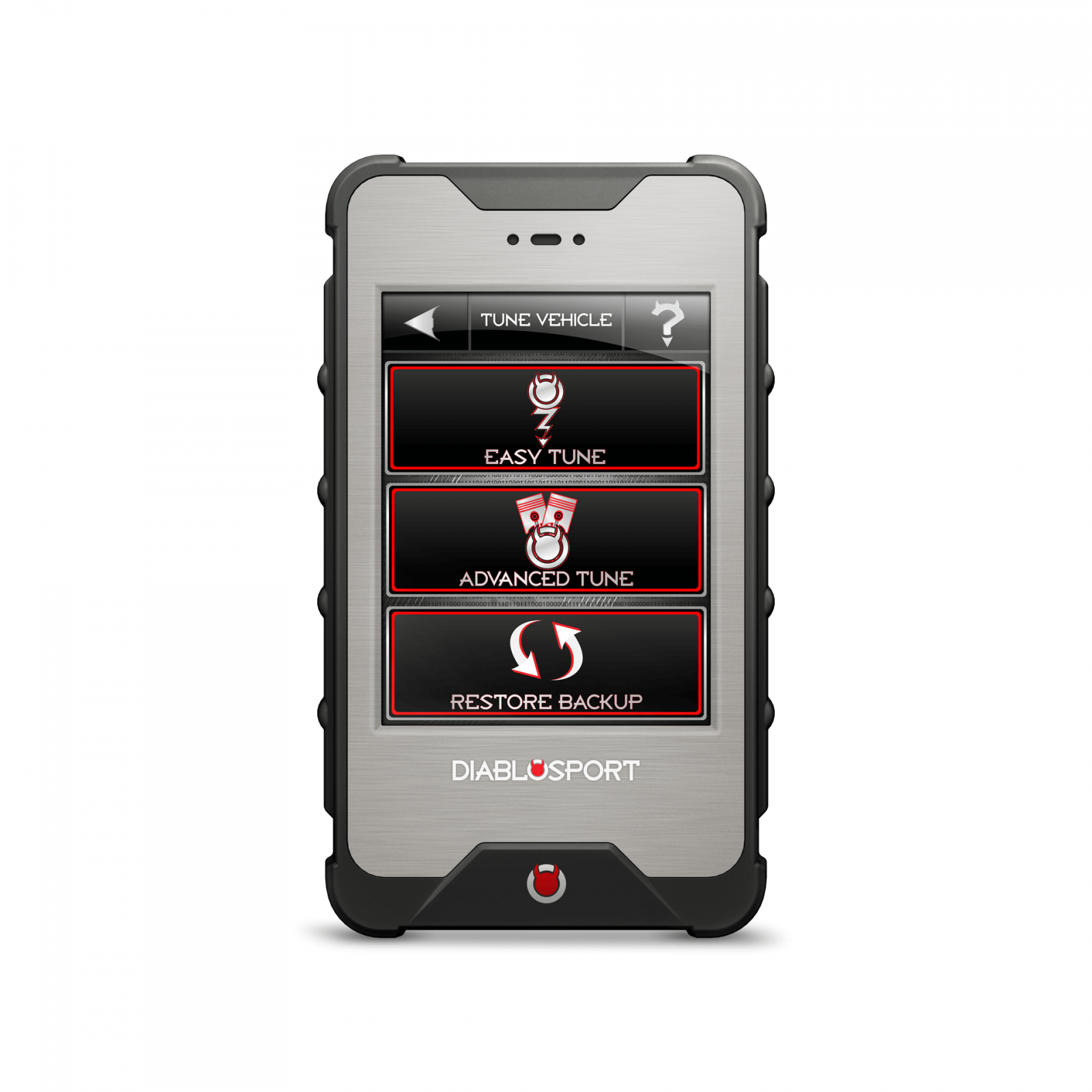

The in Tune i3 handheld programmer (PN 8345) comes preloaded with dyno-tested performance tunes designed specifically for your HEMI

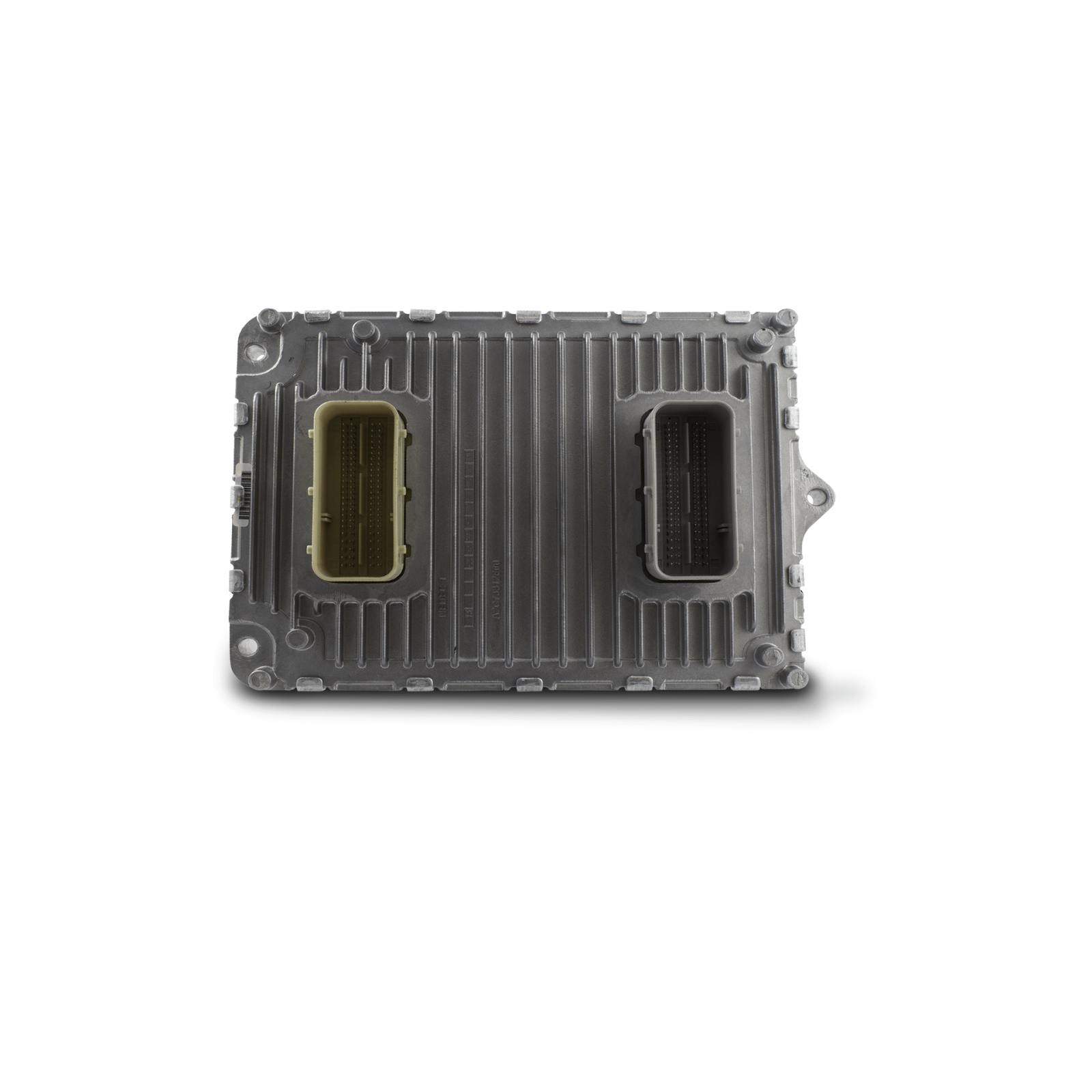

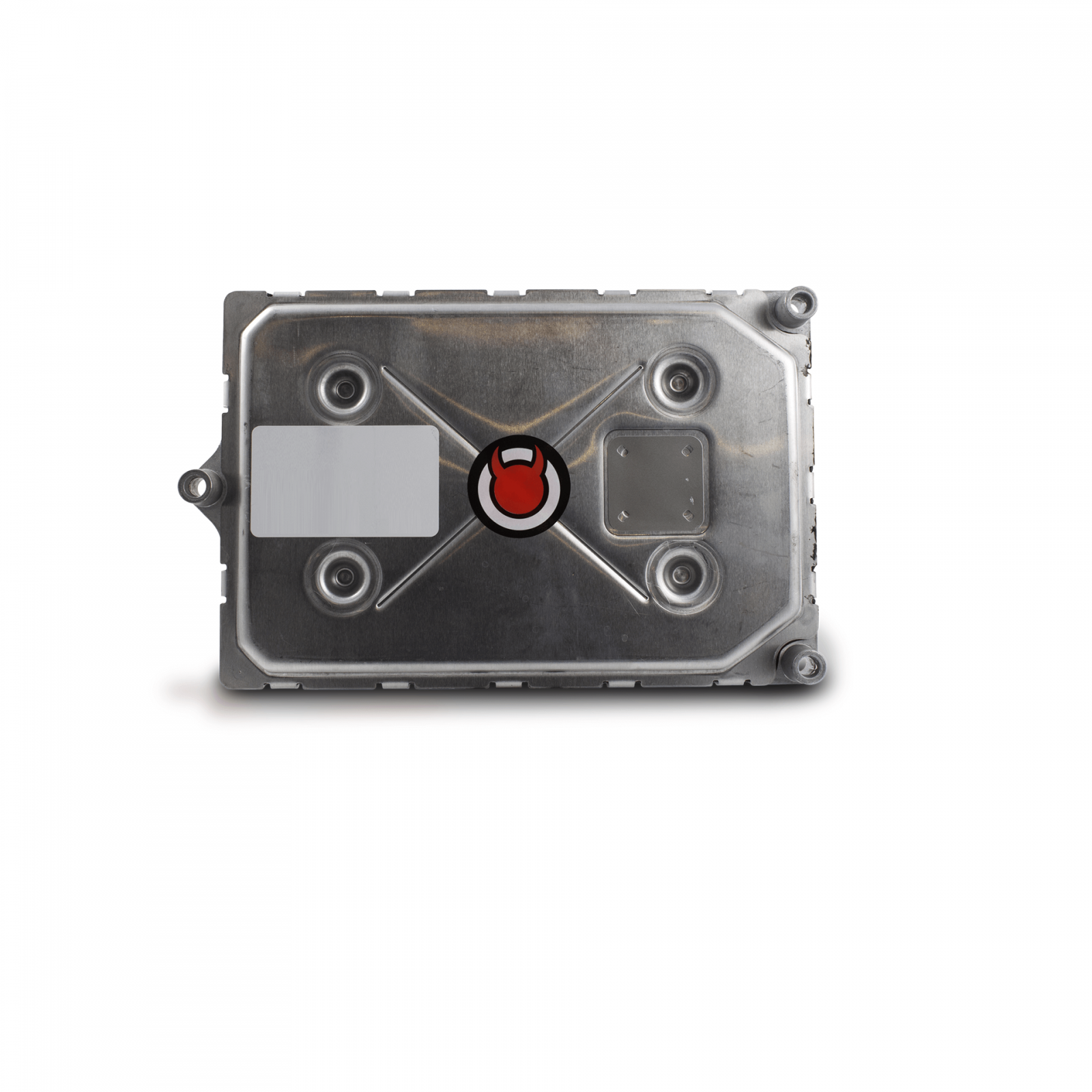

With the included Diablo Sport Modified PCM, you'll experience significant horsepower and torque gains, quicker throttle response, improved towing strength, and refined transmission behavior for smoother, more responsive shifting

For drivers planning bolt-ons or upgrades, the Platinum i3 also supports CMR custom tuning, giving you the flexibility to create dyno-proven calibrations tailored to your setup

Built-in data logging makes it easy to track and optimize performance as your truck evolves

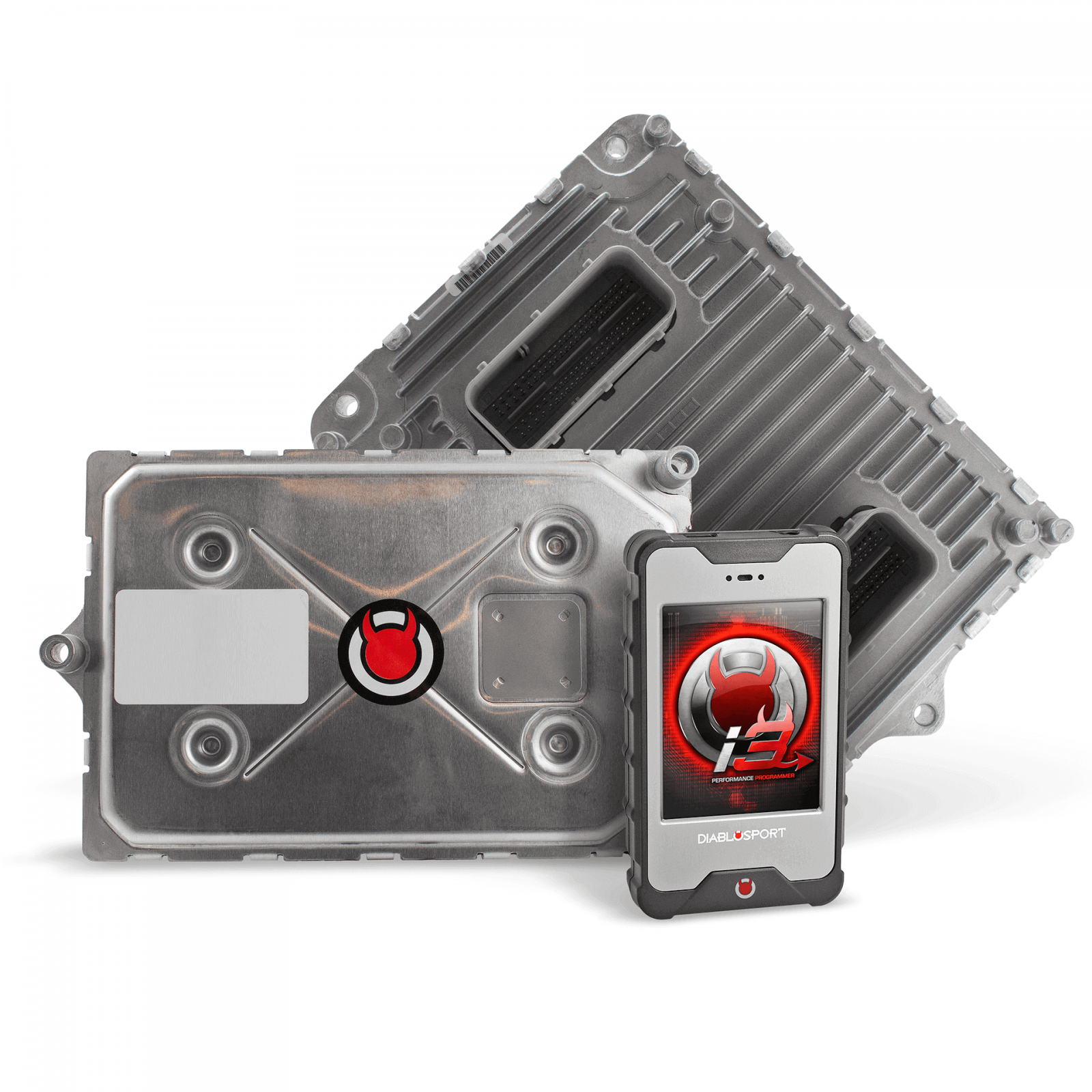

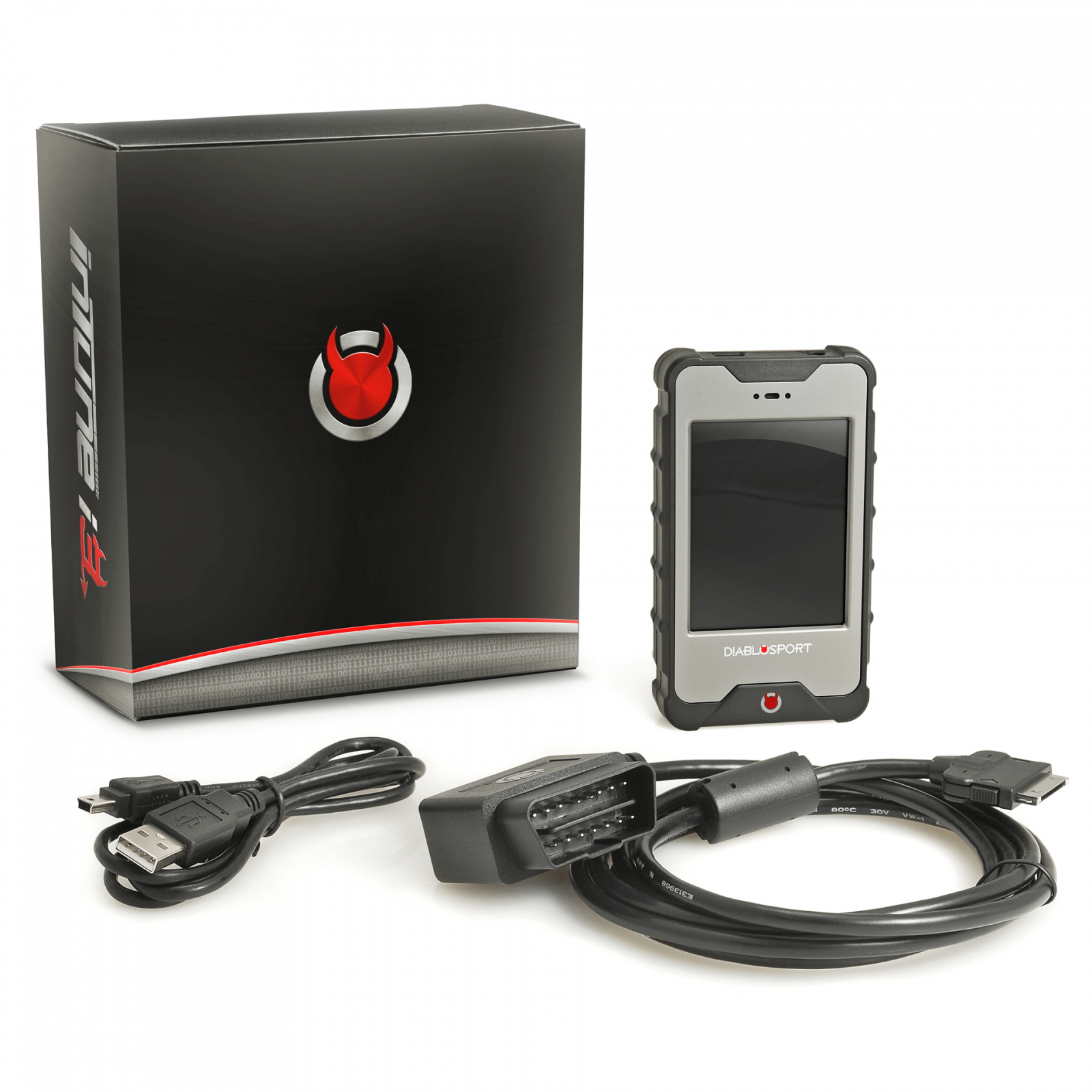

This kit includes the in Tune i3 programmer and a one-time unlocked PCM cross-shipment, making installation straightforward and hassle-free

For 2016 Ram 1500 owners who want more power, better drivability, and tuning flexibility, the in Tune i3 + Unlocked PCM Kit is the ultimate upgrade

• 2016 Ram 1500 5.7
• Add 25-30 rwhp on premium fuel
• Adjust throttle response fo roptimal pedal feel
• Remove vehicle top speed limiter
• Adjust idle RPM
• Tunes for 87, 91 and 93 octane fuel included
• Performance TCM tune for 8 speed transmission included
• Includes PCM programmed to your vehicle and in Tune 3!
• No vehicle downtime for tuning!
• Preloaded with multiple performance tunes
• Read/clear DTC codes
• Disable MDS for full time V8 operation!
• Adjust Rev Limiter in Drive/Neutral by +/- 500 RPM
• Disable Traction Control/ESP
• Raise or Lower Idle Speed by +/- 400 RPM
• Required bypass module or cable is included
• Speed Limiter On/Off enabling increased top speed
• Target Cooling Fan temps can be set from 150 Degree-230 Degree for use with cooler t-stat
• Tire Size Adjustment 20 Inch-44 Inch, allows for correcting speedometer for different tires
• WOT Fuel Adjustment - 1-7K RPM +/- 20 percent, allows for fine tuning Air/Fuel Ratio
• WOT MBT Spark 1-7K RPM +/- 10
• WOT Spark - 1-7k RPM +/- 10

Details:

• Fuel Type: Gas
• CARB (California) Compliant: No
• Body Material: ABS
• 5 Volt Data Logging Inputs: Yes
• 50 State Legal: No
• AC Adapter: No
• Accepts Custom Tunes From CMR: Yes
• Case Included: No
• Color Touch Screen Display: Yes
• Custom Tuning: Yes
• Data Logging: Yes
• Emission Code: 7
• Erases Fault Code: Yes
• Grade Type: Regular Performance
• Instruction Manual Included: Yes
• Performance Tests: Yes
• Performance Tunes: Yes
• Personal Computer and Mac Compatible: Yes
• Product Type: Handheld Tuner Tuner/PCM Pkgs.
• Software Included: Yes
• Speedometer: Yes
• Sub Category: Engine Service
• Systems Covered: Engine Transmission
• Upgradable: Yes
• Wi-Fi Updates: Yes
