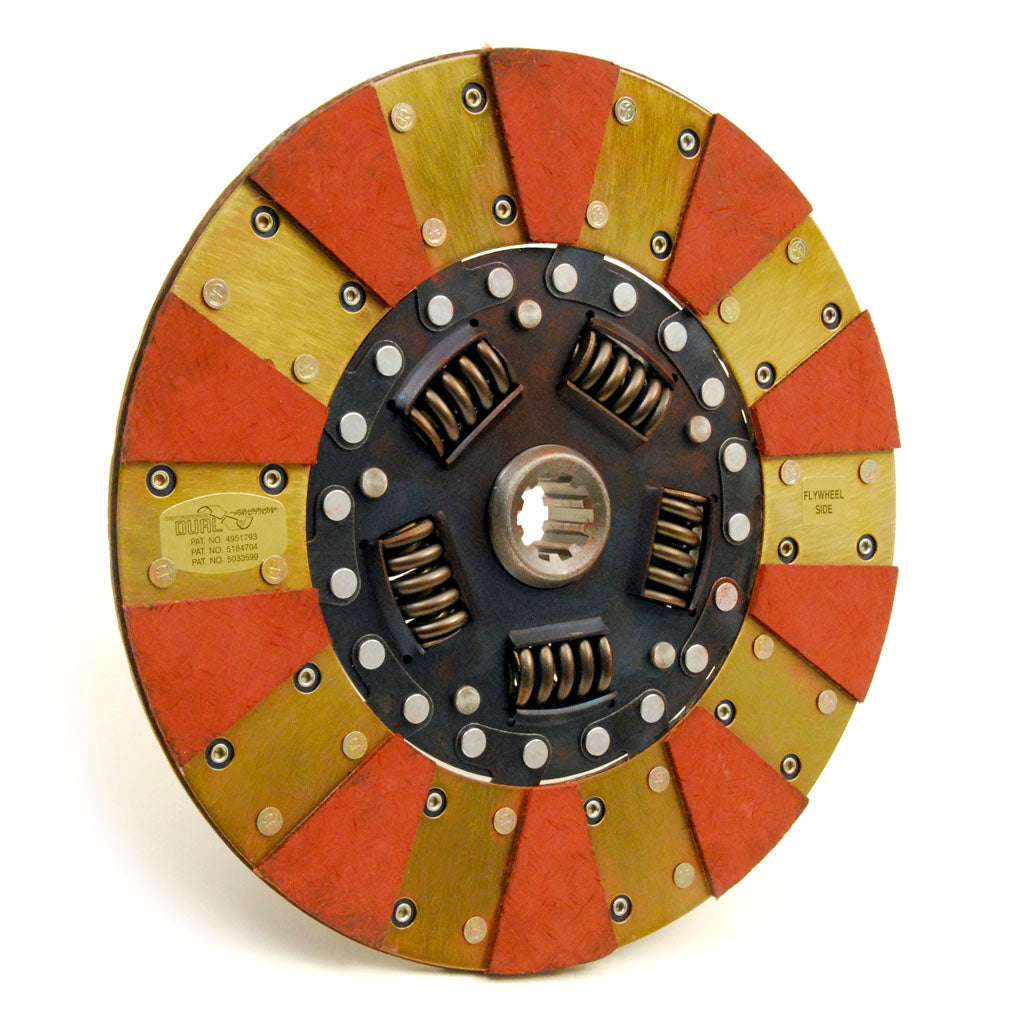

High Performance Clutch Friction Disc 10.4 Inch Diameter 10-Spline Fits DeTomaso/Ford/Jeep/Mercury Cars and Trucks 6/8 Cyl Dual Friction Centerforce

The Centerforce Dual Friction Disc Series uses a single disc with patented dual friction technology by distributing pressure plate clamp force evenly over a 360-degree friction-facing on one side of the clutch disc, while the opposing side uses a segmented friction-facing to concentrate clamping pressure and increase clutch holding-capacity. These discs are made for Centerforce Dual Friction pressure plates.

Application Details:

• Liter: 5
• Cylinders: 8
• BlockType: V
• Fuel Delivery Type: CARB
• Fuel Type: Gas
• CID: 302
• Engine Bore Inches: 4
• Engine Bore Metric: 101.6
• Engine Stroke Inches: 3
• Engine Stroke Metric: 76.2
• Aspiration Name: Naturally Aspirated
• Transmission Control Type: Manual

Details:

• Clutch Disc Diameter: 264.2
• Disc Material: Organic/Carbon Composite
• Disc Type: Full face/Segmented face
• Disc Type (Sprung/Solid): Sprung
• Input Shaft Diameter: 42370
• Input Spline Quantity: 10
• Inside Diameter of Friction Surface: 6.49
• Material: Full Face and Segmented Organic Friction
• Out of Package Weight: 4.49
• Made in the USA: Assembled

Optional 10.4 Inch, 1-1/16 Inch-10 Spline Clutch, Requires Centerforce Flywheel
