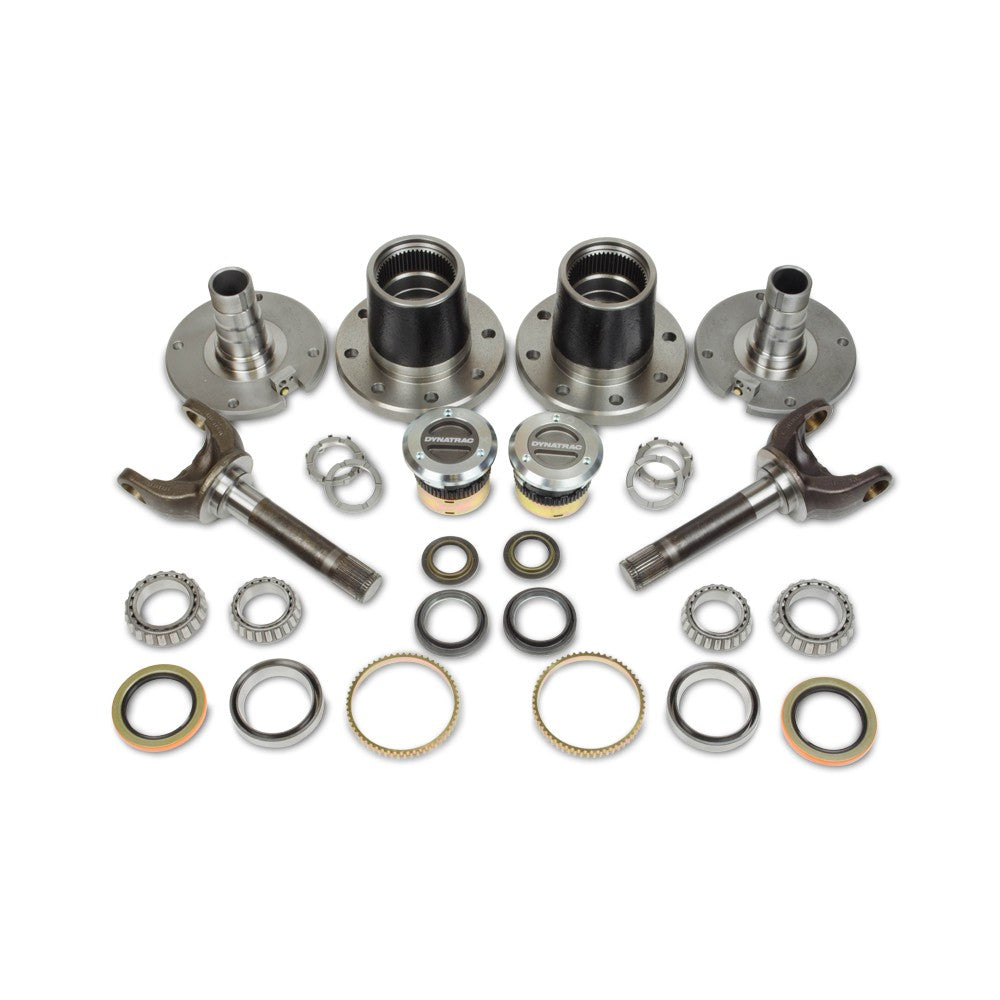

Free-Spin Kit 2012-2019 RAM 2500/3500 w/DynaLoc Hubs Dynatrac

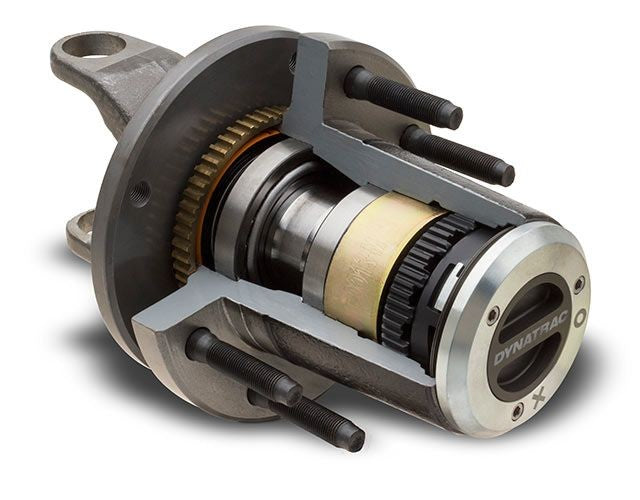

The Dynatrac Free-Spin Heavy-Duty Hub Conversion Kit for 2012-2019 RAM 2500 and 3500 trucks is designed to replace the factory unit bearings (a known failure point) with fixed spindles for superior strength and smooth performance. The Dynatrac Free-Spin Heavy-Duty Hub Conversion Kit for 2012-2019 RAM 2500 and 3500 trucks is designed to replace the factory unit bearings with fixed spindles for superior strength and smooth performance.

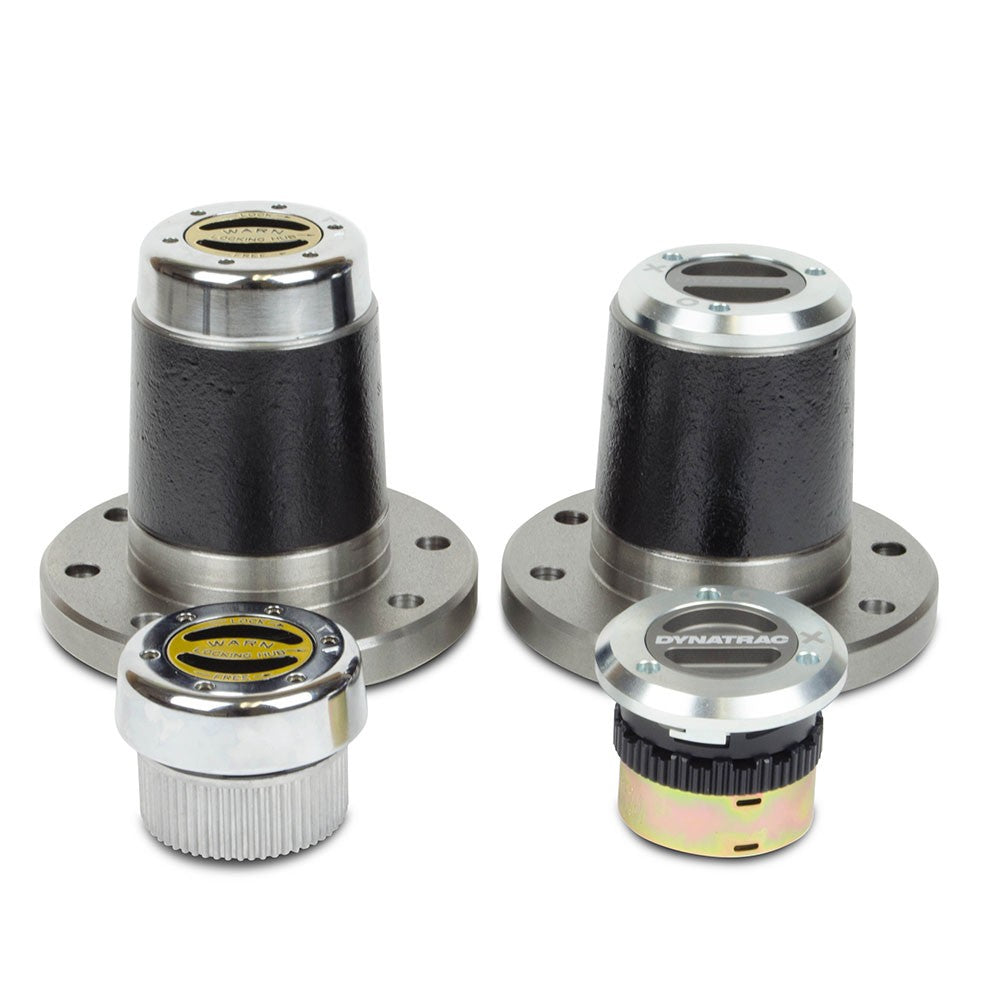

Factory unit bearings are not serviceable, cant be inspected, and are a known failure point. Kit also includes Dynatracs innovative DynaLoc locking hubs that deliver improved locking function, are three times stronger than other locking hubs, and their shorter profile affords better clearance, reducing the chance of hub impact damage.
Features and Benefits:
- 35-spline, 1.50-inch outer shafts
- Easy to maintain for longer service life
- Features DynaLoc locking hubs for maximum performance
- For 2012-2019 RAM 2500 and 3500
- Replaces failure-prone factory unit bearings
- Strong heat-treated chromoly spindles
- Top-quality bearings reduce wear and increase fuel economy
Details:
- Drive: 4WD
- Series: Free-Spin
- Sold As: Kit
Application Notes:
- 2012-2019 RAM 2500 (Drive: 4WD)
- 2012-2019 RAM 3500 (Drive: 4WD / Qualifier: with Single Rear Wheels (SRW))
Trucks with dual rear wheels will require the use of a special dually wheel adapter; part number AA4DDT. These can be purchased through Arrowcraft (248-280-0210) and have been made to work specifically with Dynatracs Free-Spin Kit... Also, this Dynatrac Free-Spin kit will not fit with most 2014-2019 factory RAM wheels. Please click here to download a fitment notification for more information. The issue is the wheels are closed and do not have a removable center cap which is required to allow the hub snout to pass through. The customer must have a wheel with a center-hole or removable center cap. Dynatrac does not recommend modifying any part of the wheel. This will decrease the strength of the wheel and can lead to catastrophic failure. Dynatrac has confirmed the fitment of the following wheels: RAM Power Wagon, 2010-2012 Factory RAM wheels, AEV RAM wheels, BMF RAM wheels.
