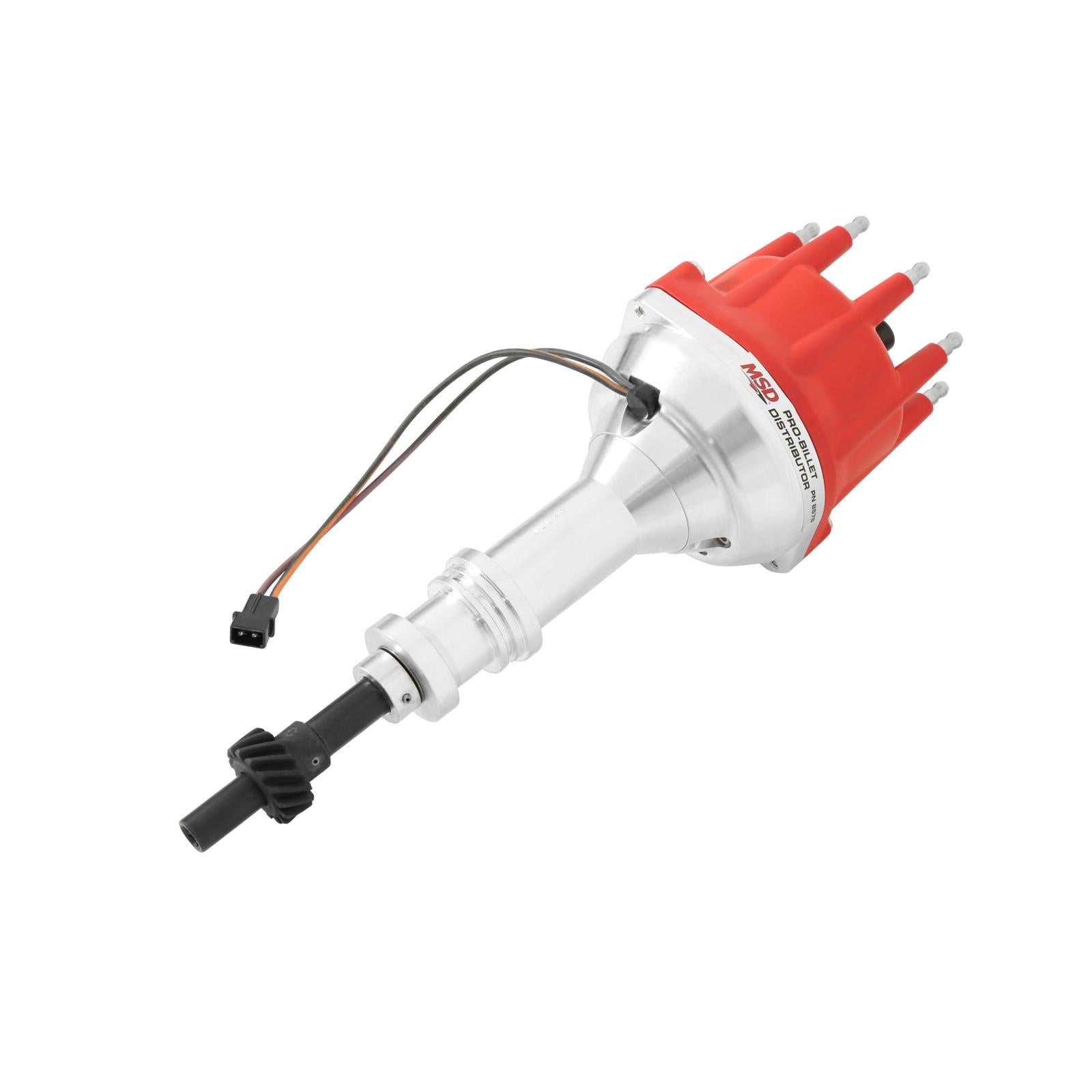

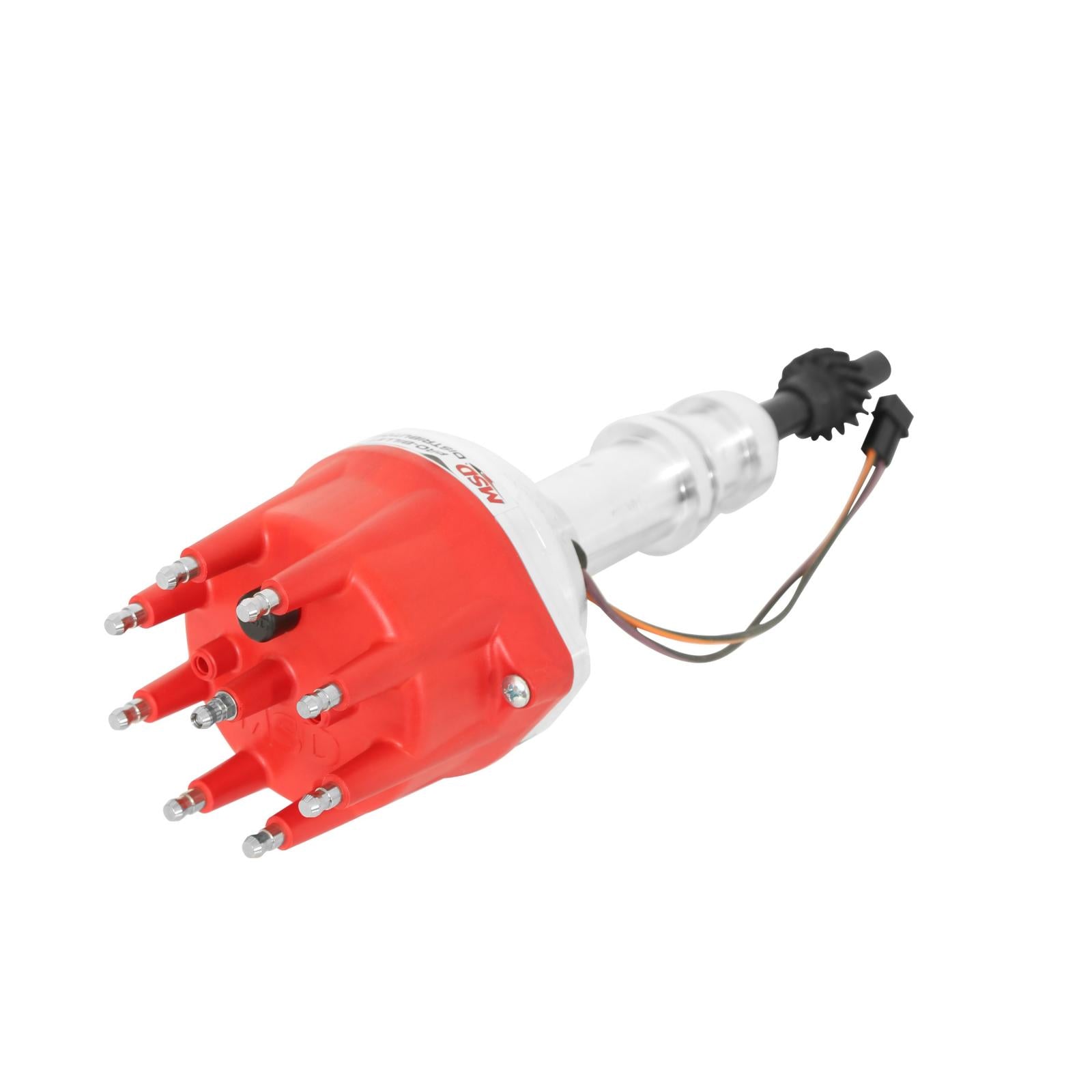

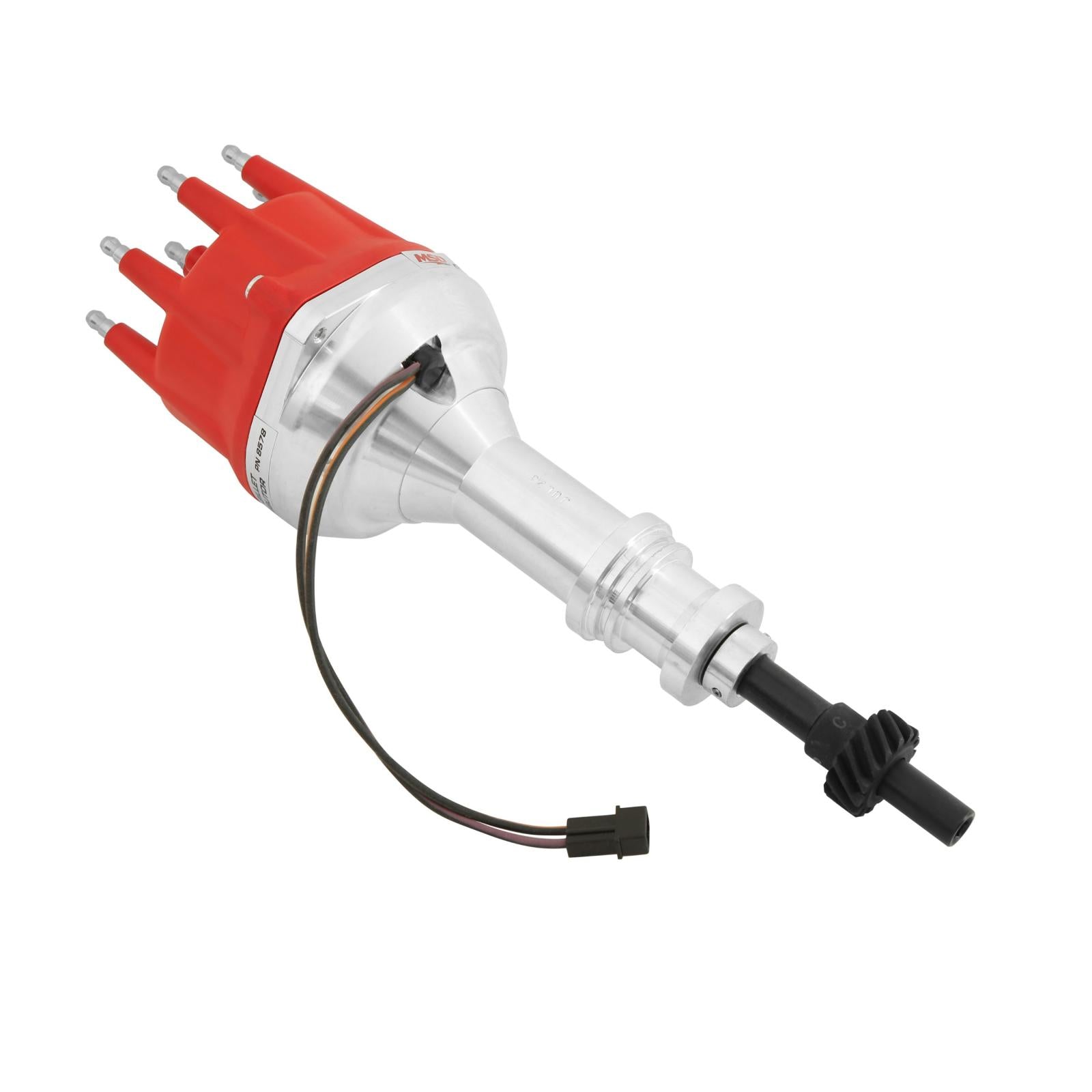

Ford 351W Small Diameter Pro-Billet Distributor Small Diameter Distributor For 351W, Includes Iron Gear. Must Be Used With An 6, 7 Or 8-Series MSD Ignition

MSD engineers fit all of their high performance distributor experience into a special compact housing designed to be less obtrusive for Ford engines. The diameter of the special cap and housing are 5/8 Inch smaller than stock Ford distributors providing extra room in front of the engine. The new MSD cap features spark plug style terminals and is firmly screwed down to the housing.

• Mounted to the top of this shaft is a fully adjustable mechanical advance assembly. The rate at which the chromoly assembly advances the timing is easily controlled by changing the supplied advance springs and stop bushing for total advance.
• The distributor relies on MSD's race proven magnetic pickup and precision reluctor to deliver accurate trigger signals to the MSD Ignition throughout high rpm. The reluctor assembly is turned by a hardened steel shaft which rides in a sealed ball bearing for high rpm stability and endurance.
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing

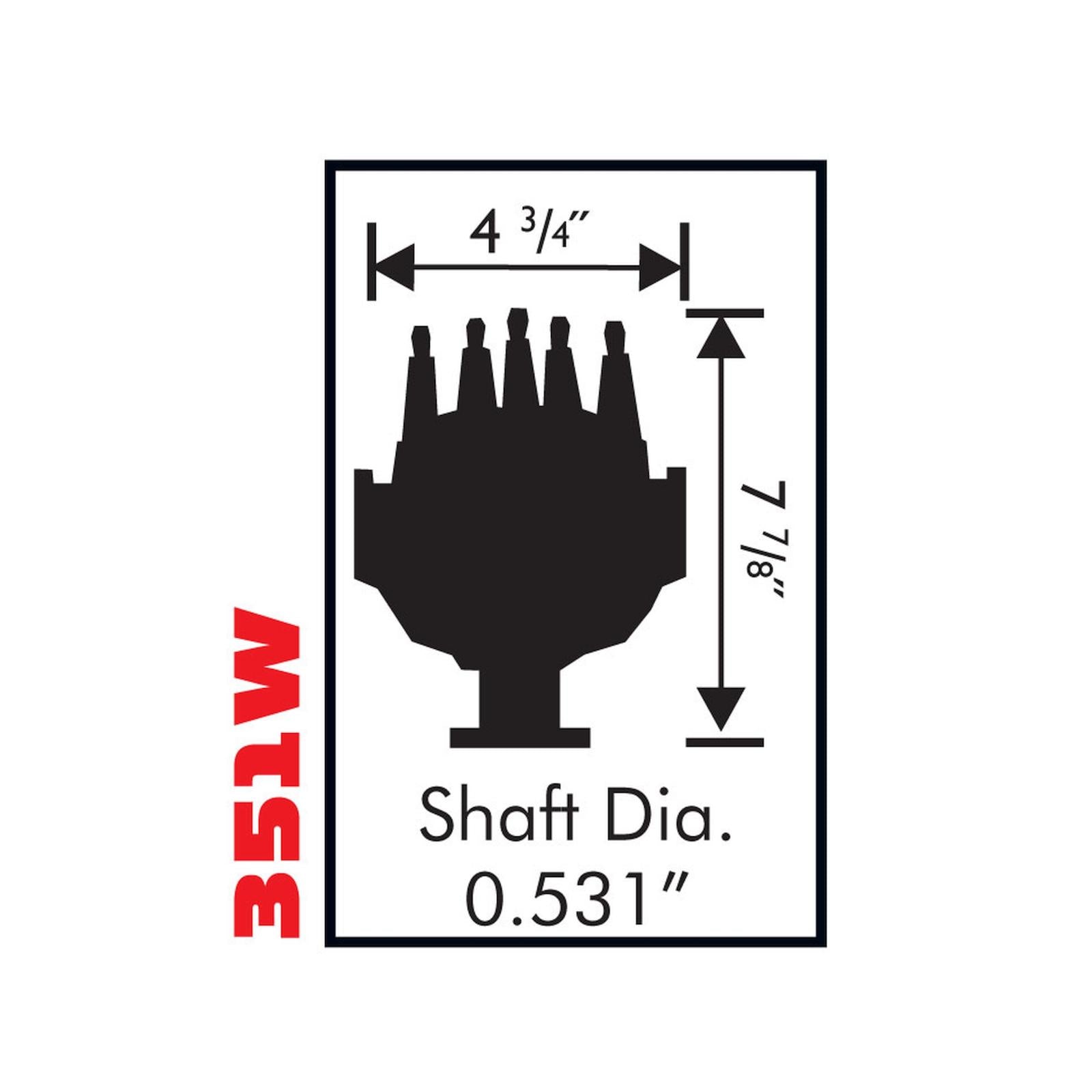

• Billet housing is 5/8” smaller in diameter than stock Ford distributors
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Advance weight pins are staked and tig welded to the plate
• Must be used with an MSD Ignition Control
• CNC machined billet aluminum housing and billet aluminum base
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Mechanical advance assembly can be locked out for crank trigger systems

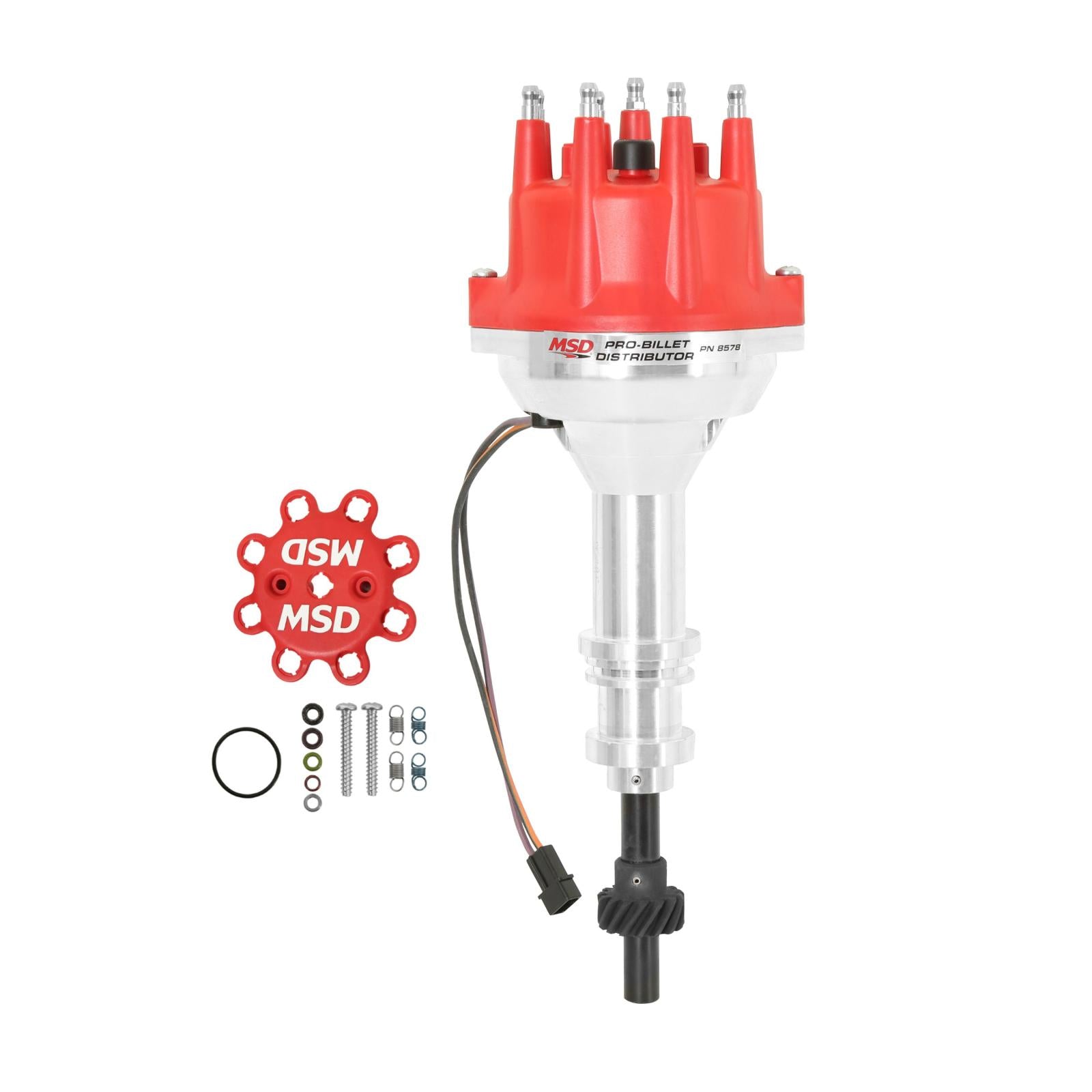

• Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
• Nylon pads ensure smooth operation of the advance weights
• No CARB Exemption Order Number
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range

Details:

• Distributor Cap Included: Yes
• Distributor Type: Magnetic Pickup
• Emission Code: 1
• Engine: Ford 351W

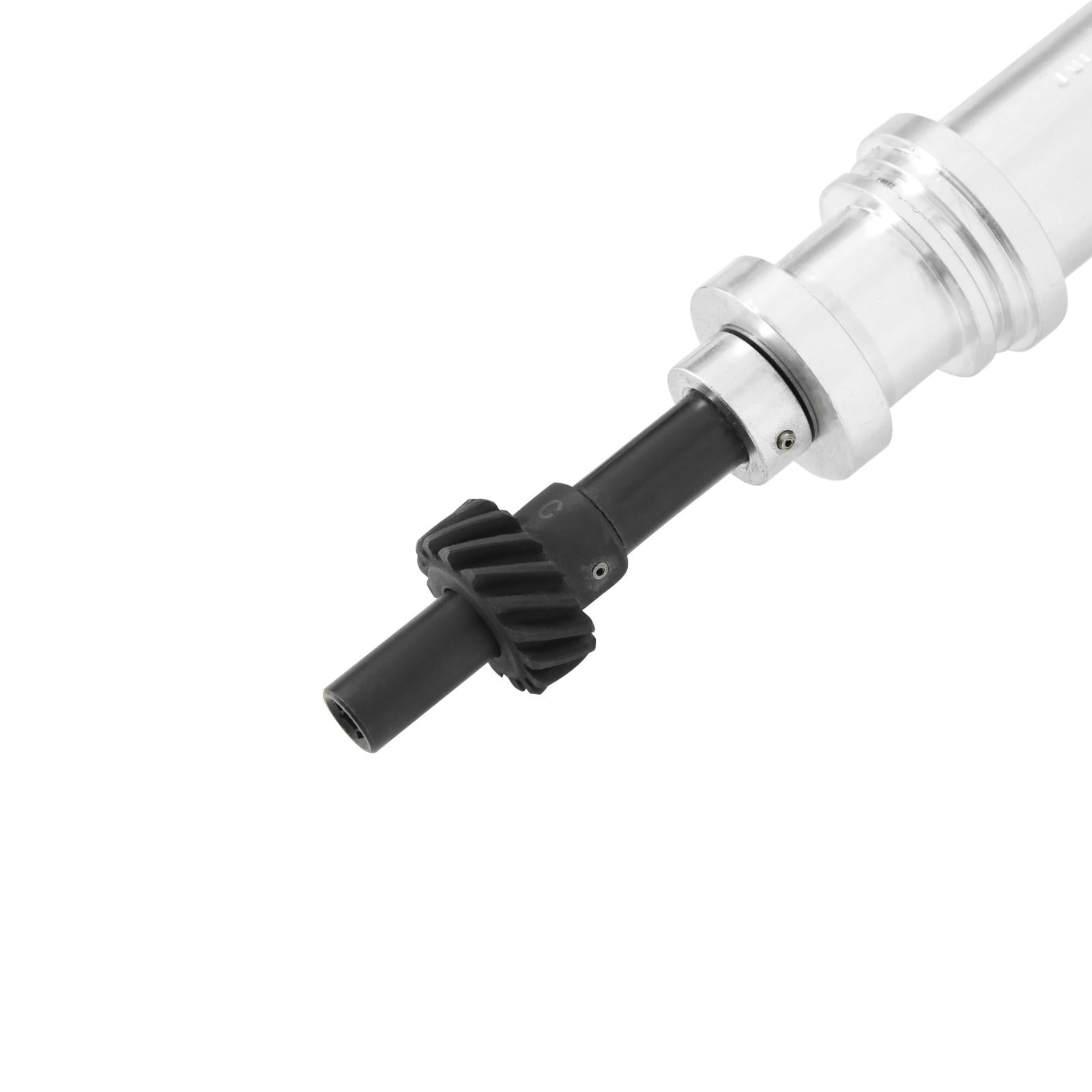

• Gear: Cast Iron
• Gear Material: Cast Iron Melonized QPQ Coated
• Ignition Box Required: Yes
• Ignition Coil Included: No
• Ignition Rotor Included: Yes
• Warranty: Manufacturer's Limited 1 Year Warranty
