DUAL 340 LPH PUMP Module System 2010-2015 Camaro Dual 340 LPH Pump Module Holley

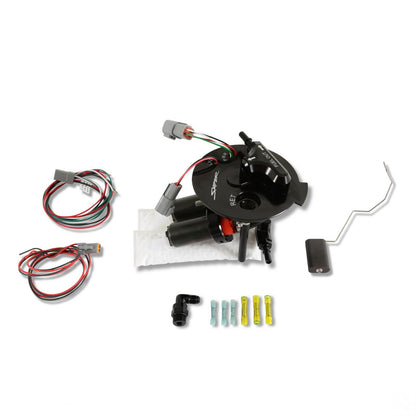

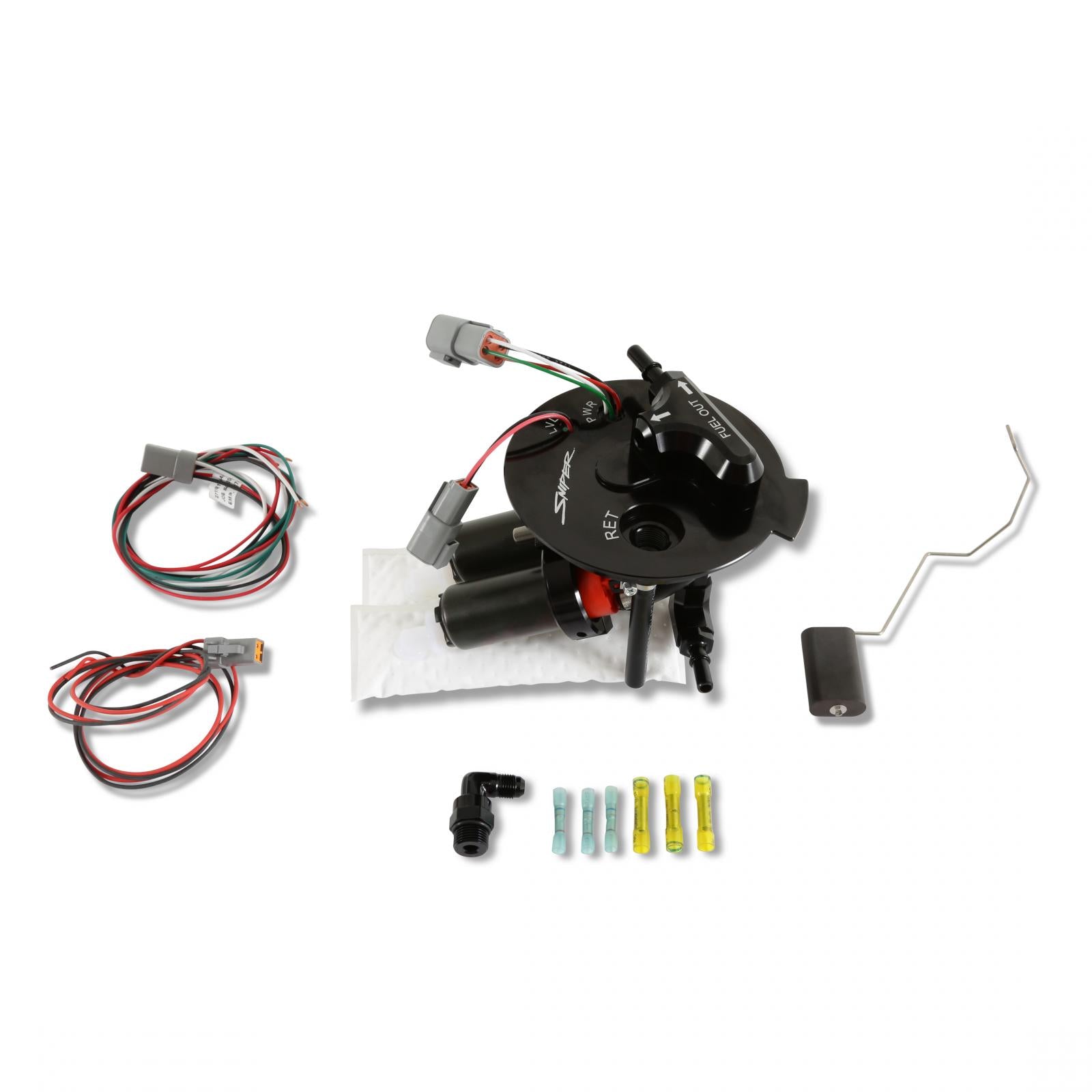

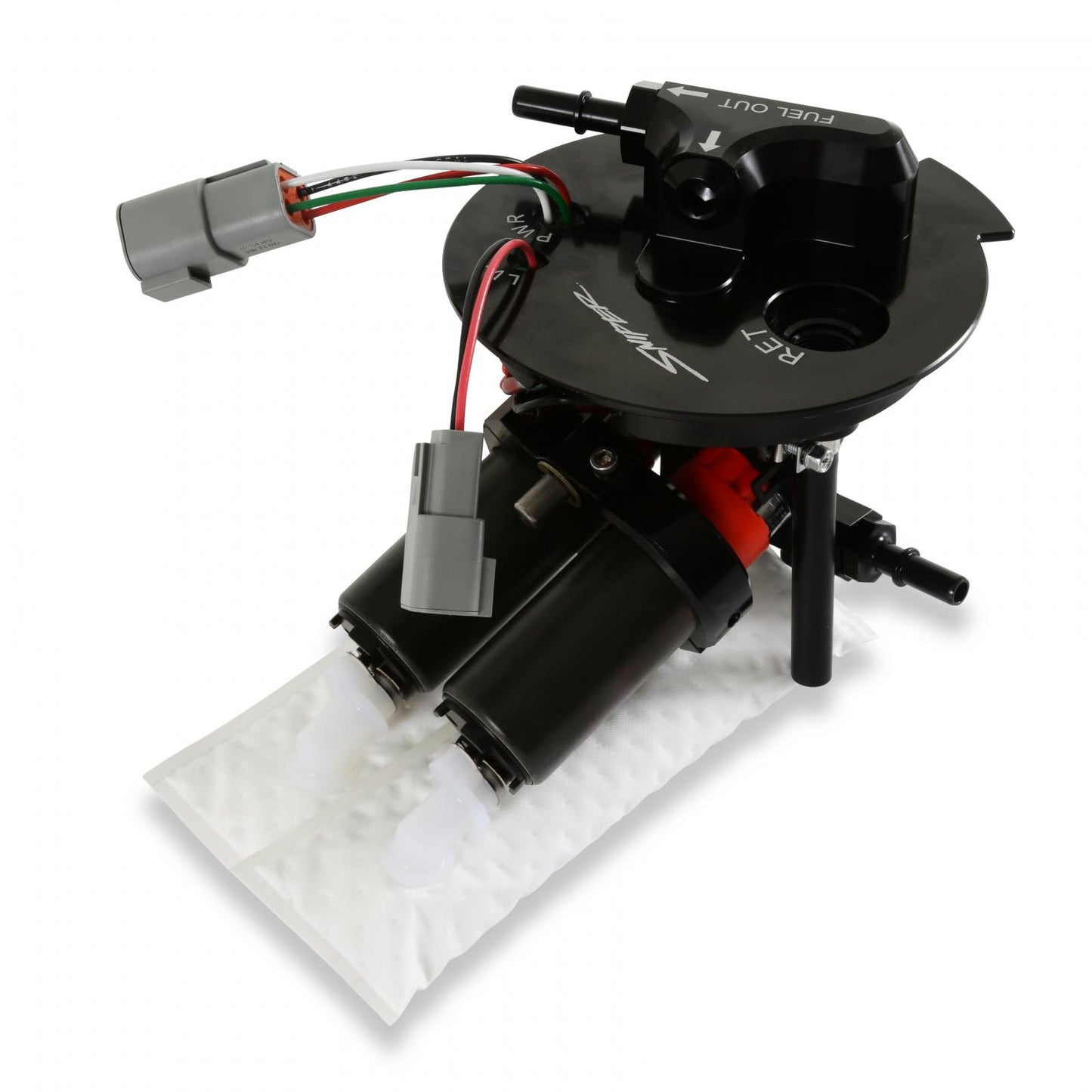

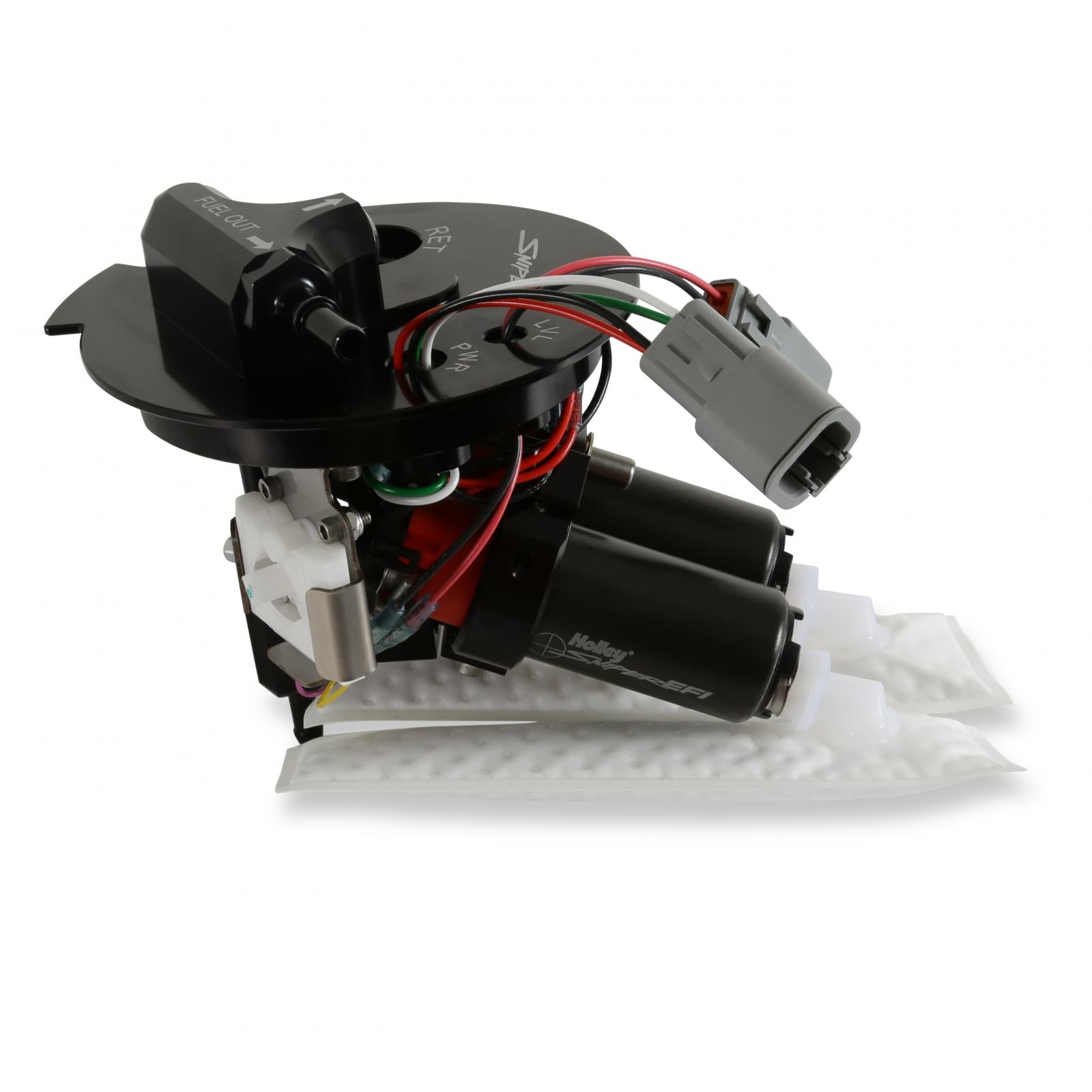

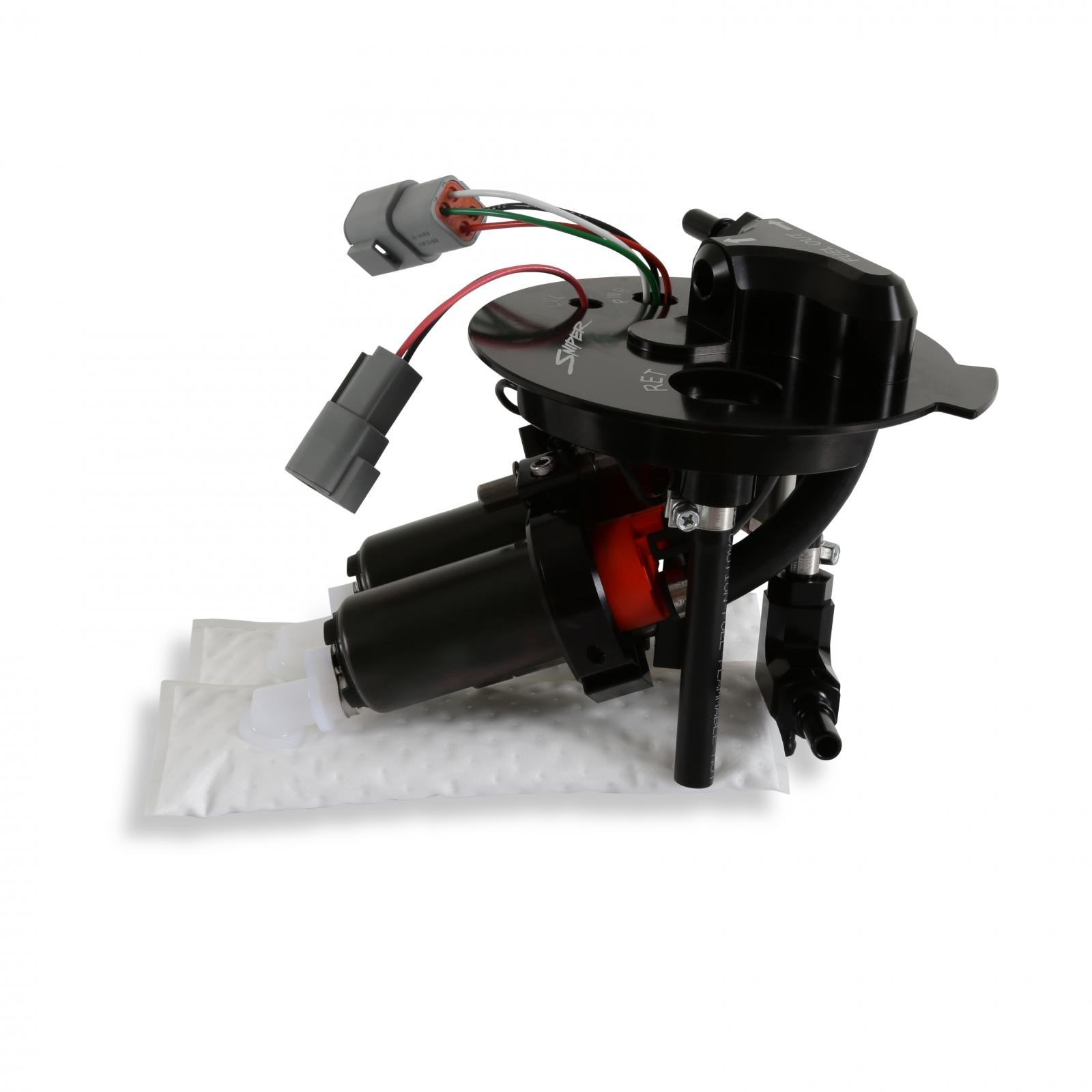

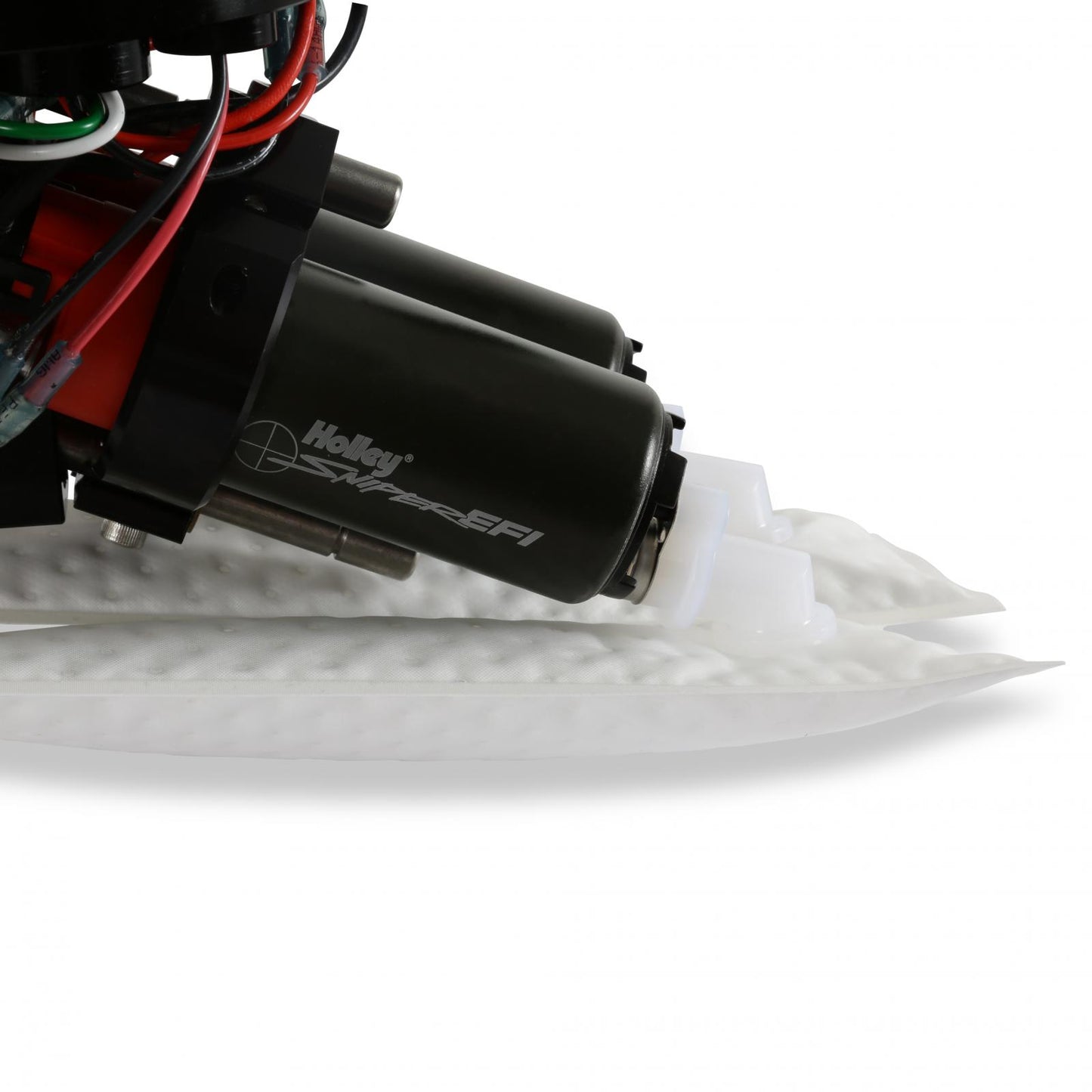

If you are adding nitrous or boost to your 2010-2015 Camaro race car, Holley has the fuel pump upgrades for you! The fuel pump module design starts with a billet pump flange assembly and connects it to dual 340 or 450 Lph fuel pumps for maximum fuel delivery of gasoline or E85.

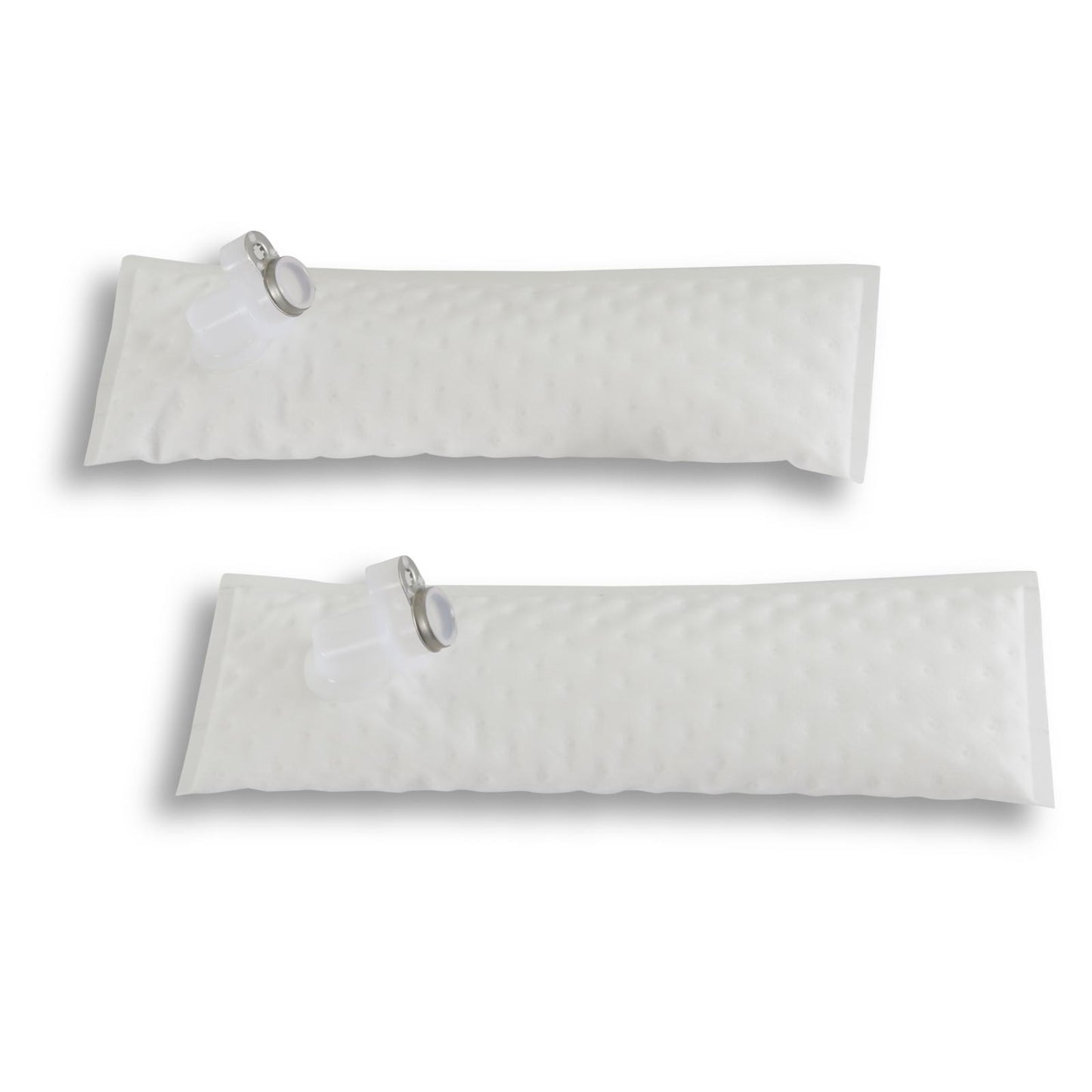

The fuel pump module design starts with a billet pump flange assembly and connects it to dual 340 or 450 Lph fuel pumps for maximum fuel delivery. The module also includes two HydraMats to eliminate fuel starvation under hard acceleration or cornering.

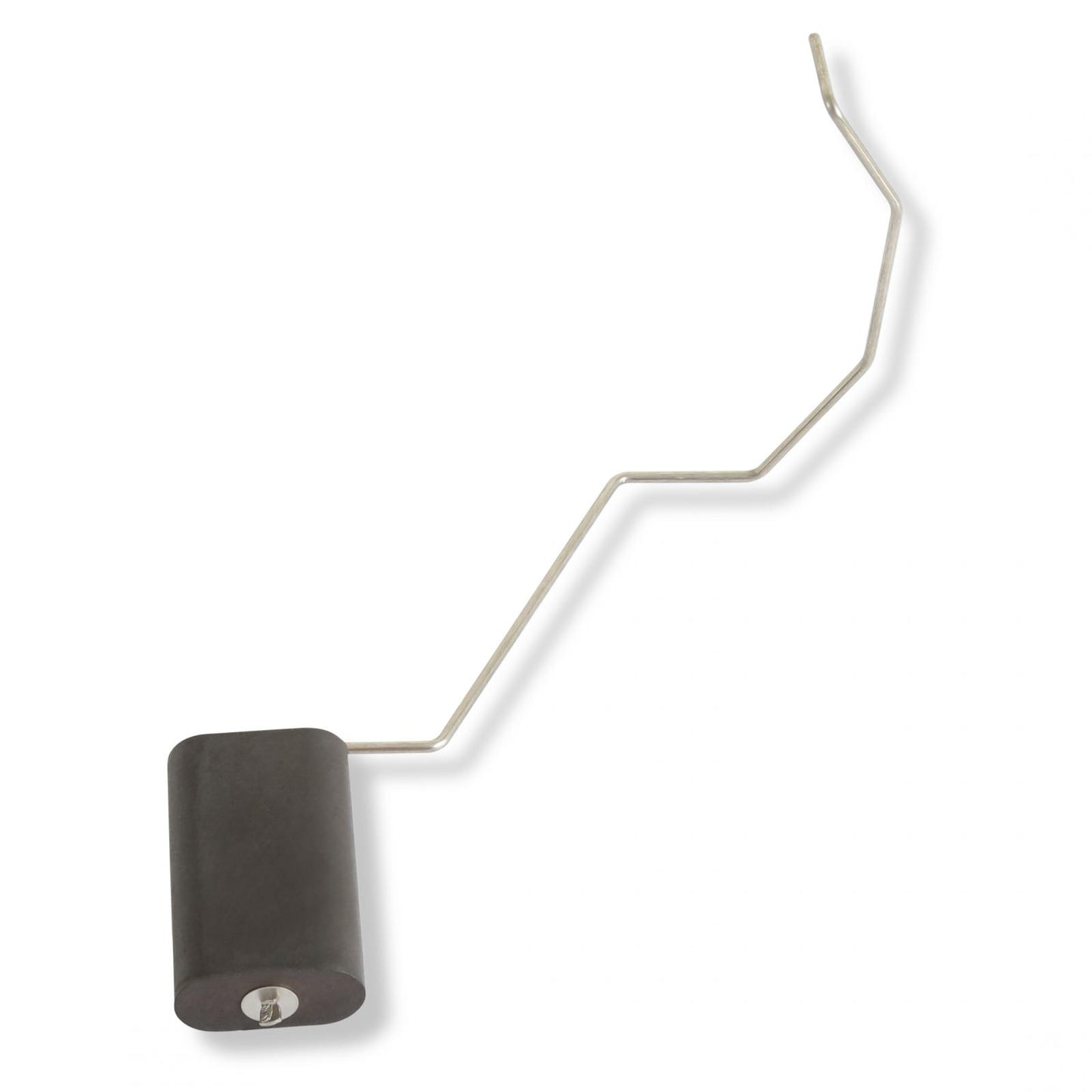

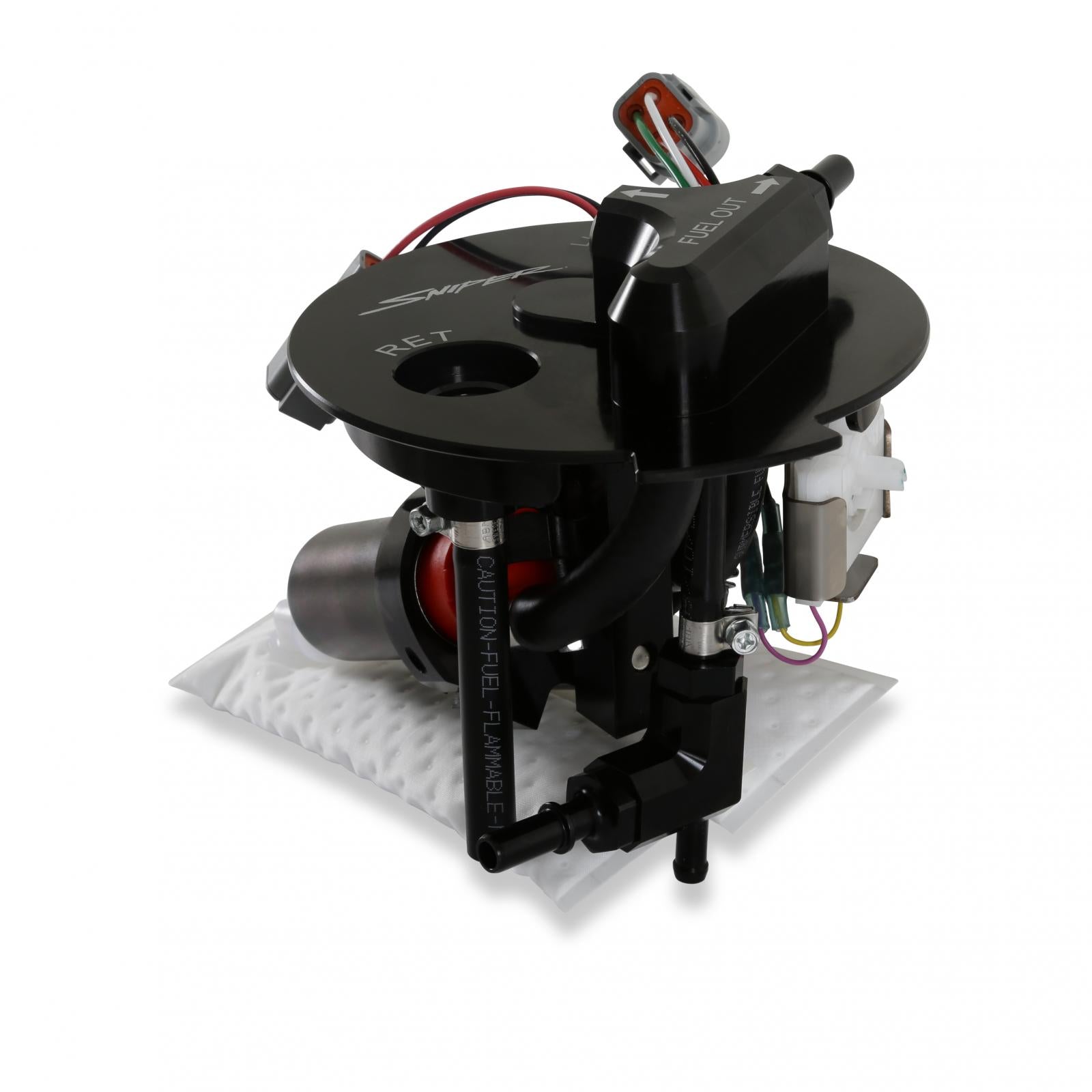

The Integrated Jet pump assembly allows retention of factory drivers side fuel pickup. A new level sensor is included and pre-installed.

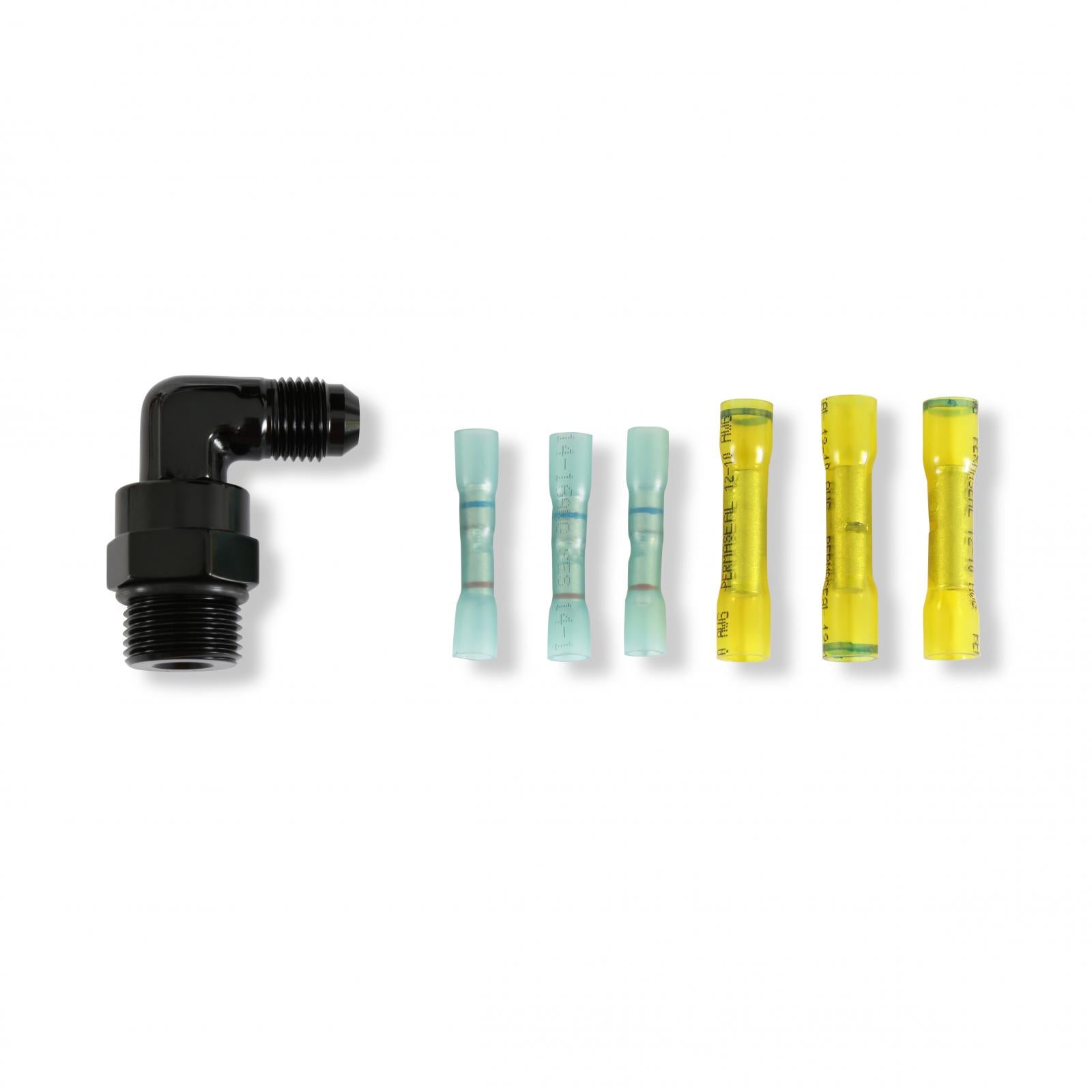

Installation is as simple as removing factory module and replacing with Holley module. Outlet fitting included to connect to factory feed line.

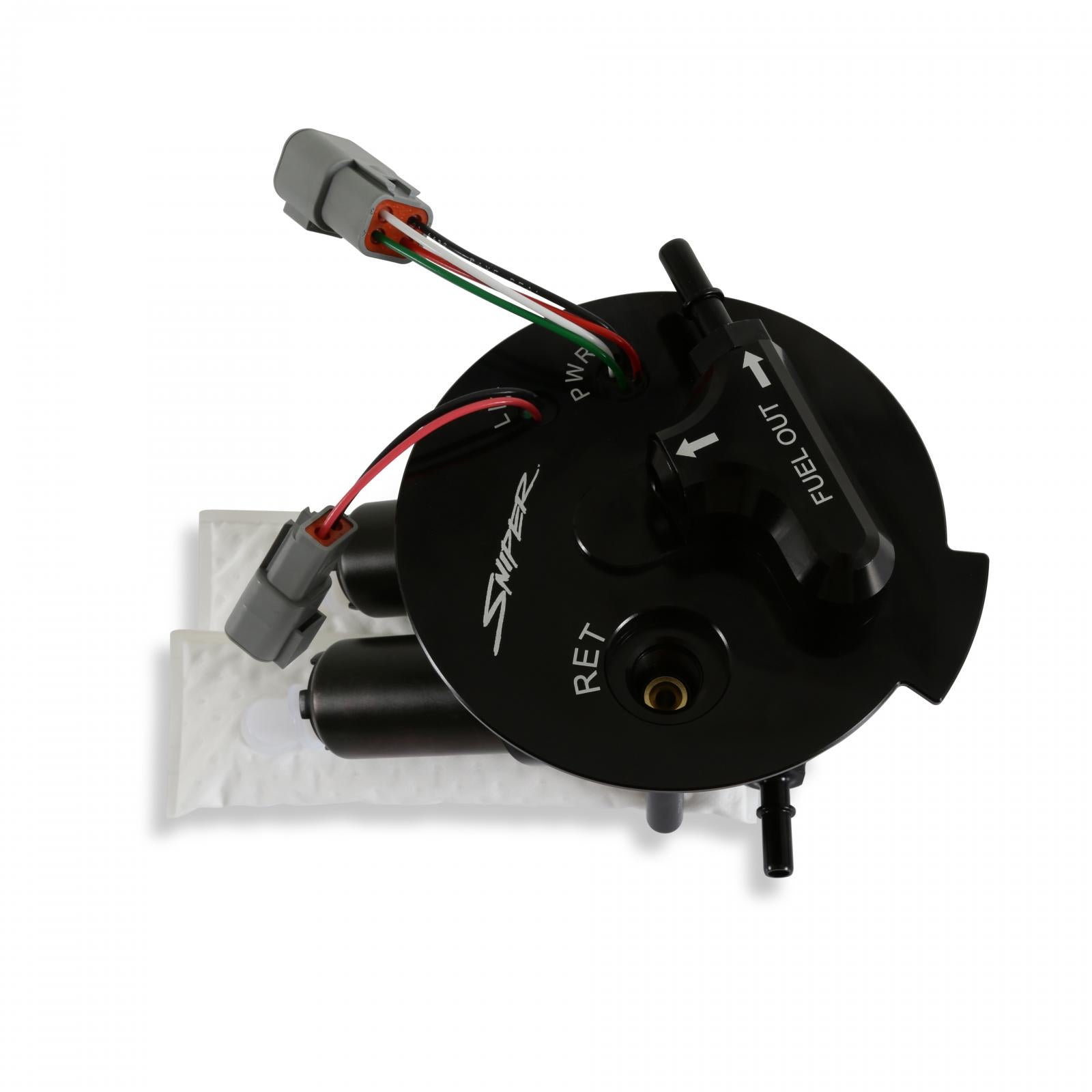

Secondary Orb port machined into flange for easy An plumbing of feed line if you so desire. The module is a return style only so a regulator such as the 12-895 will be needed to complete the return portion of your system.

The dual 340 Lph module will support up to 1400 HP while the dual 450 Lph will support up to 1750 HP.

Features and Benefits:

• -8AN Orb inlets and outlets (return fitting included) Dual 340 (1400 hp) @ 60 psi at 13.5 volts / 14.5 amp draw Two HydraMats, one for each pump Integrated jet pump assembly allows retention of factory drivers side fuel pickup Have been tested to deliver stable fuel pressure down to low fuel indicator warning light Brand new level sensor included and pre-installed
• Installation is as simple as removing factory module and replacing with Holley module Outlet fitting included to connect to factory feed line
• Secondary Orb port machined into flange for easy An plumbing of feed line Module is return style only so a regulator must be installed Machined, billet, anodized, laser etch components for durability and good looks

Details:

• Average Current Draw: 29 Ampere
• Average Flow Rating: 680 Liters per Hour
• Connector Color: Gray
• Connector Gender: Female
• Connector Quantity: 2.0
• Free Flow Gph: 180
• Free Flow Lph: 680
• Fuel Type: Gasoline/E85 Compatible
• Fuel Filter Included: Yes
• Fuel Sending Unit Included: Yes
• Fuel System: EFI
• Fuel Tank Pressure Sensor Included: No
• Gasket Or Seal Included: No
• Grade Type: Performance
• Height: Standard
• Housing Material: Aluminum
• In Tank or External: In Tank
• Inlet Quantity: One
• Internal Or External Strainer: External
• Lock Ring Included: No
• Material: Billet Aluminum and Steel
• Maximum Pressure: 60 Pounds per Square Inch
• Mounting Hardware Included: Yes
• Negative Ground: Yes
• Outlet Quantity: 2
• Outlet Type: Factory Quick Connect | Orb
• Pump Body Color: Silver
• Pump Type: Electric
• Regulator Included: No
• Resistance Ohms Empty: 40 Ohm
• Resistance Ohms Full: 250 Ohm
• Universal Or Specific Fit: Specific
• Voltage: 12 Volts DC
• Warranty: Manufacturer's Limited 90 Day Warranty

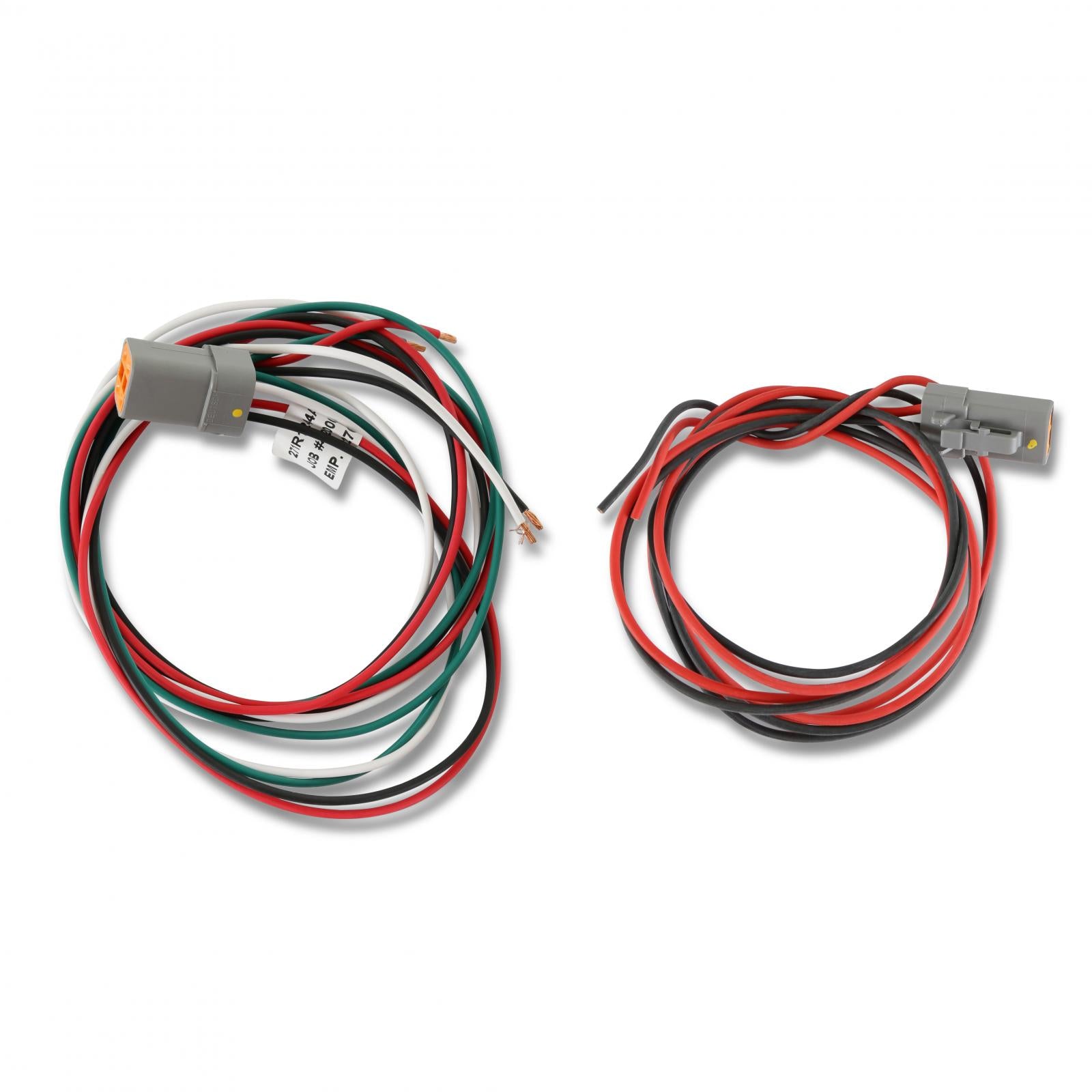

• Wire Harness Included: Yes
• Wire Quantity: 6.0
