Double Ended XD Cylinder Kit for Full Hydraulic Systems, 2.5 Inch X 8.0 Inch X 1.50 Inch Rod Performance Components PSC Steering

PSC Steering Assist Cylinders provide the steering power you need to tackle the toughest trails...go where you want to go with PSC!

Features:

• Double Ended, Double Acting

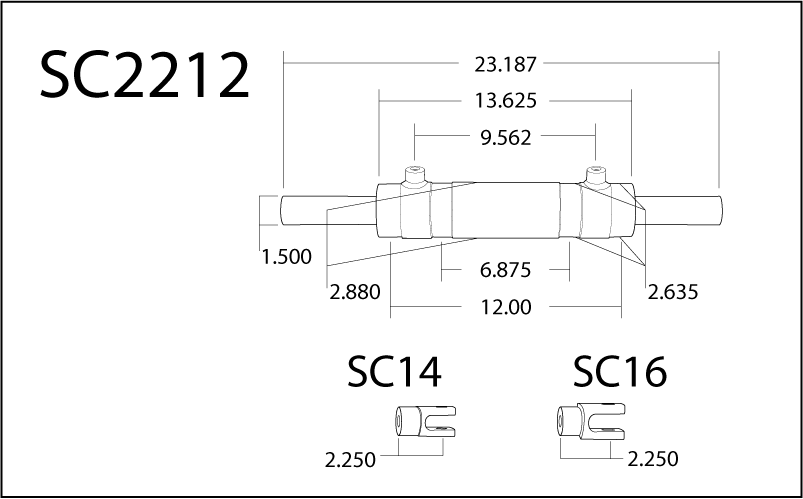

• 2.5 Inch Bore X 8 Inch Stroke X 1.50 Inch Rod Diameter
• Chromemoly Steel Rods with 3/4-16 Threaded Ends
• Welded, Single Piece Rod/Piston Construction
• 6AN High Pressure Port Connections
• Wiper Seals to prevent contaminant damage and extend service life
• Durable Powder-coated Finish
• Grooved Non Slip Housing,

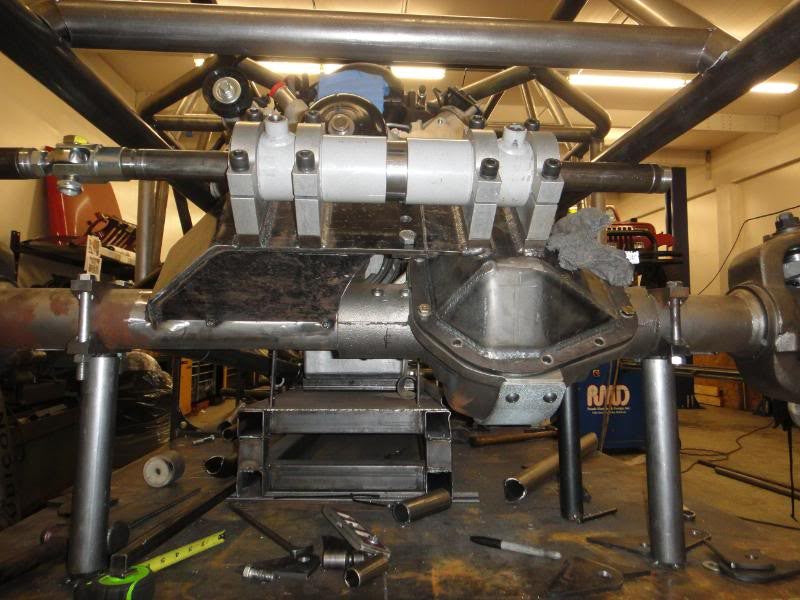

• Housing Machined for Use Up to Four (4) SCCL04KF Steering Cylinder Mounting Clamps

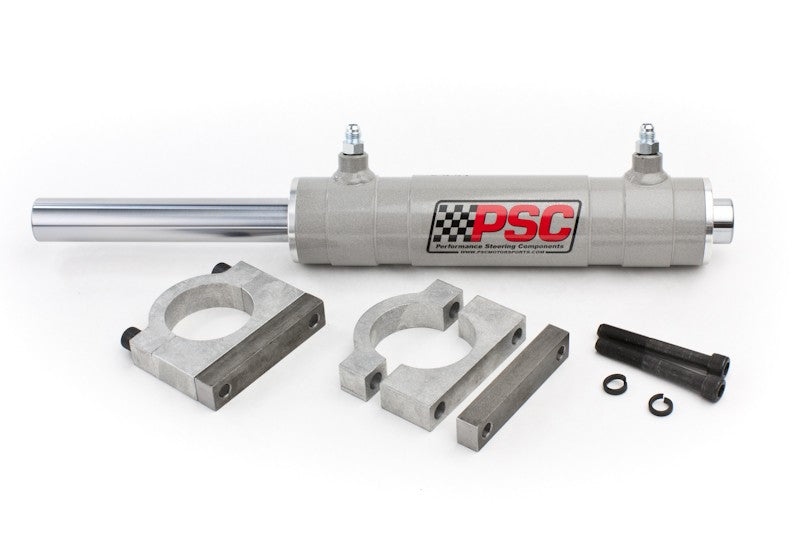

• Two (2) SCCL04KF Steering Cylinder Mounting Clamps with Flat Weld Plates Included

Tech:

Approximate Turning Ratios when paired with a Eaton Char-Lynn Steering Control Unit:

• FHV-CE120: 3.4 Turns Lock-To-Lock
• FHV-CE160: 2.6 Turns Lock-To-Lock
• FHV-CE185: 2.2 Turns Lock-To-Lock

The use of larger displacement Steering Control Units will deliver a firm steering feel and will require additional driver steering effort.

For medium to severe duty applications, PSC highly recommends the use of four (4) SCCL04KF Steering Cylinder Mounting Clamps
