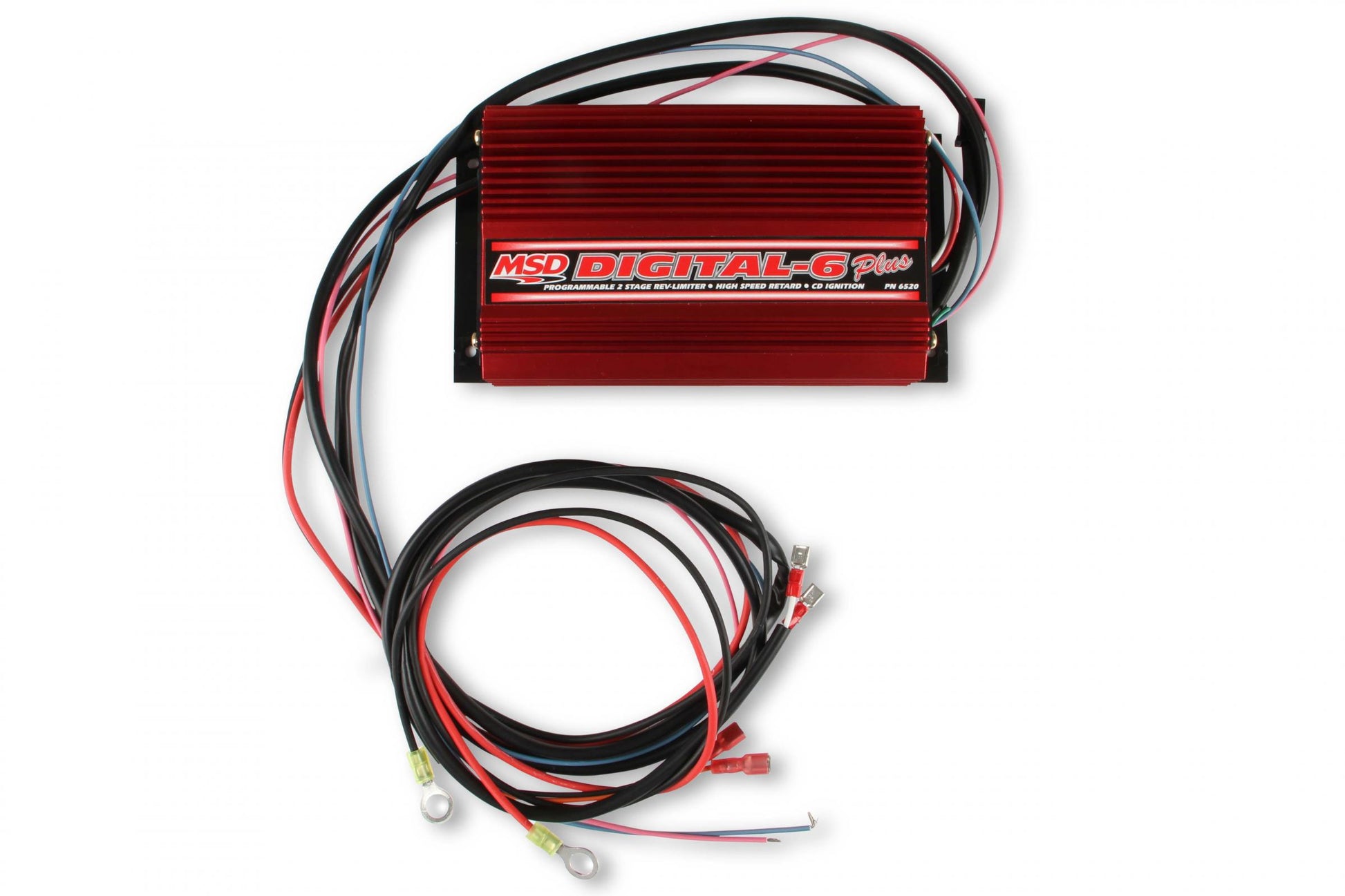

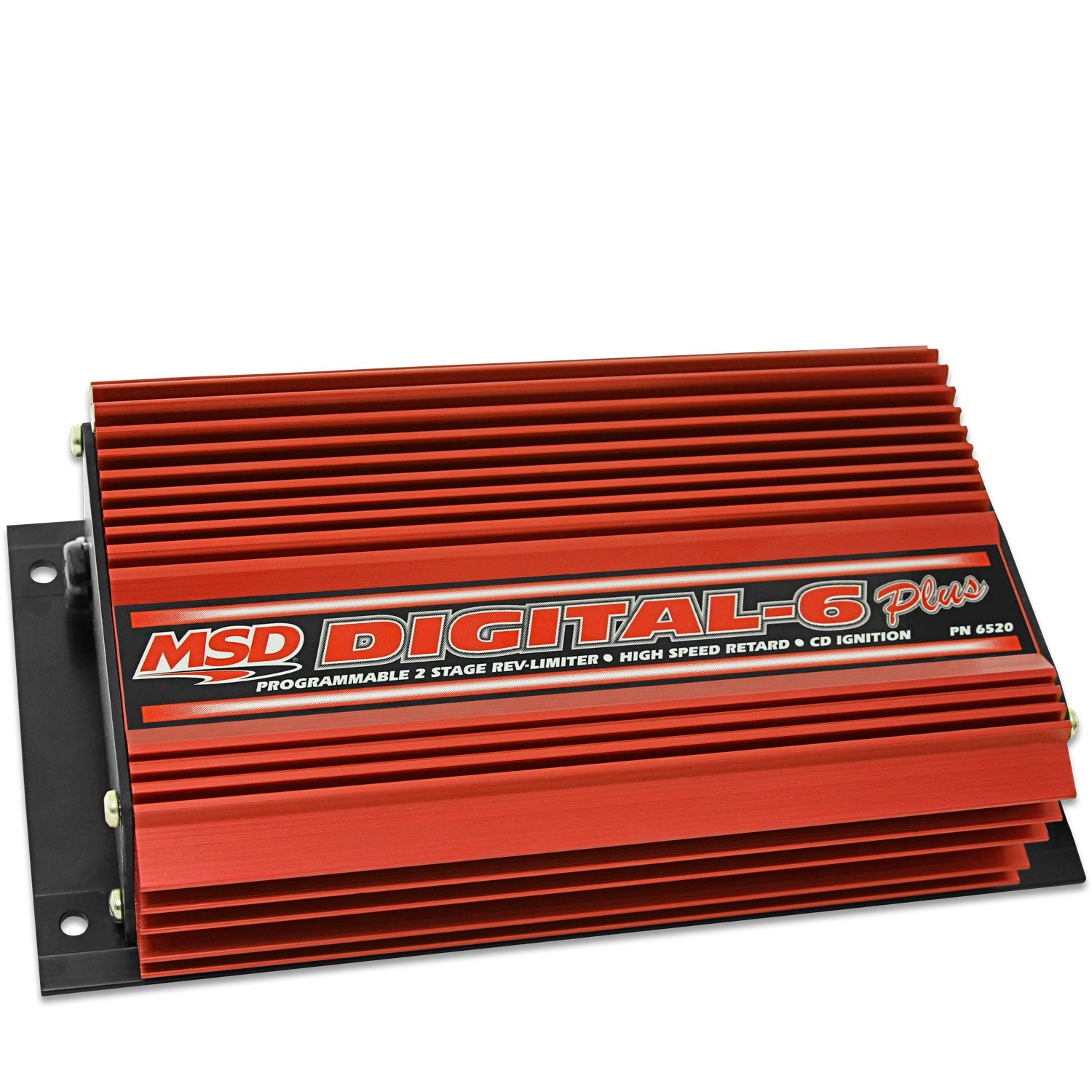

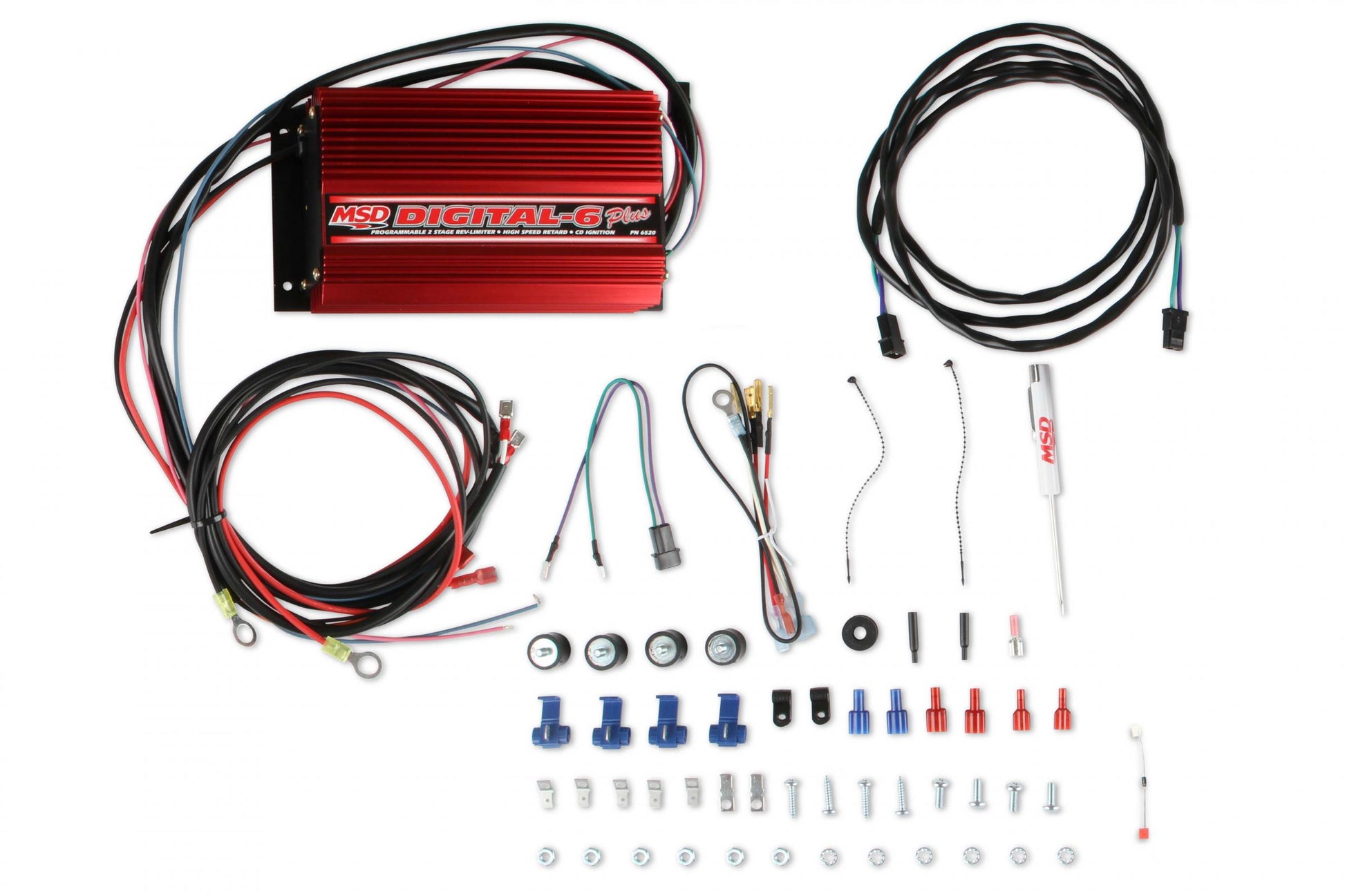

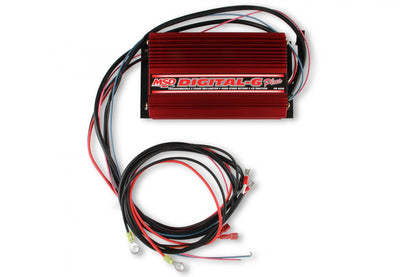

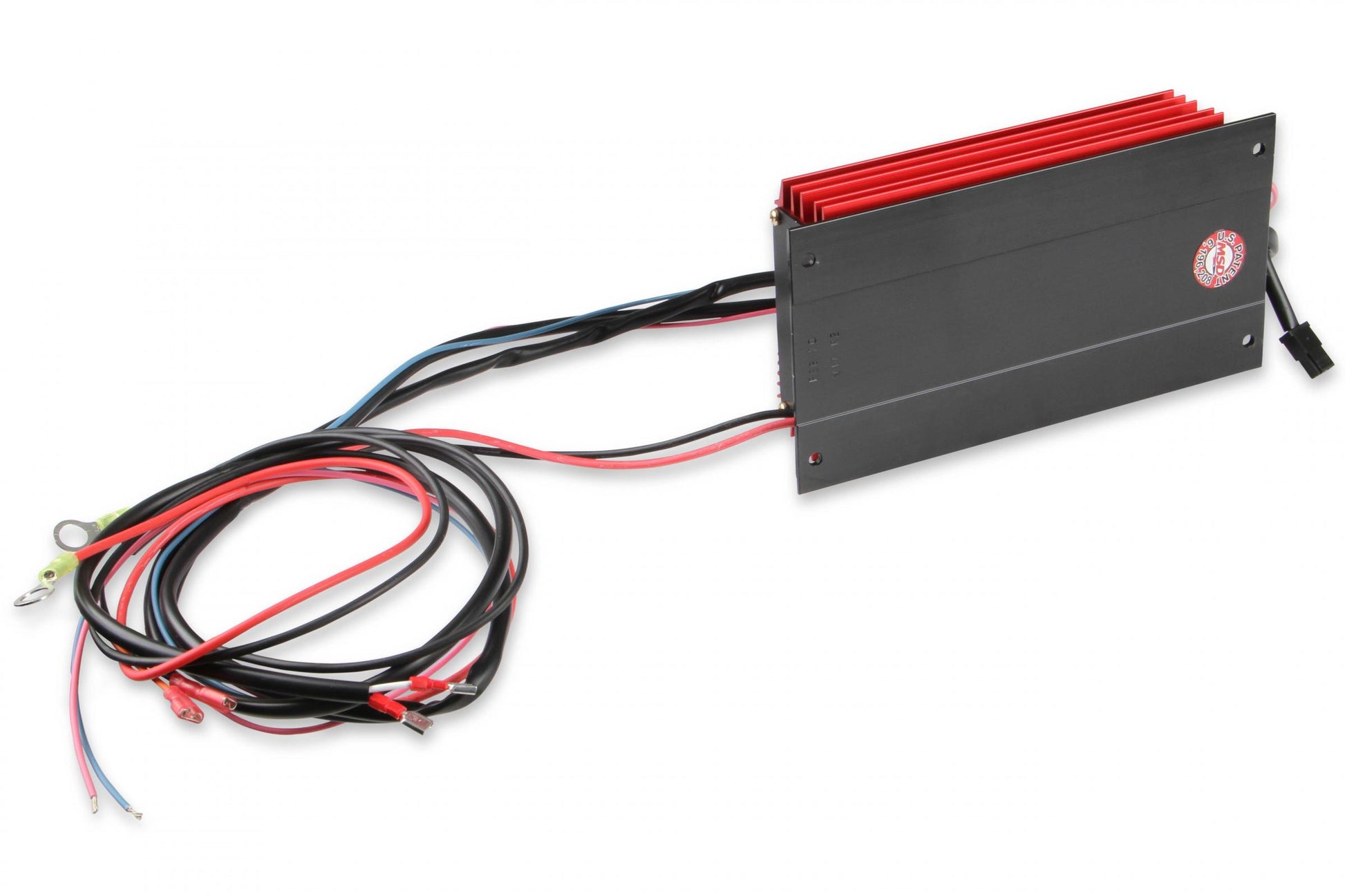

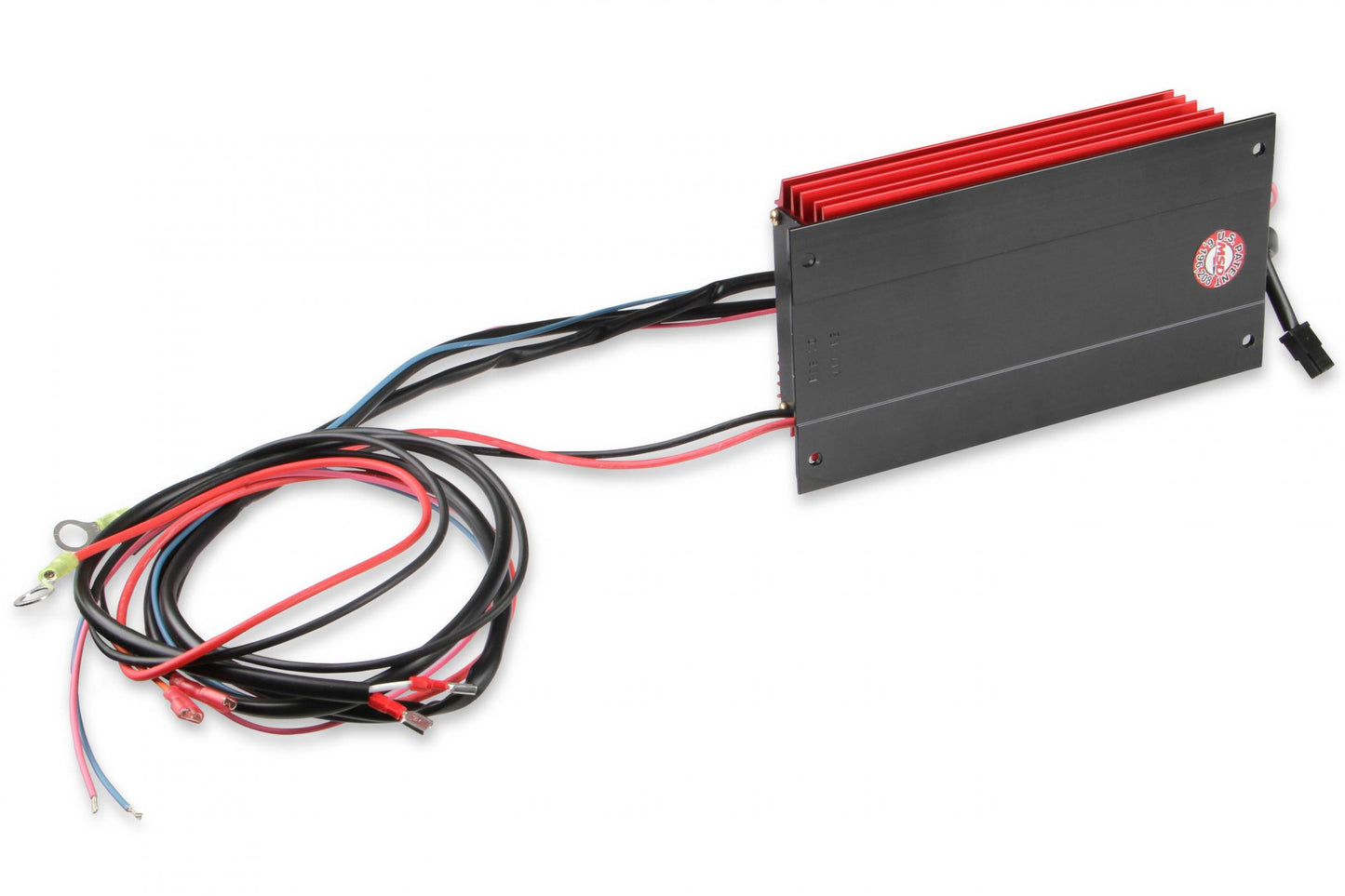

Digital 6-Plus Control Universal Soft Touch 2 Step Rev Control 1 Stage Retard Control Start Retard MSD Ignition

Every spark of the Digital-6 Plus Ignition is packed with 135 millijoules of spark energy and 535 primary volts.

• The MSD Digital 6 Plus uses a high-speed RISC microcontroller to control the ignition's output while constantly analyzing the various inputs such as supply voltage, trigger signals, and rpm. The high-speed controller can make extremely quick compensations to the output voltage, multiple spark series, timing, and rpm limits while maintaining accurate timing signals to within 1 Degree and 1% of the rpm limits. The circuits and controller of the Digital 6 Plus have been thoroughly debounced and isolated to create protection against Electro-Magnetic Interference (EMI).
• The Digital-6 Plus accepts points, amplifier, and mag pickup inputs and will run on 4, 6, or 8 cylinder engines.
• The MSD Digital-6 Plus Ignition Control combines terrific power, digital accuracy, and great accessories making it ideal for street/strip applications.
• For nitrous-equipped cars, the Digital-6 Plus offers a step retard that will retard the timing when the nitrous is activated. There is also a 2-step rev limiter for holeshot consistency and overrev protection.
• 12,500 RPM with 14.4 Volts
• Adjustable magnetic pickup compensation produces accurate trigger signals.
• Switch between two rev limits that adjust with rotary switches in 100 rpm increments.
• 12-18 Volts, Negative Ground
• LED display warns of trigger signal problems or faulty charging system.
• Start retard eases pressure on the starter, flywheel and engine.
• .7 Amp per 1,000 RPM
• Single stage retard for nitrous and top end performance.

Details:

• Connector Gender: Male Female
• Connector Quantity: 1.0
• Current Draw: 1000
• Emission Code: 1
• Height: 2.2
• Ignition Type: Performance
• Length: 8.5
• Maximum Rpm: 12,500

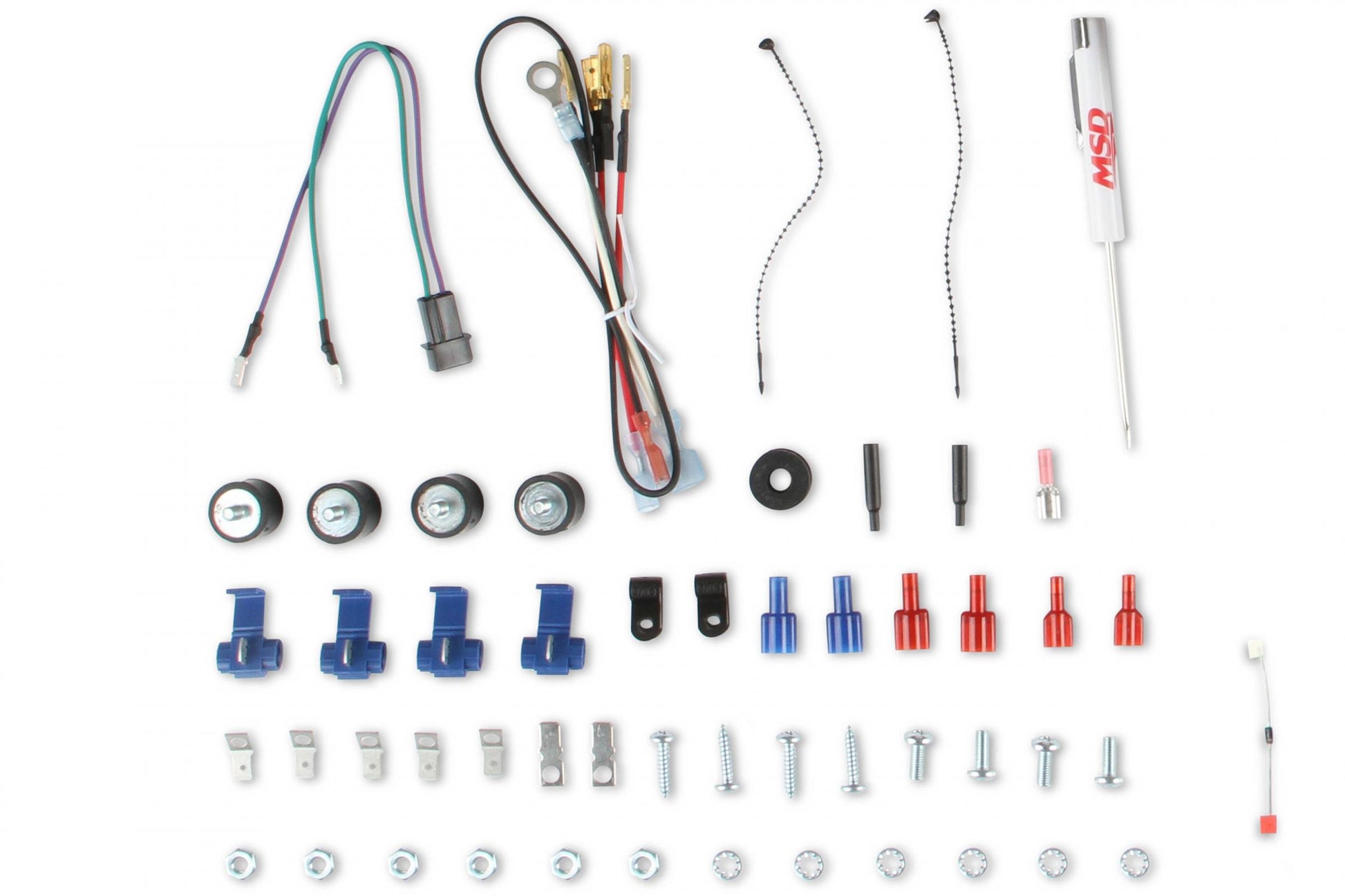

• Mounting Hardware Included: Yes
• Mounting Type: Surface Mount
• Primary Voltage: 535
• Spark Energy Mj Per Spark: 135
• Terminal Gender: Male Female
• Terminal Quantity: 10.0
• Warranty: Manufacturer's Limited 1 Year Warranty
