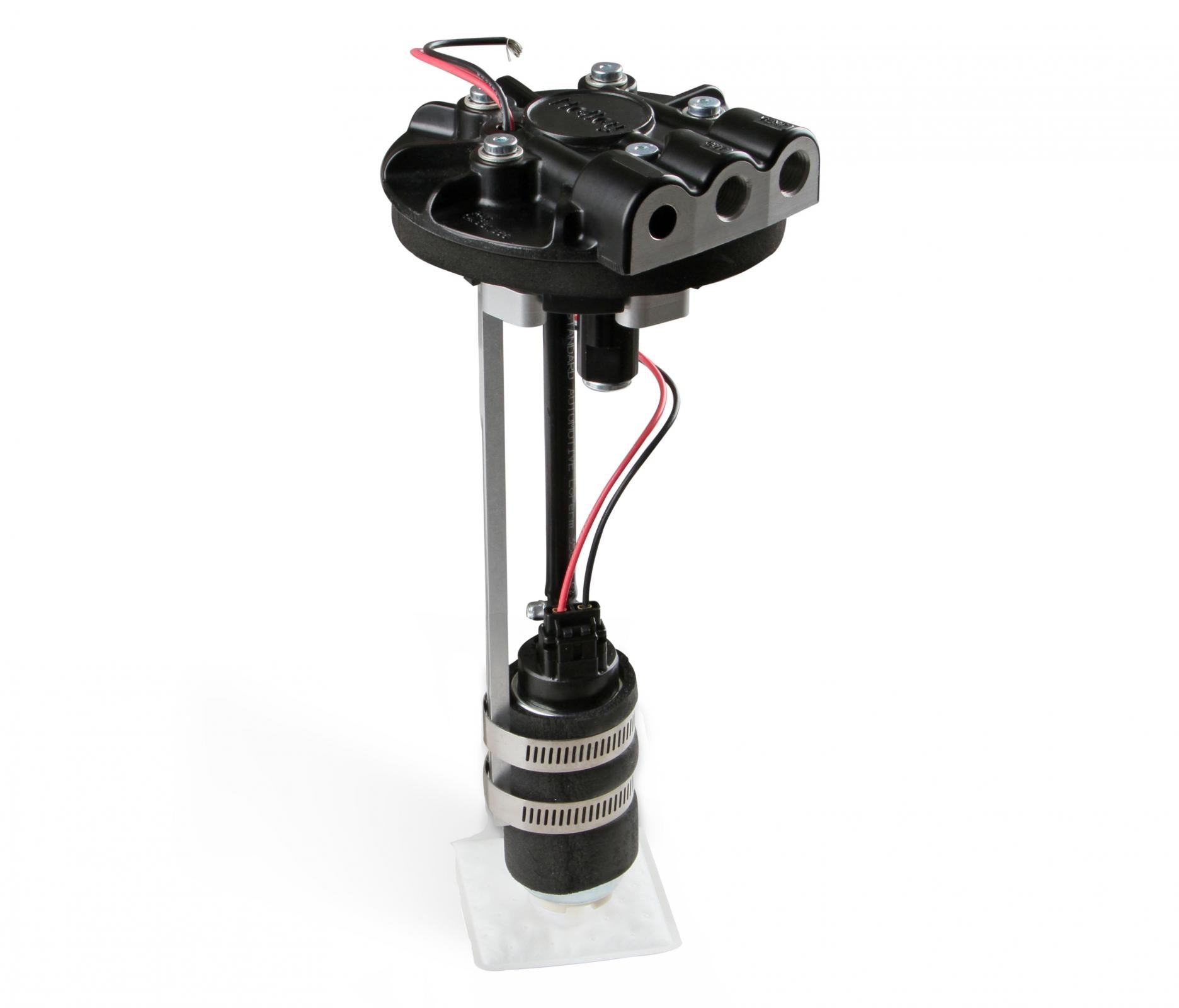

Diecast In-Tank Carbureted Retrofit Fuel Pump Module-Returnless System 255 LPH Drop-In Retrofit Carbureted Fuel System Supports Up to 700 CARB HP (HP Rating At 6 PSI at 13.5 Volts / 10.4 AMP Draw) Holley
The Holley red and blue electric fuel pumps have been the performance standard for decades. They continue to perform well, however, the evolution of fuel pump technology has surpassed them in quiet operation and fuel delivery capabilities that an in-tank module can deliver.
Looking ahead to the future, Holley has designed their latest retrofit pump module especially for the carbureted applications. The 5 inch diameter module design is very similar to the existing EFI pump modules using a 255 Lph pump, but includes a built-in regulator for lower fuel pressure that carburetor applications require.
Now you can convert your factory tank or fuel cell to an in-tank fuel system quickly and easily! The conversion is easily accomplished with basic tools and requires no welding or fabrication.

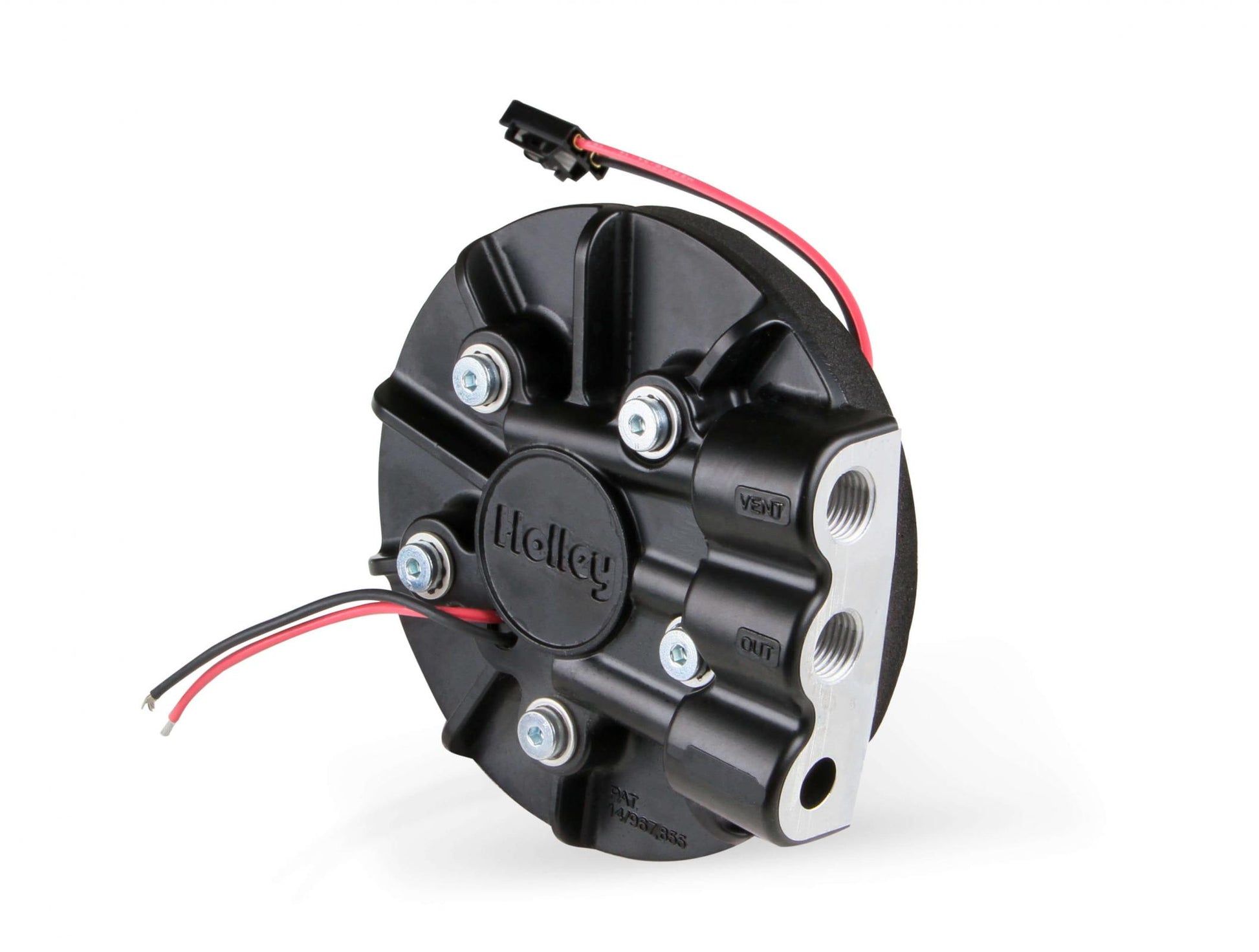

The aluminum module design includes a die cast pump hanger bracket to control pump vibration while also providing a low profile design to fit where space is at a premium. Holley's innovative clamping system and integrated fuel pump makes it easy.
Once installed, hook up your fuel lines and your power source/ground and you're off and running! No hassle!
An added bonus is that you can upgrade this module if you eventually change to an EFI system by changing the internal regulator. Supports up to 700 Carb HP (@ 6 PSI at 13.5 Volts / 10.4 AMP Draw) Of course there are many variables, estimates are based on gasoline.
Individual systems will vary based on fuel system design, fuel cell location, etc...
Features and Benefits:

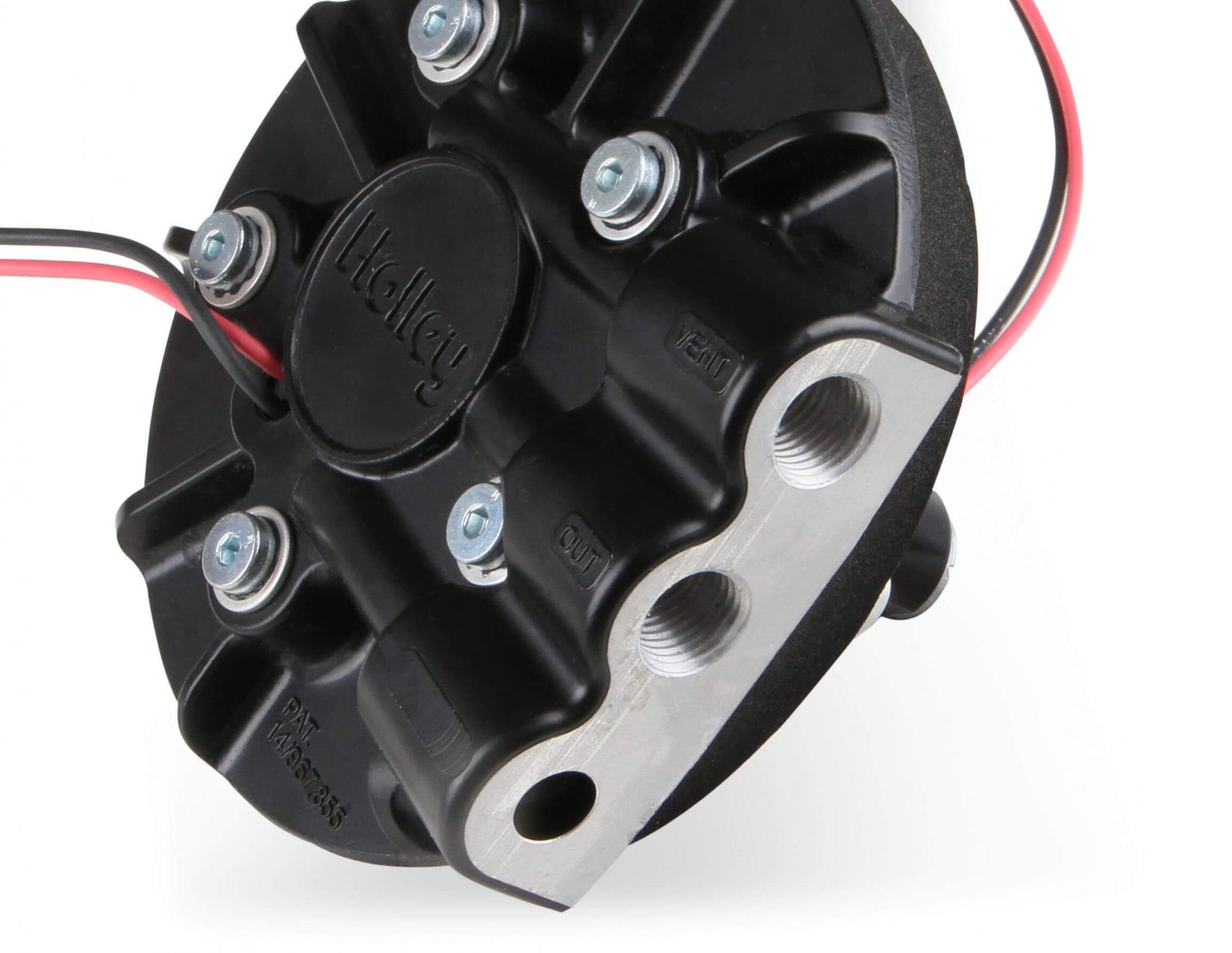

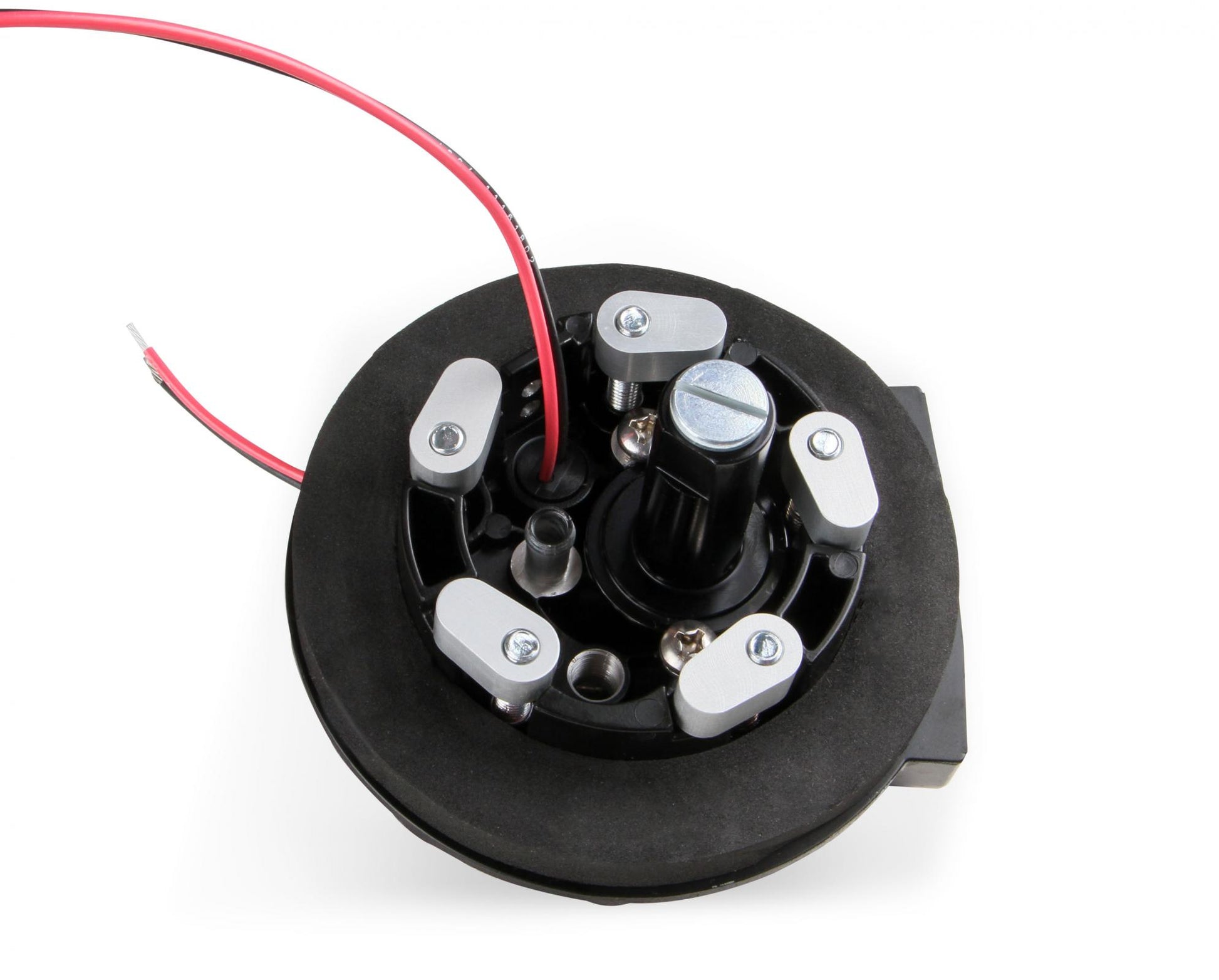

- The easiest way to convert your vehicle to an in-tank fuel system Installs in any fuel tank from 6.5 inch to 12 inch deep to fit a wide variety of applications The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride Die cast aluminum construction for corrosion resistance and long lasting good looks 14 inch NPT ports for a wide variety of plumbing options
Associated Comments:
- It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation.
Details:
- Application: Universal
- Average Current Draw: 10.4 Ampere
- Average Flow Rating: 255 Liters per Hour
- Connector Color: Black
- Connector Gender: Male
- Connector Quantity: 1.0
- Diameter: 4.8 Inch
- Free Flow Gph: 67
- Free Flow Lph: 255
- Fuel Type: Gasoline

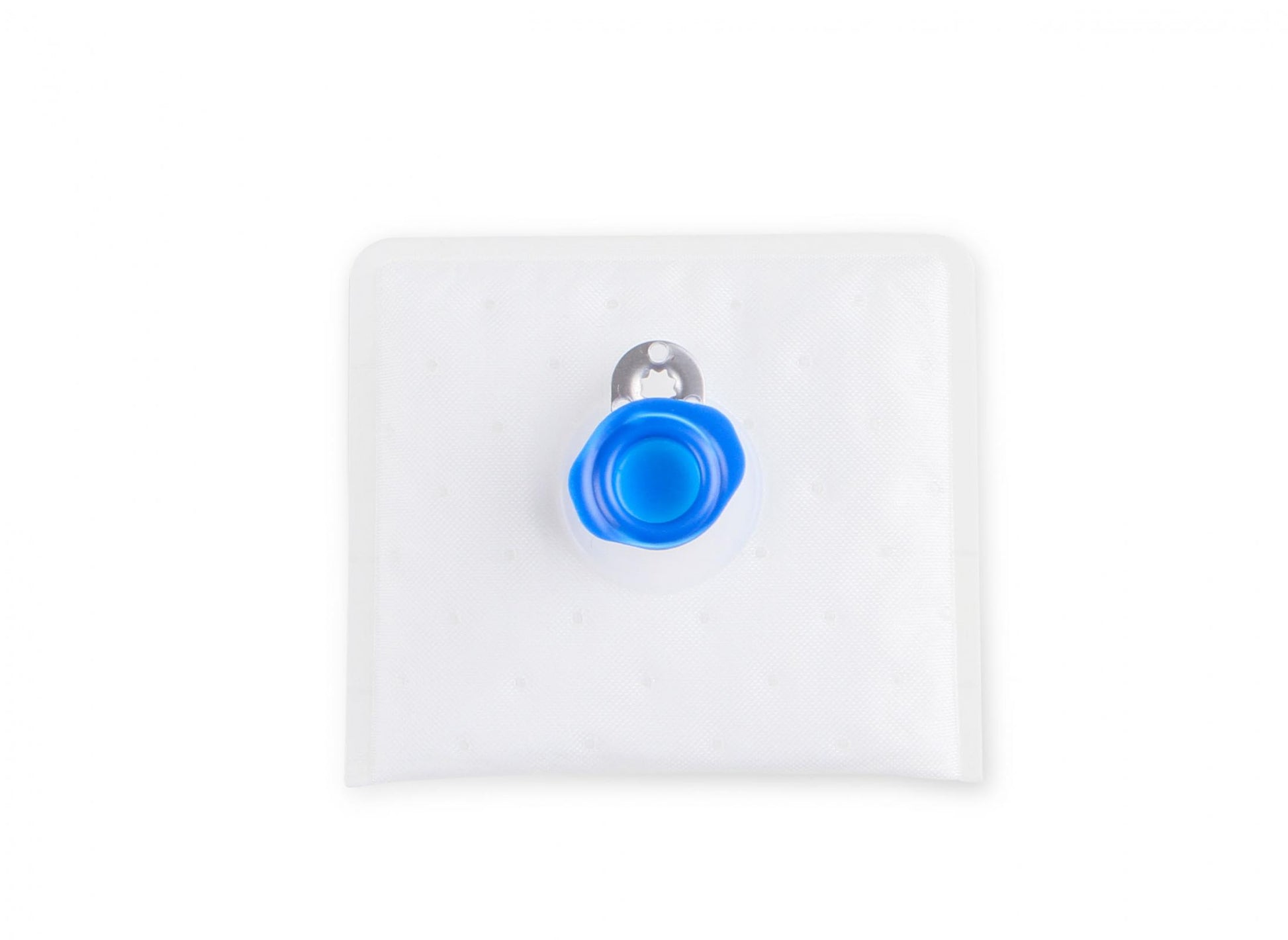

- Fuel Filter Included: Yes
- Fuel Sending Unit Included: No
- Fuel System Type: Gasoline
- Fuel Tank Pressure Sensor Included: No
- Gasket Or Seal Included: Yes
- Gasket Or Seal Material: Foam
- Grade Type: Performance
- Height: Adjustable
- Housing Material: Aluminum
- In Tank or External: In Tank
- Inlet Fitting Thread Size: 1/4 Inch
- Inlet Quantity: One
- Inlet Type: NPT
- Internal Or External Strainer: External
- Lock Ring Included: Yes
- Material: Die Cast Aluminum
- Maximum Pressure: 6 Pounds per Square Inch

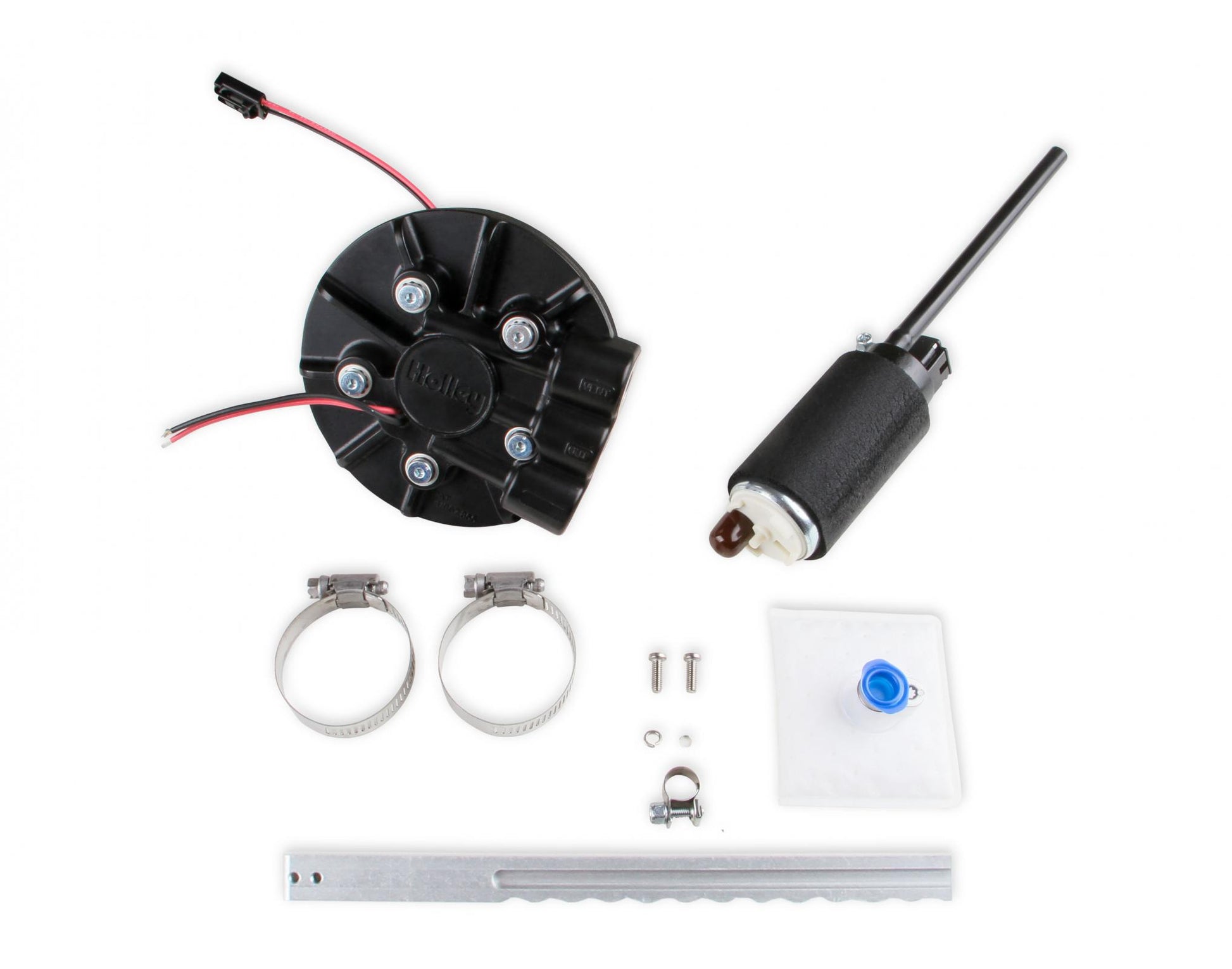

- Mounting Hardware Included: Yes
- NPT Thread: 1/4 NPT
- Negative Ground: Yes
- Outlet Fitting Thread Size: 1/4 Inch
- Outlet Quantity: One
- Outlet Type: NPT
- Pump Type: Electric
- Regulator Included: Yes
- Top Mount Diameter: 5 Inch
- Universal Or Specific Fit: Universal
- Voltage: 12 Volts DC
- Warranty: Manufacturer's Limited 90 Day Warranty
- Wire Harness Included: Yes
- Wire Quantity: 2.0
