Crank Trigger Wheel Kit Flying Magnet Sbc 7 In. Small Block Chevy Use With 6/7/8 Series Black MSD Ignition
For a long time, racers have known that one of the best things to do to an engine to improve performance is to stabilize the ignition timing. The MSD Flying Magnet Crank Trigger system does exactly that by using four magnets embedded in an aluminum wheel. Although similar in appearance to other crank triggers, the MSD Flying Magnet design works on a different principle. Most crank triggers have a wheel, with steel studs sticking out, bolted to the harmonic balancer. As the crankshaft turns, the studs pass by a stationary magnetic pick-up, triggering the ignition. This pick-up can be triggered by other bolts, debris, or even vibrations which will cause a loss of power or engine damage.

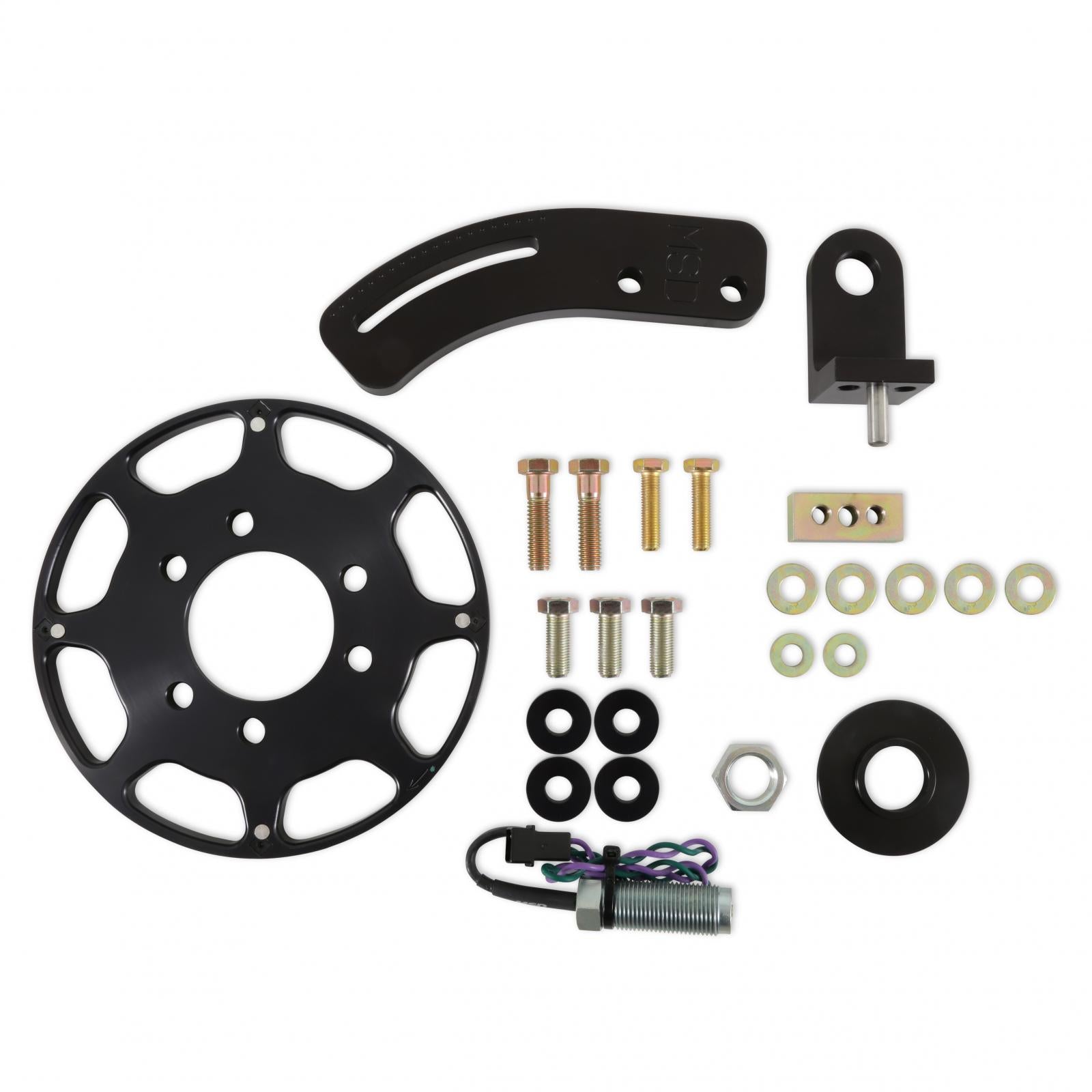

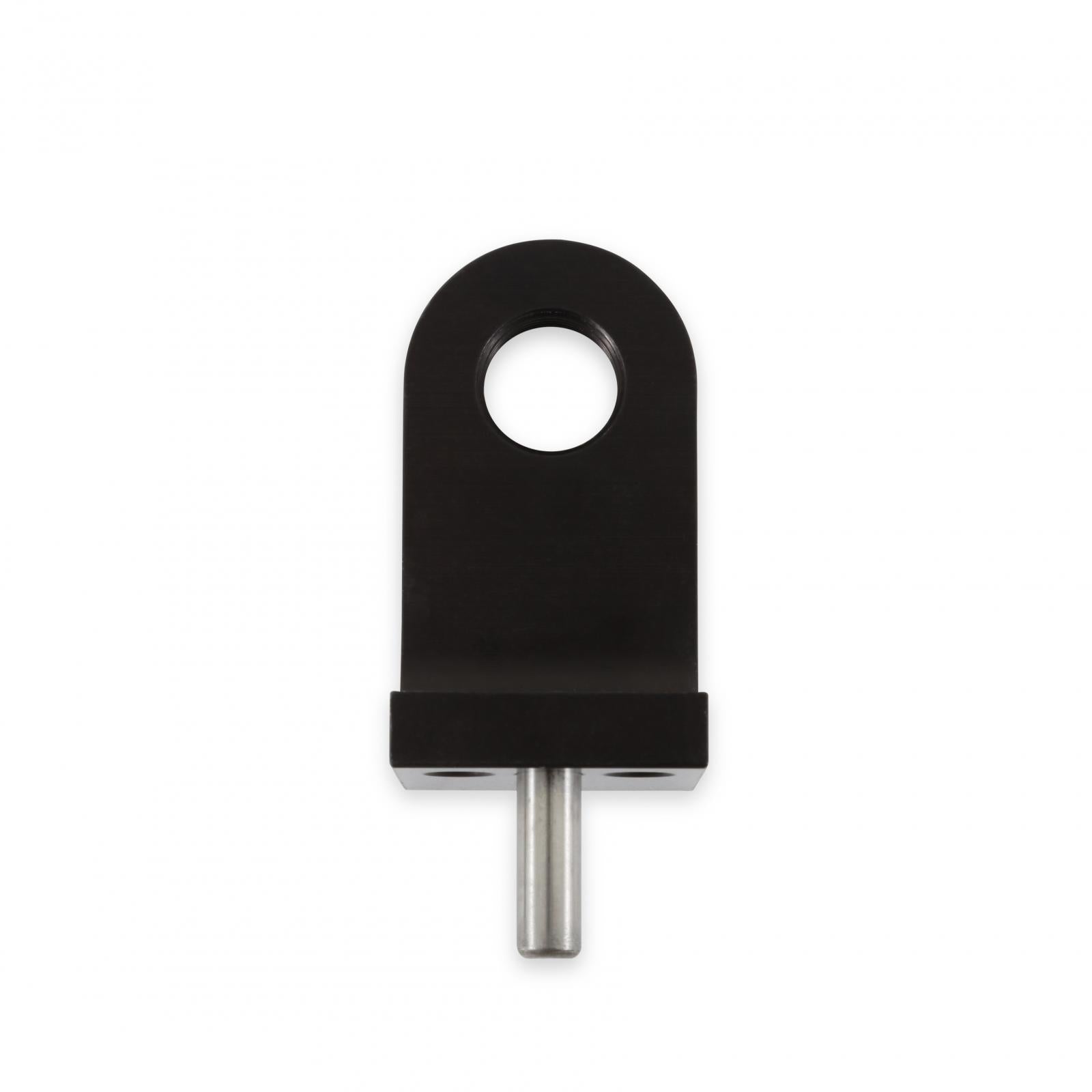

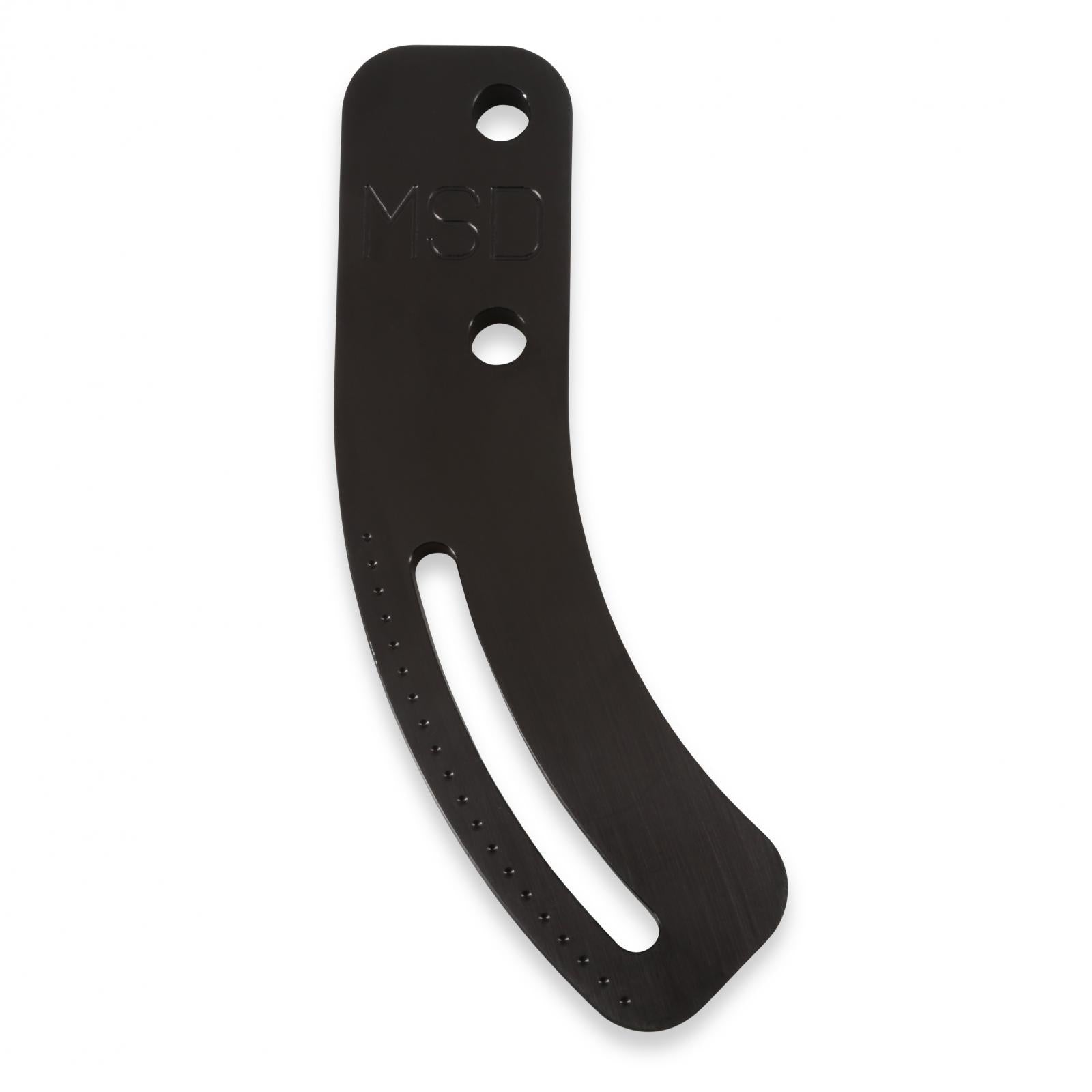

- The MSD Flying Magnet Crank Trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This flying magnet design produces accurate trigger signals and the non-magnetic pick-up cannot be falsely triggered. Each Flying Magnet Crank Trigger includes a two-piece mounting bracket for the non-magnetic pick-up that in most cases will work on either the passenger side or driver's side of the engine (the SB Chrysler and SB Ford brackets mount on only one side). The CNC-machined aluminum bracket securely holds the pick-up in place and is slotted to provide a wide range of timing adjustments. Spacers are included so you can mount the bracket on engines with standard motor mounts or engines with a .25 Inch motor plate. These systems will trigger MSD 6, 7, and 8 Series Ignitions and all MSD Timing Accessories.

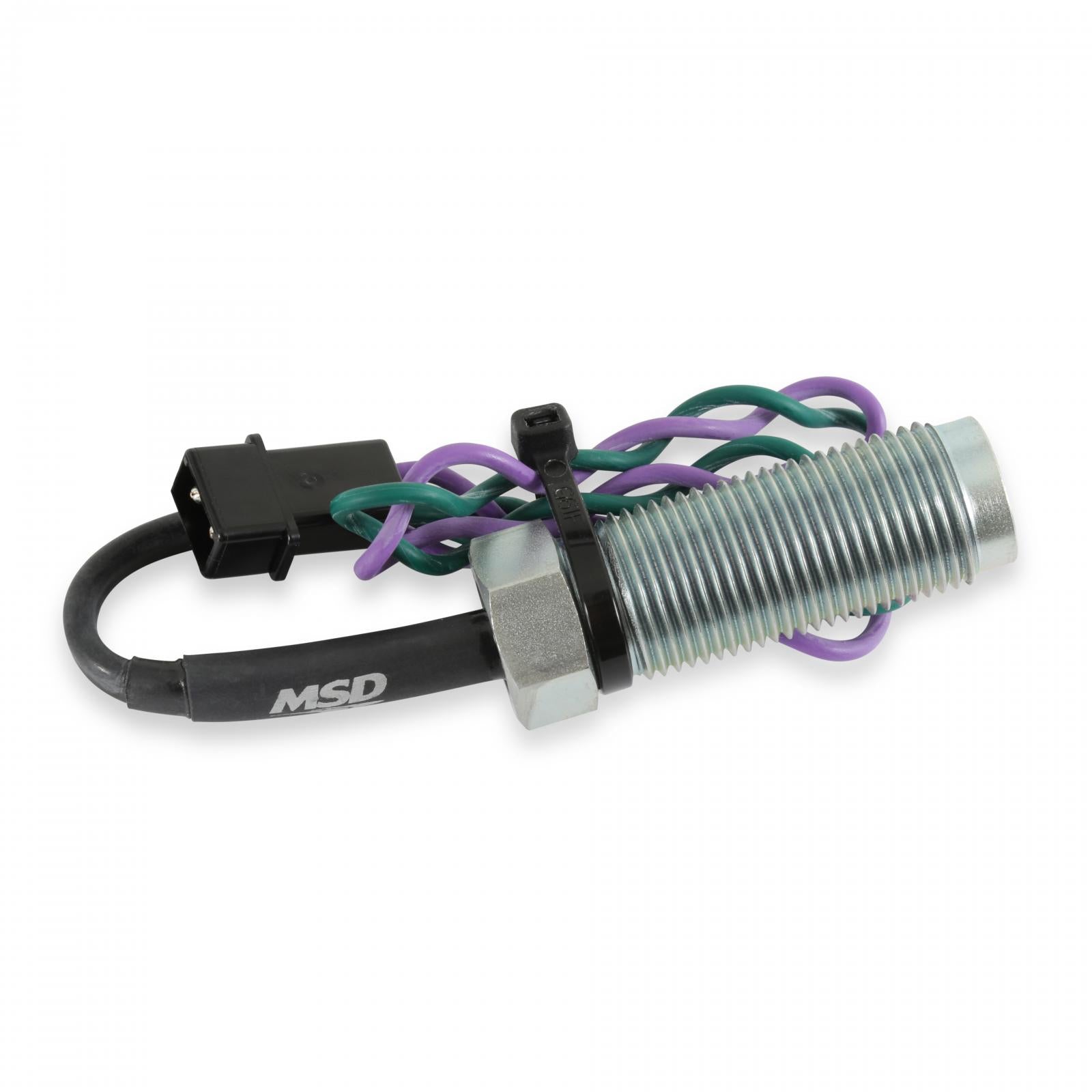

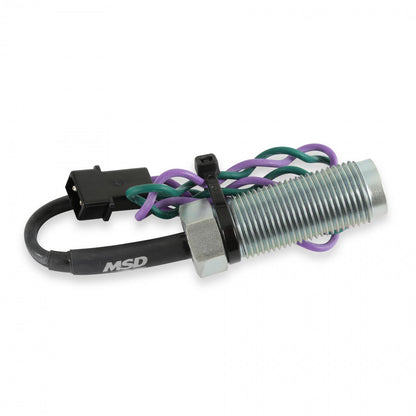

- The non-magnetic pickup cannot be false triggered.
- 7 Inch Diameter
- Absolutely the most accurate way to trigger the ignition.

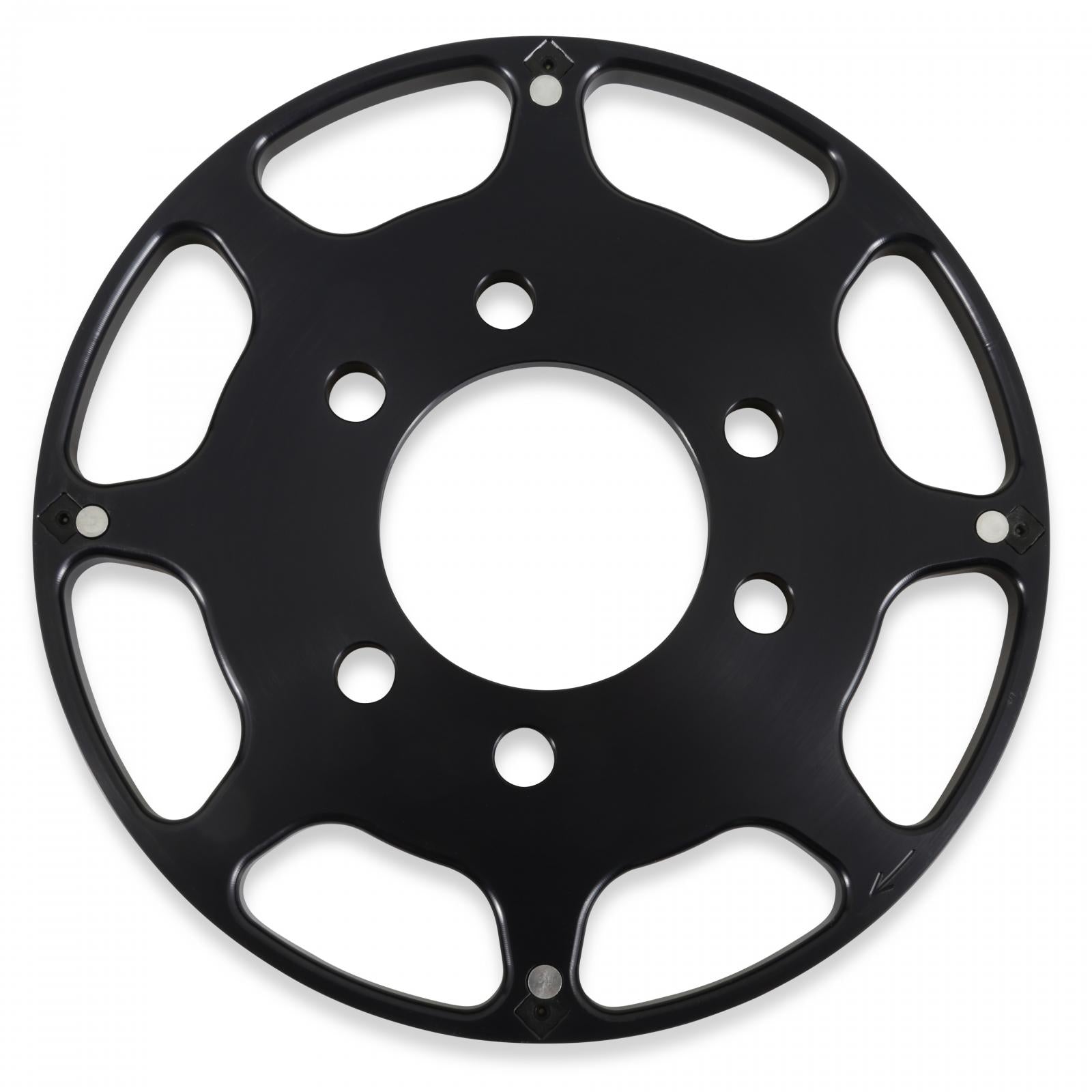

- Powerful magnets are embedded in a billet aluminum trigger wheel.
- Kits feature special brackets and mounting hardware for a variety of engines.
Details:
- Diameter: 7.0
- Emission Code: 4
- Warranty: Manufacturer's Limited 1 Year Warranty
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1955–1956 | Chevrolet | Bel Air | Beauville |
| 1955–1957 | Chevrolet | One-Fifty Series | — |
| 1955–1957 | Chevrolet | Two-Ten Series | — |
| 1955–1957 | Chevrolet | Truck | 3700 |
| 1955–1957 | Chevrolet | Two-Ten Series | Del Ray |
| 1955–1957 | Chevrolet | Bel Air | Nomad |
| 1955–1958 | Chevrolet | Truck | 3600 |
| 1955–1958 | Chevrolet | Sedan Delivery | — |
| 1955–1958 | Chevrolet | Truck | — |
| 1955–1958 | Chevrolet | Truck | 3800 |
| 1955–1958 | Chevrolet | Truck | 3500 |
| 1955–1958 | Chevrolet | Truck | 3200 |
| 1955–1958 | Chevrolet | Truck | 3400 |
| 1955–1959 | Chevrolet | Truck | 3100 |
| 1955–1966 | Chevrolet | Suburban | — |
| 1955–1974 | Chevrolet | Corvette | — |
| 1955–1975 | Chevrolet | Bel Air | — |
| 1957 | Chevrolet | Del Ray | — |
| 1958–1972 | Chevrolet | Biscayne | — |
| 1959–1960 | Chevrolet | El Camino | — |
| 1959–1961 | Chevrolet | Kingswood | — |
| 1959–1961 | Chevrolet | Brookwood | — |
| 1959–1961 | Chevrolet | Parkwood | — |
| 1959–1961 | Chevrolet | Nomad | — |
| 1959–1985 | Chevrolet | Impala | — |
| 1960 | Chevrolet | Truck | — |
| 1960 | Chevrolet | Biscayne | Fleetmaster |
| 1960–1962 | Chevrolet | C40 | — |
| 1960–1974 | Chevrolet | K10 Pickup | — |
| 1960–1974 | Chevrolet | K20 Pickup | — |
| 1960–1974 | Chevrolet | C10 Pickup | — |
| 1960–1974 | Chevrolet | C30 Pickup | — |
| 1960–1974 | Chevrolet | C20 Pickup | — |
| 1961–1962 | Chevrolet | P20 Series | — |
| 1961–1962 | Chevrolet | P10 Series | — |
| 1961–1962 | Chevrolet | P30 Series | — |
| 1963–1967 | Chevrolet | Chevy II | — |
| 1963–1968 | Chevrolet | Chevy II | Nova |
| 1964 | Chevrolet | Impala | SS |
| 1964–1966 | Chevrolet | Chevelle | SS |
| 1964–1967 | Chevrolet | Chevy II | Nova SS |
| 1964–1987 | Chevrolet | El Camino | — |
| 1966 | Chevrolet | C30 Panel | — |
| 1966–1967 | Chevrolet | Impala | SS |
| 1966–1972 | Chevrolet | Caprice | — |
| 1967 | Chevrolet | K20 Panel | — |
| 1967–1968 | Chevrolet | Chevelle | 300 |
| 1967–1968 | Chevrolet | Chevelle | — |
| 1967–1974 | Chevrolet | K10 Suburban | — |
| 1967–1974 | Chevrolet | C10 Suburban | — |
| 1982 | Chevrolet | C10 Suburban | Scottsdale |
| 1982 | Chevrolet | K10 Suburban | Scottsdale |
| 1982 | Chevrolet | Corvette | Collector's Edition |
| 1982–1985 | Chevrolet | C15 | Custom |
| 1982–1986 | Chevrolet | C10 Suburban | Silverado |
| 1983 | Chevrolet | Monte Carlo | CL |
| 1983 | Chevrolet | G10 | — |
| 1983–1984 | Chevrolet | G20 | Bonaventure |
| 1983–1984 | Chevrolet | G30 | Bonaventure |
| 1983–1988 | Chevrolet | Monte Carlo | SS |
| 1983–1998 | Chevrolet | C35 | — |
| 1984 | Chevrolet | K5 Blazer | Scottsdale |
| 1984 | Chevrolet | C15 | Sport |
| 1984–1986 | Chevrolet | C10 Suburban | Scottsdale |
| 1984–1986 | Chevrolet | K10 Suburban | Scottsdale |
| 1984–1986 | Chevrolet | K20 Suburban | Scottsdale |
| 1984–1986 | Chevrolet | C20 Suburban | Scottsdale |
| 1984–1996 | Chevrolet | Corvette | — |
| 1985–1986 | Chevrolet | K10 Suburban | Silverado |
| 1985–1986 | Chevrolet | K20 Suburban | Silverado |
| 1985–1986 | Chevrolet | K20 | Silverado |
| 1985–1990 | Chevrolet | Camaro | Iroc-Z |
| 1986 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 1986–1987 | Chevrolet | C20 | — |
| 1986–1987 | Chevrolet | G10 | Bonaventure |
| 1986–1987 | Chevrolet | C20 | Cheyenne |
| 1986–1988 | Chevrolet | Monte Carlo | LS |
| 1986–1990 | Chevrolet | Caprice | Classic Brougham |
| 1986–1992 | Chevrolet | Caprice | — |
| 1987 | Chevrolet | V10 | Scottsdale |
| 1987 | Chevrolet | V20 | Silverado |
| 1987 | Chevrolet | R10 | Scottsdale |
| 1987 | Chevrolet | R10 | Silverado |
| 1987 | Chevrolet | V10 | Silverado |
| 1987–1988 | Chevrolet | V20 Suburban | Scottsdale |
| 1987–1988 | Chevrolet | V30 | Silverado |
| 1987–1988 | Chevrolet | R20 Suburban | Silverado |
| 1987–1988 | Chevrolet | R10 Suburban | Silverado |
| 1987–1988 | Chevrolet | R20 | Silverado |
| 1987–1988 | Chevrolet | V10 Suburban | Silverado |
| 1987–1988 | Chevrolet | V20 Suburban | Silverado |
| 1987–1988 | Chevrolet | R10 Suburban | Scottsdale |
| 1987–1988 | Chevrolet | R30 | Silverado |
| 1987–1988 | Chevrolet | V30 | Scottsdale |
| 1987–1988 | Chevrolet | R20 Suburban | Scottsdale |
| 1987–1988 | Chevrolet | R30 | Scottsdale |
| 1987–1988 | Chevrolet | V10 Suburban | Scottsdale |
| 1987–1988 | Chevrolet | R20 | Scottsdale |
| 1987–1994 | Chevrolet | Suburban | — |
| 1987–1994 | Chevrolet | Blazer | Silverado |
