Note: If installing the Blaster SS Coil to a points distributor or a non-current limiting ignition system without an MSD Ignition, a 0.8 ohm ballast resistor is required (MSD PN 8214). The resistor should wire in series along with any factory resistors on the positive coil wire.

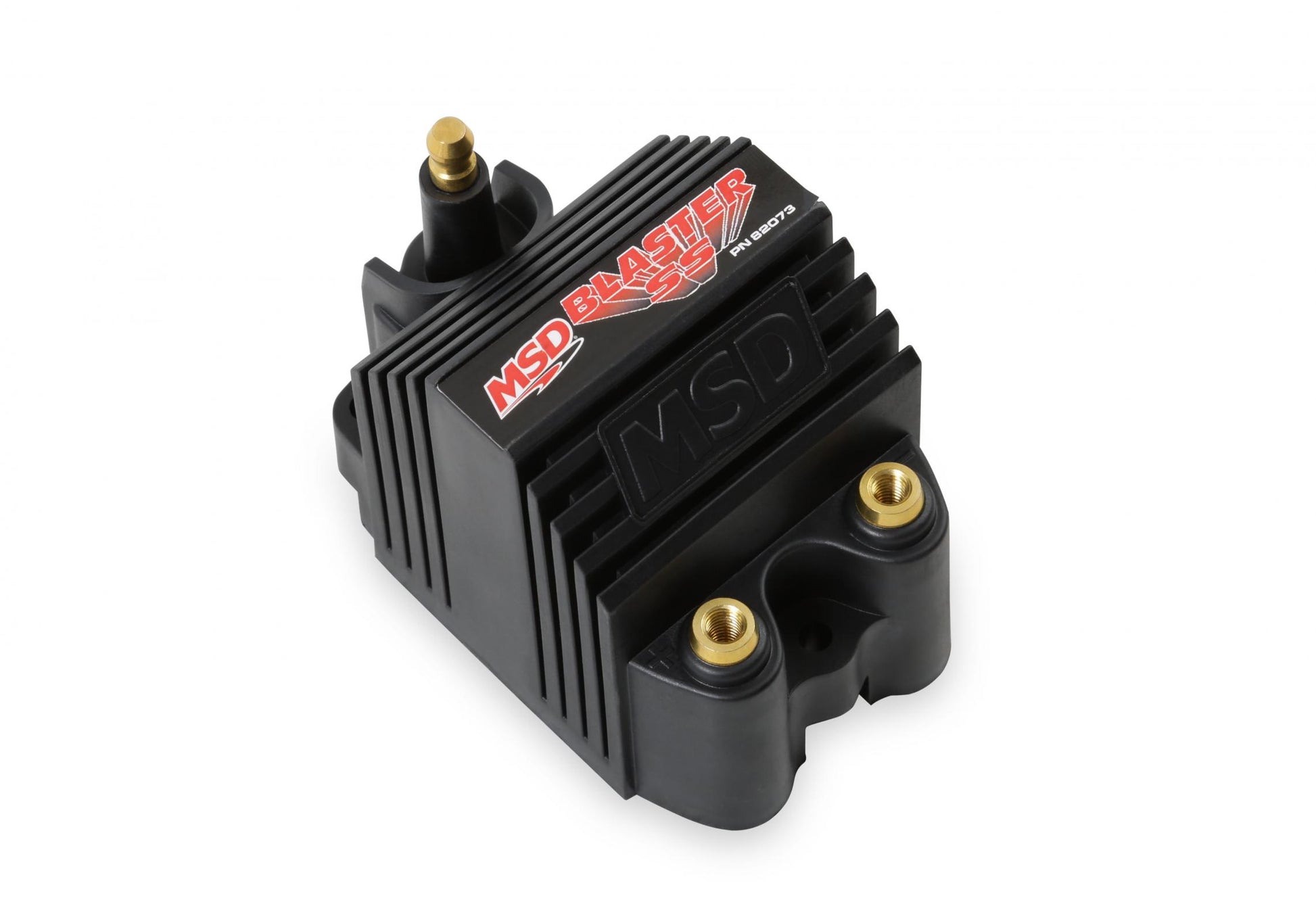

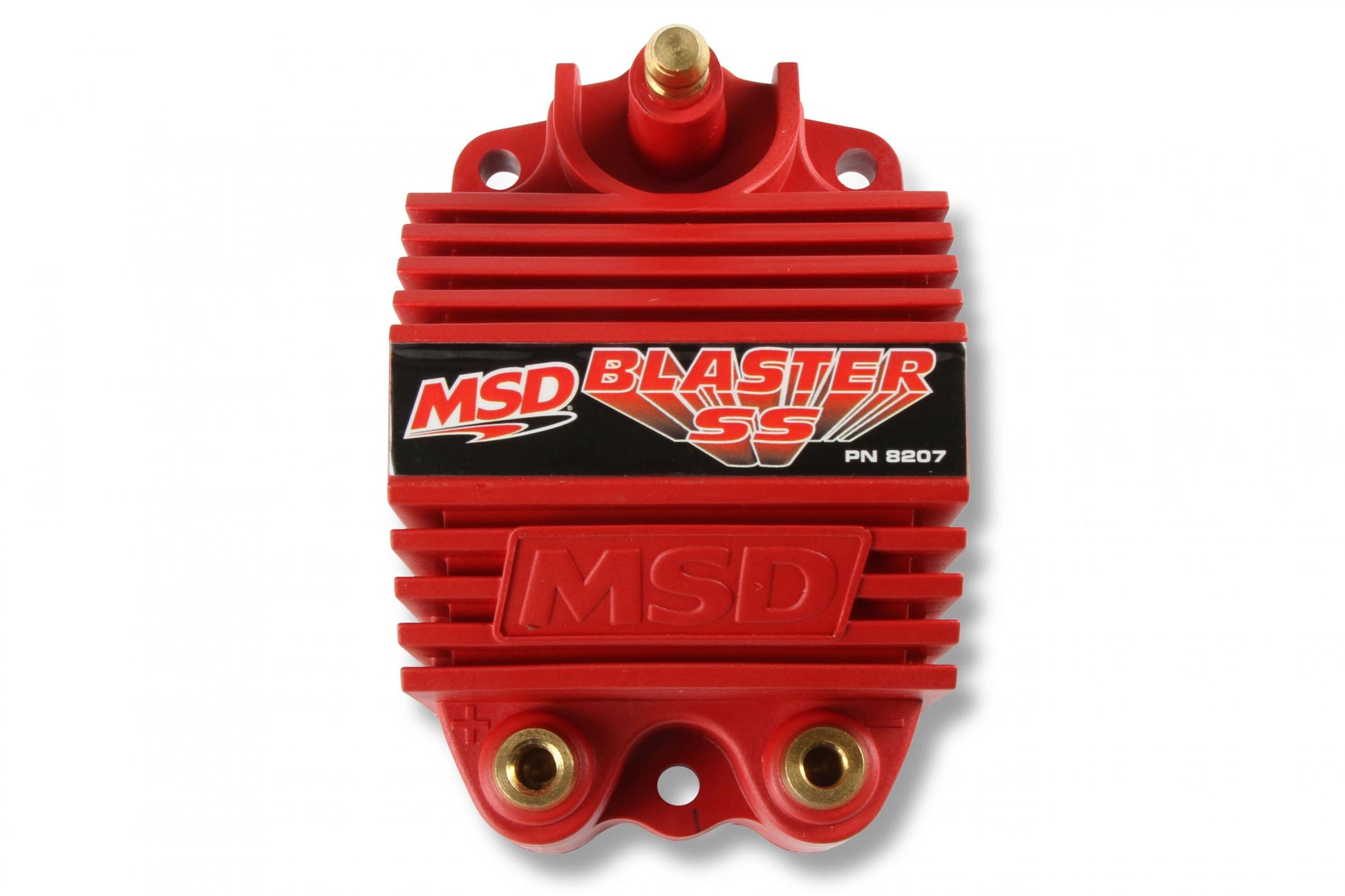

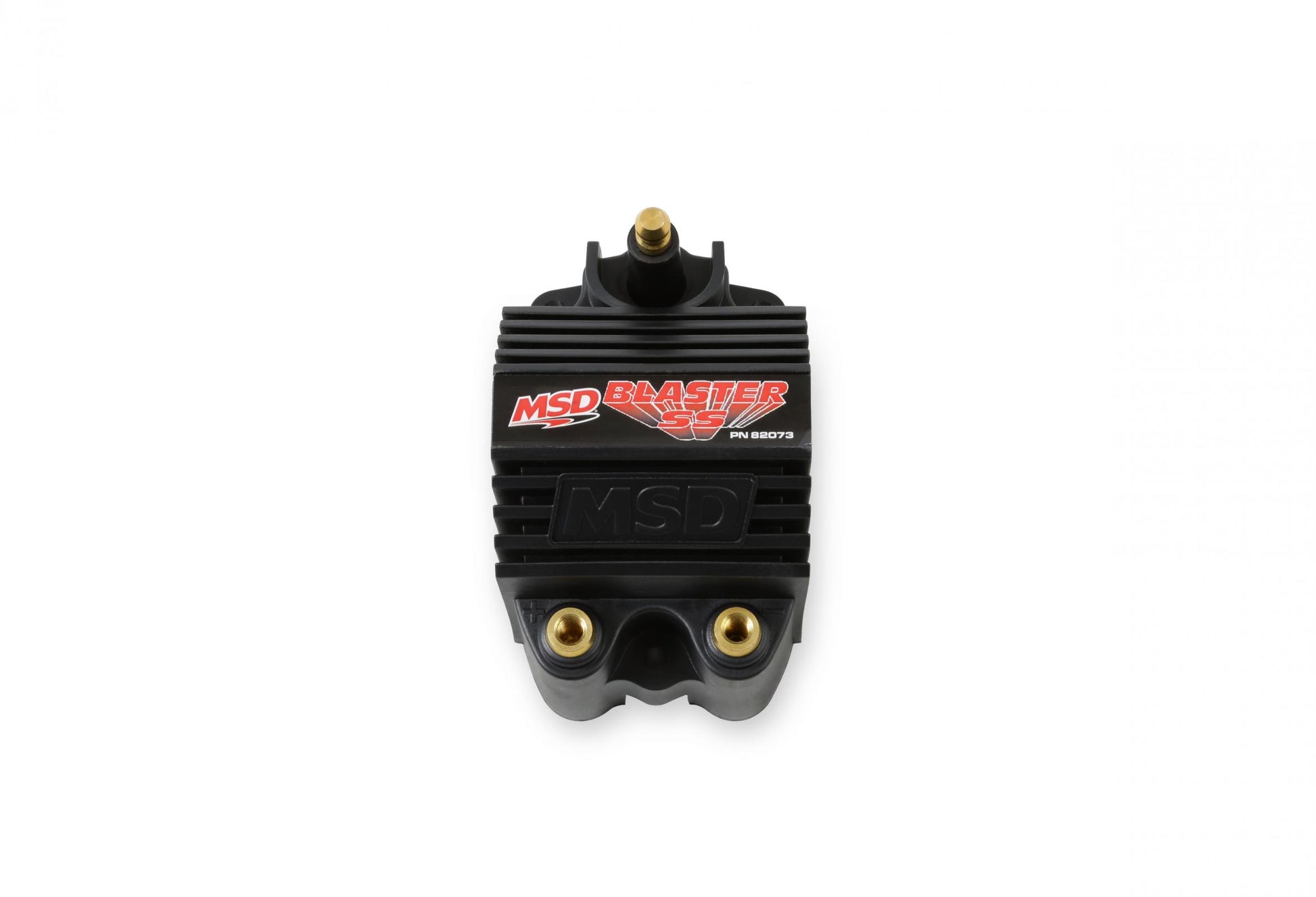

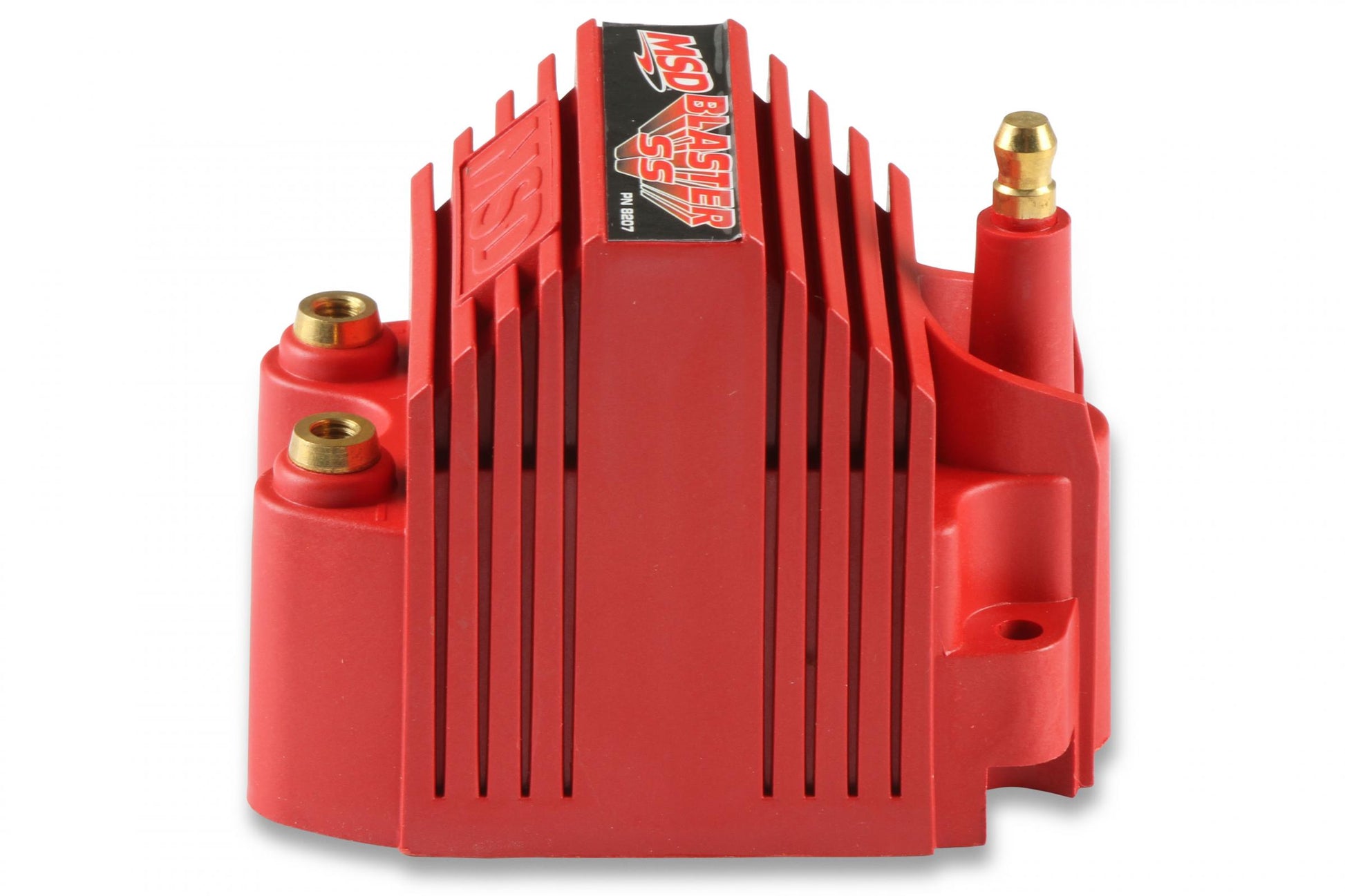

Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps with a maximum voltage output of 40,000 volts!
Improved output coil for electronic ignitions, and MSD Ignitions
Efficient winding design and assembly creates a compact housing

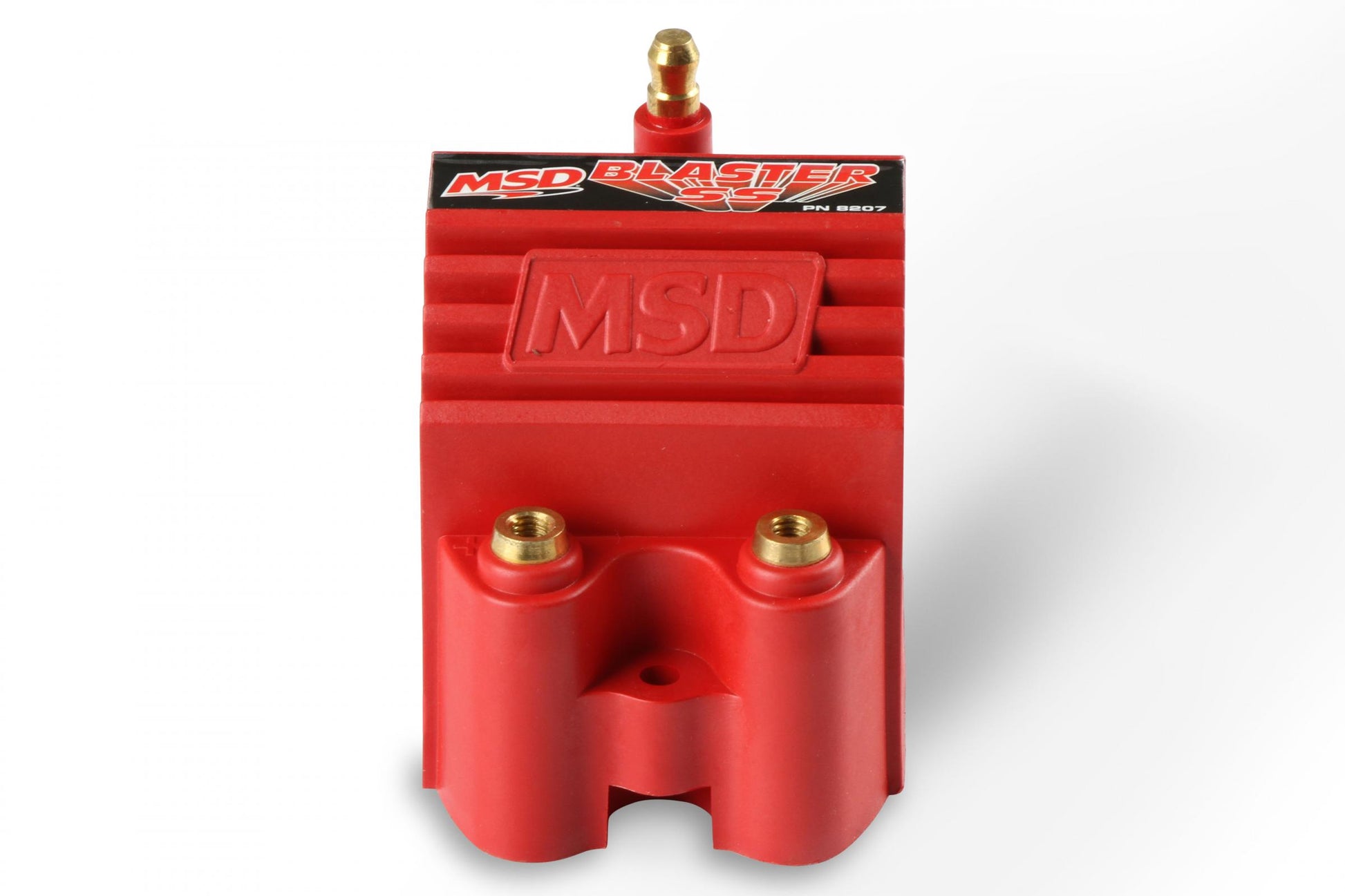

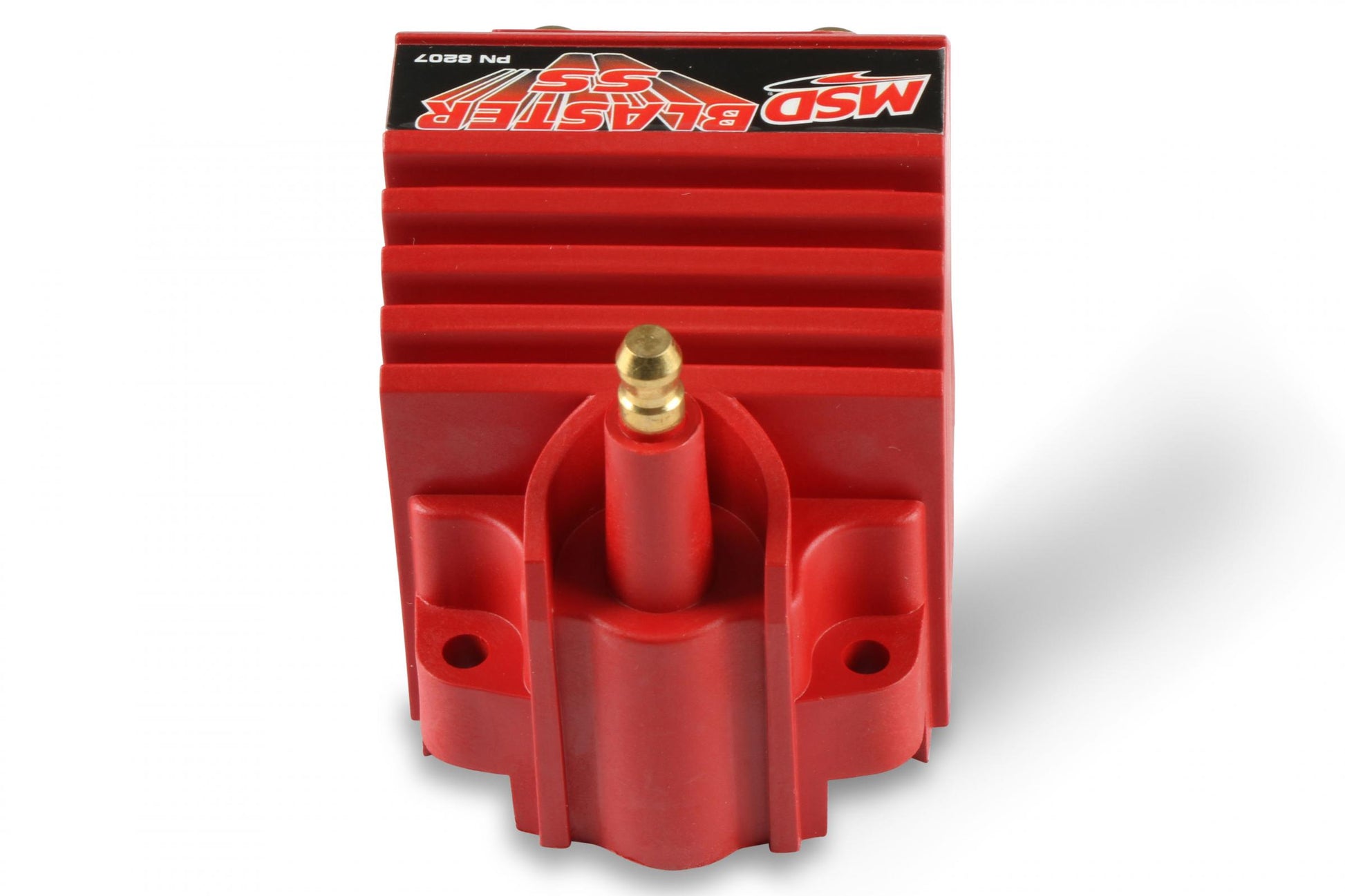

Tough, rigid housing with a tall tower and brass primary terminals
CARB E.O. D-40-37
Primary and secondary windings are encased in Ciba polyurethane
70:1 turns ratio and lower primary resistance produce high voltage output
