Coil Blaster Series Hvc-2 Blue Universal Add To Any 6-Series MSD Ignition

The Blaster HVC coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special Dupont Rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time.

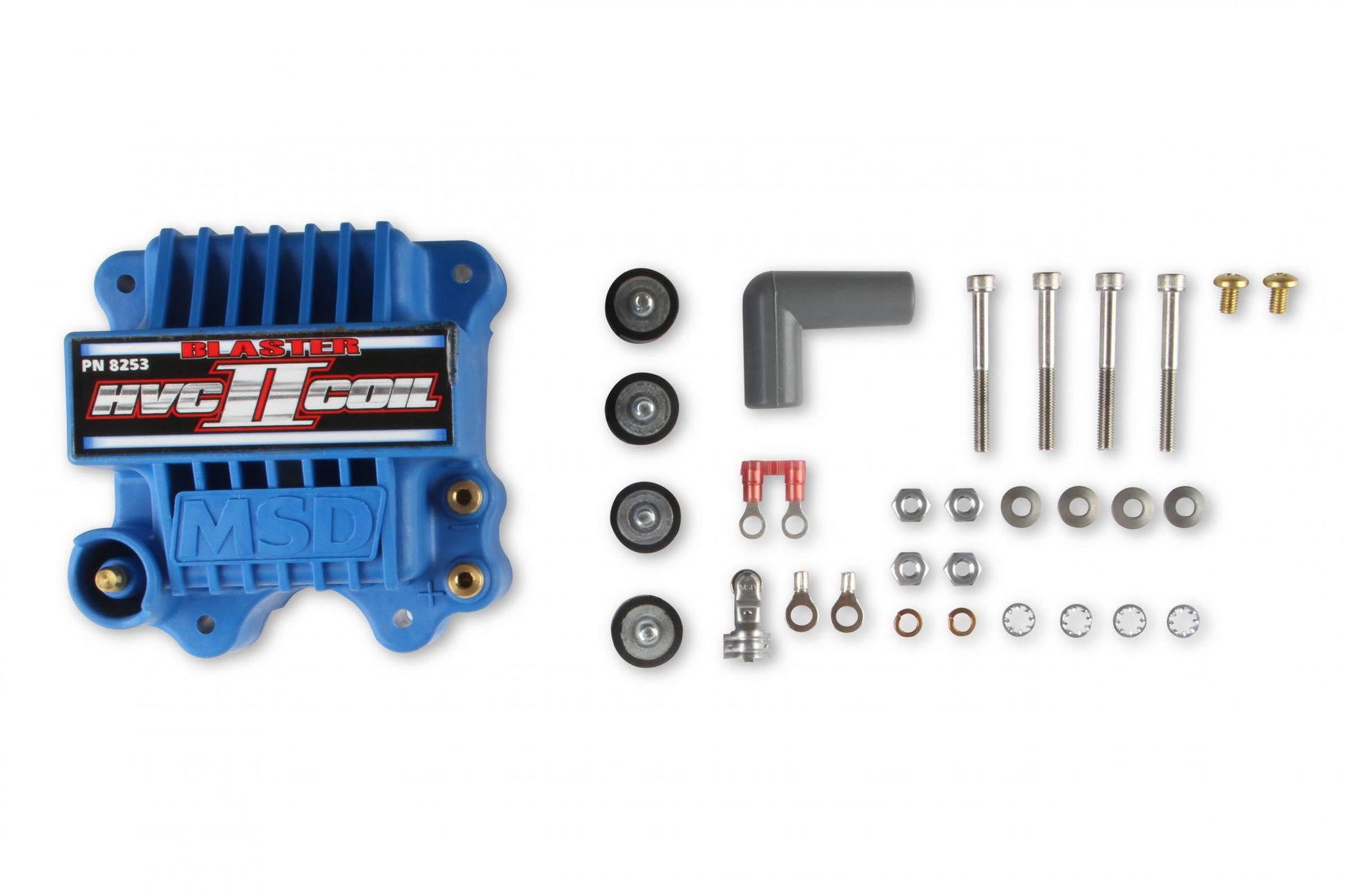

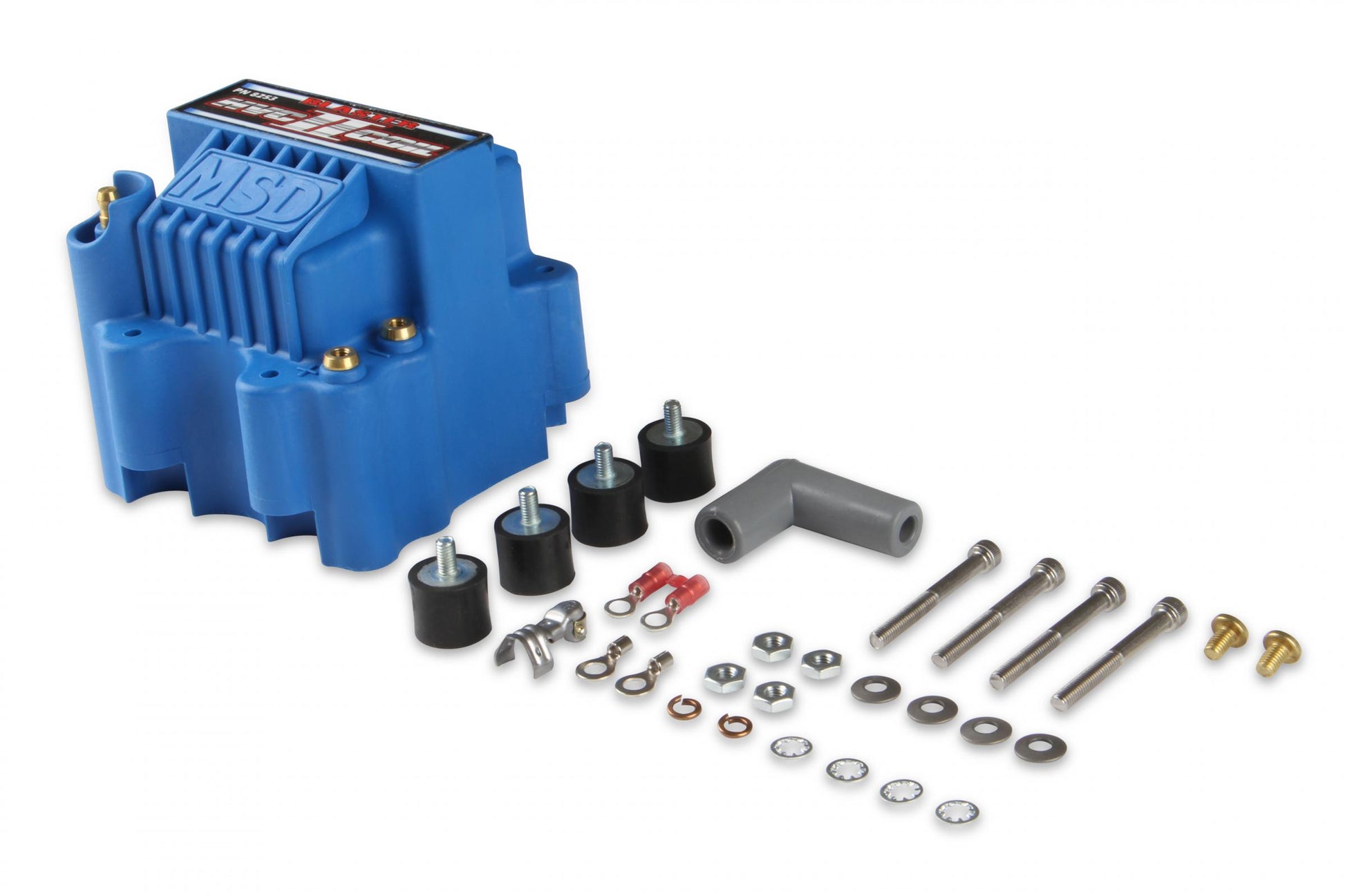

• Supplied with rubber shock mounts
• No CARB Exemption Order Number
• Dupont Rynite housing with isolated tower and brass primary terminals
• New U-core winding design produces more voltage and current

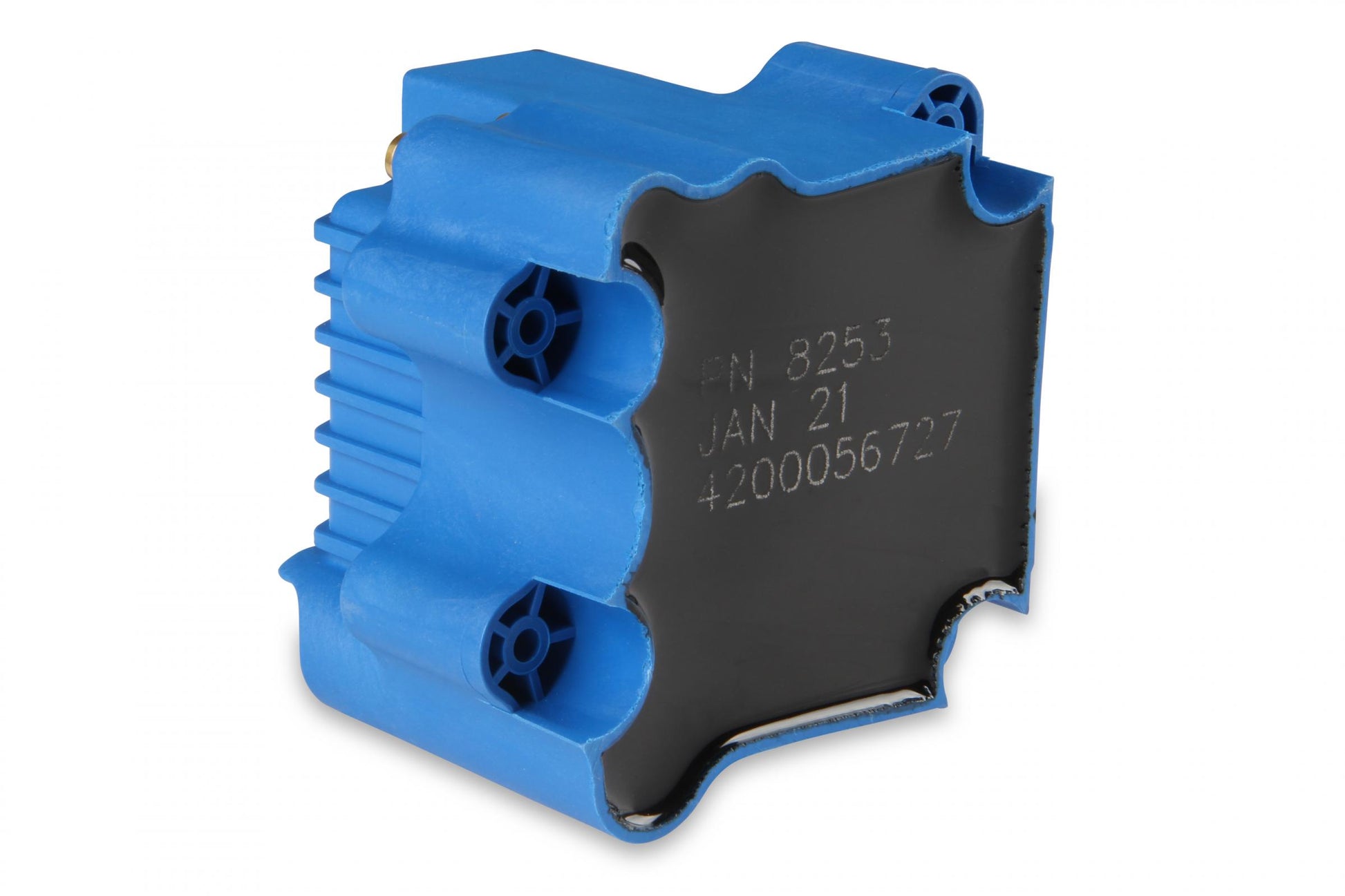

• Windings are encased in fracture resistant compound for vibration resistance
• 100:1 turns ratio and lower primary resistance produce high voltage output
• Designed for high rpm, long duration applications using MSD 6 Series Ignitions

Details:

• Emission Code: 4
• Inductance Mh: 3.5
• Maximum Voltage: 44,000
• Peak Current: 450.0
• Primary Resistance: 0.16
• Spark Duration: 0.45
• Turns Ratio: 4.17
• Warranty: Manufacturer's Limited 1 Year Warranty
