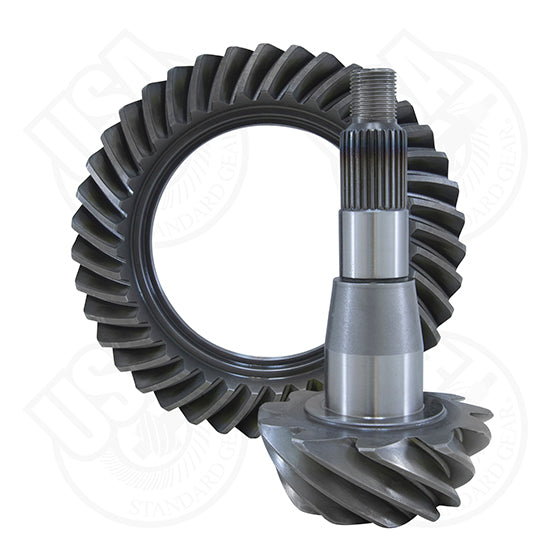

Chrysler Gear Set Ring and Pinion 09 and Down Chrysler 9.25 Inch in a 3.21-4.56 Ratio USA Standard Gear

1 5

USA Standard Gear

SKU:ZG C9.25-456-FDHD

$368.89 USD

Sale Sold out

Shipping calculated at checkout.

Title Chrysler Gear Set Ring and Pinion 09 and Down Chrysler 9.25 Inch in a 4.56 Ratio USA Standard Gear Chrysler Gear Set Ring and Pinion 09 and Down Chrysler 9.25 Inch in a 4.11 Ratio USA Standard Gear Chrysler Gear Set Ring and Pinion 09 and Down Chrysler 9.25 Inch in a 3.90 Ratio USA Standard Gear Chrysler Gear Set Ring and Pinion 09 and Down Chrysler 9.25 Inch in a 3.55 Ratio USA Standard Gear Chrysler Gear Set Ring and Pinion 09 and Down Chrysler 9.25 Inch in a 3.21 Ratio USA Standard Gear

View full details

USA Standard ring and pinion sets are the right choice to add confidence to your install. USA Standard Gear offers a full line of ring and pinion sets for a variety of common and hard to find applications.

Fits 2010 and down Chrysler 9.25 inch rear
9.25 Inch Ring Gear Diameter
29 Spline Pinion
12 ring gear bolts
4.56 ratio

1 year warranty against Manufacturer defects

Technical Notes:
This gear set requires a notched cross pin shaft or one tooth will need to be ground to clear a non-notched cross pin shaft. Will not fit 2011 vehicles, the new gears and carrier use a larger R/G bolt pattern
