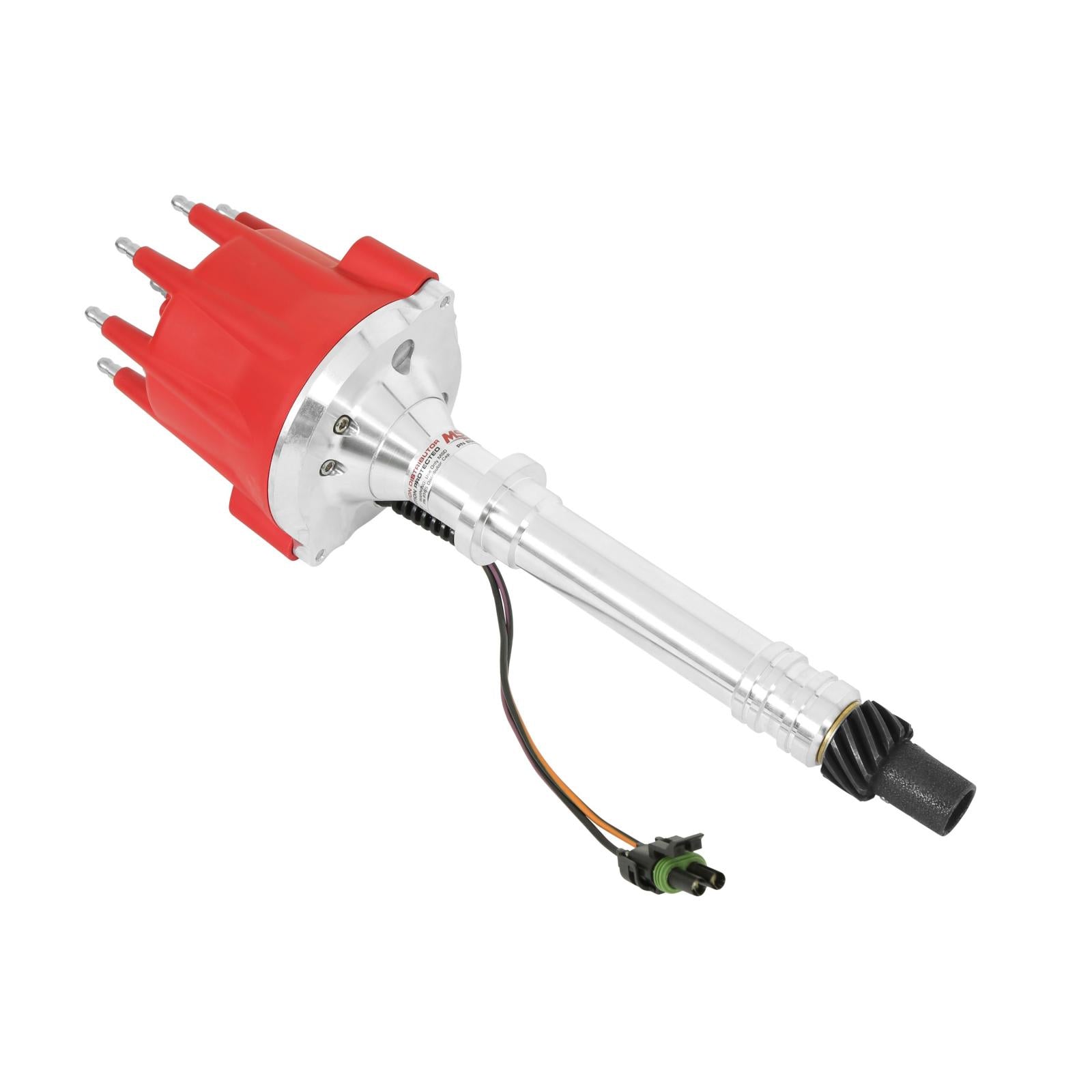

Chevy V8 Marine Certified Distributor Marine Ul-Certified MSD Ignition

1 11

MSD Ignition

SKU:85603

$632.95

Sale Sold out

Shipping calculated at checkout.

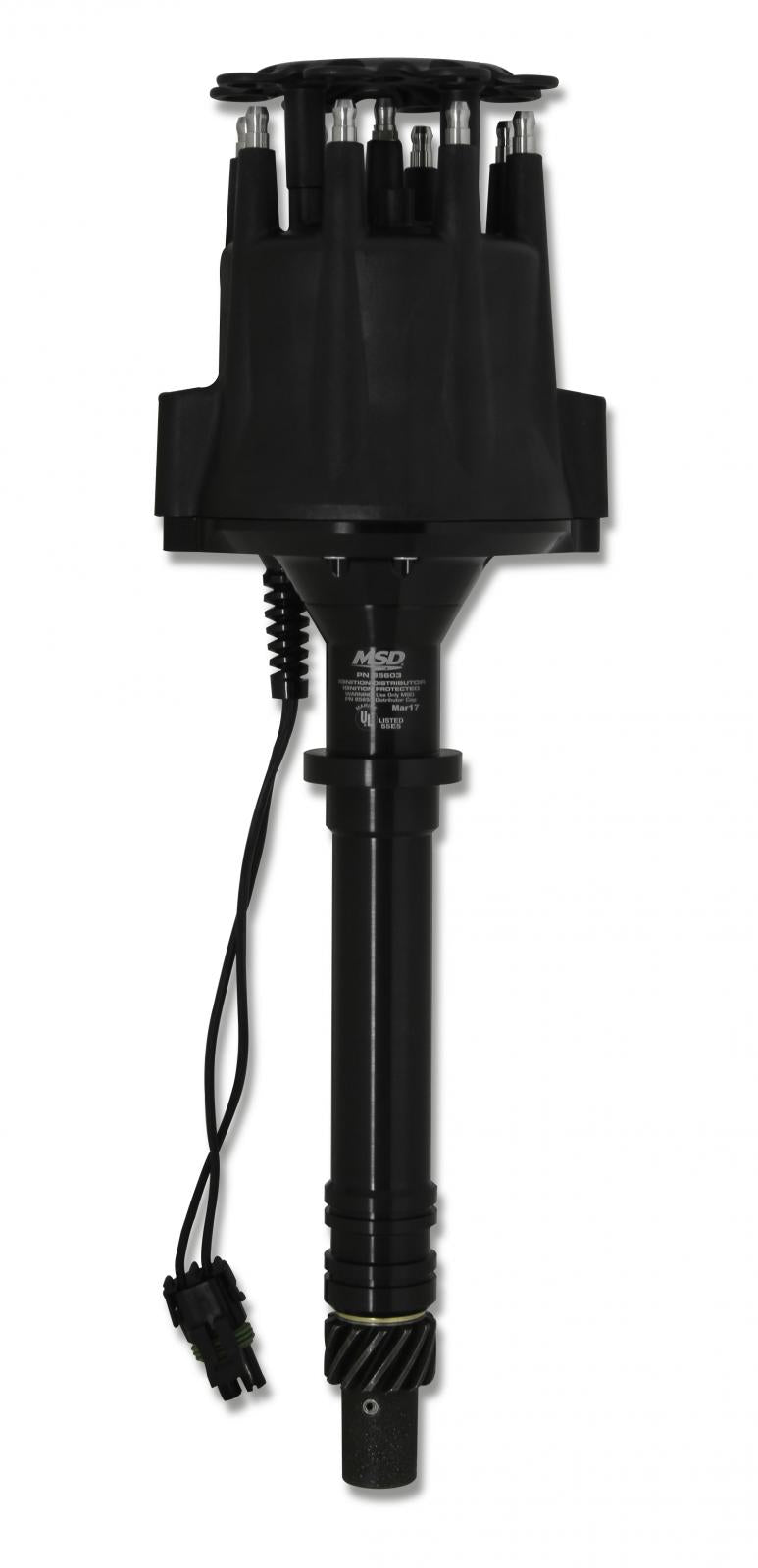

Boat enthusiast will be glad to see the addition of the new MSD Black Marine distributor line. Built off our tried and true billet marine distributors, the 6061-T6 aluminum housing is now hard anodized with a sleek black finish for great looks.

The Marine Pro-Billet Distributors have been tested by Underwriter's Laboratory and are certified to meet or exceed safety standards for marine ignition systems as set by the U.S. Coast Guard.

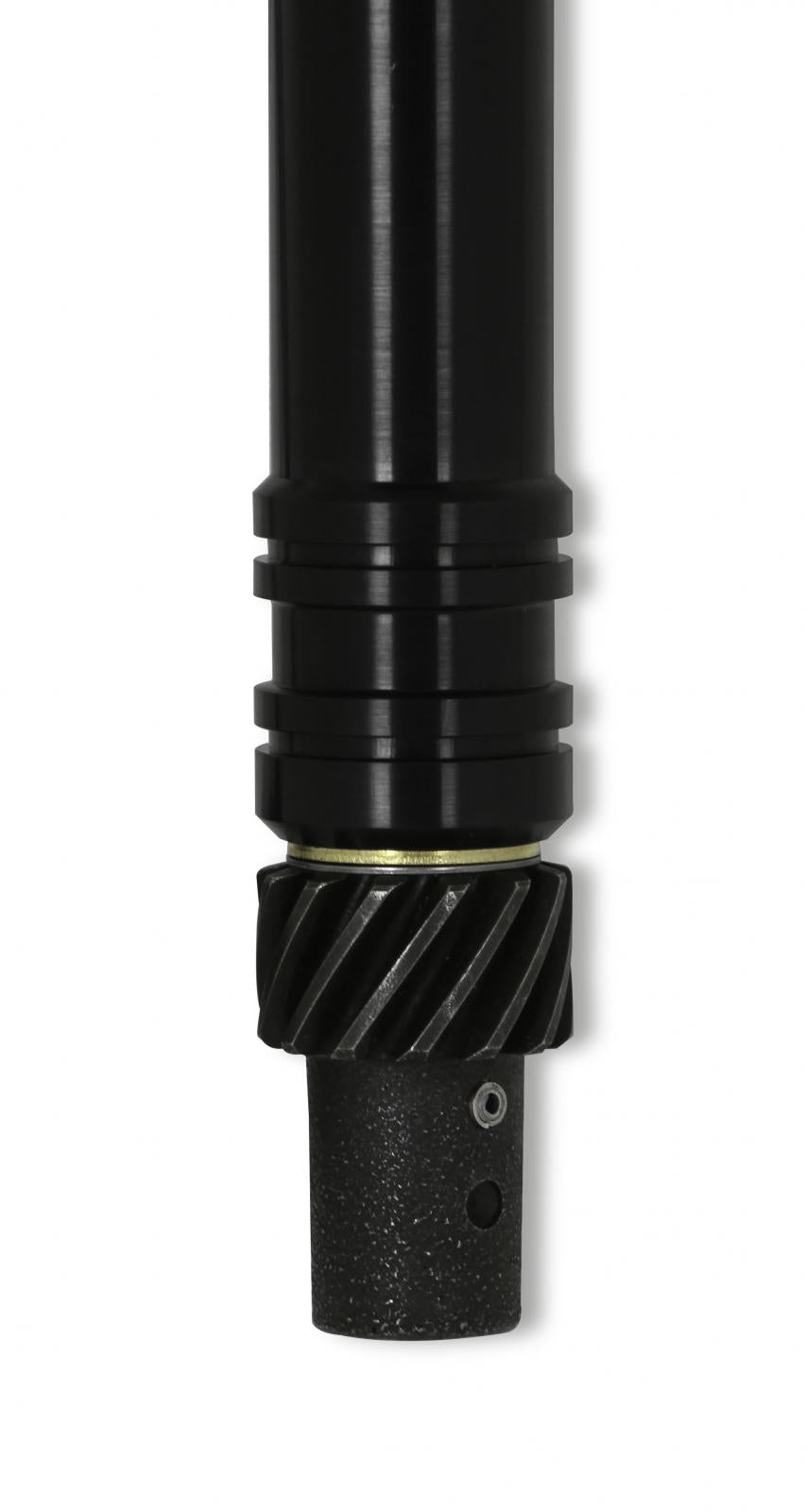

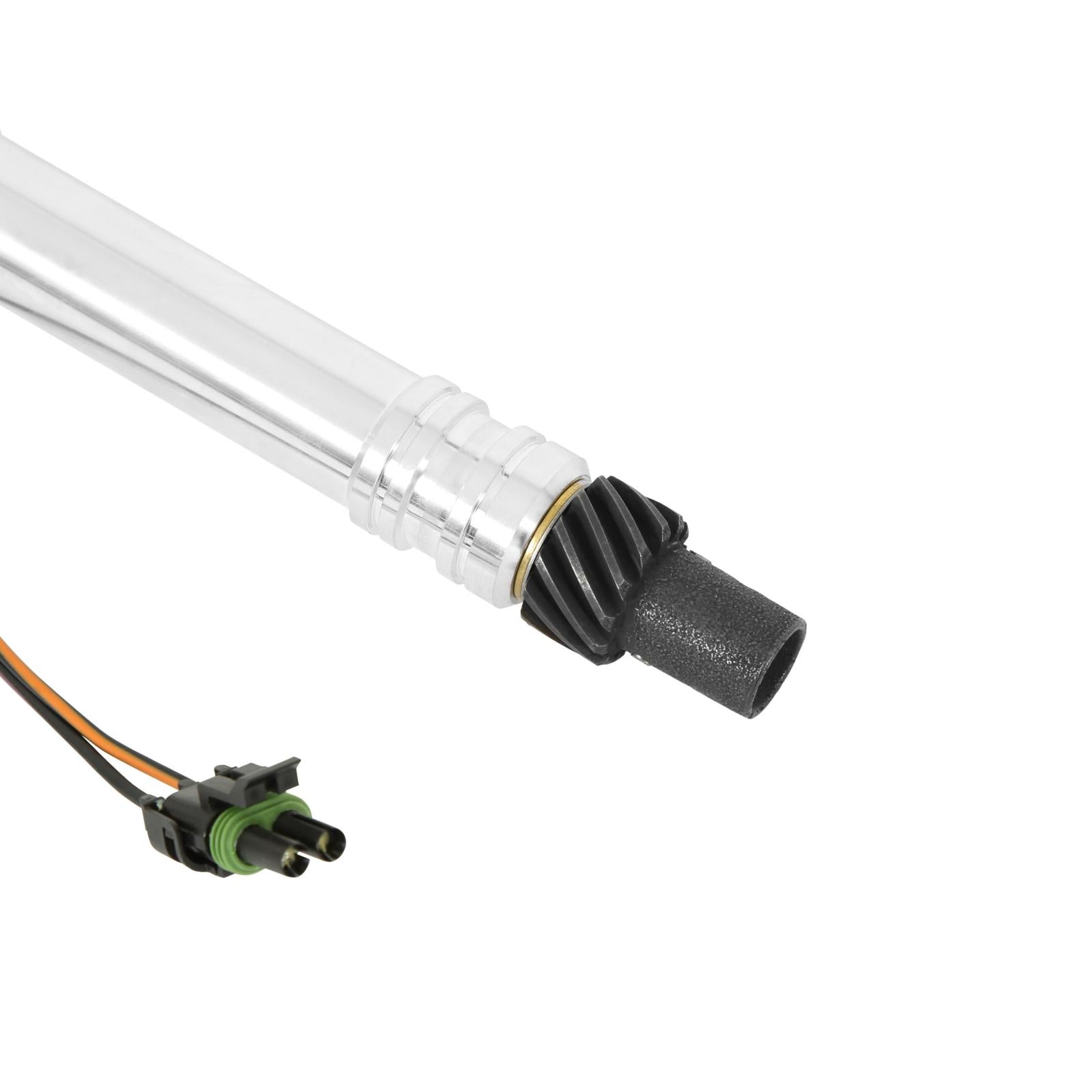

Under the black cap you'll find a quality rotor, pickup, reluctor and adjustable weight plate assembly (where applicable). Chevy applications use a .500 Inch QPQ coated distributor shaft joined by a melonized distributor gear while Ford models run a .531 Inch QPQ coated shaft and cast gear. Both ensure smooth operation, superior strength and long life even when challenged by harsh marine applications.

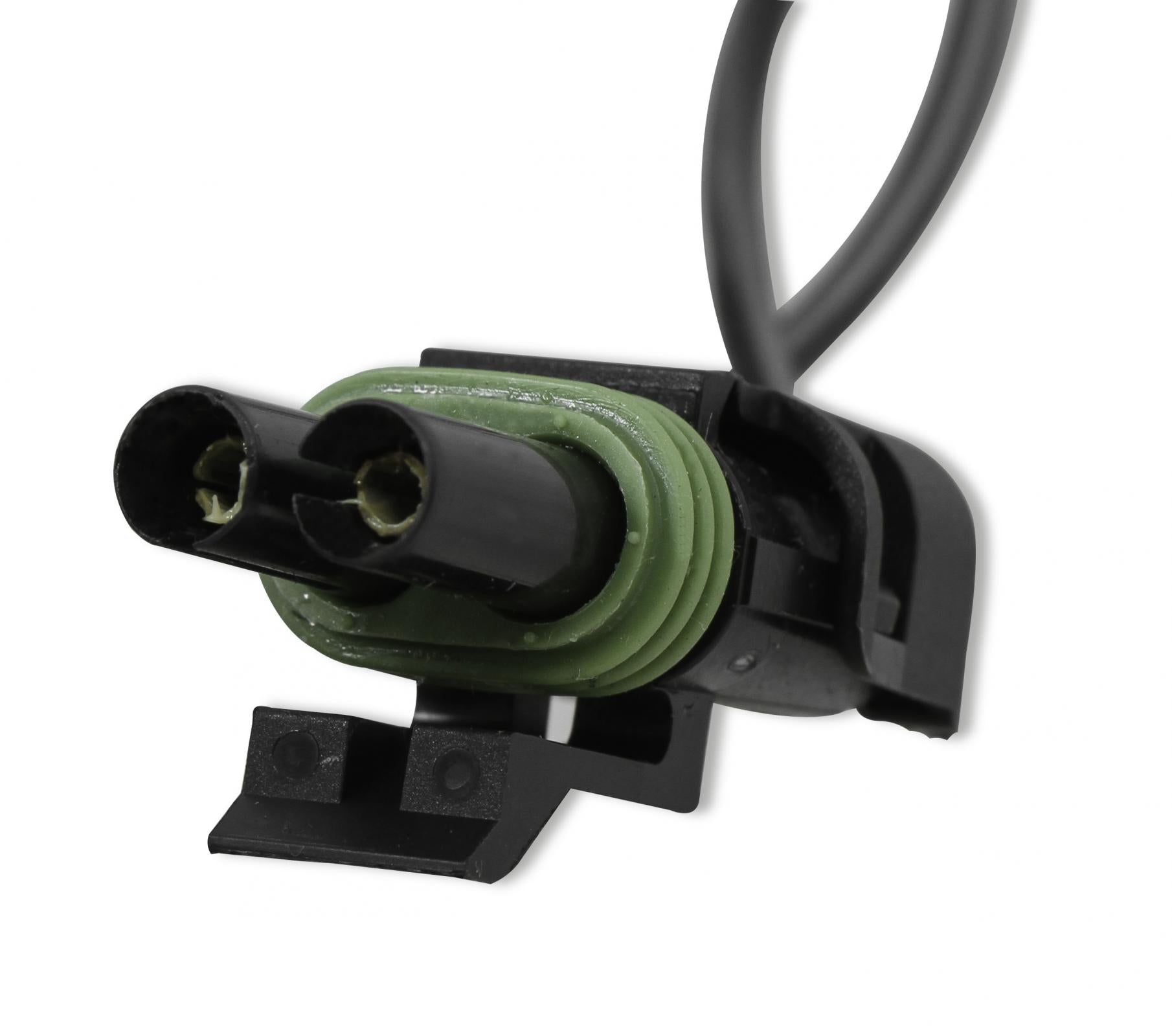

Weathertight connectors are used for locked and sealed connections
UL Approved

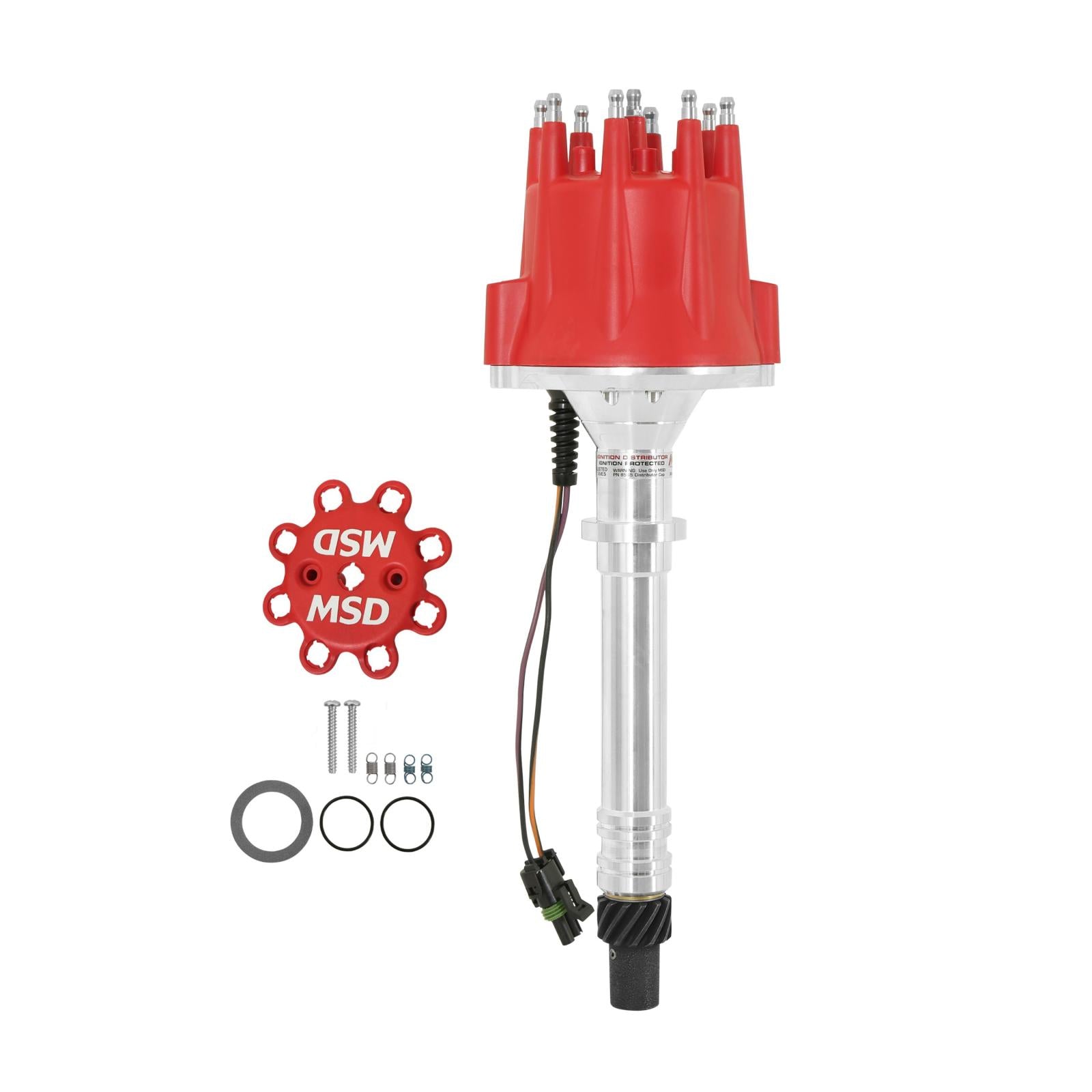

Supplied with a bolt down HEI style distributor cap and rotor
O-ring seals can be added to modified blocks to improve oil pressure control
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
Nylon pads ensure smooth operation of the advance weights
Designed for use in marine applications with Chevy V8 automotive engines

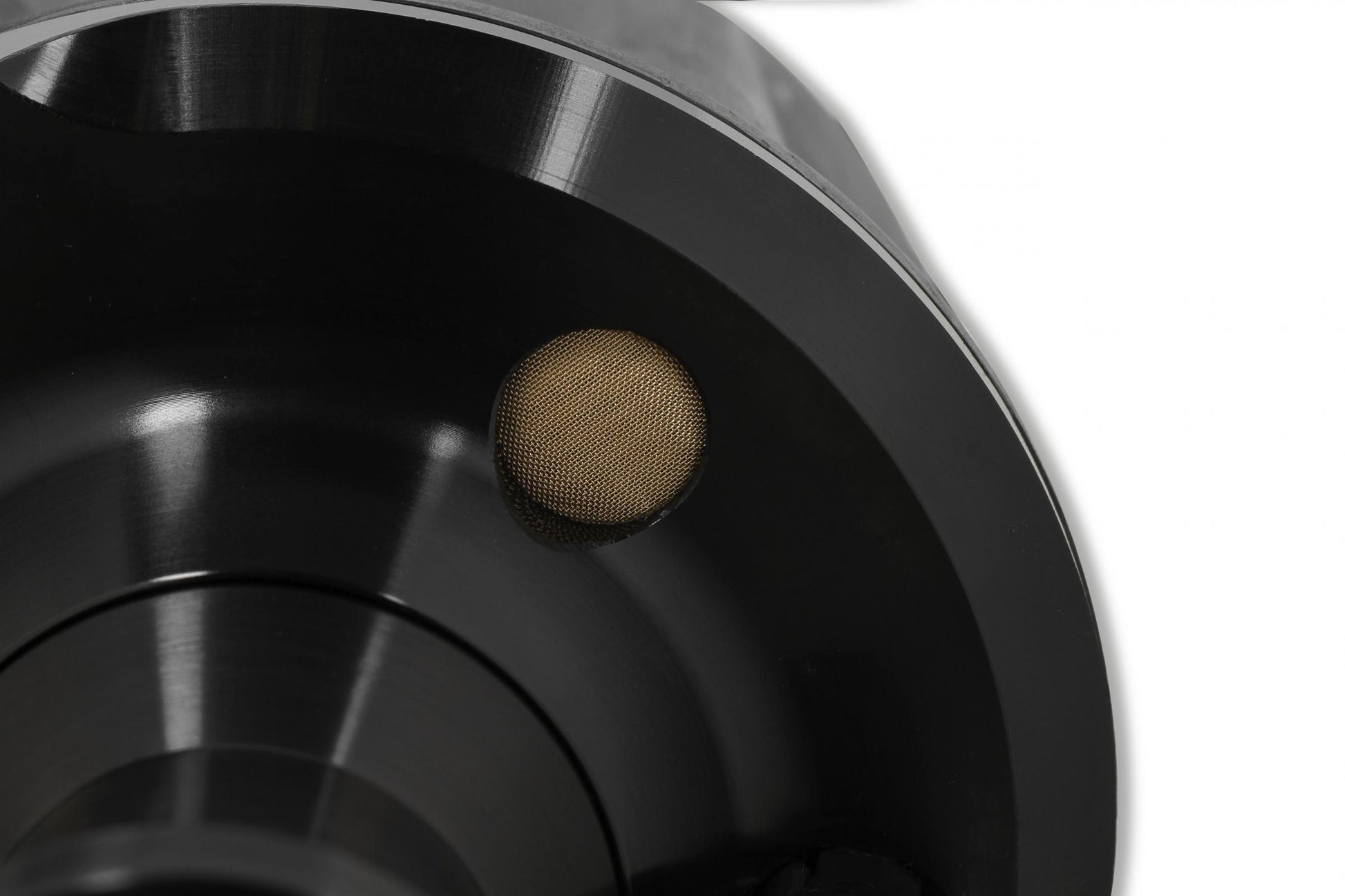

CNC machined billet aluminum housing and billet aluminum base with two flame arrestor holes with brass screens
Special oil tract improves lubrication to the distributor and cam gear
Black anodized for great looks and corrosion resistance
Mechanical advance assembly can be locked out for crank trigger systems
Advance weight pins are staked and tig welded to the plate
Will not accept a vacuum advance canister
Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
Easy-to-adjust mechanical advance with supplied springs and stop bushings
Must be used with an MSD Ignition Control
Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction

Details:

Distributor Cap Included: Yes
Distributor Type: Magnetic Pickup
Emission Code: 3
Gear Material: Cast Iron Melonized QPQ Coated
Ignition Box Required: Yes
Ignition Coil Included: No
Ignition Rotor Included: Yes
Warranty: Manufacturer's Limited 1 Year Warranty

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Vehicle Fitment

Year	Make	Model	Trim
1955–1956	Chevrolet	Bel Air	Beauville
1955–1957	Chevrolet	Truck	3700
1955–1957	Chevrolet	Two-Ten Series	—
1955–1957	Chevrolet	One-Fifty Series	—
1955–1957	Chevrolet	Bel Air	Nomad
1955–1957	Chevrolet	Two-Ten Series	Del Ray
1955–1958	Chevrolet	Sedan Delivery	—
1955–1958	Chevrolet	Truck	3800
1955–1958	Chevrolet	Truck	3600
1955–1958	Chevrolet	Truck	—
1955–1958	Chevrolet	Truck	3500
1955–1958	Chevrolet	Truck	3400
1955–1958	Chevrolet	Truck	3200
1955–1959	Chevrolet	Truck	3100
1955–1966	Chevrolet	Suburban	—
1955–1974	Chevrolet	Corvette	—
1955–1975	Chevrolet	Bel Air	—
1957–1958	Chevrolet	Del Ray	—
1958	Chevrolet	Yeoman	—
1958–1961	Chevrolet	Brookwood	—
1958–1961	Chevrolet	Nomad	—
1958–1972	Chevrolet	Biscayne	—
1958–1985	Chevrolet	Impala	—
1959–1960	Chevrolet	El Camino	—
1959–1961	Chevrolet	Kingswood	—
1959–1961	Chevrolet	Parkwood	—
1960	Chevrolet	Truck	—
1960	Chevrolet	Biscayne	Fleetmaster
1960–1962	Chevrolet	C40	—
1960–1974	Chevrolet	C30 Pickup	—
1960–1974	Chevrolet	C10 Pickup	—
1960–1974	Chevrolet	C20 Pickup	—
1960–1974	Chevrolet	K10 Pickup	—
1960–1974	Chevrolet	K20 Pickup	—
1961–1962	Chevrolet	P20 Series	—
1961–1962	Chevrolet	P10 Series	—
1961–1962	Chevrolet	P30 Series	—
1963–1967	Chevrolet	Chevy II	—
1963–1968	Chevrolet	Chevy II	Nova
1964–1967	Chevrolet	Impala	SS
1964–1967	Chevrolet	Chevy II	Nova SS
1964–1972	Chevrolet	Chevelle	SS
1964–1987	Chevrolet	El Camino	—
1966	Chevrolet	C30 Panel	—
1966–1972	Chevrolet	Caprice	—
1967–1968	Chevrolet	Chevelle	—
1967–1974	Chevrolet	Camaro	Z28
1967–1974	Chevrolet	K10 Suburban	—
1967–1974	Chevrolet	C10 Suburban	—
1967–1974	Chevrolet	G20 Van	—
1977	Chevrolet	Monza	Towne Coupe Cabriolet
1977	Chevrolet	Monza	Towne Coupe Sport
1977–1978	Chevrolet	El Camino	Conquista
1977–1981	Chevrolet	K30	Cheyenne
1977–1986	Chevrolet	K30	Scottsdale
1977–1986	Chevrolet	K30	Silverado
1977–1987	Chevrolet	Camaro	Z28
1978	Chevrolet	Corvette	Silver Anniversary Edition
1978	Chevrolet	Corvette	Indianapolis 500 Pace Car
1978	Chevrolet	Monza	Sport
1978	Chevrolet	K5 Blazer	Silverado
1978	GMC	C15	Street Coupe
1978	Chevrolet	Monte Carlo	Sport
1978–1979	Chevrolet	Nova	Custom
1978–1979	Chevrolet	Monza	S
1978–1979	Chevrolet	Monza	—
1978–1979	Chevrolet	Monza	2+2 Sport
1978–1980	Chevrolet	Malibu	Classic Estate
1978–1980	Chevrolet	C10	Big Ten
1978–1981	Chevrolet	Monte Carlo	Landau
1978–1981	Chevrolet	G20	Nomad
1979	Chevrolet	Monte Carlo	—
1979	Chevrolet	Malibu	Landau
1979	Chevrolet	Caprice	Landau
1979	GMC	P1500	Value Van
1979	Chevrolet	Malibu	Police
1979–1980	Chevrolet	Malibu	Estate
1979–1980	Chevrolet	Impala	Sport
1979–1980	Chevrolet	K10 Suburban	Silverado
1979–1980	GMC	C1500	Heavy Half
1979–1980	Chevrolet	K20 Suburban	Silverado
1979–1980	GMC	C1500	High Sierra
1979–1980	GMC	C1500 Suburban	High Sierra
1979–1980	GMC	K1500	High Sierra
1979–1980	Chevrolet	C20 Suburban	Silverado
1979–1980	Chevrolet	Malibu	Sport
1979–1980	GMC	K1500	—
1979–1980	GMC	C1500	Sierra Classic
1979–1980	Chevrolet	Malibu	Classic Sport
1979–1980	Chevrolet	Caprice	Classic Sport
1979–1980	GMC	C1500	Street Coupe
1979–1981	Chevrolet	El Camino	Royal Knight
1979–1986	GMC	C3500	High Sierra
1979–1986	GMC	C2500	High Sierra
1979–1986	GMC	C2500 Suburban	High Sierra
1979–1986	GMC	K3500	High Sierra
1979–1986	GMC	K3500	—
1979–1986	GMC	C3500	Sierra Classic
1979–1986	GMC	K3500	Sierra Classic
1979–1986	GMC	C2500 Suburban	Sierra Classic
1990–1995	Chevrolet	Corvette	ZR-1
1990–1998	Chevrolet	C1500	WT
1991	Chevrolet	K1500	Sport
1991–1992	Chevrolet	Camaro	Z28
1991–1993	GMC	C2500	Sierra SLX
1991–1993	Chevrolet	Caprice	Classic LTZ
1991–1993	GMC	C2500	Sierra
1991–1993	GMC	K2500	Sierra
1991–1993	GMC	K2500	Sierra SLX
1991–2000	GMC	C2500	Sierra SLE
1991–2000	GMC	K2500	Sierra SLE
1992	Chevrolet	Camaro	RS Heritage Edition
1992	Chevrolet	Camaro	Z28 Heritage Edition
1992–1993	Chevrolet	Blazer	Cheyenne
1992–1994	Chevrolet	K2500 Suburban	Silverado
1992–1994	Chevrolet	C2500 Suburban	Silverado
1992–1994	Chevrolet	C1500 Suburban	Silverado
1992–1994	Chevrolet	K1500 Suburban	Silverado
1992–1999	GMC	C2500 Suburban	SLE
1992–1999	GMC	K2500 Suburban	—
1992–1999	Chevrolet	C1500 Suburban	—
1992–1999	GMC	K2500 Suburban	SLE
1992–1999	Chevrolet	K1500 Suburban	—
1992–1999	GMC	C2500 Suburban	—
1992–1999	Chevrolet	K2500 Suburban	—
1992–1999	Chevrolet	C2500 Suburban	—
1993	Chevrolet	C2500	400 SS
1993	Chevrolet	Corvette	40th Anniversary Edition
1993	Chevrolet	C2500	Custom
1993–1994	Chevrolet	Caprice	Classic LS
1994	Chevrolet	Blazer	Silverado Sport
1994	Chevrolet	Blazer	—
1994–1995	Chevrolet	K2500	WT
1994–1995	Chevrolet	C2500	WT
1994–1996	Chevrolet	Impala	SS
1994–1997	Chevrolet	C1500	—
1994–1997	Chevrolet	C3500	—
1994–1997	Chevrolet	K2500	—
1994–1997	Chevrolet	K1500	—
1994–1997	Chevrolet	K3500	—
1994–2000	GMC	K2500	Sierra SL
1994–2000	GMC	K3500	Sierra SLT
1994–2000	GMC	K3500	Sierra SL
1994–2000	GMC	C3500	Sierra SL
1994–2000	GMC	C2500	Sierra SL
1994–2000	GMC	K2500	Sierra SLT
1994–2000	GMC	C2500	Sierra SLT
1994–2000	GMC	C3500	Sierra SLT
1994–2000	Chevrolet	C2500	—
1995–1999	GMC	C2500 Suburban	SLT
