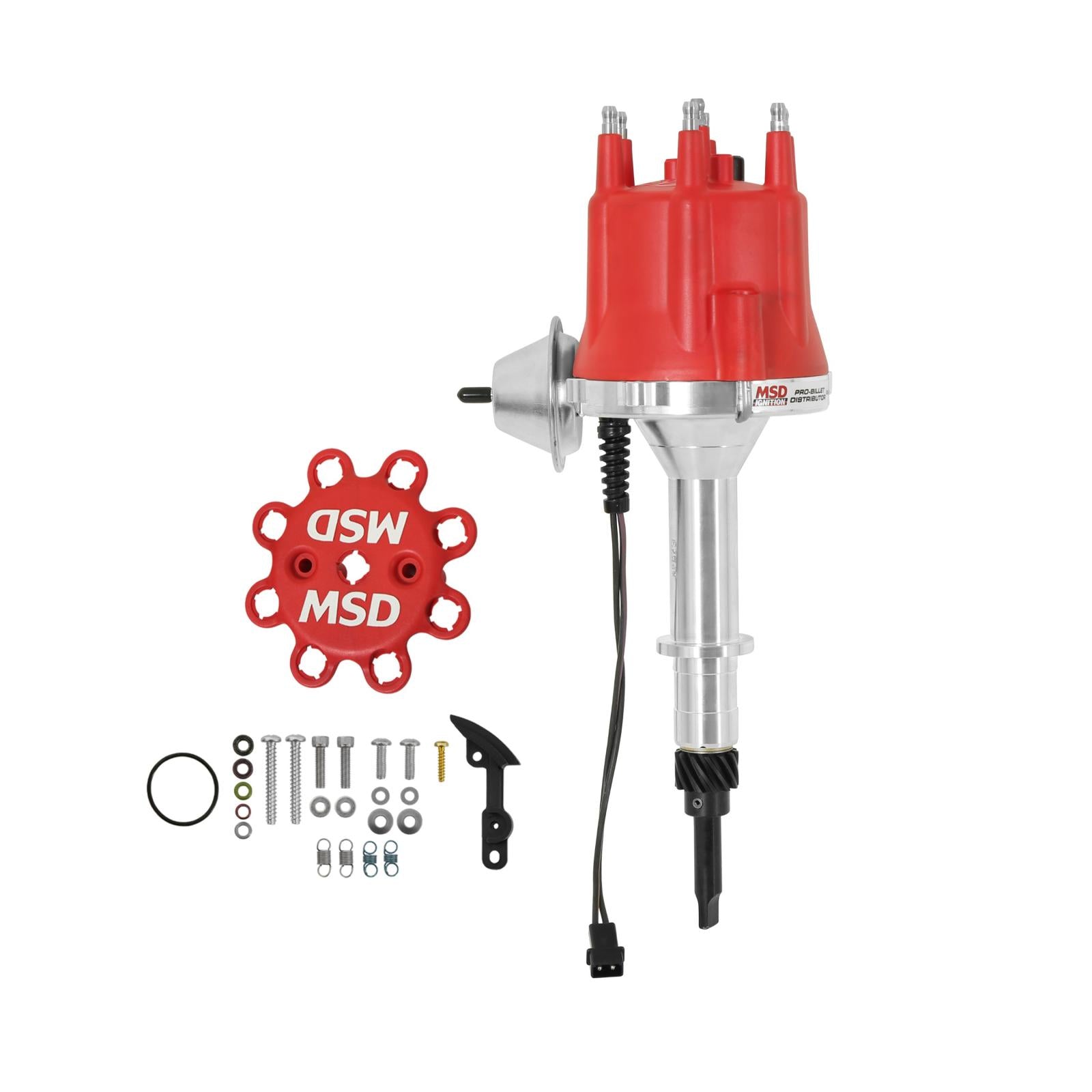

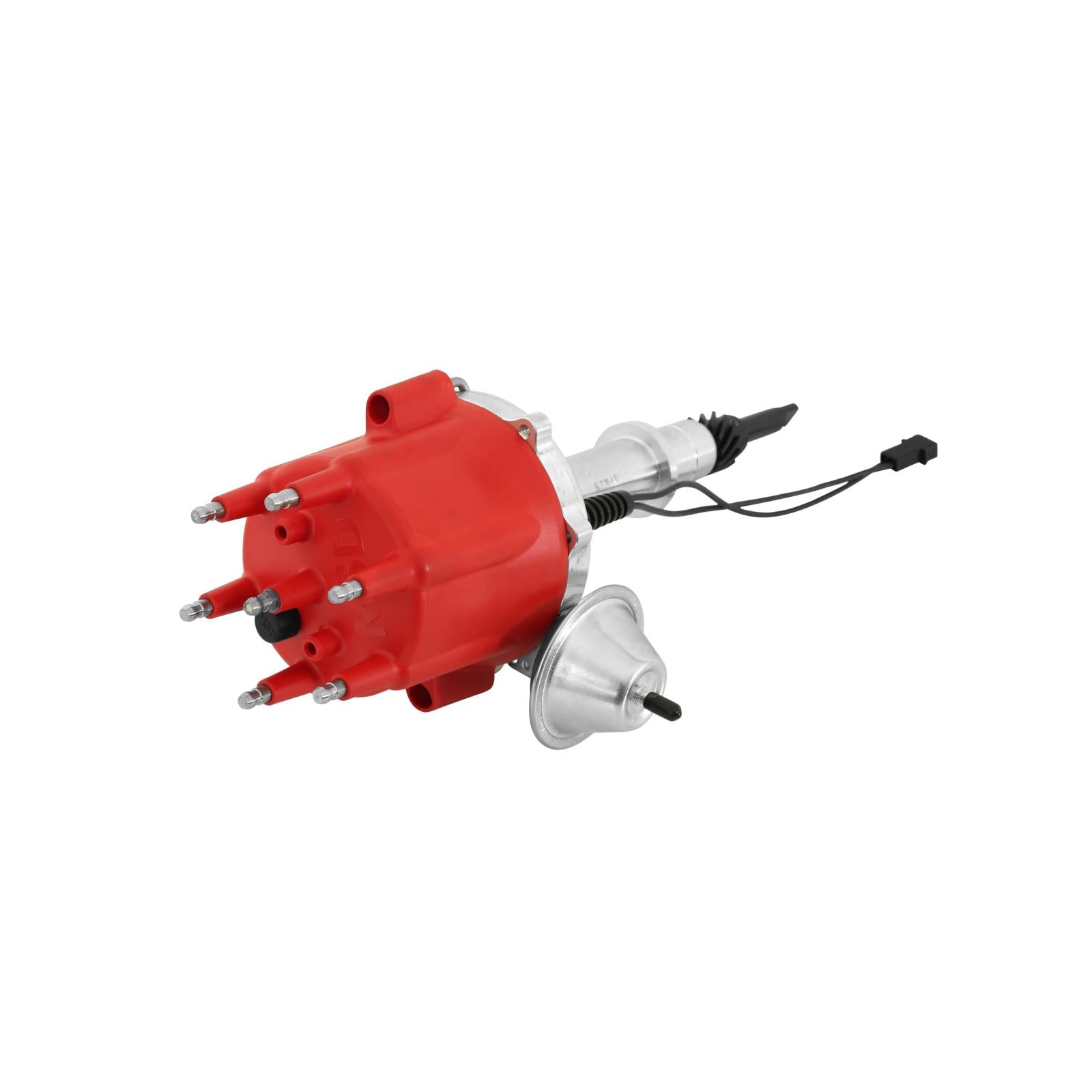

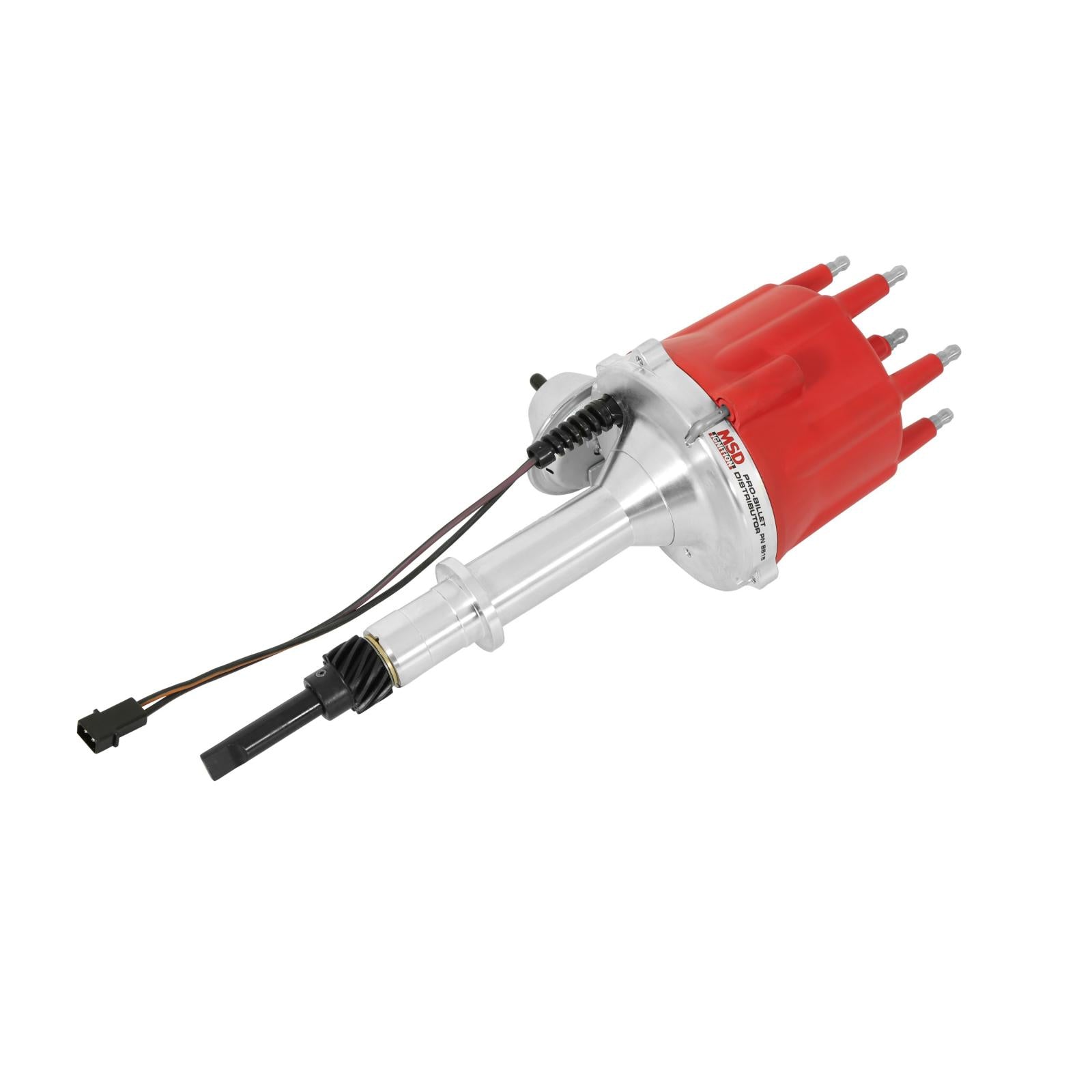

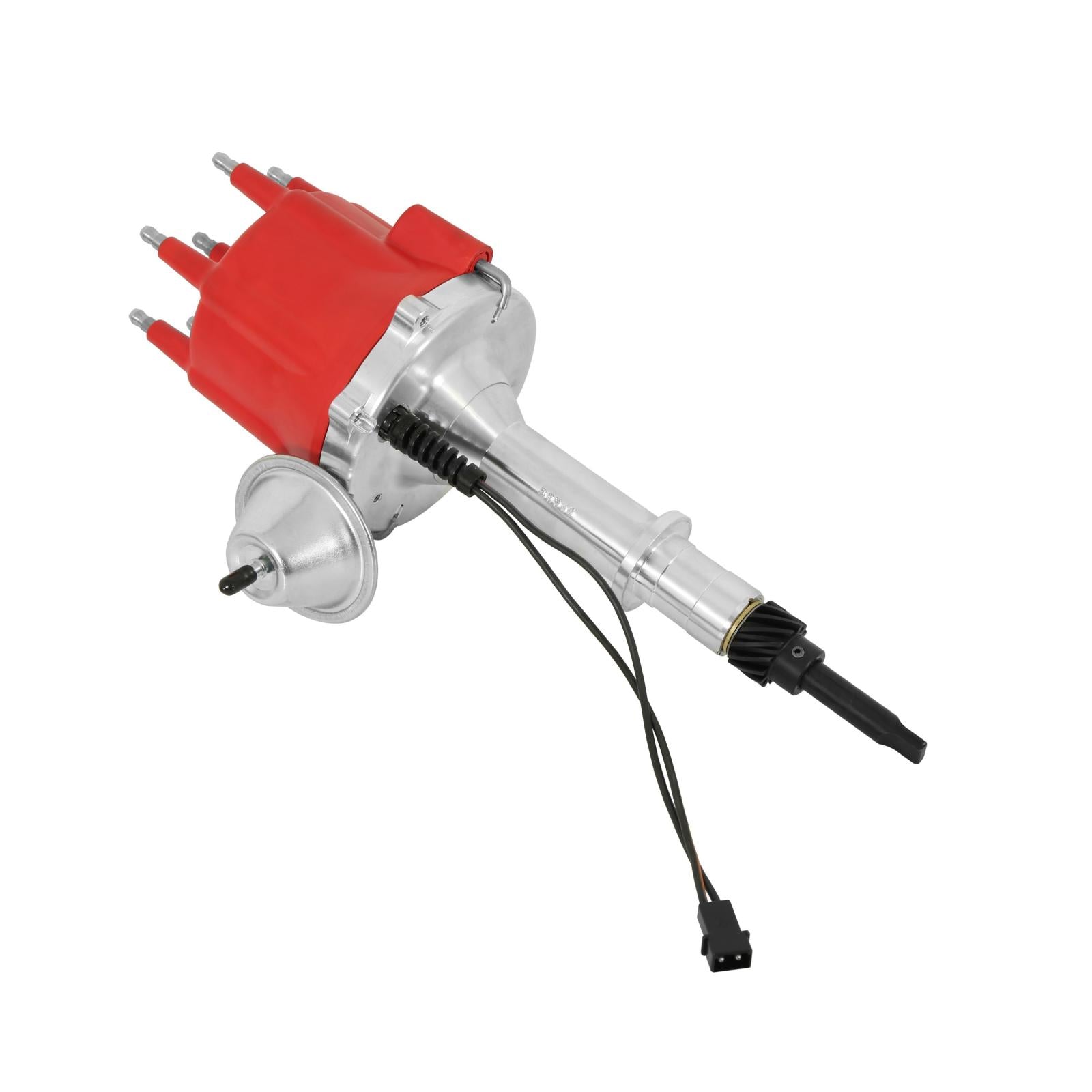

Chevy In-Line 6 Cylinder Distributor For 194, 230, 250, 292 Inline-6 Engines. Must Be Used With An 6, 7 Or 8-Series MSD Ignition
A maintenance-free magnetic pick-up provides accurate trigger signals to your
- MSD Ignition Control. A precision-manufactured reluctor that is connected to the shaft is responsible for triggering the pick-up. The distributor is topped off with a high quality MSD red cap and Race Rotor.
- Starting on the inside, a 0.500 Inch oversized steel shaft spins in a sealed ball bearing and sintered bushing for long endurance and accurate spark delivery throughout the entire rpm range. Mounted on top of the shaft is an easy-to-adjust chromoly mechanical advance assembly. Different advance springs and stop bushings are supplied so you can choose from a variety of curves.
- Designed for street/performance use with a mechanical and vacuum advance
- Must be used with an MSD Ignition Control
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Advance weight pins are staked and tig welded to the plate
- O-ring seals can be added to modified blocks to improve oil pressure control
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Will not fit 235 and 261 engines
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Vacuum advance canister for improved economy (can be locked out)
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Special oil tract improves lubrication to the distributor and cam gear
- CARB E.O. Approved
- Nylon pads ensure smooth operation of the advance weights
- Supplied with a socket style distributor cap and rotor
- CNC machined billet aluminum housing and billet aluminum base
Details:
- Distributor Cap Included: Yes
- Distributor Type: Magnetic Pickup
- Emission Code: 1

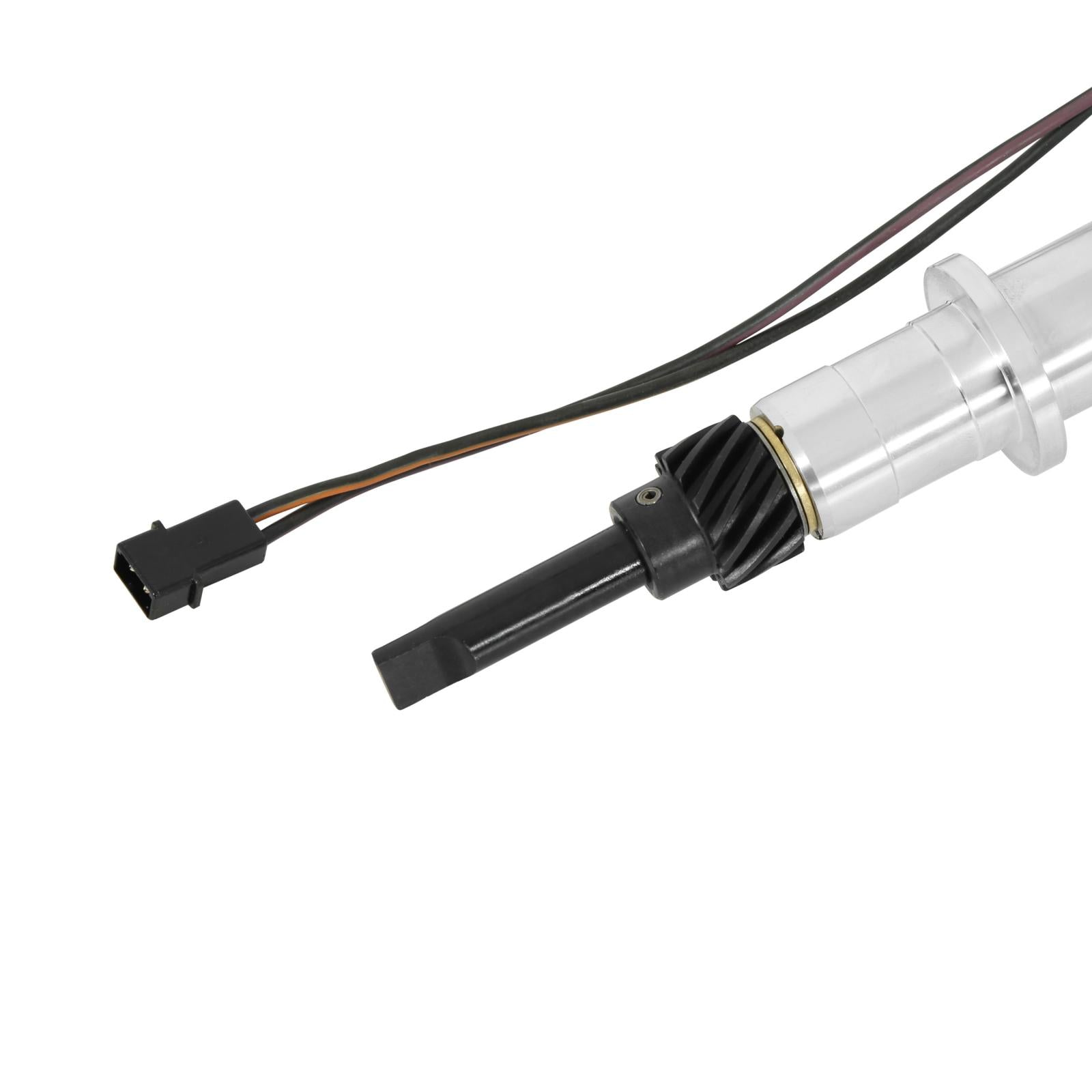

- Gear Material: Cast Iron Melonized QPQ Coated
- Ignition Box Required: Yes
- Ignition Coil Included: No
- Ignition Rotor Included: Yes
- Warranty: Manufacturer's Limited 1 Year Warranty
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1961–1962 | Chevrolet | K20 Pickup | — |
| 1961–1962 | Chevrolet | K10 Pickup | — |
| 1961–1966 | Chevrolet | Suburban | — |
| 1961–1972 | Chevrolet | Biscayne | — |
| 1961–1973 | Chevrolet | Impala | — |
| 1961–1973 | Chevrolet | Bel Air | — |
| 1961–1974 | Chevrolet | C10 Pickup | — |
| 1961–1974 | Chevrolet | C30 Pickup | — |
| 1961–1974 | Chevrolet | C20 Pickup | — |
| 1962–1967 | Chevrolet | Chevy II | — |
| 1962–1968 | Chevrolet | Chevy II | Nova |
| 1963–1966 | GMC | Suburban | — |
| 1964–1965 | GMC | 1500 Series | — |
| 1964–1965 | GMC | 1000 Series | — |
| 1964–1966 | Chevrolet | Chevelle | SS |
| 1964–1967 | Chevrolet | G10 Van | — |
| 1964–1967 | Chevrolet | Chevy II | Nova SS |
| 1964–1967 | Chevrolet | Impala | SS |
| 1964–1974 | Chevrolet | El Camino | — |
| 1964–1974 | Chevrolet | K10 Pickup | — |
| 1964–1974 | Chevrolet | K20 Pickup | — |
| 1967 | Chevrolet | Chevelle | Deluxe |
| 1967 | GMC | G15/G1500 Van | — |
| 1967 | Chevrolet | Malibu | — |
| 1967 | GMC | G25/G2500 Van | — |
| 1967 | Chevrolet | Chevelle | — |
| 1967–1968 | Chevrolet | Chevelle | 300 |
| 1967–1969 | Chevrolet | Caprice | — |
| 1967–1969 | Chevrolet | Chevelle | 300 Deluxe |
| 1967–1971 | GMC | K15/K1500 Suburban | — |
| 1967–1971 | GMC | C15/C1500 Suburban | — |
| 1967–1972 | GMC | C25/C2500 Suburban | — |
| 1967–1972 | Chevrolet | Chevelle | Concours |
| 1967–1973 | Chevrolet | Camaro | RS |
| 1967–1974 | GMC | C15/C1500 Pickup | — |
| 1967–1974 | Chevrolet | G20 Van | — |
| 1967–1974 | GMC | C25/C2500 Pickup | — |
| 1967–1974 | Chevrolet | C10 Suburban | — |
| 1967–1974 | GMC | C35/C3500 Pickup | — |
| 1967–1974 | GMC | K25/K2500 Pickup | — |
| 1967–1974 | Chevrolet | Camaro | — |
| 1967–1974 | GMC | K15/K1500 Pickup | — |
| 1968–1969 | GMC | G15/G1500 Van | Rally |
| 1968–1972 | GMC | K25/K2500 Suburban | — |
| 1968–1972 | Chevrolet | Chevelle | Malibu |
| 1968–1974 | Chevrolet | G10 Van | Sportvan |
| 1968–1974 | Chevrolet | El Camino | Custom |
| 1968–1974 | Chevrolet | G20 Van | Sportvan |
| 1968–1974 | GMC | G25/G2500 Van | Vandura |
| 1968–1974 | Chevrolet | C20 Suburban | — |
