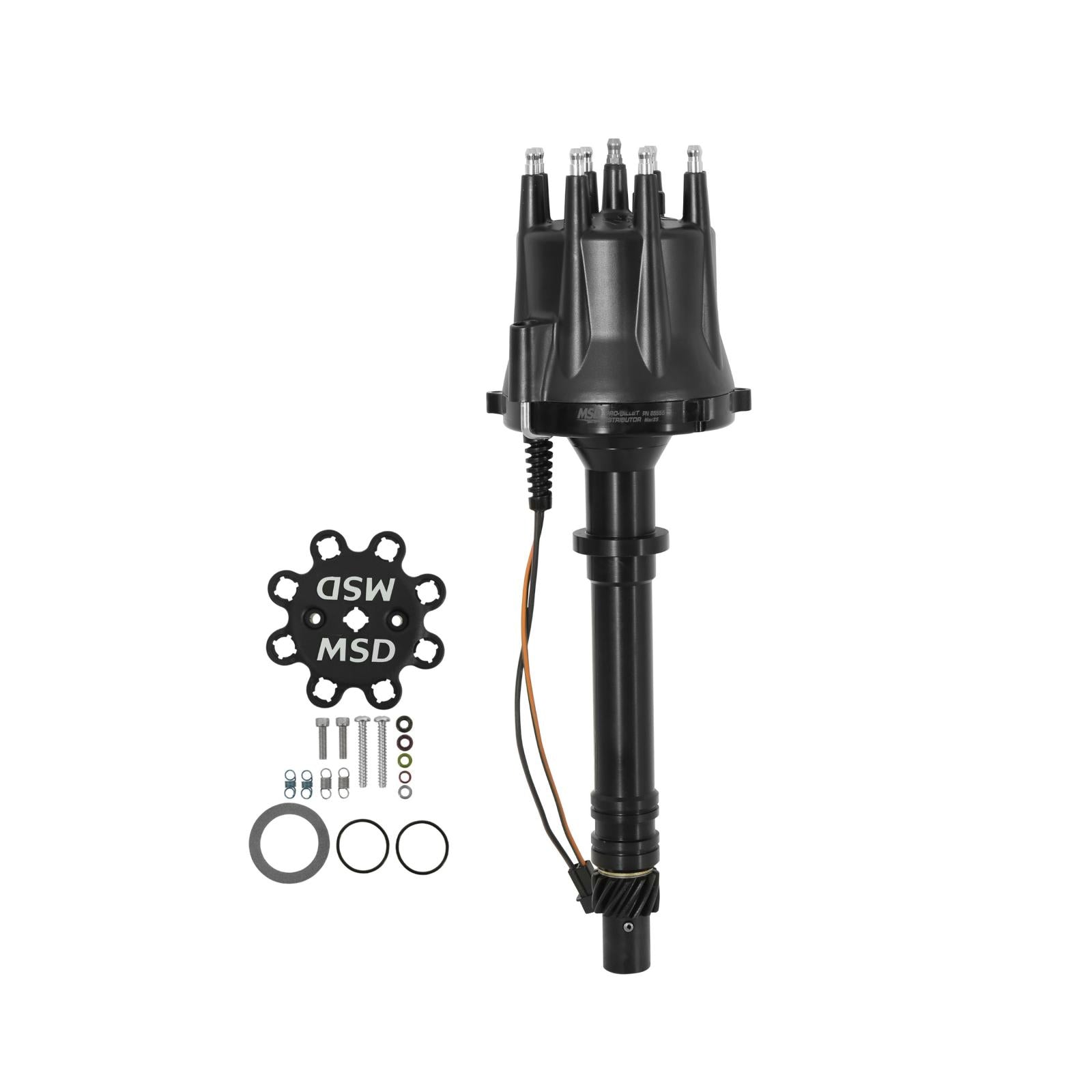

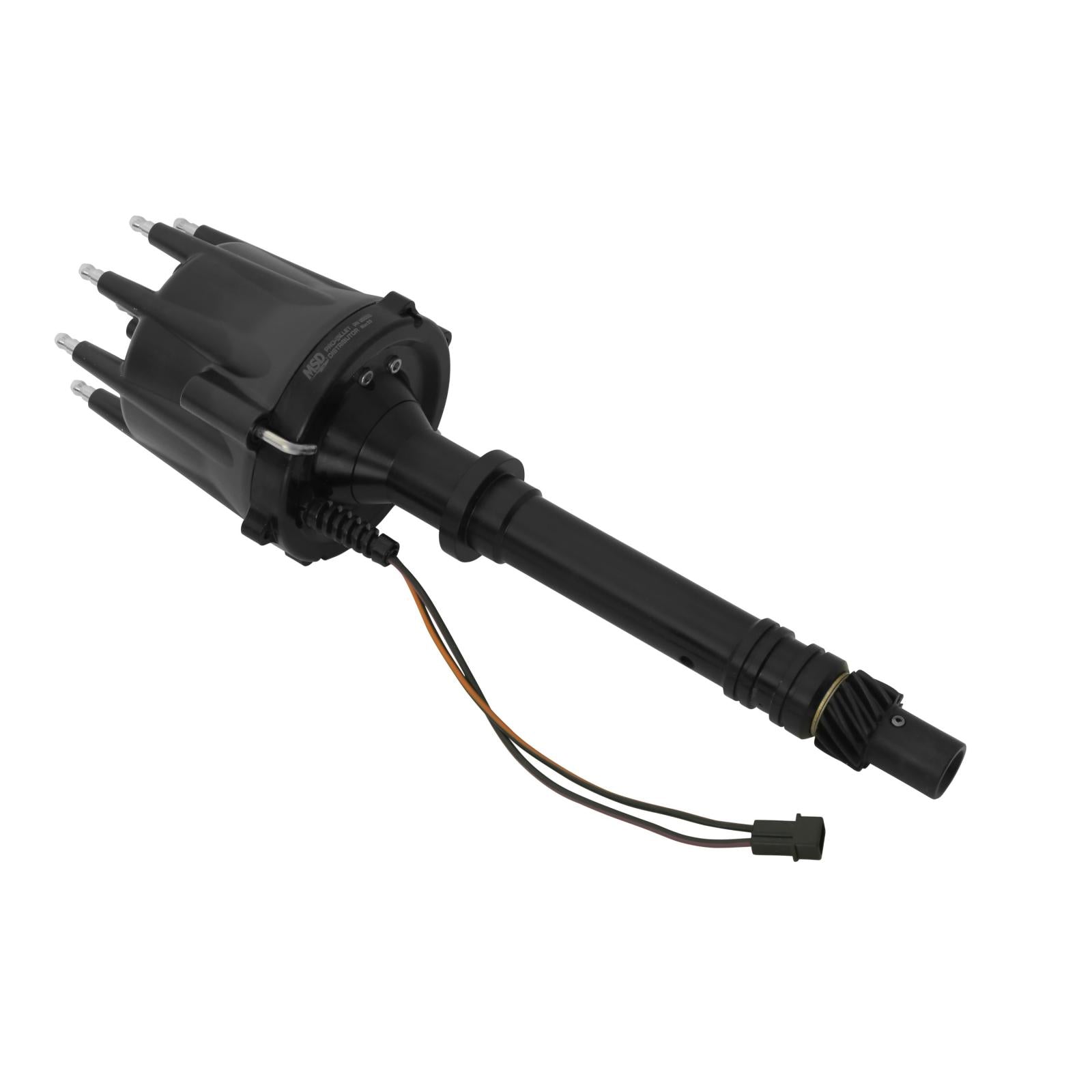

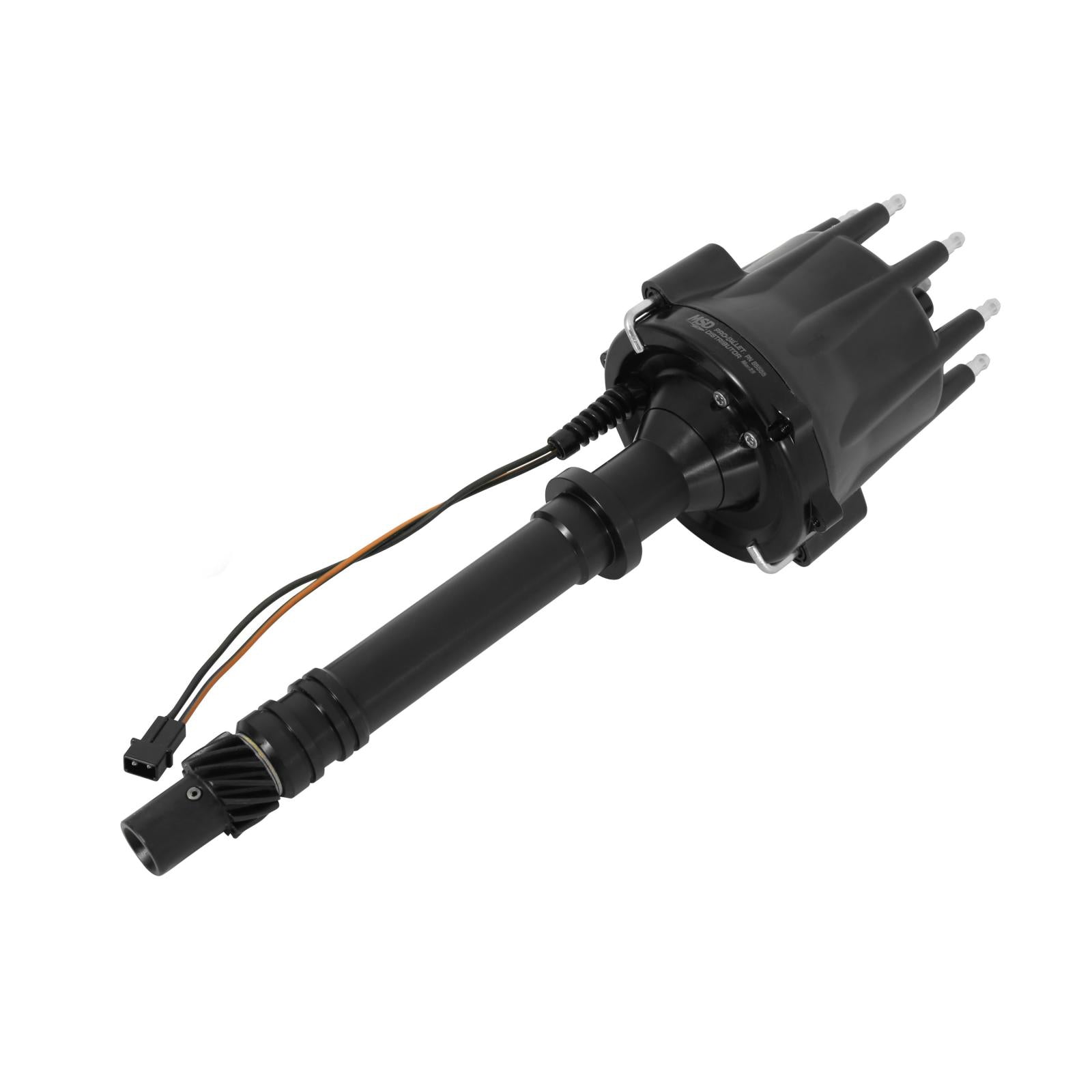

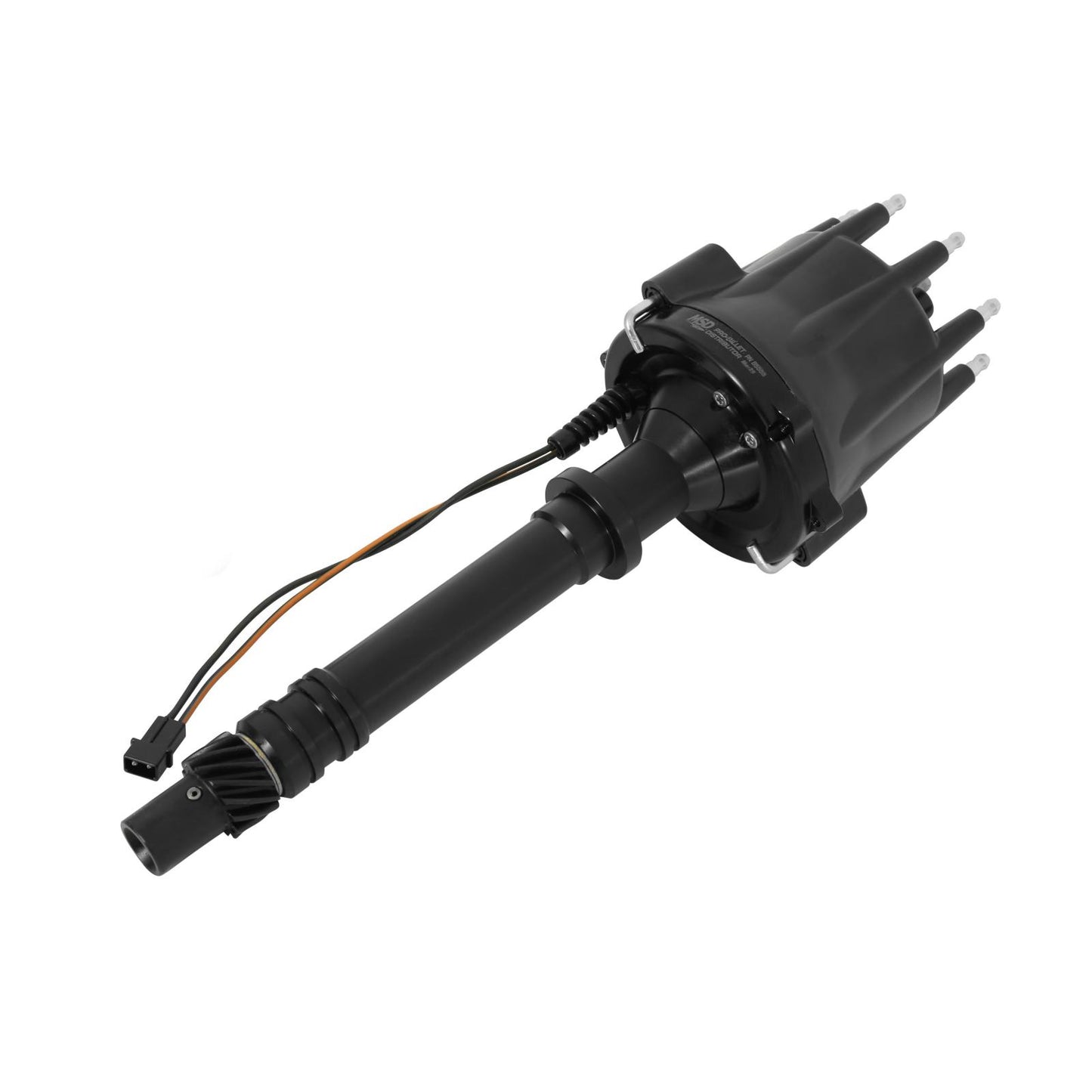

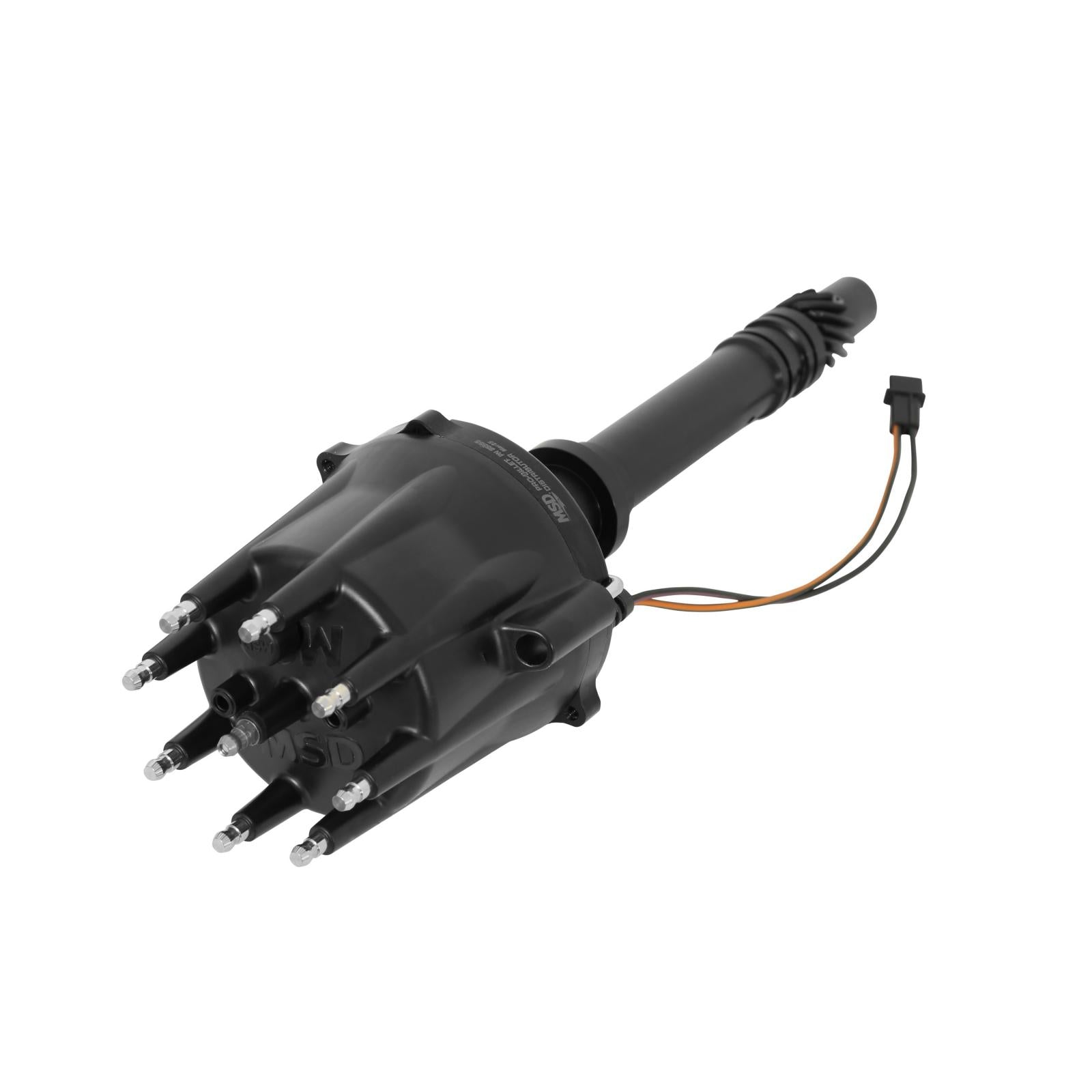

Chevy Black V8 Pro-Billet Distributor This Is Our Most Popular Performance Distributor Must Be Used With An 6, 7 Or 8-Series . Now In Black MSD Ignition
The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500 Inch steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenancefree! Just above the pick-up is MSD's adjustable mechanical advance assembly.
- Different springs and stop bushings are supplied so you can tune an advance curve to match your application. Must be used with an MSD 6, 7 or 8-series ignition.
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Mechanical advance assembly can be locked out for crank trigger systems
- Will not accept a vacuum advance canister
- O-ring seals can be added to modified blocks to improve oil pressure control

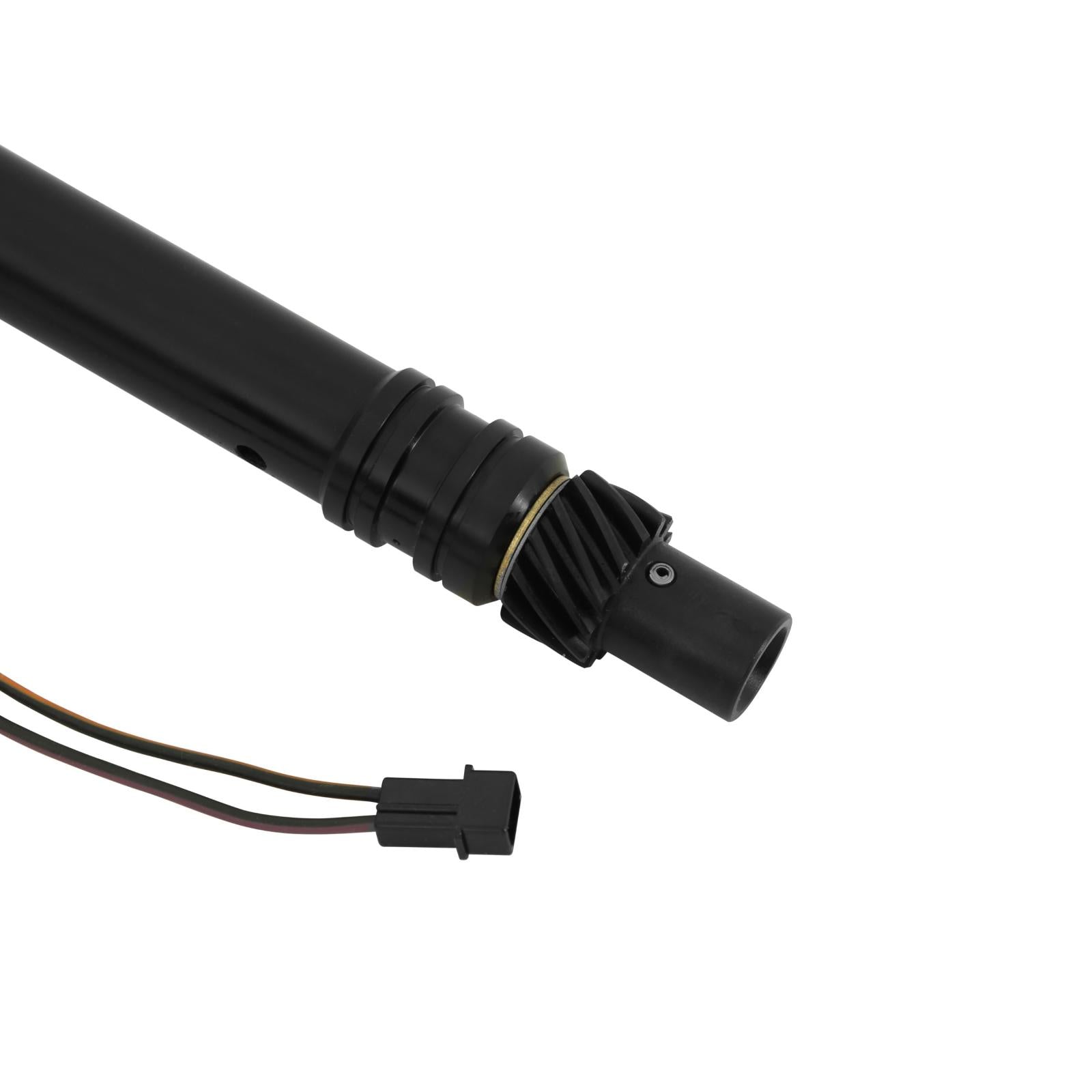

- Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
- Must be used with an MSD Ignition Control
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
- No CARB Exemption Order Number
- Nylon pads ensure smooth operation of the advance weights
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Advance weight pins are staked and tig welded to the plate
- CNC machined billet aluminum housing and billet aluminum base
- Special oil tract improves lubrication to the distributor and cam gear
Details:
- Advance Type: Mechanical
- Cap Color: Black
- Coil Wire Included: No
- Distributor Cap Included: Yes
- Distributor Gear Included: Yes
- Distributor Type: Magnetic Pickup
- Emission Code: 1
- Gear Material: Melonized QPQ Coated
- Housing Color: Black
- Housing Finish: Anodized
- Housing Material: 6061-T6 Billet Aluminum
- Ignition Box Required: Yes
- Ignition Coil Included: No
- Ignition Rotor Included: Yes
- Length: Standard
- Warranty: Manufacturer's Limited 1 Year Warranty
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1955–1956 | Chevrolet | Bel Air | Beauville |
| 1955–1957 | Chevrolet | One-Fifty Series | — |
| 1955–1957 | Chevrolet | Two-Ten Series | — |
| 1955–1957 | Chevrolet | Bel Air | Nomad |
| 1955–1957 | Chevrolet | Truck | 3700 |
| 1955–1957 | Chevrolet | Two-Ten Series | Del Ray |
| 1955–1958 | Chevrolet | Truck | — |
| 1955–1958 | Chevrolet | Truck | 3800 |
| 1955–1958 | Chevrolet | Truck | 3600 |
| 1955–1958 | Chevrolet | Truck | 3500 |
| 1955–1958 | Chevrolet | Truck | 3400 |
| 1955–1958 | Chevrolet | Truck | 3200 |
| 1955–1958 | Chevrolet | Sedan Delivery | — |
| 1955–1959 | Chevrolet | Truck | 3100 |
| 1955–1966 | Chevrolet | Suburban | — |
| 1955–1974 | Chevrolet | Corvette | — |
| 1955–1975 | Chevrolet | Bel Air | — |
| 1957 | Chevrolet | Del Ray | — |
| 1958–1972 | Chevrolet | Biscayne | — |
| 1959–1960 | Chevrolet | El Camino | — |
| 1959–1961 | Chevrolet | Parkwood | — |
| 1959–1961 | Chevrolet | Kingswood | — |
| 1959–1961 | Chevrolet | Brookwood | — |
| 1959–1961 | Chevrolet | Nomad | — |
| 1959–1985 | Chevrolet | Impala | — |
| 1960 | Chevrolet | Truck | — |
| 1960 | Chevrolet | Biscayne | Fleetmaster |
| 1960–1962 | Chevrolet | C40 | — |
| 1960–1974 | Chevrolet | C30 Pickup | — |
| 1960–1974 | Chevrolet | K20 Pickup | — |
| 1960–1974 | Chevrolet | K10 Pickup | — |
| 1960–1974 | Chevrolet | C20 Pickup | — |
| 1960–1974 | Chevrolet | C10 Pickup | — |
| 1961–1962 | Chevrolet | P20 Series | — |
| 1961–1962 | Chevrolet | P10 Series | — |
| 1961–1962 | Chevrolet | P30 Series | — |
| 1963–1967 | Chevrolet | Chevy II | — |
| 1963–1968 | Chevrolet | Chevy II | Nova |
| 1964–1967 | Chevrolet | Impala | SS |
| 1964–1967 | Chevrolet | Chevy II | Nova SS |
| 1964–1972 | Chevrolet | Chevelle | SS |
| 1964–1987 | Chevrolet | El Camino | — |
| 1966 | Chevrolet | C30 Panel | — |
| 1966–1972 | Chevrolet | Caprice | — |
| 1967–1968 | Chevrolet | Chevelle | — |
| 1967–1974 | Chevrolet | C10 Suburban | — |
| 1967–1974 | Chevrolet | K10 Suburban | — |
| 1967–1974 | Chevrolet | G20 Van | — |
| 1967–1974 | Chevrolet | C20 Suburban | — |
| 1967–1980 | Chevrolet | Camaro | — |
| 1978 | Chevrolet | Corvette | Silver Anniversary Edition |
| 1978 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 1978 | GMC | C15 | Street Coupe |
| 1978–1979 | Chevrolet | Nova | Custom |
| 1978–1979 | Chevrolet | Monza | S |
| 1978–1980 | Chevrolet | Malibu | Classic Estate |
| 1978–1980 | Chevrolet | C10 | Big Ten |
| 1978–1981 | Chevrolet | Monte Carlo | Landau |
| 1978–1981 | Chevrolet | G20 | Nomad |
| 1979 | GMC | P1500 | Value Van |
| 1979 | Chevrolet | Caprice | Landau |
| 1979 | Chevrolet | Malibu | Landau |
| 1979 | Chevrolet | Monte Carlo | — |
| 1979 | GMC | P1500 | — |
| 1979 | Chevrolet | Malibu | Police |
| 1979–1980 | Chevrolet | K20 Suburban | Silverado |
| 1979–1980 | GMC | K1500 | Sierra Classic |
| 1979–1980 | Chevrolet | C20 Suburban | Silverado |
| 1979–1980 | GMC | C1500 | Sierra Classic |
| 1979–1980 | GMC | C1500 | High Sierra |
| 1979–1980 | GMC | C1500 Suburban | High Sierra |
| 1979–1980 | GMC | C1500 | Heavy Half |
| 1979–1980 | GMC | K1500 | High Sierra |
| 1979–1980 | GMC | C1500 Suburban | Sierra Classic |
| 1979–1980 | Chevrolet | Malibu | Classic Sport |
| 1979–1980 | GMC | C1500 | — |
| 1979–1980 | GMC | C1500 Suburban | — |
| 1979–1980 | GMC | C1500 Suburban | Sierra Grande |
| 1979–1980 | GMC | K1500 | Sierra Grande |
| 1979–1980 | GMC | C1500 | Sierra Grande |
| 1979–1980 | Chevrolet | Impala | Sport |
| 1979–1980 | GMC | K1500 | — |
| 1979–1981 | Chevrolet | El Camino | Royal Knight |
| 1979–1982 | GMC | K3500 | Sierra Grande |
| 1979–1982 | GMC | C3500 | Sierra Grande |
| 1979–1982 | GMC | C2500 Suburban | Sierra Grande |
| 1979–1982 | GMC | C2500 | Sierra Grande |
| 1979–1986 | Chevrolet | Camaro | Berlinetta |
| 1979–1986 | GMC | K3500 | Sierra Classic |
| 1979–1986 | GMC | C2500 | Sierra Classic |
| 1979–1986 | GMC | C2500 Suburban | Sierra Classic |
| 1979–1986 | GMC | C2500 Suburban | High Sierra |
| 1979–1986 | GMC | K3500 | High Sierra |
| 1979–1986 | GMC | C2500 | High Sierra |
| 1979–1986 | GMC | C3500 | High Sierra |
| 1979–1986 | GMC | C3500 | Sierra Classic |
| 1979–1986 | GMC | C2500 Suburban | — |
| 1979–1986 | GMC | K3500 | — |
| 1979–1986 | GMC | C2500 | — |
| 1979–1986 | GMC | C3500 | — |
| 1992–1994 | Chevrolet | C1500 Suburban | Silverado |
| 1992–1999 | GMC | C2500 Suburban | — |
| 1993 | Chevrolet | C2500 | 400 SS |
| 1993 | Chevrolet | C2500 | Custom |
| 1993–1994 | Chevrolet | Caprice | Classic LS |
| 1994 | Chevrolet | Blazer | Silverado Sport |
| 1994 | Chevrolet | Blazer | — |
| 1994–1995 | Chevrolet | C2500 | WT |
| 1994–1995 | Chevrolet | K2500 | WT |
| 1994–1996 | Chevrolet | Impala | SS |
| 1994–1997 | Chevrolet | K2500 | — |
| 1994–1997 | Chevrolet | C3500 | — |
| 1994–1997 | Chevrolet | K3500 | — |
| 1994–1997 | Chevrolet | C1500 | — |
| 1994–1997 | Chevrolet | K1500 | — |
| 1994–2000 | Chevrolet | C2500 | — |
| 1994–2000 | GMC | K2500 | Sierra SL |
| 1994–2000 | GMC | C3500 | Sierra SL |
| 1994–2000 | GMC | K3500 | Sierra SL |
| 1994–2000 | GMC | K2500 | Sierra SLT |
| 1994–2000 | GMC | C2500 | Sierra SLT |
| 1994–2000 | GMC | C3500 | Sierra SLT |
| 1994–2000 | GMC | K3500 | Sierra SLT |
| 1994–2000 | GMC | C2500 | Sierra SL |
| 1995 | Chevrolet | C2500 | 60th Anniversary |
| 1995 | Chevrolet | C35 | Custom |
| 1995–1996 | Chevrolet | Suburban 1500 | Custom |
| 1995–1996 | Chevrolet | Suburban 1500 | Cheyenne |
| 1995–1997 | Chevrolet | C1500 Suburban | LT |
| 1995–1997 | Chevrolet | K1500 Suburban | LT |
| 1995–1997 | Chevrolet | K2500 Suburban | LT |
| 1995–1997 | Chevrolet | C2500 Suburban | LT |
| 1995–1998 | Chevrolet | C35 | Tipico |
| 1995–1999 | Chevrolet | C35 | Cheyenne |
| 1995–1999 | Chevrolet | C2500 | 400 SS |
| 1995–1999 | Chevrolet | C2500 | Custom |
| 1995–1999 | Chevrolet | C2500 Suburban | LS |
| 1995–1999 | GMC | C2500 Suburban | SLT |
| 1995–1999 | Chevrolet | Tahoe | LT |
| 1995–1999 | GMC | K2500 Suburban | SLT |
| 1995–1999 | Chevrolet | Tahoe | LS |
| 1995–1999 | Chevrolet | K1500 Suburban | LS |
| 1995–1999 | Chevrolet | K2500 Suburban | LS |
| 1995–1999 | Chevrolet | C1500 Suburban | LS |
| 1995–1999 | Chevrolet | Tahoe | — |
| 1996–2000 | GMC | Savana 3500 | — |
| 1996–2002 | Chevrolet | Express 3500 | — |
| 1996–2002 | Chevrolet | Express 1500 | — |
| 1996–2002 | Chevrolet | Express 2500 | — |
| 1996–2002 | Chevrolet | Express 2500 | LS |
