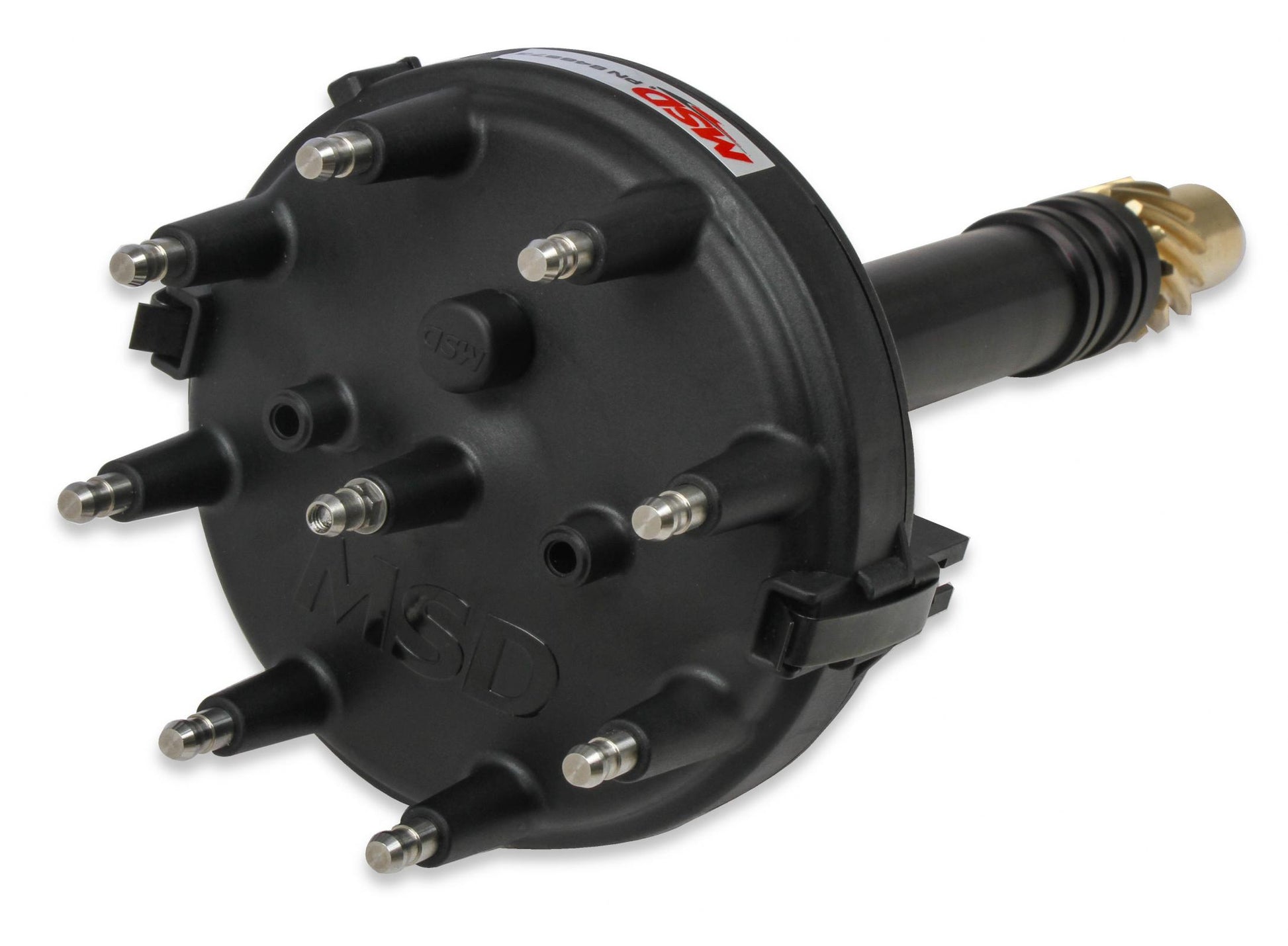

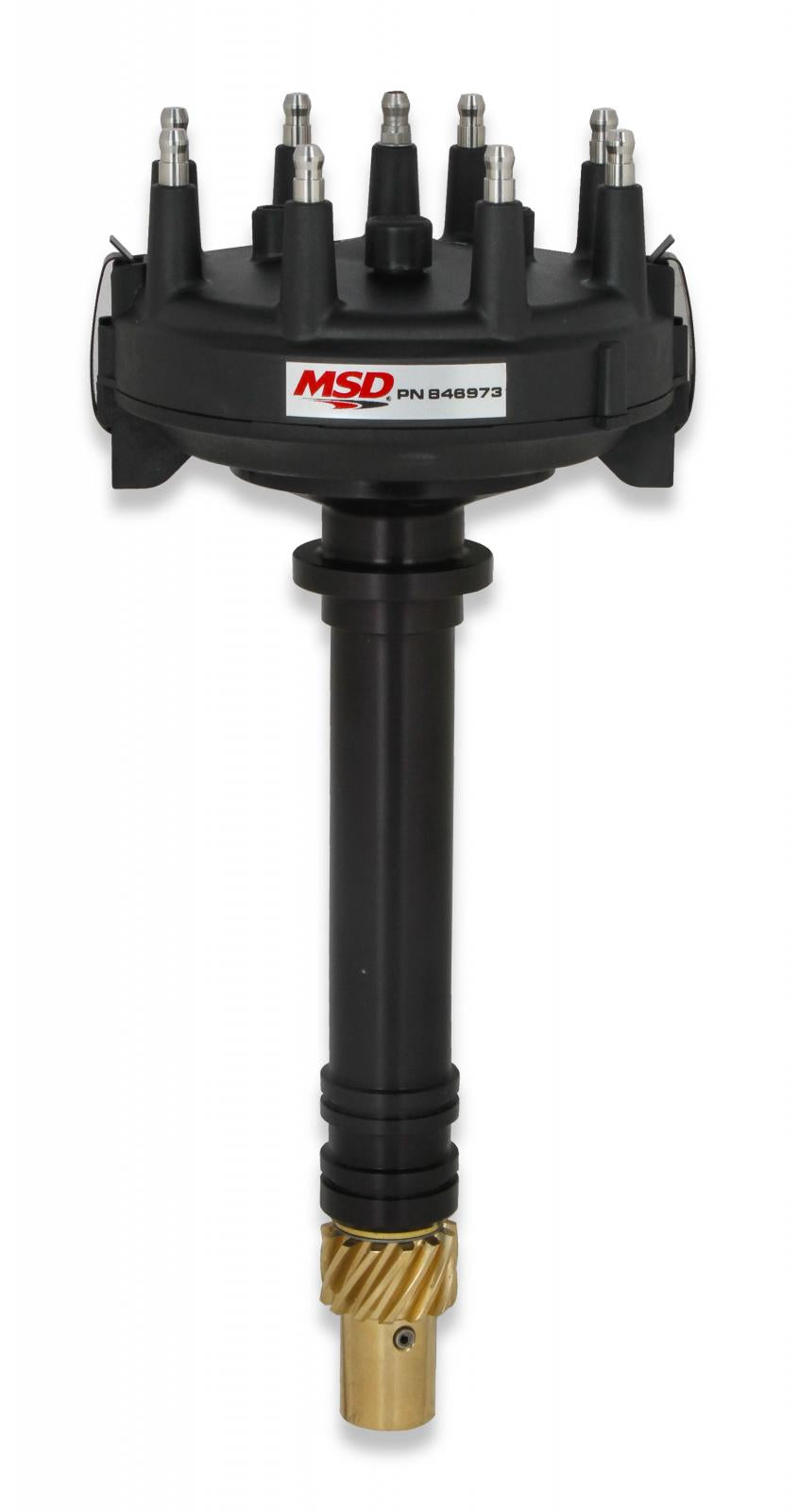

Black Chevy Low-Profile Crank Trigger Distributor Black Low-Profile Chevy Racing Distributor MSD Ignition
The unique design of these distributors fit tight intake systems while still transferring the high voltage of the MSD racing ignition to the spark plugs.
- The high voltage carrying capabilities are the result of several features which have been designed into these low-profile distributors. This includes a large diameter cap with wide spaced terminals and an injection molded Rynite rotor with thick vanes to stir up the air inside the cap. The high dielectric Rynite base also prevents arcing to the billet housing
- Must be used with an MSD Crank Trigger and MSD Ignition Control

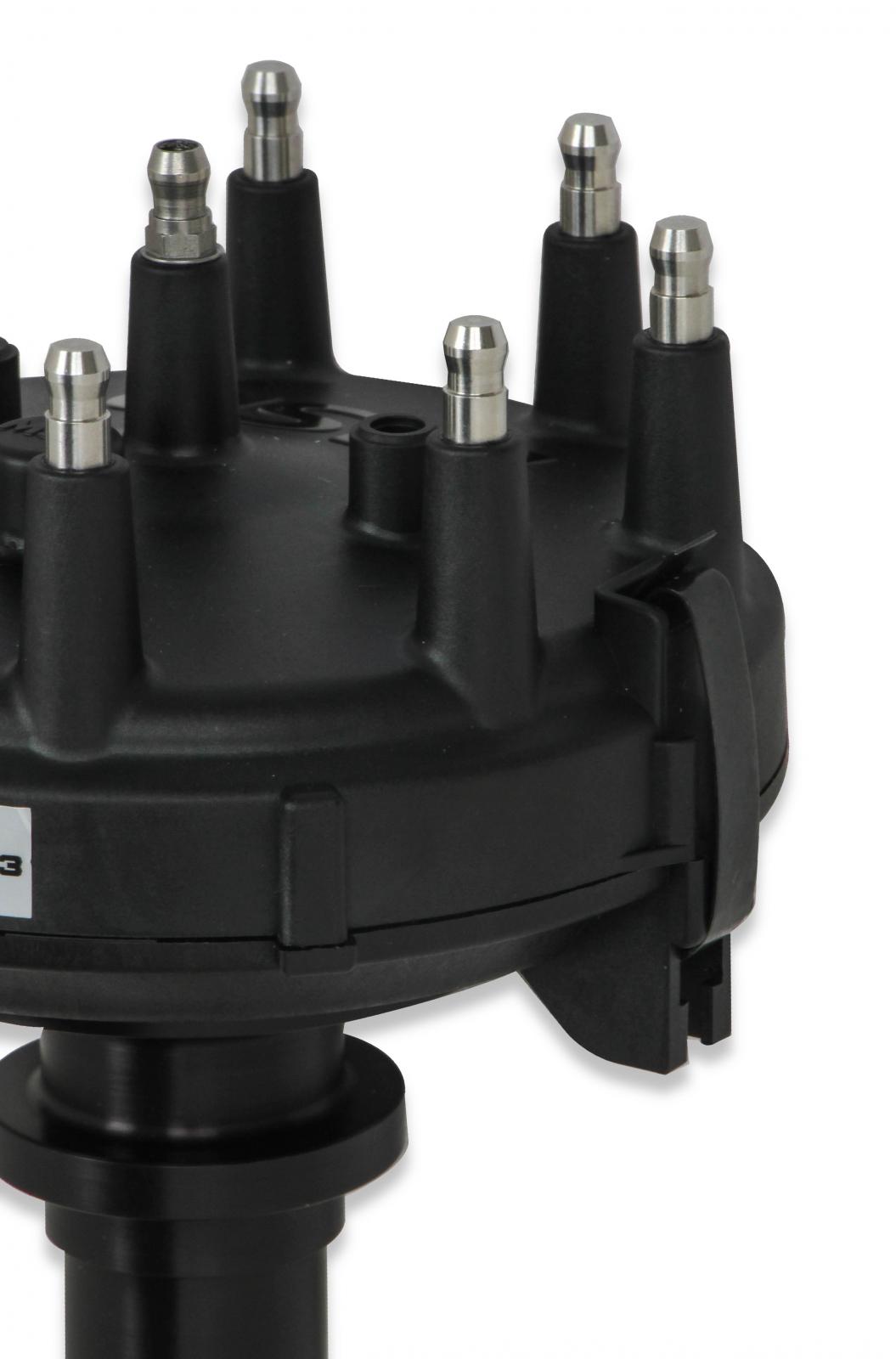

- Supplied with large diameter HEI style distributor cap and rotor
- Shaft is guided by a sealed ball bearing and an extra long sintered bushing

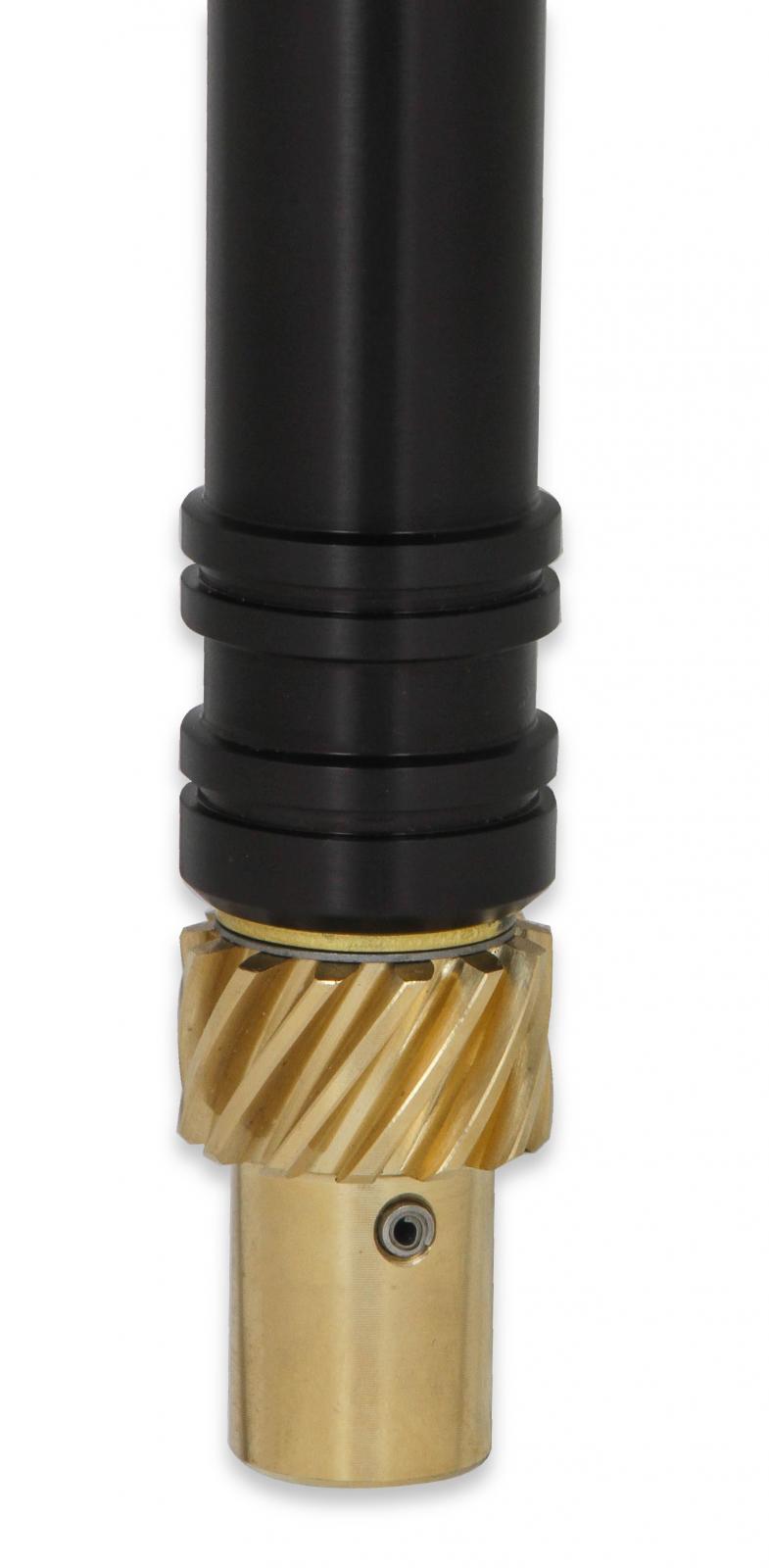

- Supplied with bronze gear
- Black anodized, CNC billet aluminum housing provides great strength and long lasting good looks
- Designed to fit low in the block to clear firewall and intake combinations
- Oversized polished steel shaft with a QPQ coating for friction reduction
- Special oil tract improves lubrication to the distributor and cam gear
- O-ring seals can be added to modified blocks to improve oil pressure control
Details:
- Distributor Cap Included: Yes
- Distributor Type: Crank Trigger
- Emission Code: 4
- Engine: Chevy Small and Big Block
- Gear: Bronze
- Gear Material: Bronze
- Ignition Box Required: Yes
- Ignition Coil Included: No
- Ignition Rotor Included: Yes
- Quantity: 1
- Warranty: Manufacturer's Limited 1 Year Warranty
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1955–1956 | Chevrolet | Bel Air | Beauville |
| 1955–1957 | Chevrolet | Two-Ten Series | — |
| 1955–1957 | Chevrolet | One-Fifty Series | — |
| 1955–1957 | Chevrolet | Bel Air | Nomad |
| 1955–1957 | Chevrolet | Two-Ten Series | Del Ray |
| 1955–1958 | Chevrolet | Truck | — |
| 1955–1972 | Chevrolet | Corvette | — |
| 1955–1974 | Chevrolet | Bel Air | — |
| 1958–1972 | Chevrolet | Biscayne | — |
| 1959–1960 | Chevrolet | El Camino | — |
| 1959–1974 | Chevrolet | Impala | — |
| 1960 | Chevrolet | Biscayne | Fleetmaster |
| 1960 | Chevrolet | Truck | — |
| 1961–1966 | Chevrolet | Suburban | — |
| 1961–1974 | Chevrolet | K10 Pickup | — |
| 1961–1974 | Chevrolet | K20 Pickup | — |
| 1961–1974 | Chevrolet | C20 Pickup | — |
| 1961–1974 | Chevrolet | C10 Pickup | — |
| 1961–1974 | Chevrolet | C30 Pickup | — |
| 1963–1967 | Chevrolet | Chevy II | — |
| 1963–1968 | Chevrolet | Chevy II | Nova |
| 1964–1967 | Chevrolet | Impala | SS |
| 1964–1967 | Chevrolet | Chevy II | Nova SS |
| 1964–1974 | Chevrolet | El Camino | — |
| 1965 | Chevrolet | Chevelle | SS |
| 1966–1972 | Chevrolet | Caprice | — |
| 1967 | Chevrolet | Chevelle | Deluxe |
| 1967 | GMC | G15/G1500 Van | — |
| 1967 | GMC | G25/G2500 Van | — |
| 1967 | Chevrolet | Malibu | — |
| 1967–1968 | Chevrolet | Chevelle | 300 |
| 1967–1968 | Chevrolet | Chevelle | — |
| 1967–1969 | Chevrolet | Chevelle | 300 Deluxe |
| 1967–1972 | Chevrolet | Chevelle | Concours |
| 1967–1972 | Chevrolet | Camaro | SS |
| 1967–1973 | Chevrolet | Camaro | RS |
| 1967–1974 | Chevrolet | Camaro | — |
| 1967–1974 | Chevrolet | C20 Suburban | — |
| 1967–1974 | GMC | C35/C3500 Pickup | — |
| 1967–1974 | GMC | K25/K2500 Pickup | — |
| 1967–1974 | Chevrolet | K10 Suburban | — |
| 1967–1974 | GMC | C15/C1500 Suburban | — |
| 1967–1974 | GMC | K15/K1500 Pickup | — |
| 1967–1974 | GMC | C15/C1500 Pickup | — |
| 1967–1974 | Chevrolet | K20 Suburban | — |
| 1967–1974 | Chevrolet | C10 Suburban | — |
| 1967–1974 | GMC | C25/C2500 Suburban | — |
| 1967–1974 | GMC | C25/C2500 Pickup | — |
| 1968–1969 | GMC | G15/G1500 Van | Rally |
| 1968–1974 | GMC | G25/G2500 Van | Vandura |
