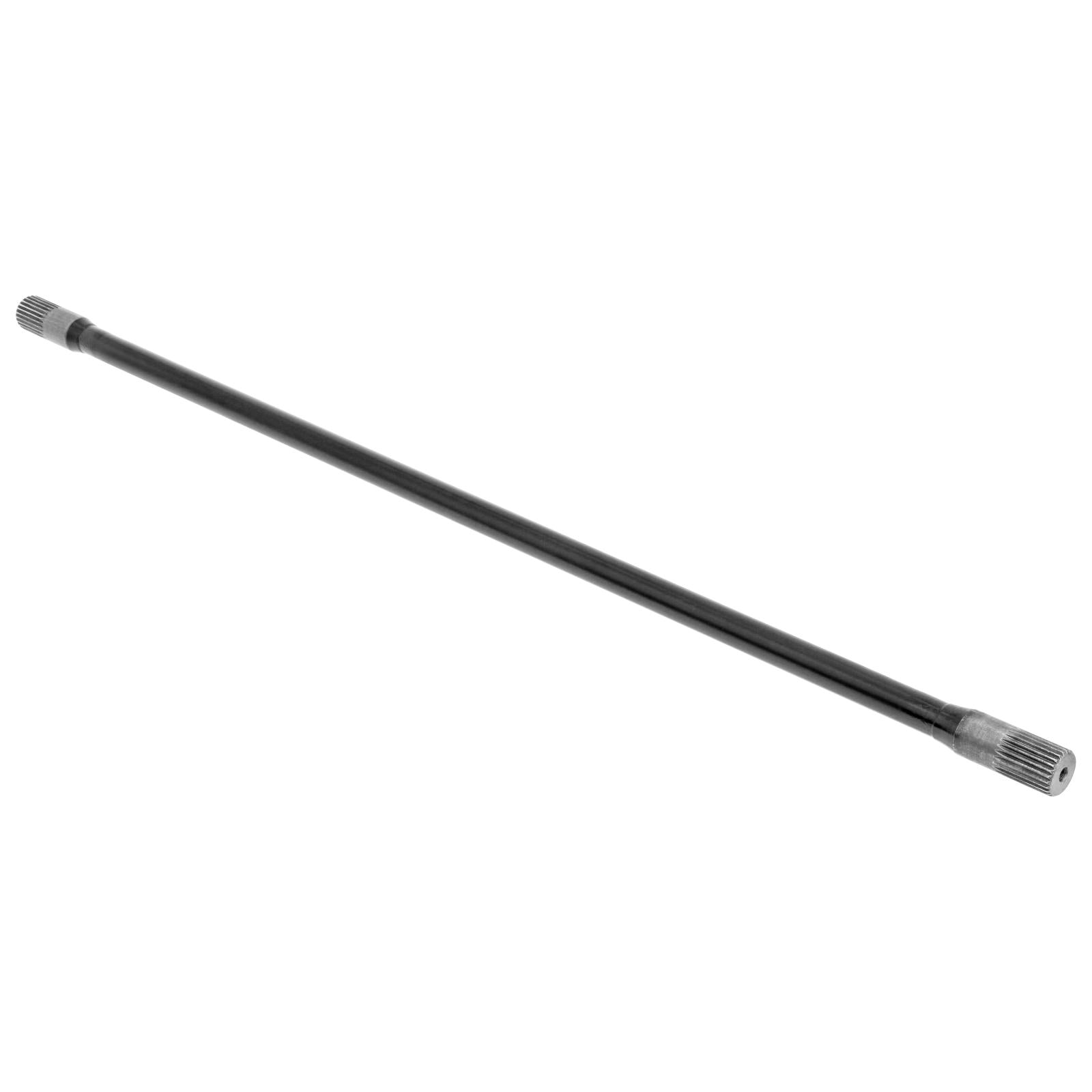

Antirock Sway Bar 40 Inch Long x .770 Inch Dia. x 25 Spline RockJock 4x4

RockJock's Antirock Sway Bar Torsion Bars are available in various lengths and diameters to accommodate bolt-on and custom vehicle builds and various applications from crawler to overlander.

For ultimate strength and durability, Antirock bars are forged and heat treated 4340 chromoly, just like you would find in professional off-road competition sway bars.

This specific bar is 40 in. long from tip to tip, standard 1 in. OD at the ends with 25 splines and .770 in. diameter in the center.

Kit Fits:

• Universal Application

Kit Includes:

• (1) Sway Bar Torsion Bar (40 in. long x 1 in. x 25 spline)

Component Specs:

• Length=40 in. (tip to tip)
• Spline Count=25
• OD (of splines and bushing surface)=1.000 in.
• OD (of center of bar)=.770 in.
• Threads (in ends of bar)=5/16 in.-24 x 1 1/8 in. deep
• Finish=semi-gloss black powder coat (bushing surface and splines masked)

Notes:

• Any 25 spline arms we offer will fit this bar
