Adjustable Billet By-Pass Regulator 3/8 NPT Kit Adjustable Billet By-Pass Return Style Fuel Pressure Regulator 3/8 NPT Kit with Fuel Pressure Gauge and Adapter Fittings Boost Reference 11 Holley

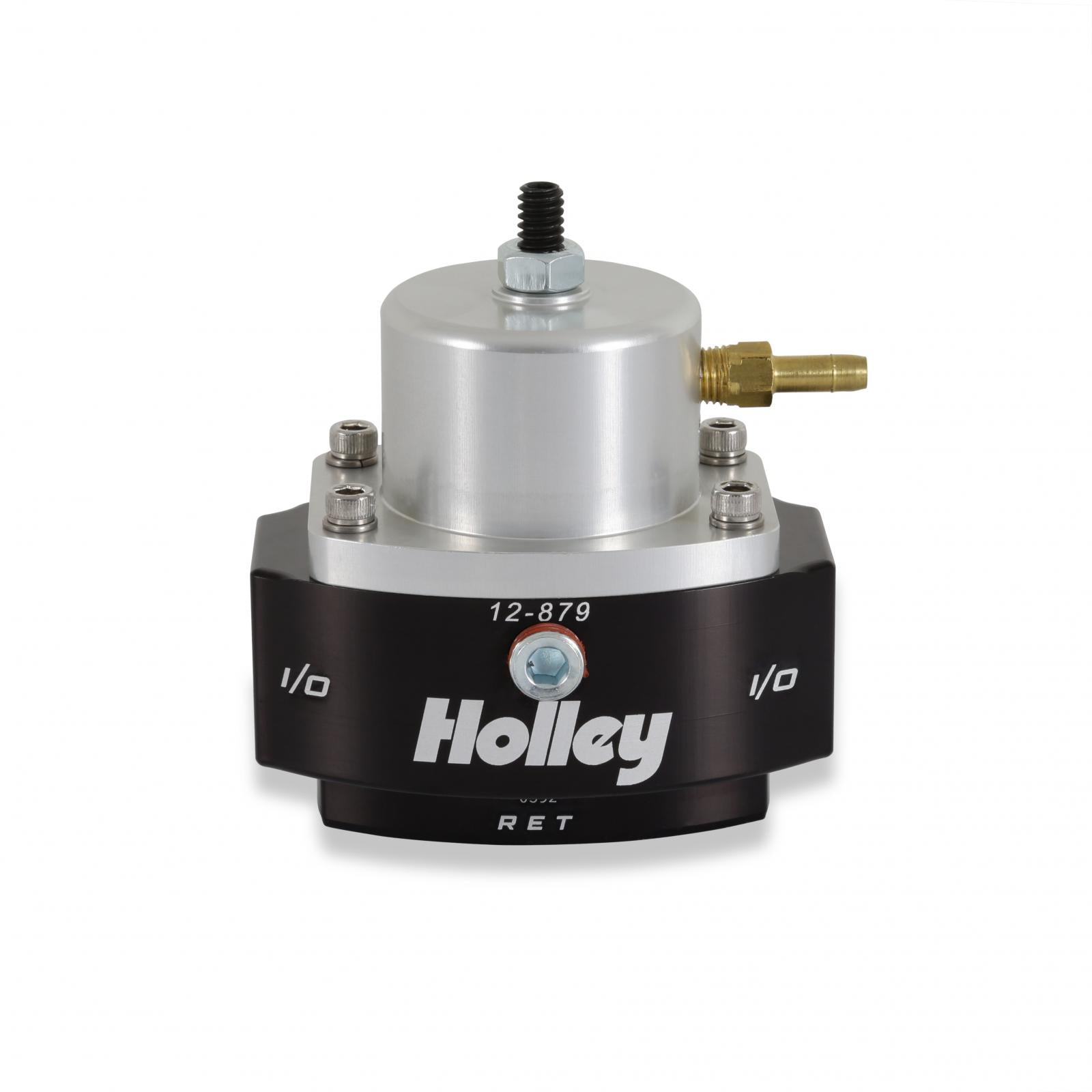

Holley Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley. They are precision machined from 6061-T6 billet aluminum for strength and durability.

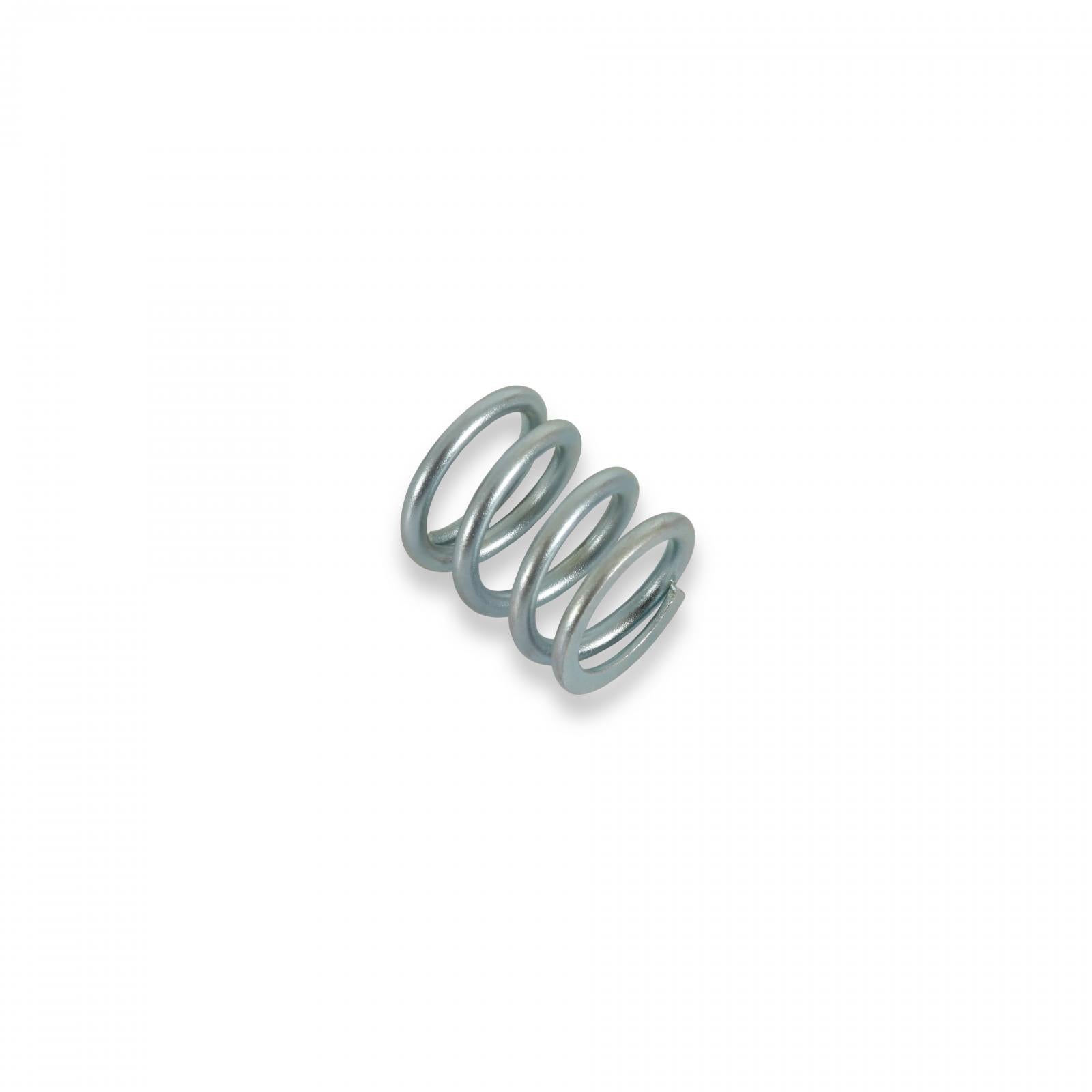

These regulators are adjustable from 4-65 psi and will handle both carbureted and EFI applications. A second pressure spring is included allowing you to increase the fuel pressure range up to 65 psi for EFI systems.
They have 3/8 NPT port sizes to adapt to your new or existing fuel lines. So, if you are currently running a carbureted system but plan to upgrade to EFI in the future, these regulators will have you covered either way.

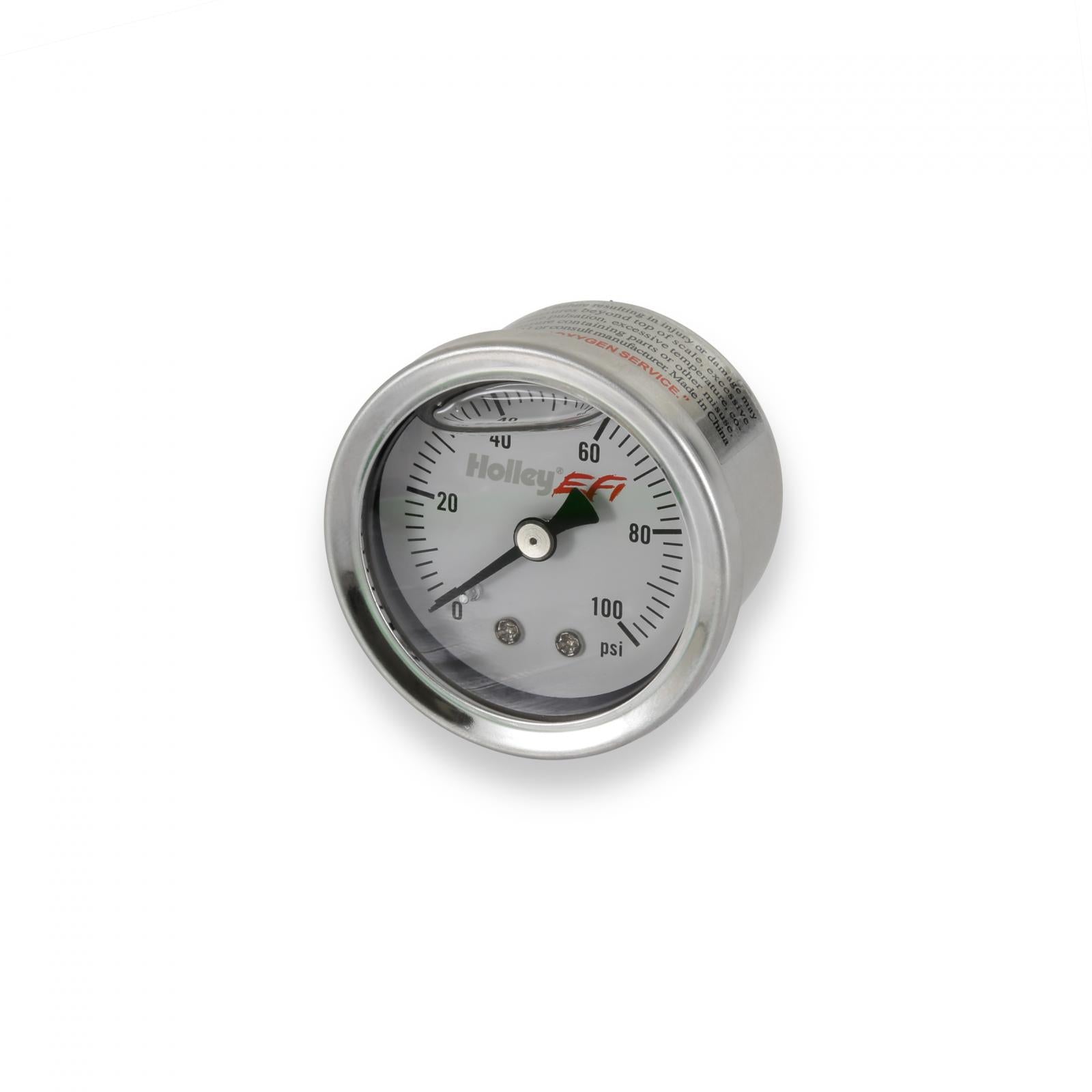

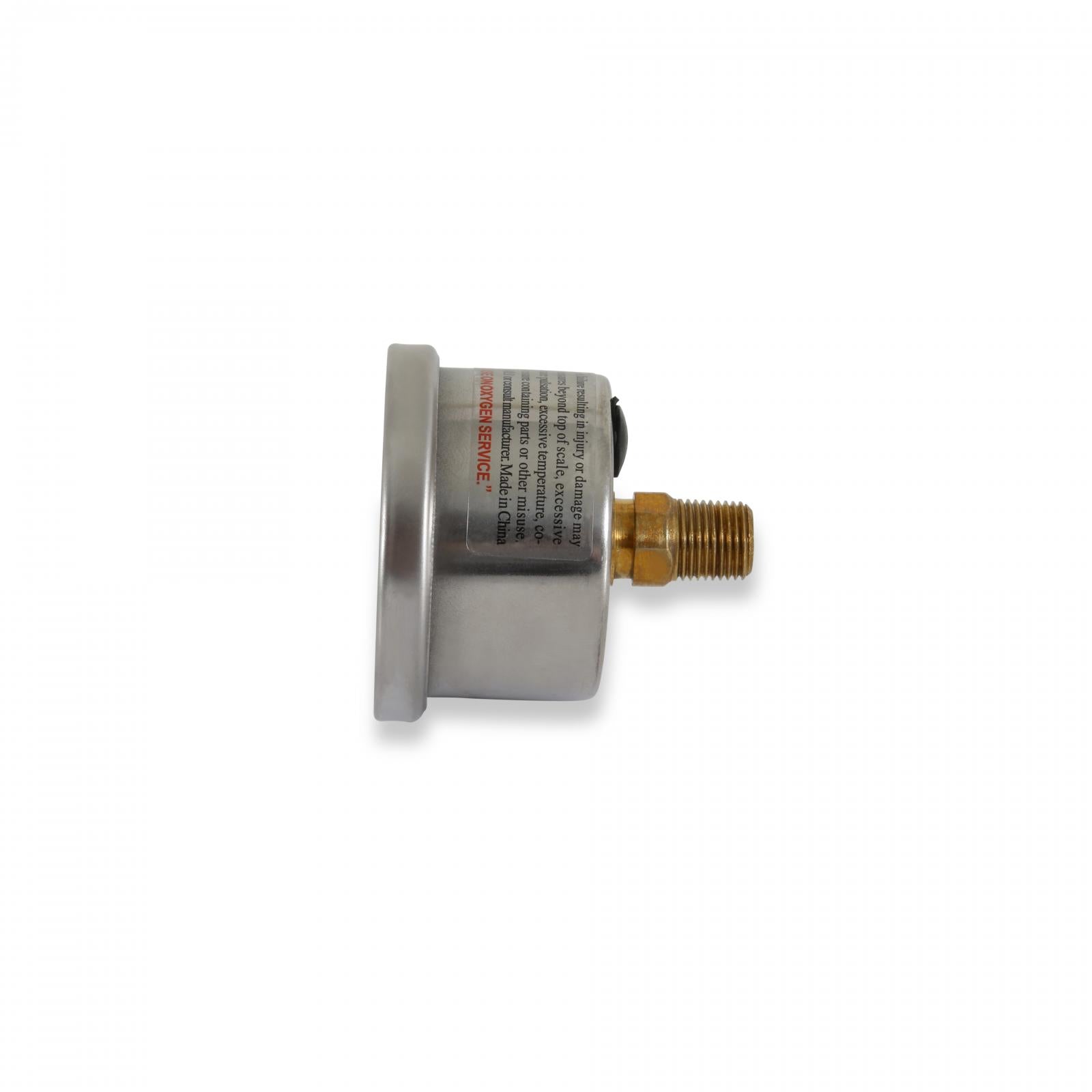

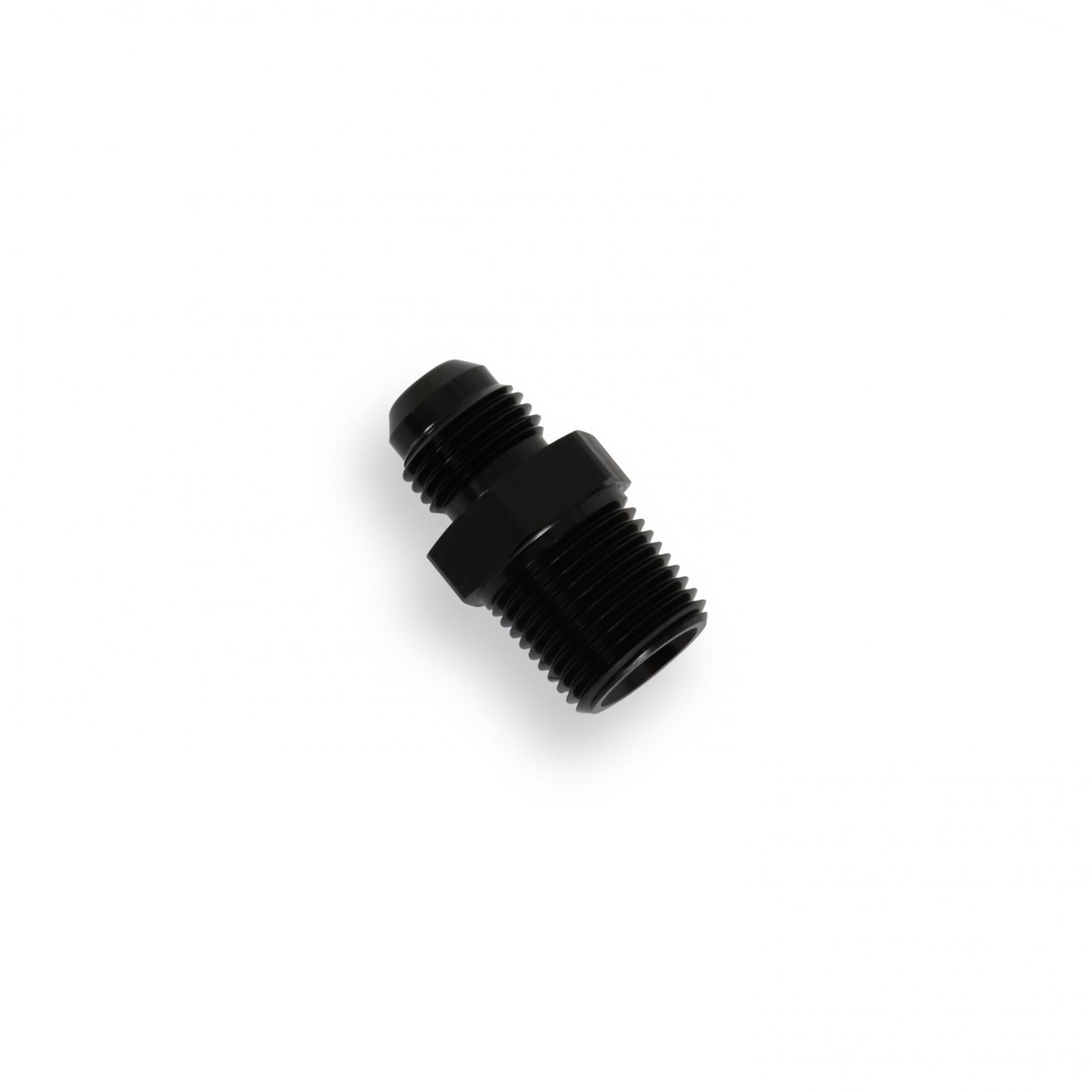

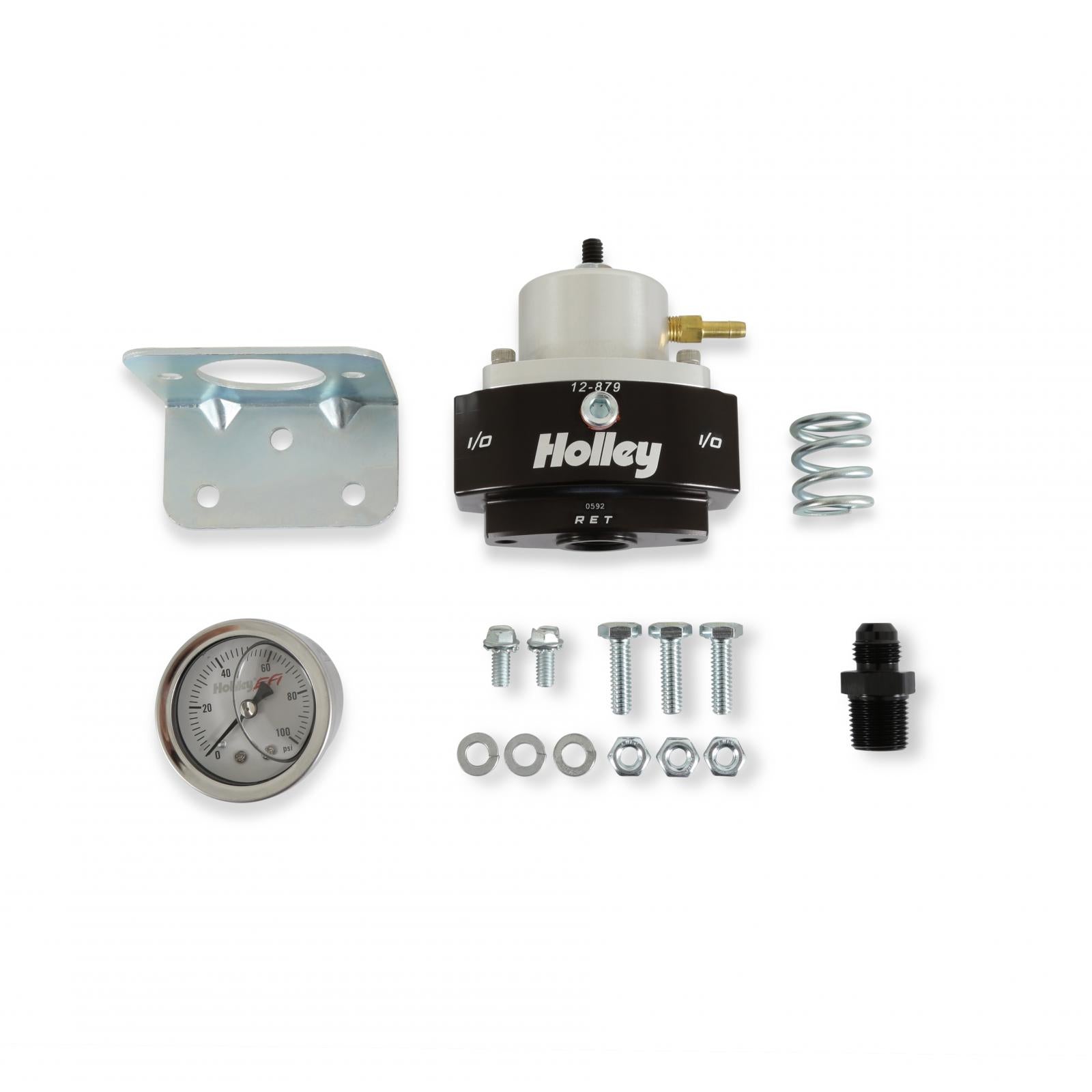

These kits include a fuel pressure gauge and adapter fittings to get you started on your installation.
Adjustable from 4-65 psi for precise fuel pressure adjustments Constructed of billet aluminum with a black anodized base and a clear anodized top for good looks Used in systems with a return line back to the tank (1) 3/8 inch NPT Inlet
Features and Benefits:
- (1) 3/8 inch NPT Outlet
- and (1) 3/8 inch NPT return Includes fitting for manifold reference Includes an 1/8 NPT gauge port Boost Reference - 1:1 The 4-15 psi carbureted spring comes installed in the regulator
Details:
- Adjustable: Yes
- Color: Black
- Fuel Type: Gasoline
- Fuel System: EFI/Carb
- Gauge Included: Yes
- Gauge Port Included: Yes
- Grade Type: Performance
- Inlet Gender: Female
- Inlet Port Diameter: 3/8 Inch
- Inlet Port Quantity: 1.0
- Inlet Size: 3/8 Inch NPT
- Inlet Type: NPT
- Material: Aluminum
- Maximum Pressure: 65 Pounds per Square Inch
- Minimum Pressure: 4 Pounds per Square Inch
- Mounting Bracket Included: Yes
- Mounting Type: Inline
- Outlet Gender: Female
- Outlet Port Diameter: 3/8 Inch
- Outlet Port Quantity: 2.0
- Outlet Size: 3/8 Inch NPT
- Outlet Type: NPT
- Port Quantity: 2.0
- Rebuildable: Yes
- Return Size: 3/8 inch NPT
- Style: Bypass
- Vacuum Port Quantity: 1.0
- Warranty: Manufacturer's Limited 90 Day Warranty
