Zone Offroad 1999-2004 Ford Super Duty 4wd 6 Inch Suspension System. The newest offering for the leaf-sprung Super Duties is built around massive 9-leaf full height front leaf springs.
The leaf springs thin, multi-leaf design provides a great ride while maintaining heavy-duty nature of the Super Duty. By making the springs out of 9 leafs we are able to keep the spring arch low which improves the ride.
In addition, when the springs get loaded down, all of the leafs engage in a progressive nature and hold up to the added weight without sagging. To make the steering function as well as the springs, a dropped pitman arm and track bar relocation bracket are included.
Bump stop relocation brackets keep the suspension from compressing too far and Nitro shocks keep the ride smooth and controlled. For the 2000-2004 models, the factory sway bar is retained, utilizing the factory mounts ability to be Inchflipped Inch at the frame.
For 1999 models, new sway bar links are provided - which accounts for the slightly higher kit price. In the rear, full-height 5 Inch blocks replace the factory components and add-a-leafs help get the last little bit of lift needed for a level ride stance. Quick Specs:
Front Lift Height 6 Inch
Rear Lift Height 4 Inch
Material Cast Iron
Front Lift Method Leaf Springs
Rear Lift Method Add-a-Leaf & Block
Lift Type Lift Kit
Wheel Size 16 x 10
Back Spacing 4 Inch
Max Tire Size 3 Inch x 12.5
Finish Powdercoat
Cutting Required No
Rear Lift Height & Method 4 Inch Rear Lift Blocks
Accommodates Factory Wheels See Notes
Welding Required No

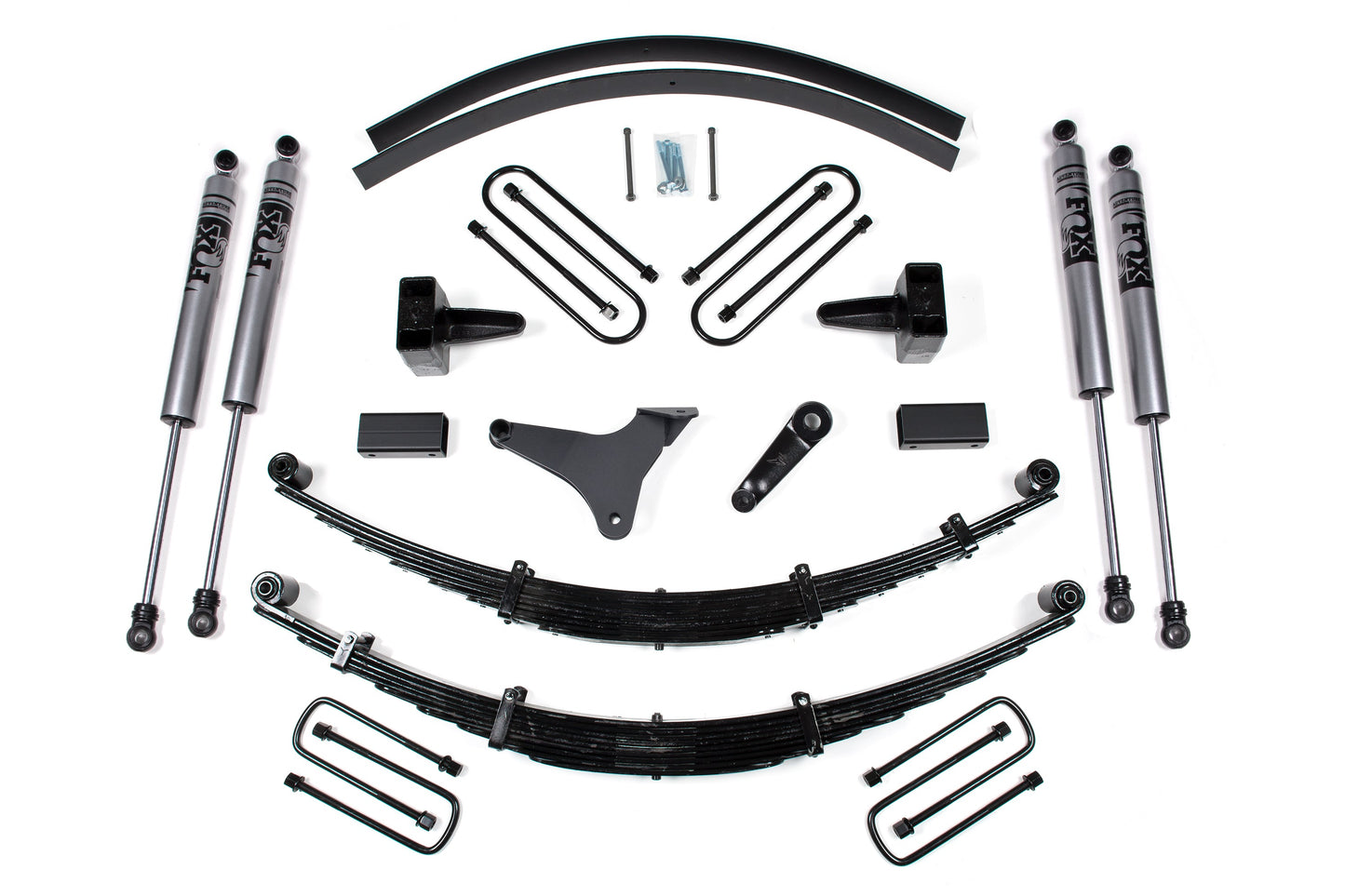

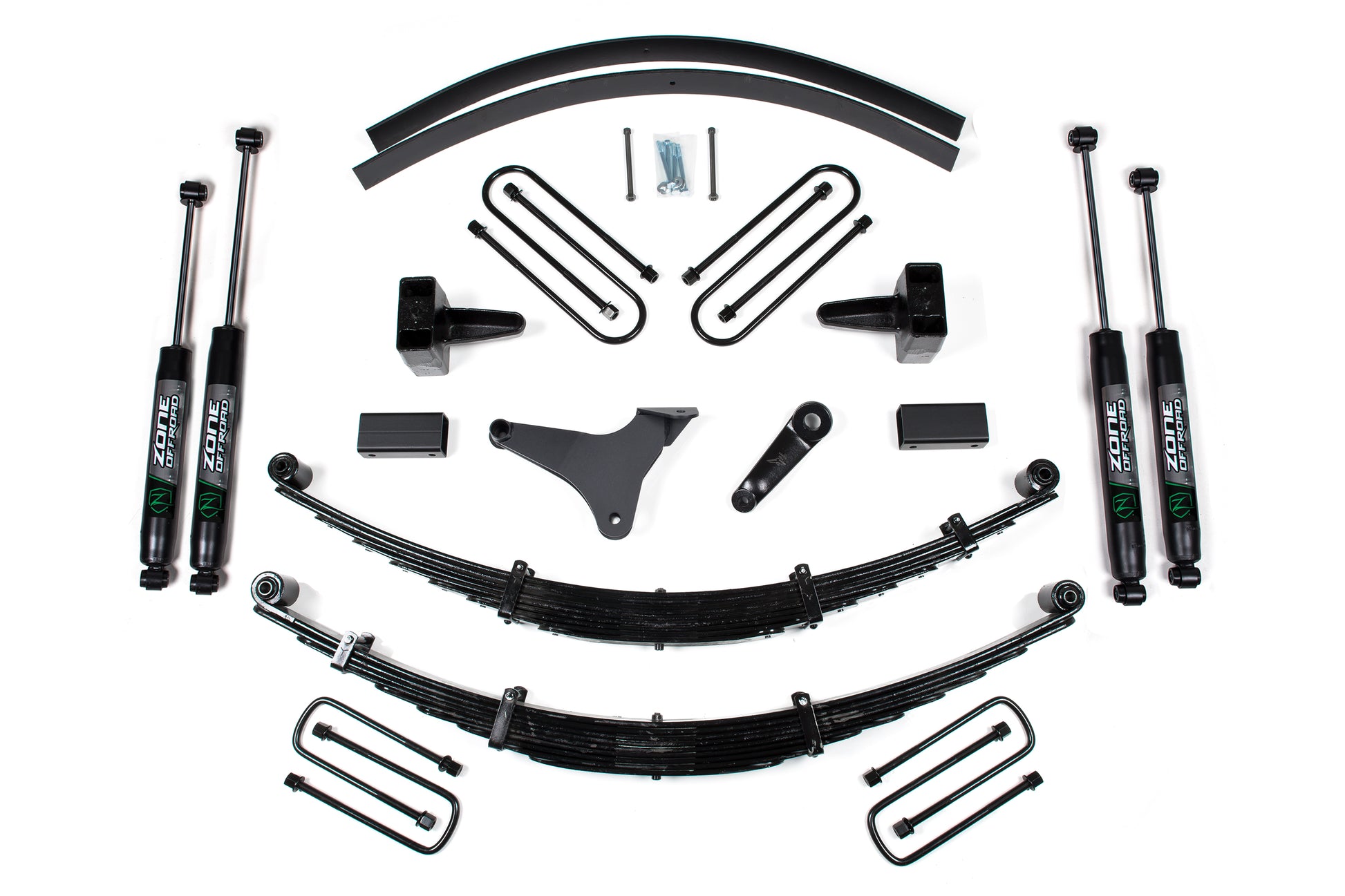

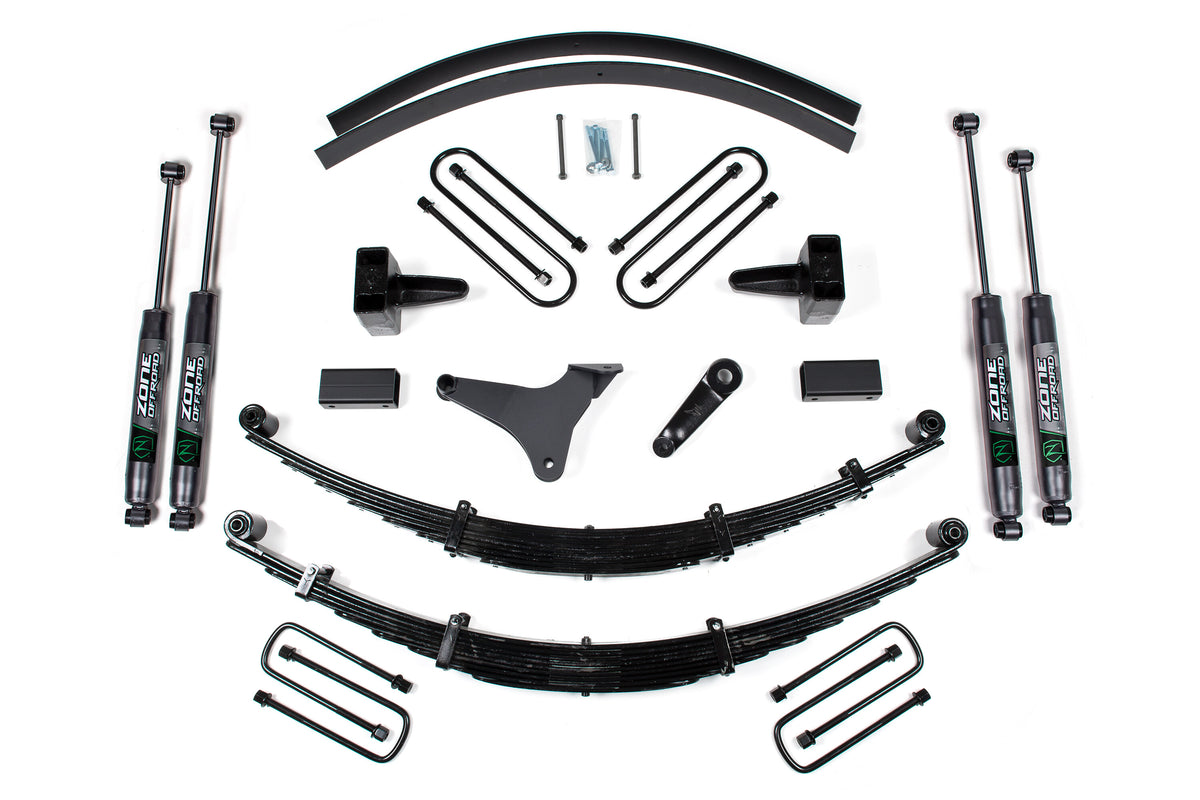

In The Box:
Add-A-Leaf Kit - Rear
Leaf Springs - Front
Rear Lift Blocks
Track Bar Relocation Bracket
Pitman Arm
Features:
9-leaf progressive rate leaf springs
Steering correction for improved handling
Levels stance and allows for up to 3 Inch Inch tires
Great ride quality on/off-road
100 percent Bolt-On
Kit Components:
ZON7760 Nitro- 29.80 x 17.60 x 2-3/8 EB1/EB1 2 711745595767
ZON7763 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595798
ZONF0601 6 Inch Ford Spring 2 711745598997
ZONF1414 05-09 Ford F250/350 4 Inch Rear Box Kit 1 711745599222
