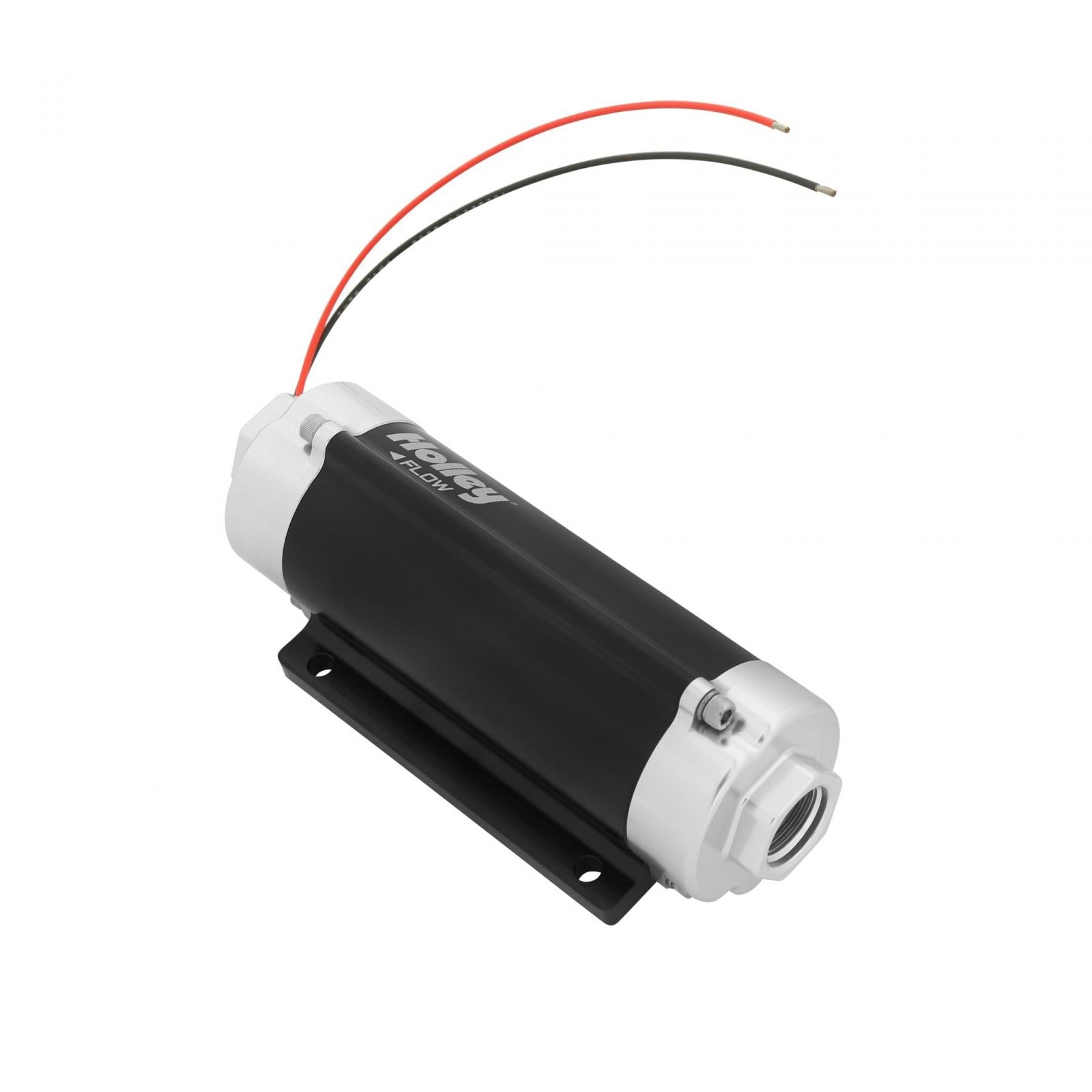

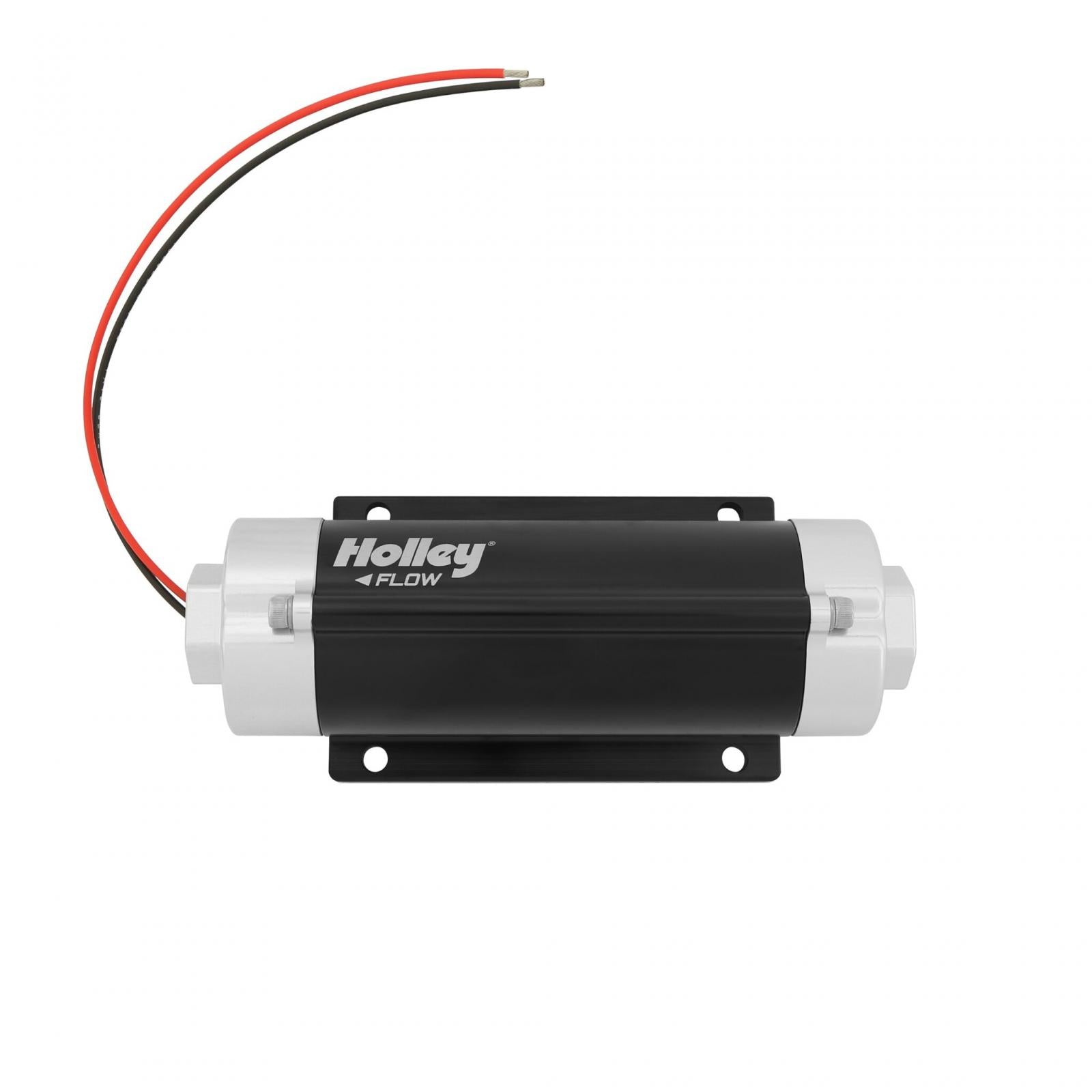

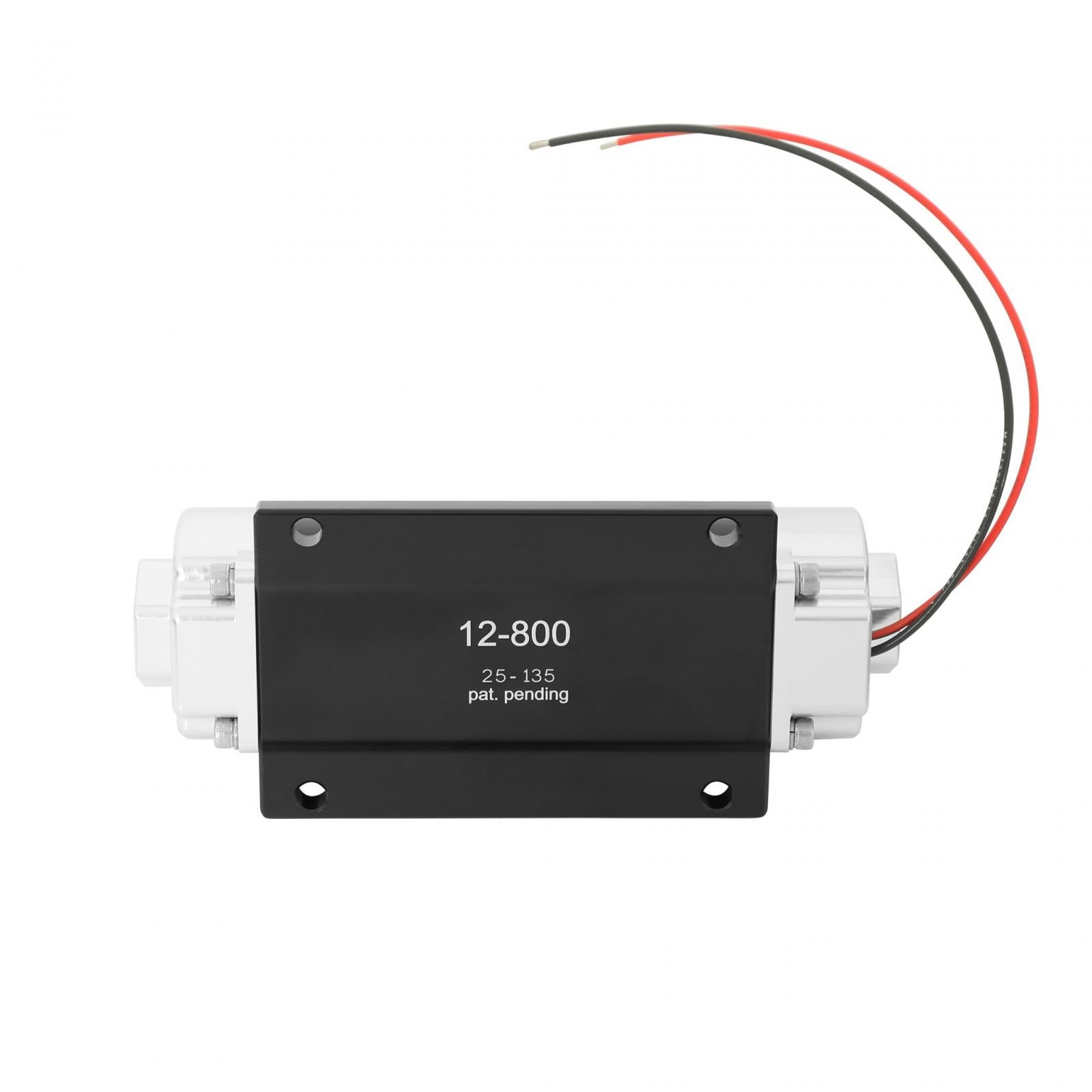

80 GPH HP In-Line Fuel Pump Street/strip CARB or EFI Applications Supports Up to 800 EFI or 900 CARB HP Compatible with Pump or Race Gas Holley
Holley's Hptm In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck or any engine needing fuel! The Hptm fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost effective, attractive package.
The 12-800 features improved hot fuel handling capabilities and was designed to greatly reduce the negative effects of heated fuel now common with many of today's pump gas blends. It is compatible for use with pump gas or race gas.
If you are using E-85 or diesel, no need to worry, Holley has still got you covered with the 12-890 fuel pump. HP fuel pumps work well on the street or in racing applications with up to 18.5 volt charging systems and 80 psi
Features and Benefits:

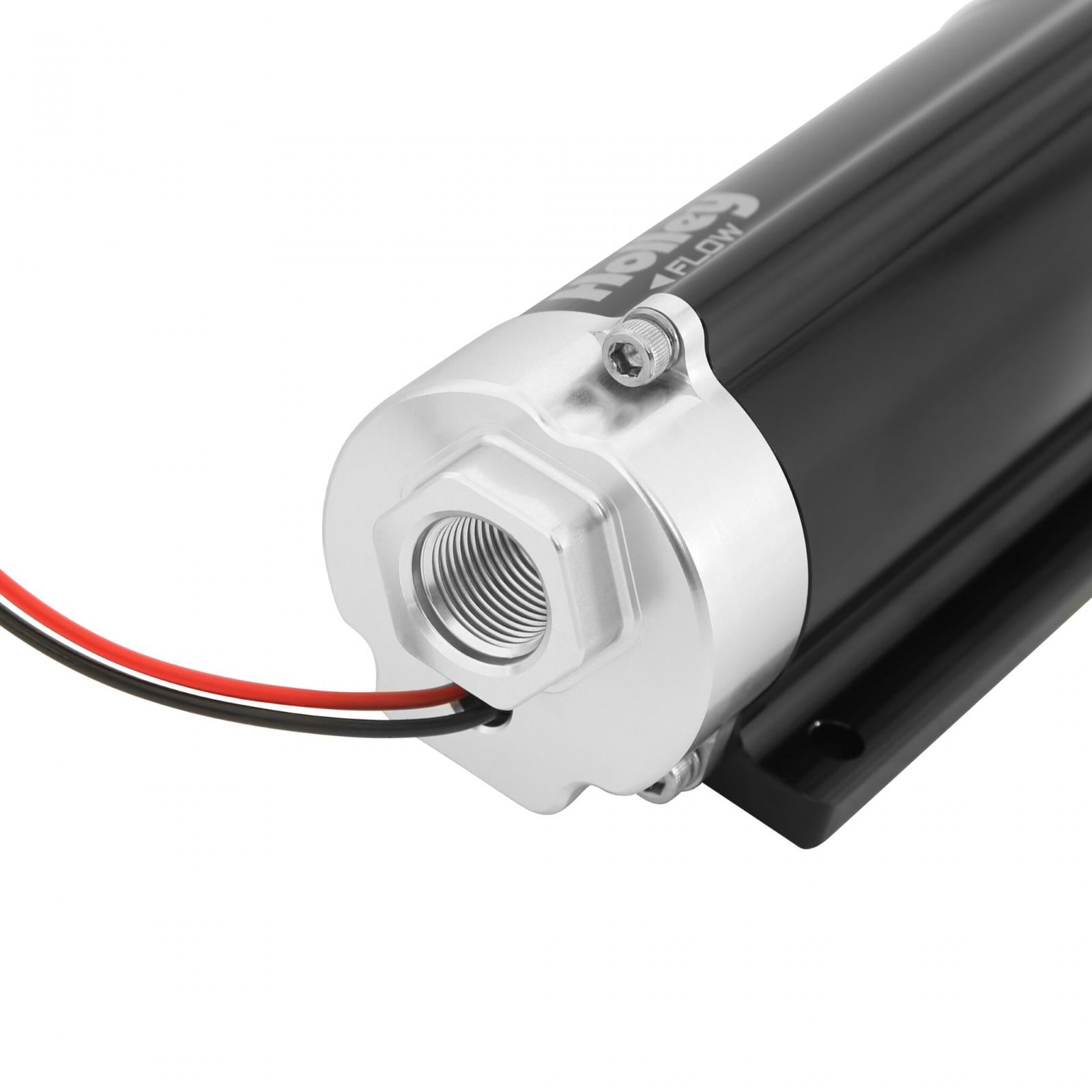

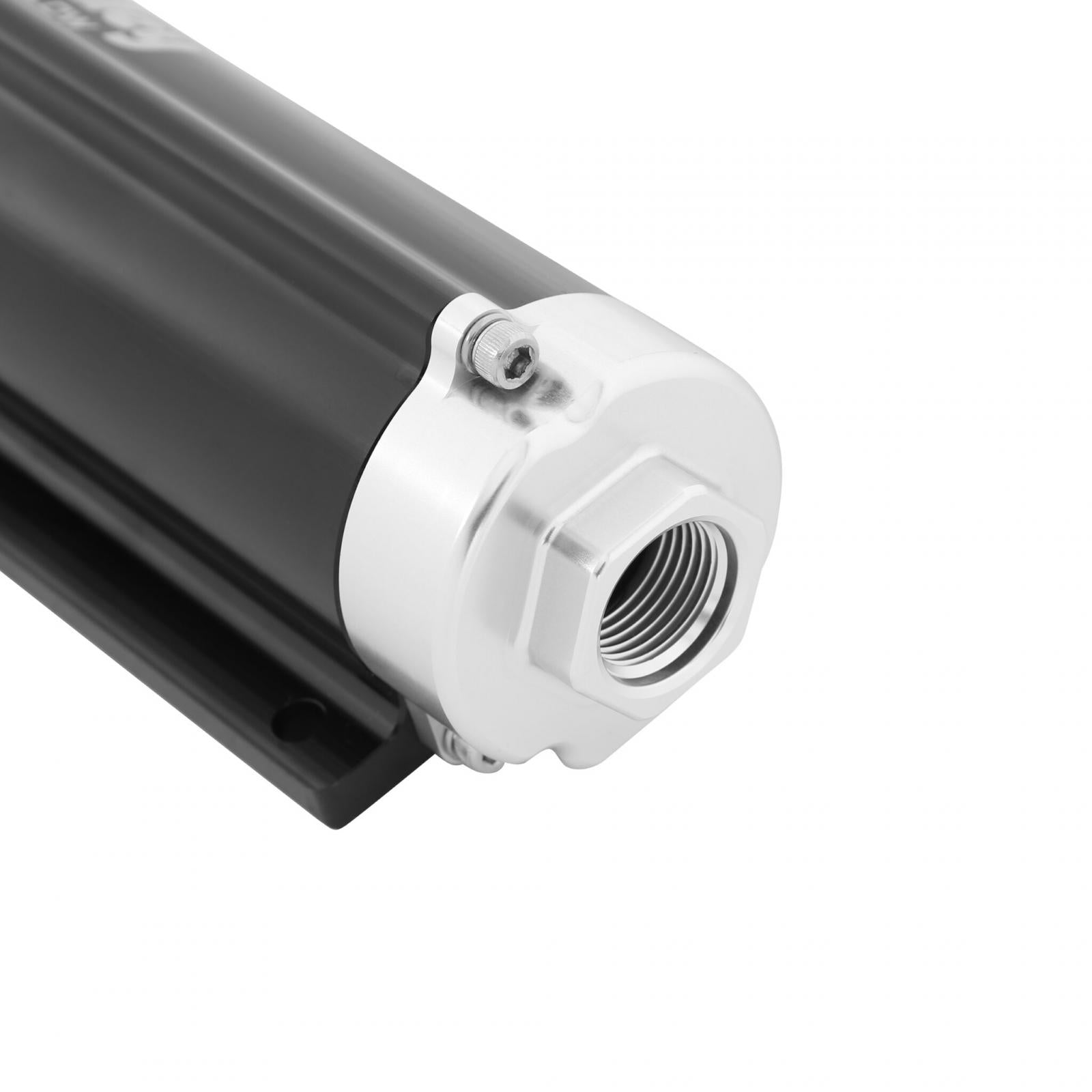

- Billet aluminum construction for durability & good looks -10 an O-ring inlet and -8 an O-ring outlet for high flow and superior sealing Excellent for use with carbureted or EFI applications Fully submersible in-tank for custom applications, space savings and less plumbing Compatible with 12v to 18.5v systems for street or race use Compact (7.5 inch long x 3 inch wide x 2.75 inch tall) for easy installation on frame rails or other tight areas Proven durability beyond 3,000 hours in gasoline Weighs only 3.1 lbs
- 14 AMP maximum amp draw Not designed for use on aircraft of any type.
Associated Comments:
- These pumps do not have an internal bypass. A bypass style regulator and return line are required.
- Not For Use With Methanol! Will not work with E-85 or Diesel This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump.
- Example: Part # AT981508ERL. Use of this style fitting will block flow and Will lead to poor performance and pump failure.
- The Only correct fitting to use is a contoured port fitting with an O-ring seal such as : Part # AT985081ERL.
Details:
- Application: Universal
- Forced Induction HP at 43PSI: 600.0
- Forced Induction HP at 60PSI: 530.0
- Forced Induction HP at 8PSI: 720.0
- Free Flow Gph: 80
- Fuel Type: Gasoline
- Fuel Delivery Type: Carburetor | Fuel Injection
- Fuel Sending Unit Included: No
- Fuel System: Carbureted | EFI

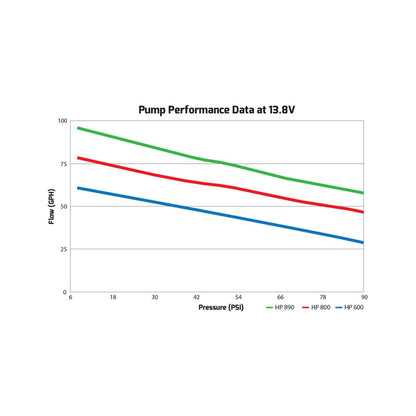

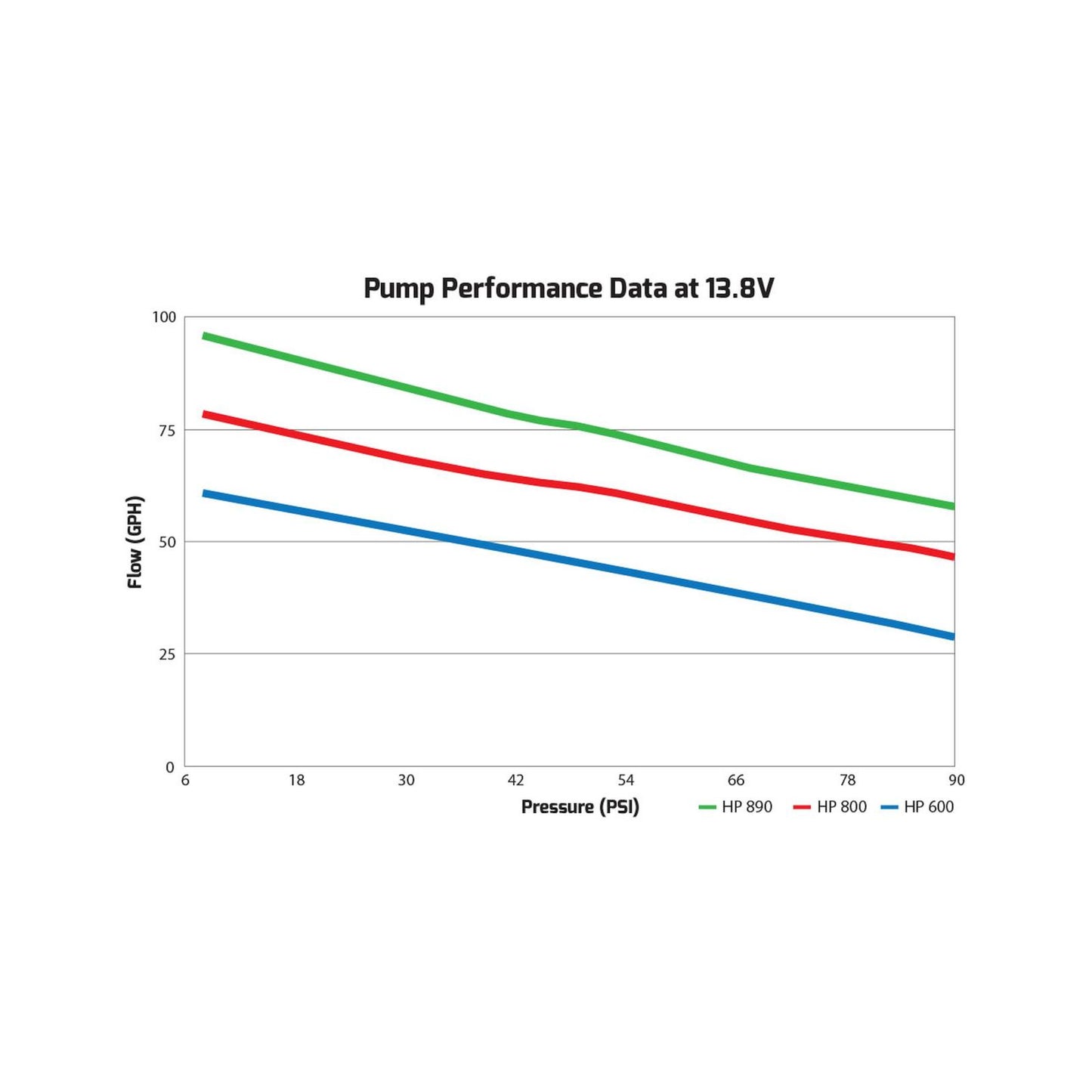

- Gph at 43PSI: 63.0
- Gph at 60PSI: 57.0
- Gph at 8PSI: 80.0
- Gasket Or Seal Included: No
- Grade Type: Performance
- Inlet Fitting Thread Size: 7/8-14 Inch
- Inlet Size: 10 An O-Ring - 7/8-14 Sae
- Inlet Type: 10 An Orb
- Internal Or External: Internal External
- Lph at 43PSI: 238
- Lph at 60PSI: 215
- Lph at 8PSI: 295.0
- Material: Aluminum
- Maximum Amperage Draw: 14 Ampere
- Maximum Flow Rating: 80 U.S. Gallons per hour
- Maximum Pressure: 80 Pounds per Square Inch
- Mounting Hardware Included: No
- Naturally Aspirated HP at 43PSI: 800.0
- Naturally Aspirated HP at 60PSI: 690.0
- Naturally Aspirated HP at 8PSI: 900.0
- Negative Ground: Yes
- Outlet Fitting Thread Size: 3/4-16 Inch
- Outlet Quantity: 1
- Outlet Size: 8 An O-Ring - 3/4-16 Sae
- Outlet Type: 8 An Orb
- Pump Body Color: Black Anodized
- Regulator Included: No
- Strainer Included: No
- Universal Or Specific Fit: Universal
- Voltage: 12-18.5 Volts DC
- Warranty: Manufacturer's Limited 90 Day Warranty

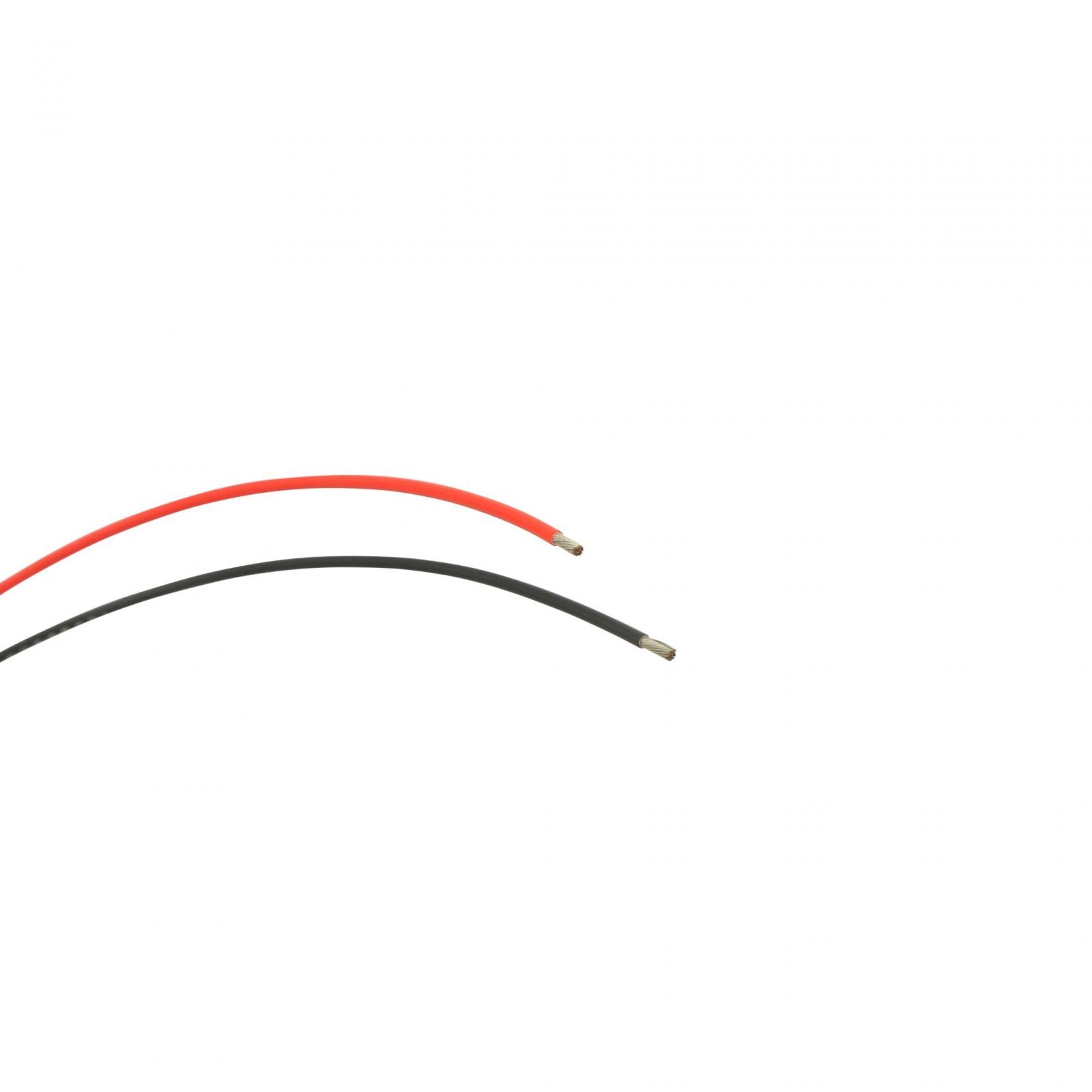

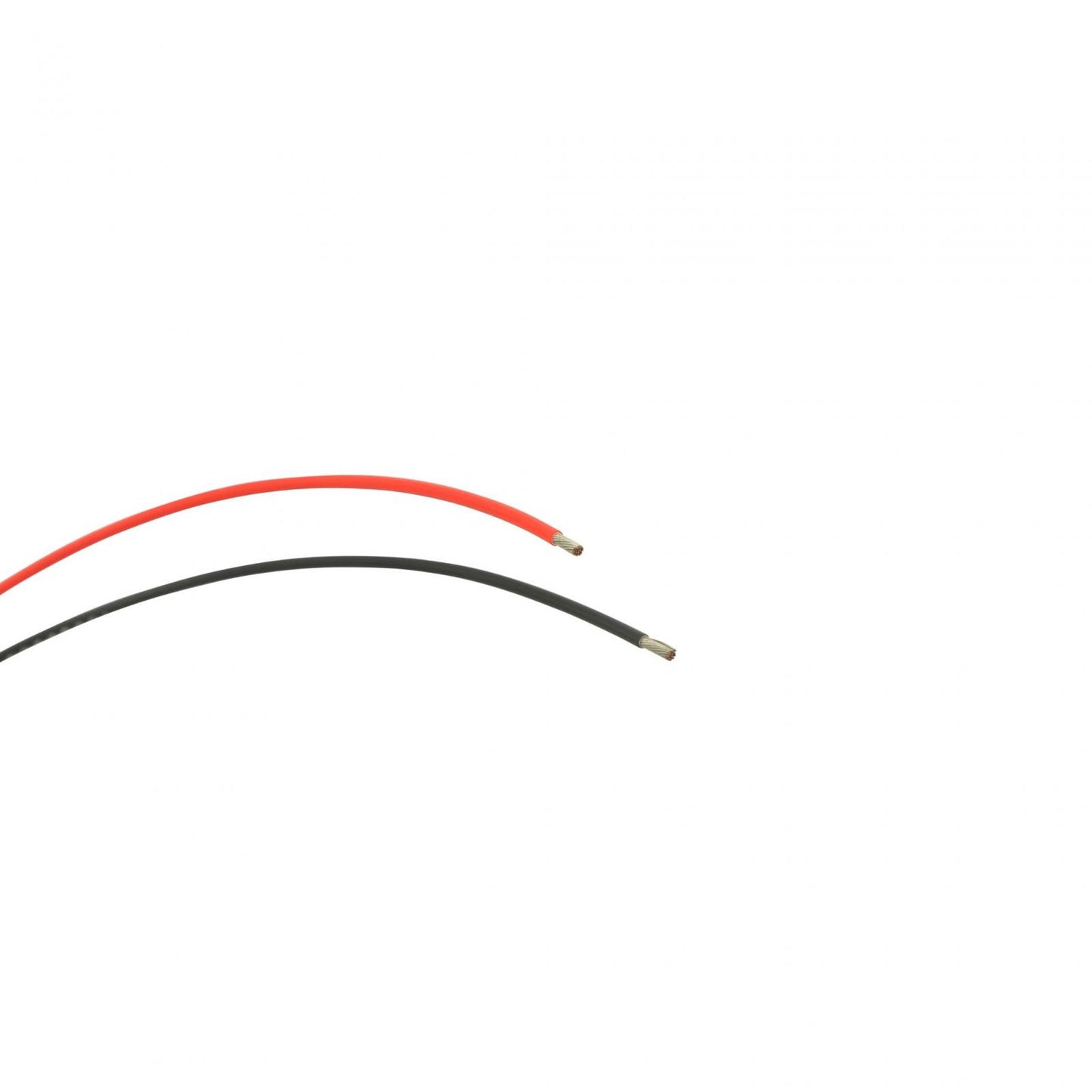

- Wire Quantity: 2.0
- Wiring Harness Included: No
