8.6 GM 33-1/16 30Spl 6 Lug Axle Shaft , Left Hand 2003 & Up Envoy & Trailblazer USA Standard Gear

  • 8.6 GM 33-1/16 30Spl 6 Lug Axle Shaft , Left Hand 2003 & Up Envoy & Trailblazer USA Standard Gear
  • 8.6 GM 33-1/16 30Spl 6 Lug Axle Shaft , Left Hand 2003 & Up Envoy & Trailblazer USA Standard Gear-1
1 2

USA Standard Gear

ZA G12479160

$255.89
$255.89
Sale Sold out
Shipping calculated at checkout.
View full details

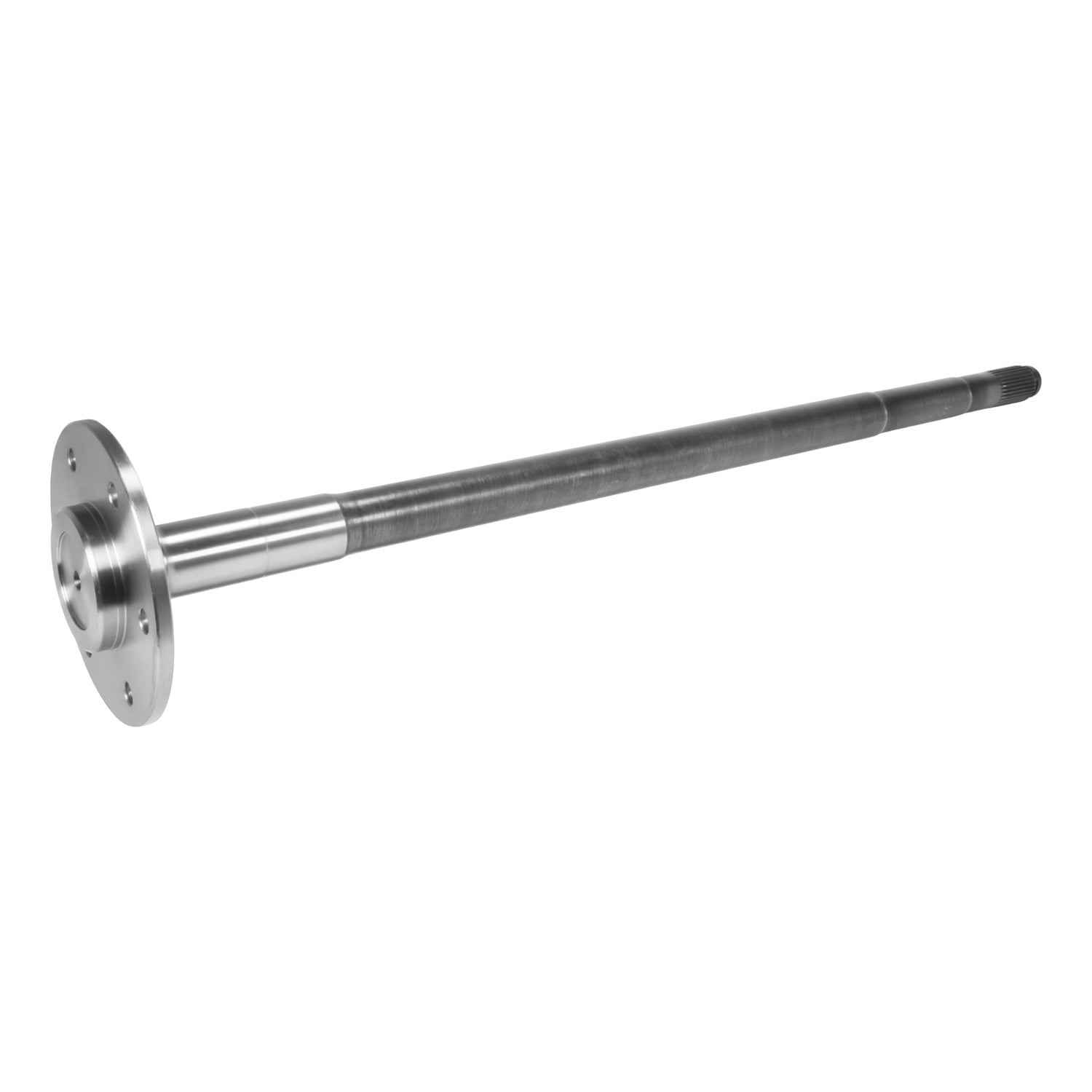

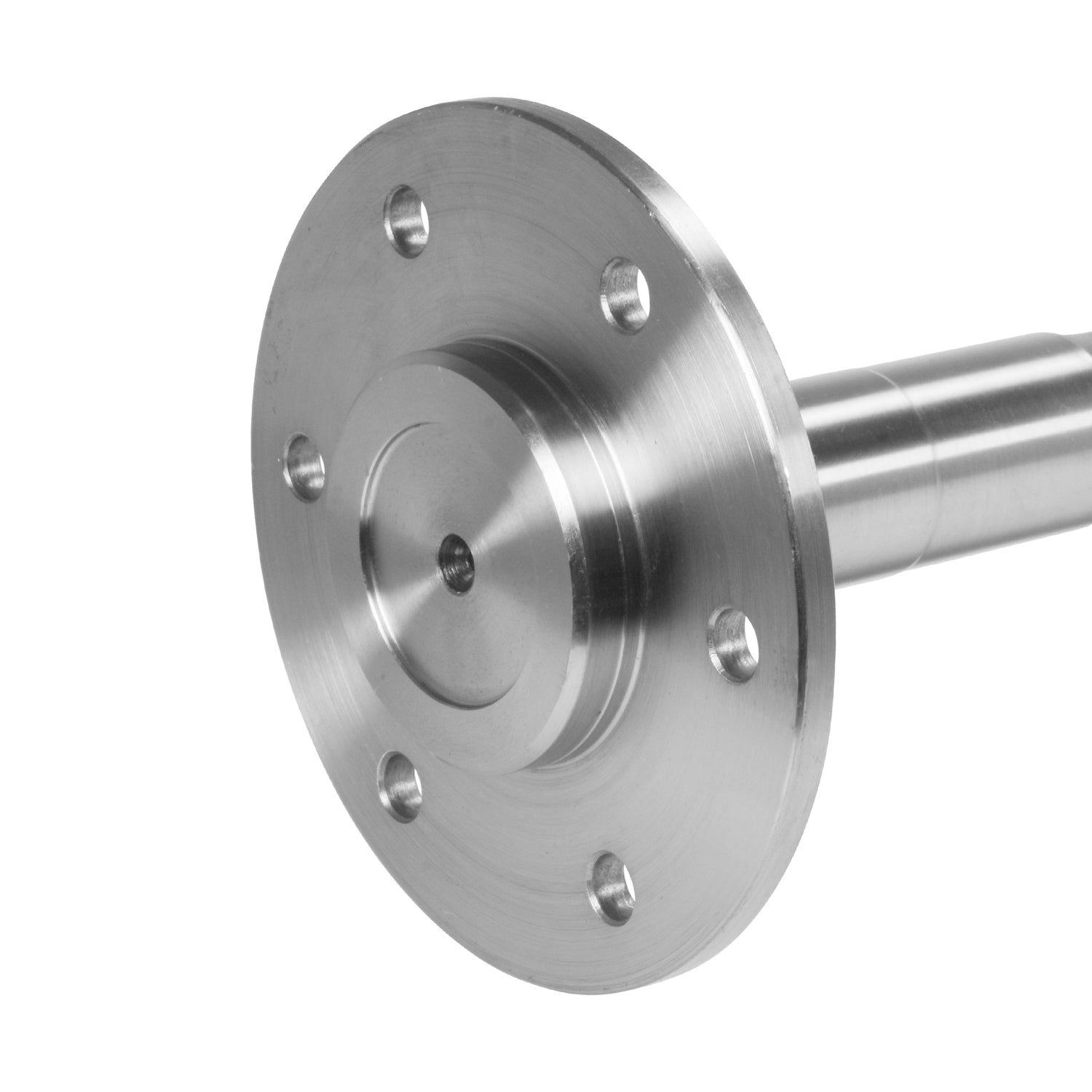

8.6 GM 33-1/16 30Spline 6 Lug Axle Shaft, Left hand 2003 & Up Envoy & Trailblazer .

  • 6 lug
  • 33 1/16 long
  • 30 spline
  • Fits GM 8.6 inch 2003-2009 Envoy and Trailblazer

Features and Benefits:

  • 6 lug
  • 33 1/16 inch long
  • 30 spline
  • Fits GM 8.6 inch in 2003-2009 Envoy and Trailblazer

Details:

  • AAP UDA 4:50
  • Axle Nut Included:No
  • Axle Shaft Seal Included:No
  • Axle Type:semi Float
  • Cv Joints Included:No
  • Inboard Spline Quantity:30
  • Retainer Included:no
  • Rust Resistant Coating:No
  • Shaft Length:33.06 inch
  • Wheel Bolt Pattern Size:6 x 5.5 inch

Application Summary:

2003-2006 Isuzu Ascender (Rear Left) (Qualifier: 7 Passenger / Note: GM 8.6 inch.

  • 30 Spline
  • 33-1/6 inch. Length
  • 6 Lug, GM 8.6 inch.
  • 30 Spline
  • 33-1/6 inch. Length
  • 6 Lug
  • w/ 7 Passenger (3rd Row Seat))
  • 2004-2007 Buick Rainier (Rear Left) (Liter: 5.3, 4.2 & Engine(cc): 5328 & Engine(ci): 325, 256 & Cylinder: 8, 6 & Block: V, L / Qualifier: with Dmitry Test Differential, with Differential Housing # diff-00001, with 18 (in) Diameter Wheel / Note: GM 8.6 inch.
  • 30 Spline
  • 33-1/6 inch. Length
  • 6 Lug)
  • 2002-2006 Chevrolet Trailblazer Ext (Rear Left) (Wheel Base: 129.0 / Note: GM 8.6 inch.
  • 30 Spline
  • 33-1/6 inch. Length
  • 6 Lug)
  • 2003-2006 Chevrolet Ssr (Rear Left) (Transmission Base Gear: 4 / Note: GM 8.6 inch.
  • 30 Spline
  • 33-1/6 inch. Length
  • 6 Lug)
  • 2006-2009 Chevrolet Trailblazer (Rear Left) (Liter: 5.3, 4.2 & Engine(cc): 5328 & Engine(ci): 325, 256 & Cylinder: 8, 6 & Block: V, L & Wheel Base: 113.0 / Qualifier: with 18 (in) Diameter Wheel / Note: GM 8.6 inch.
  • 30 Spline
  • 33-1/6 inch. Length
  • 6 Lug)
  • 2004-2005 GMC Envoy Xuv (Rear Left) (Note: GM 8.6 inch.
  • 30 Spline
  • 33-1/6 inch. Length
  • 6 Lug)
  • 2002-2006 GMC Envoy Xl (Rear Left) (Note: GM 8.6 inch.
  • 30 Spline
  • 33-1/6 inch. Length
  • 6 Lug)
  • 2005-2009 GMC Envoy (Rear Left) (Liter: 5.3, 4.2 & Engine(cc): 5328 & Engine(ci): 325, 256 & Cylinder: 8, 6 & Block: V, L / Qualifier: with 18 (in) Diameter Wheel / Note: GM 8.6 inch.
  • 30 Spline
  • 33-1/6 inch. Length
  • 6 Lug)
  • 2005-2009 Saab 9-7x (Rear Left) (Liter: 4.2, 5.3 & Engine(cc): 5328 & Engine(ci): 256, 325 & Cylinder: 6, 8 & Block: L, V / Note: GM 8.6 inch.
  • 30 Spline
  • 33-1/6 inch. Length
  • 6 Lug)
