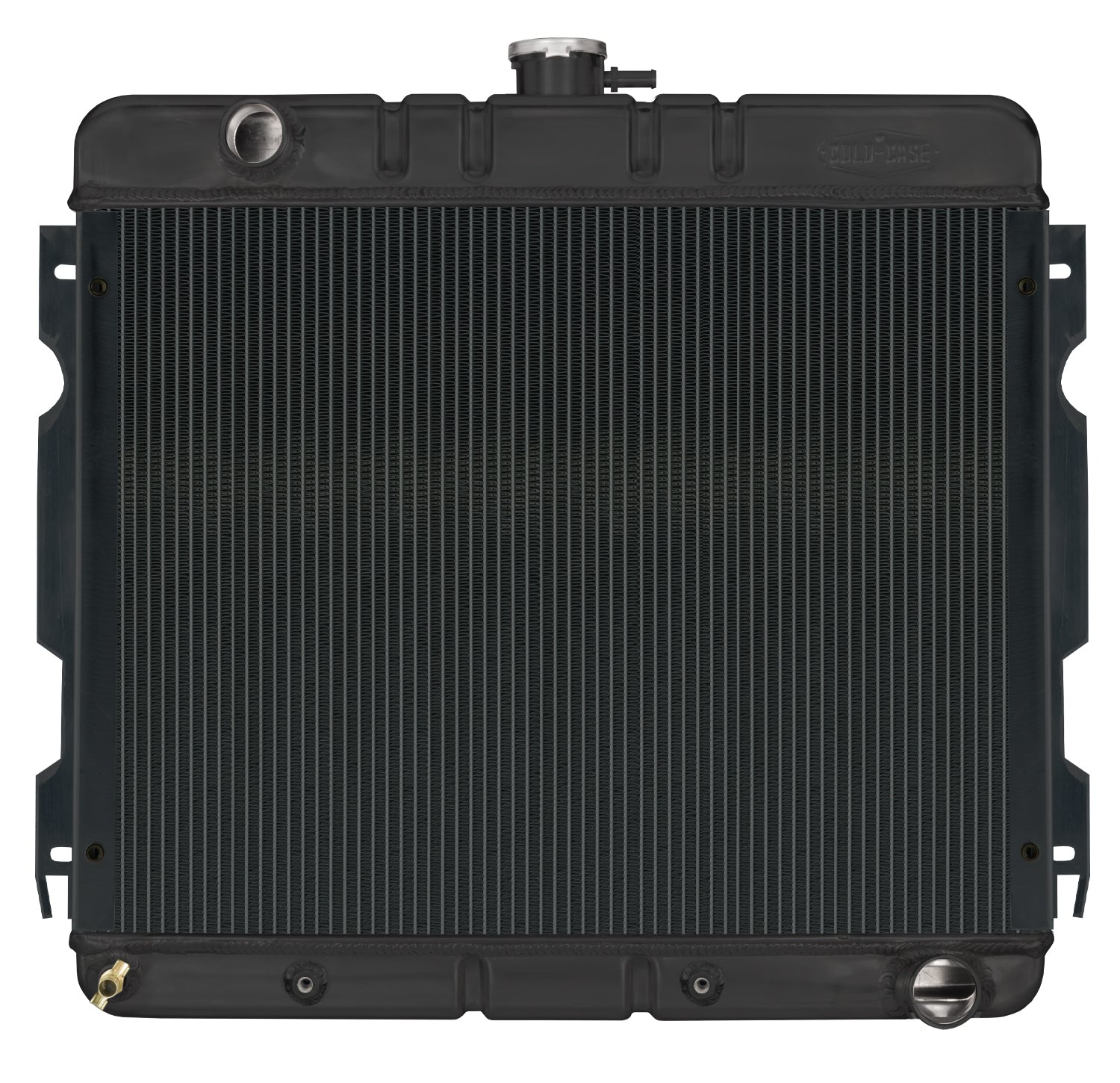

70-72 A,B Body Small Block Automatic 17 X 22 Inch Aluminum Performance Radiator Black Night Rider Series Cold Case Radiators

1970-1972 Mopar A,B Body Small Block Aluminum Performance Radiator. Night Rider Black Series. AT Cars. Fits some of the following. Double check dimensions.

If using the original fan shroud, part number 2785614 and 2998325 will work. Just will need to drill holes into the radiator flange.

Fits:

• 71-74 Barracuda (original shroud won't fit. Use our electric fan kit)
• 70-72 Dart
• 71-72 Demon
• 71-72 Duster
• 71-72 Valiant

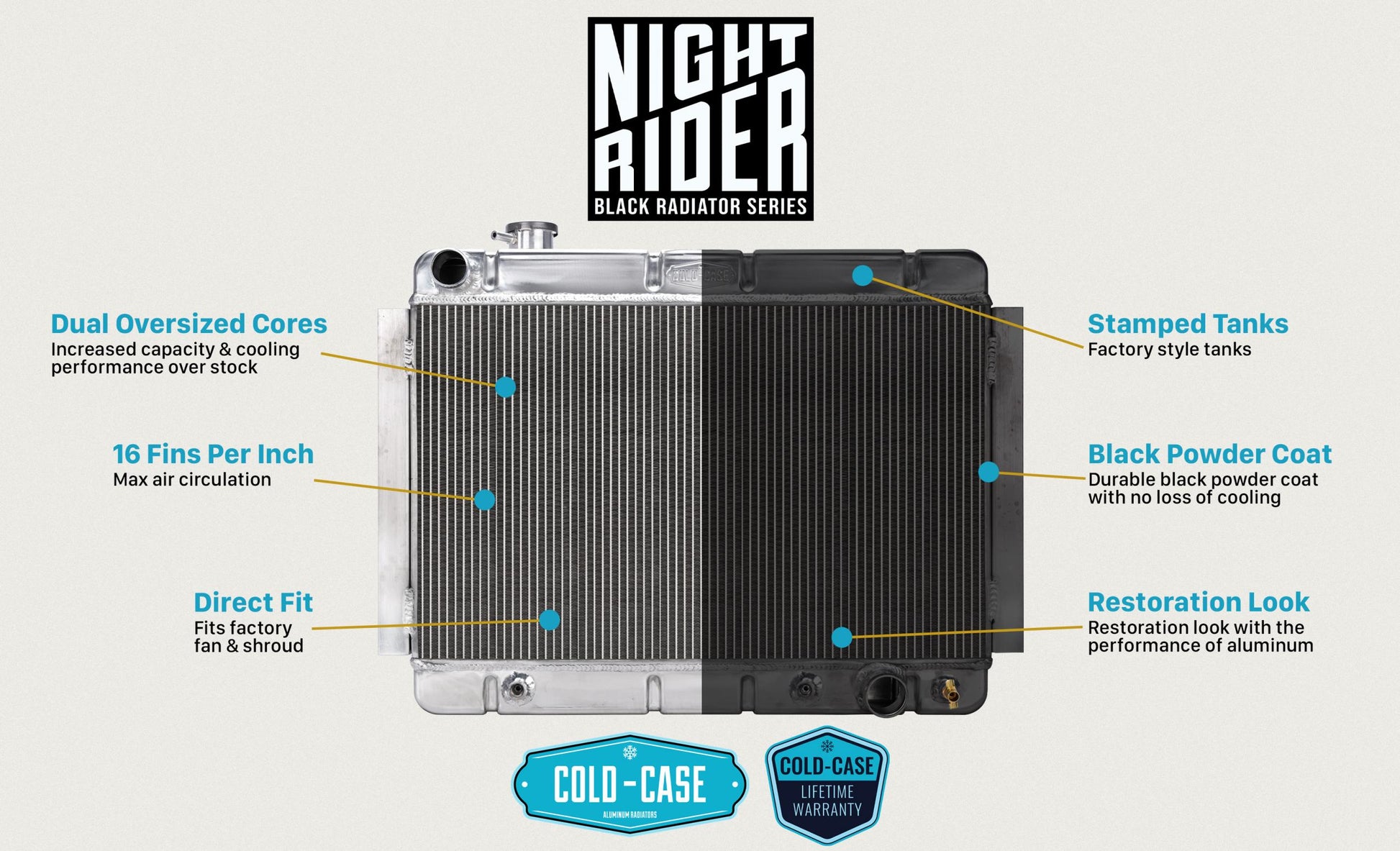

Our Night Rider Black series radiators blend performance with original appearance to give you the best of both worlds. You will be hard pressed to find a difference between an original versus a Cold-Case.

These Cold-Case radiators are Tig welded 100 percent aluminum and feature OEM appearing stamped tanks. Perfect for that restored car wanting the appearance of stock without sacrificing performance.

• 100 percent TIG welded
• All Aluminum Powder Coated Black
• (2) 1.25 inch Tubes
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For Automatic trans
• Works with the original fan shroud unless noted

Radiator Specs:

• Core Height 17 inch
• Core Width 22 inch
• Overall Height 22.5 inch
• Overall Width 25 inch
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.77 inch
• Trans Cooler Fitting: 1/8 inch National Pipe Thread
