67-70 Mustang Coyote Swap 24 Inch Automatic Aluminum Performance Radiator Cold Case Radiators

Upgrade the cooling system in your Coyote-swapped 1967-1970 Ford Mustang with the Cold-Case FOM588A-5K 24 Inch Aluminum Performance Radiator Fan & Shroud Kit. Based on our proven FOM588K radiator, this Coyote Swap-specific kit combines the FOM588A-5 radiator with a complete electric fan and shroud setup for an efficient, clean-looking cooling solution.

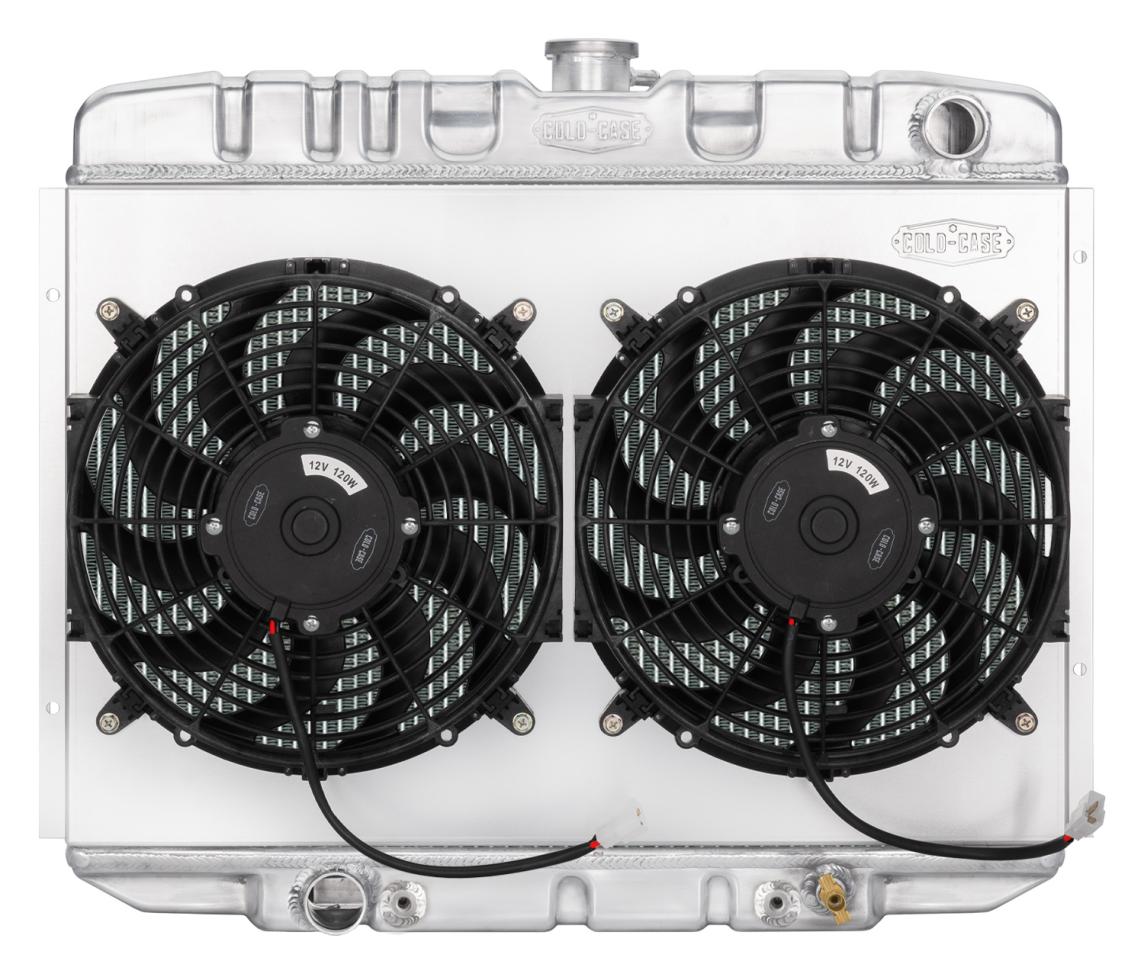

The FOM588A-5K includes the 24 Inch Cold-Case aluminum radiator, shroud, and dual 12 Inch electric fans, providing increased airflow across the radiator core while maintaining a clean, integrated installation.

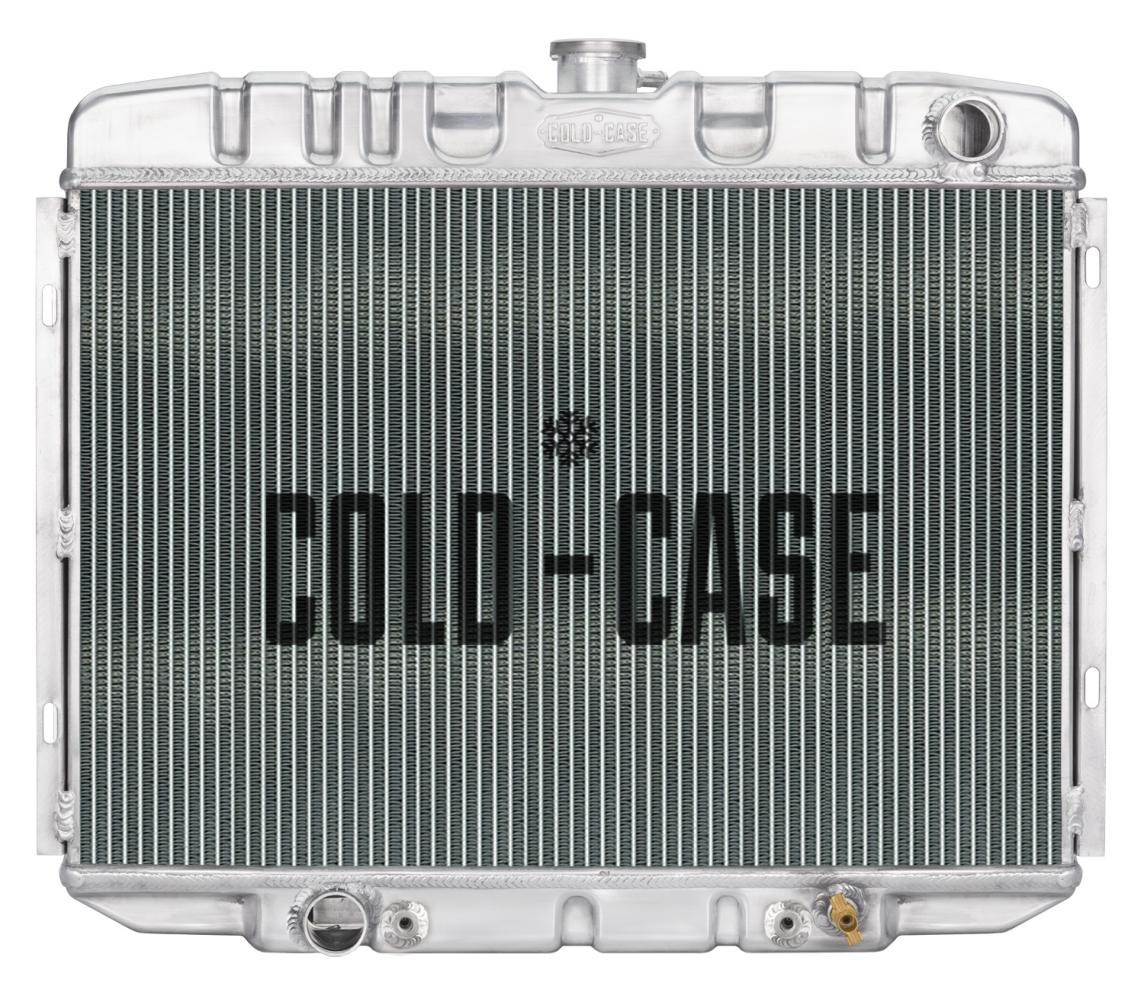

This radiator features a right-hand inlet and left-hand outlet, making it ideal for Coyote Swap builds requiring this hose configuration. The oversized 24 Inch, 2-row core provides significantly more cooling surface area than the original 20 Inch radiator.

For owners upgrading from a 20 Inch radiator, the 24 Inch radiator can be installed by purchasing a pair of lower radiator brackets, rubber insulators, and an upper radiator bracket and rubber insulator from your preferred Mustang restoration supplier. The support shields on the left and right sides of the radiator support should also be removed to increase the opening and take full advantage of the larger radiator.

Cold-Case radiators are 100 percent TIG welded aluminum and feature polished OE-style tanks for a clean, original-appearing look. The oversized 2-row design uses 1 Inch tubes and 16 fins per inch, with corrugated fins that provide increased surface area and improved thermal transfer.

Features and Benefits:

• Complete Coyote Swap radiator, fan & shroud kit
• 24 Inch wide oversized radiator core
• Right-hand inlet and left-hand outlet
• 100 percent TIG-welded aluminum construction
• Polished OE-style tanks
• Oversized 2-row design
• 1 Inch radiator tubes
• 16 fins per inch
• Corrugated fins for increased surface area and thermal transfer
• Includes dual 12 Inch electric fans
• Includes fan shroud
• Pressure tested
• For automatic transmission applications
• Original-appearing radiator design
• Lifetime Warranty
• 60-Day Cool Guarantee

Fitment Notes:

• 1967 Mustang: Upper Bracket C7ZZ-8A193-A, Upper Insulators C7OZ-8124-A, Lower Brackets C8ZZ-8052-A, Lower Insulators C8ZZ-8125-A
• 1968 Mustang: Upper Bracket C7ZZ-8A193-A, Upper Insulators C7OZ-8124-A, Lower Brackets C8ZZ-8052-A, Lower Insulators C8ZZ-8125-A
• 1969-1970 Mustang: Upper Bracket C9ZZ-8A193-A, Upper Insulators C7OZ-8124-A, Lower Brackets C8ZZ-8052-A, Lower Insulators C8ZZ-8125-A

Note: This radiator and fan/shroud kit is specifically intended for Coyote Swap applications. Verify radiator dimensions, hose routing, mounting requirements, electrical requirements, and engine/accessory configuration before ordering.

Details:

• Core Height: 16 Inch
• Core Width: 24 Inch
• Overall Height: 21.5 Inch
• Overall Width: 25 Inch
• Overall Thickness: 3 Inch
• Upper Hose: 1.5 Inch
• Lower Hose: 1.5 Inch
• Tubes: (2) 1 Inch Tubes
• Rows: 2
• Fins Per Inch: 16
• Inlet/Outlet: Right-Hand Inlet, Left-Hand Outlet
• Material: Aluminum
• Finish: Polished
• Transmission: Automatic
• Fans: Dual 12 Inch Electric
• Shroud: Included

Applications:

• 1967-1970 Ford Mustang
• 1967-1970 Mercury Cougar
