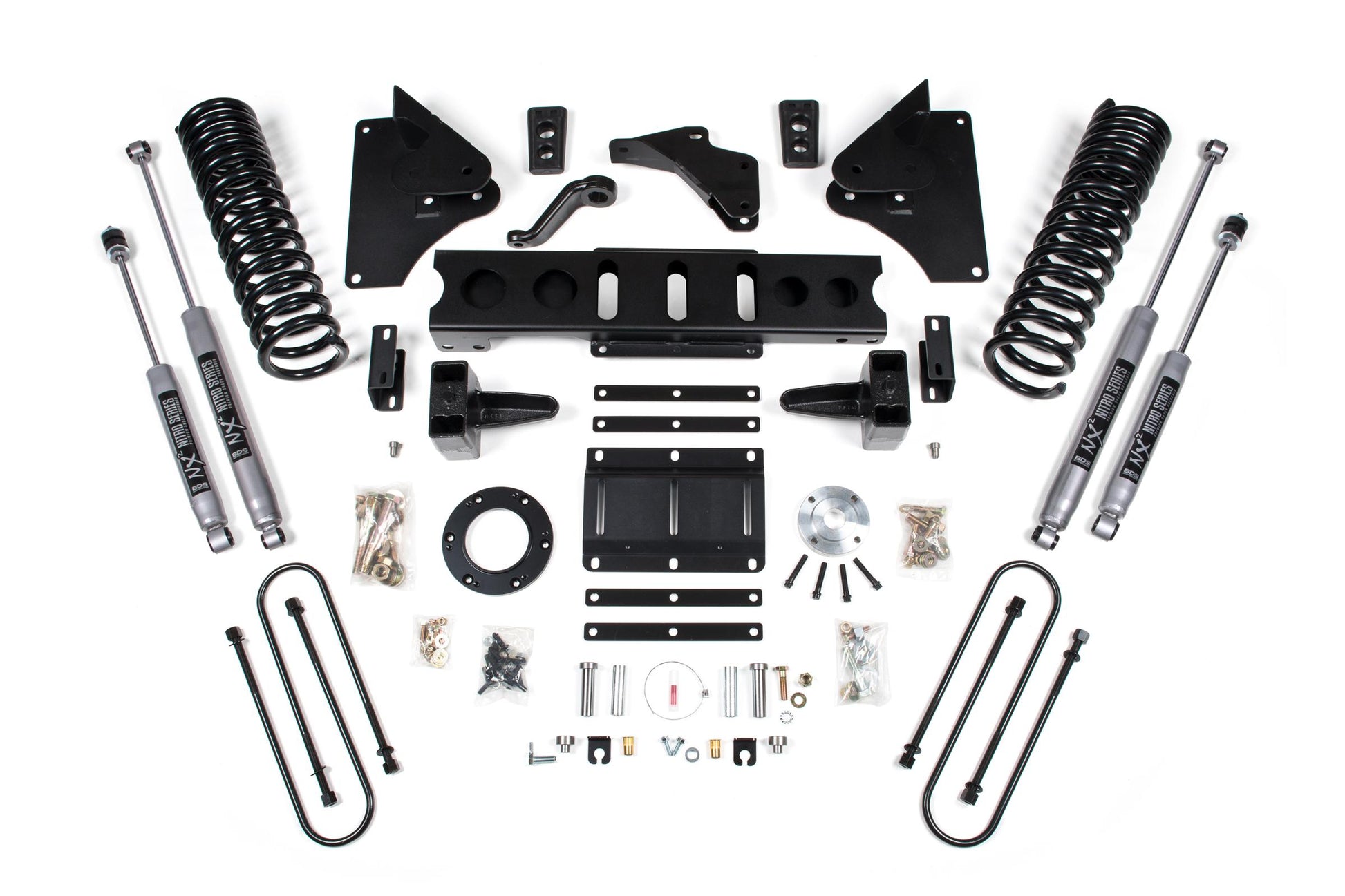

Improve the ride and style of your 2013-2018 RAM 3500 diesel powered truck with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Front Lift Method: Coil Spring
Rear Lift Method: Block
Shocks Included: Yes
Front Lift Height: 6 inch
Rear Lift Height: 5 inch
The carrier bearing drop is necessary for models equipped with the two-piece rear drive shaft.
Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.
Heavy duty radius arm drop brackets maintain proper suspension geometry
Front high strength progressive rate coil springs for a great ride on any terrain
Front track bar relocation bracket to re-position axle
Forged drop pitman arm to correct steering angles
Front sway bar correction to maintain handling performance
HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
Rear Lift Option Block Kit
4 Inch Block: Tail low to level stance
Made of cast iron for high strength.
Designed to provide correct pinion angles.
Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5
Shock Option NX2 Nitro Series
Nitrogen-charged
Twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for increased strength
1-3/8-inch high-flow piston
Self-lubricating seals
Silver powder coat finish
8 Bolt Indexing Ring
Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
The 8-bolt kit also
Includes an internal shaft seal extension and new shaft seal.
Kit Components:
Includes one BDS012405, 03-up Dodge 3/4ton 4 Inch Rear, UPC Code 658848612352
Includes one BDS012610, 2013 Ram 3500 6 inch Front Box Kit, UPC Code 658848612727
Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel, UPC Code 658848616428
Includes one BDS122813, 13 3500/14 2500 Ram T-Case Index- 8 Bolt, UPC Code 658848619849
Includes one BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
Includes one BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709
